Evolution HDMI® Extender with KVM and PoE

SKU: EVEXKVM1 Categories: ,

Description

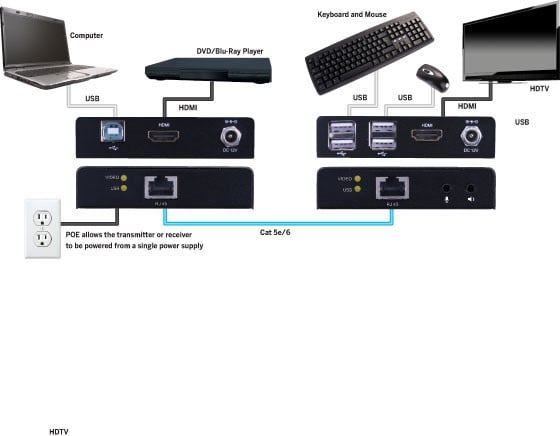

  • Transmits audio and video via HDMI as well as complete KVM (Keyboard- Video- Mouse) functionality via USB 2.0 ports over a single Cat5e/6 up to 164ft/50m with POE.
  • Power Over Ethernet (PoE)- integrates power into the Cat5e/6 cable- requiring no power supply for either the Transmitting unit or Receiving unit (opposite of unit that is plugged in to power)
  • Auto EDID management automatically adjusts to overcome compatibility issues
  • Auto EQ distance for perfect transmission and reception of HDMI signals
  • Supports up to 1920×1080 @ 60Hz resolutions
  • Transmission Range: Extends HDMI signals up to 164ft/50m over a single Cat5e or Cat6 cable
  • Extends USB 2.0 high speed at 480Mbps to 164ft/50m

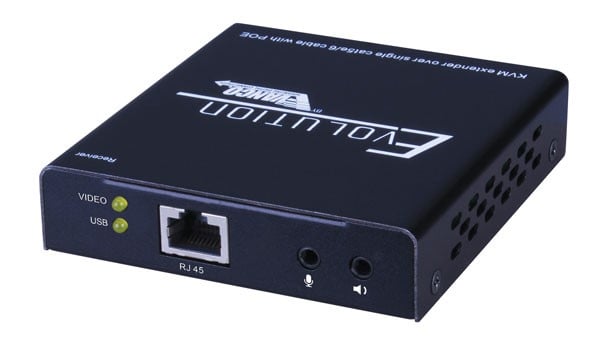

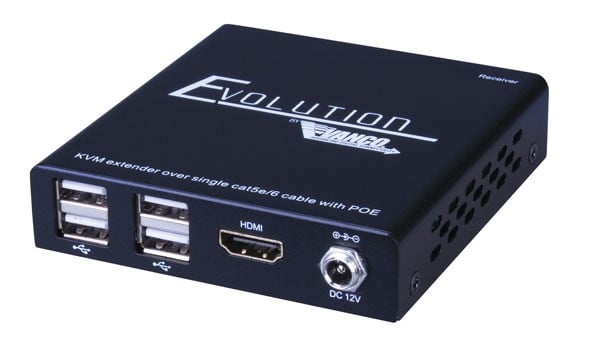

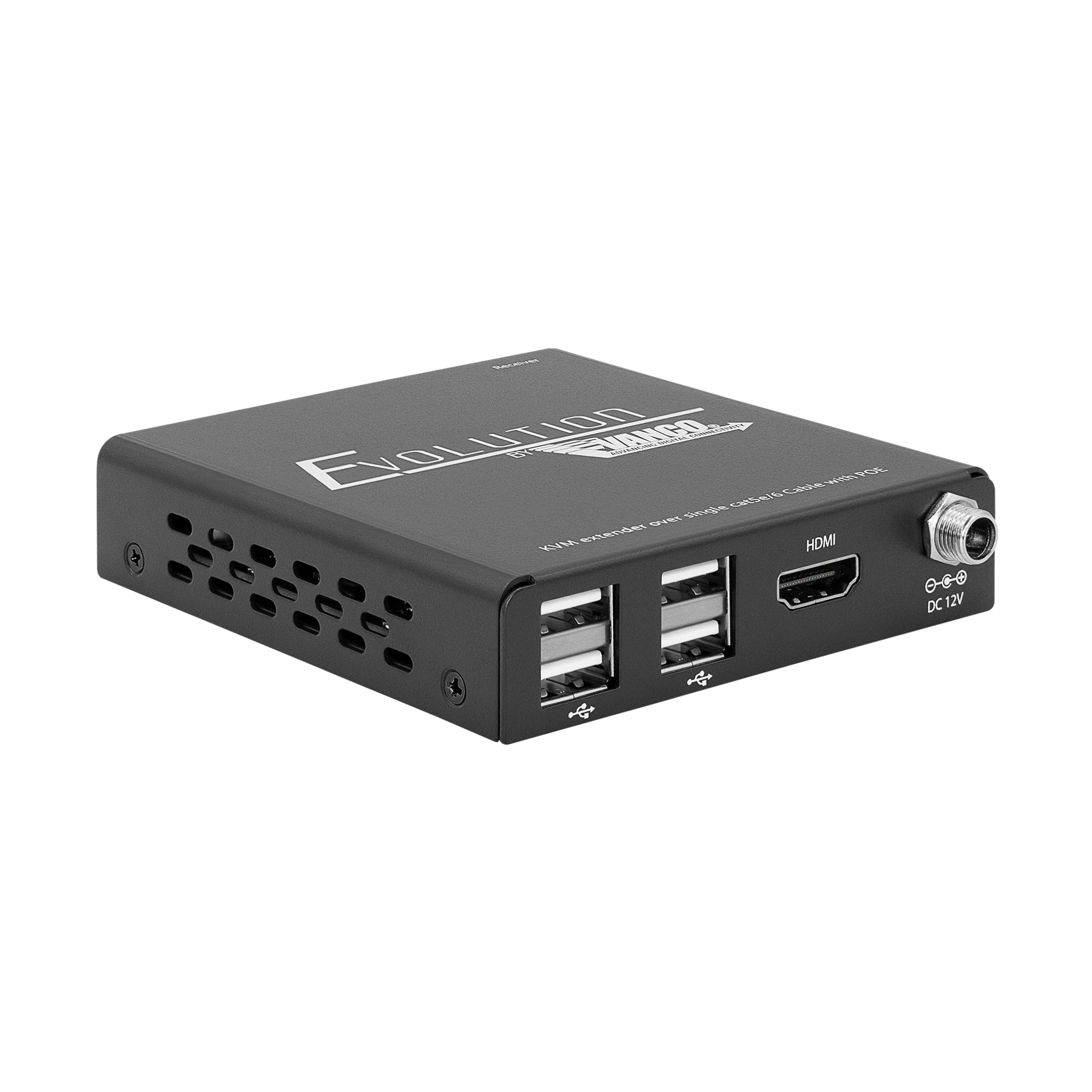

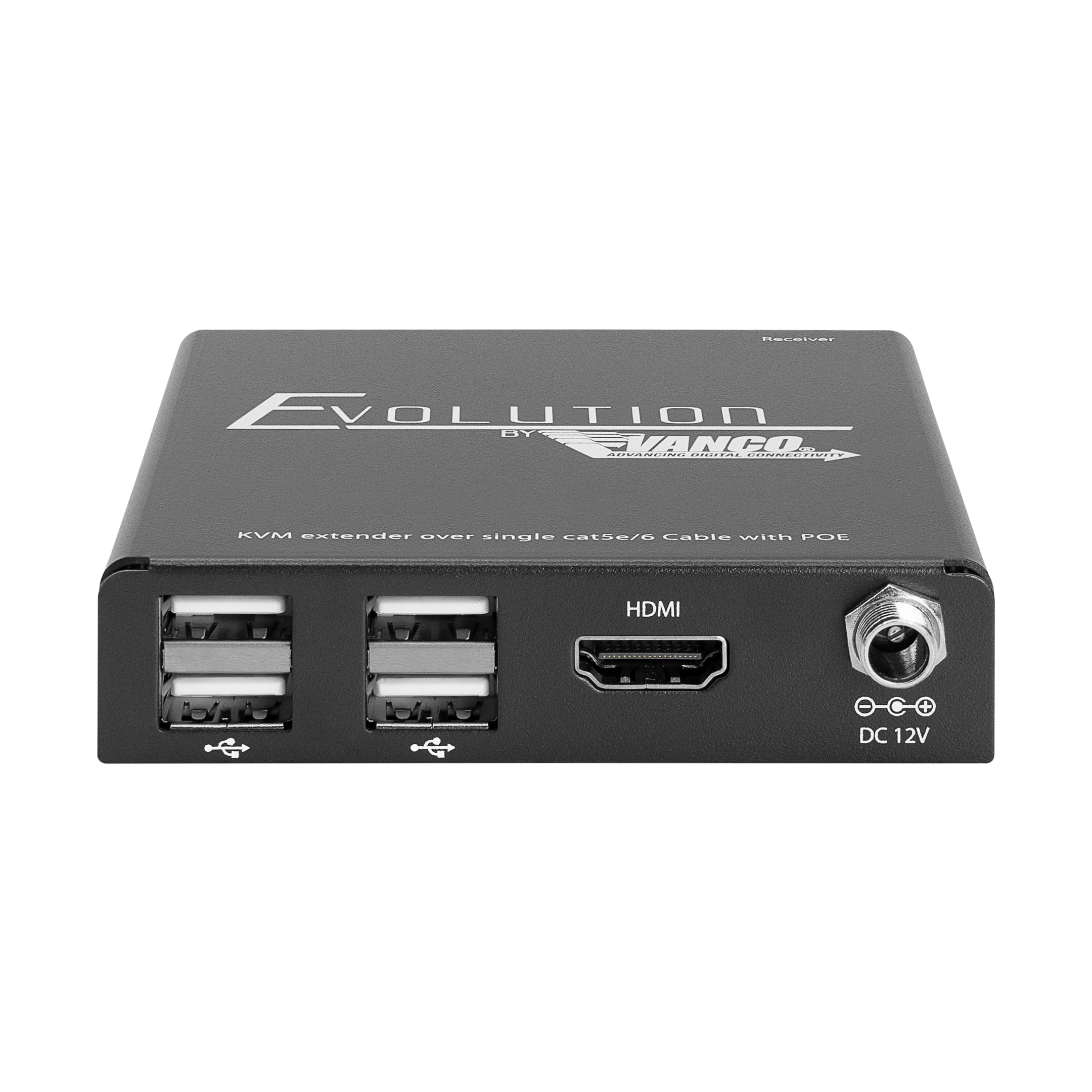

  • RX unit provides 4 USB 2.0 high speed ports at display end
  • USB ports allow for charging of connected USB devices (please use properly certified and licensed cabling with utilizing the charging feature)

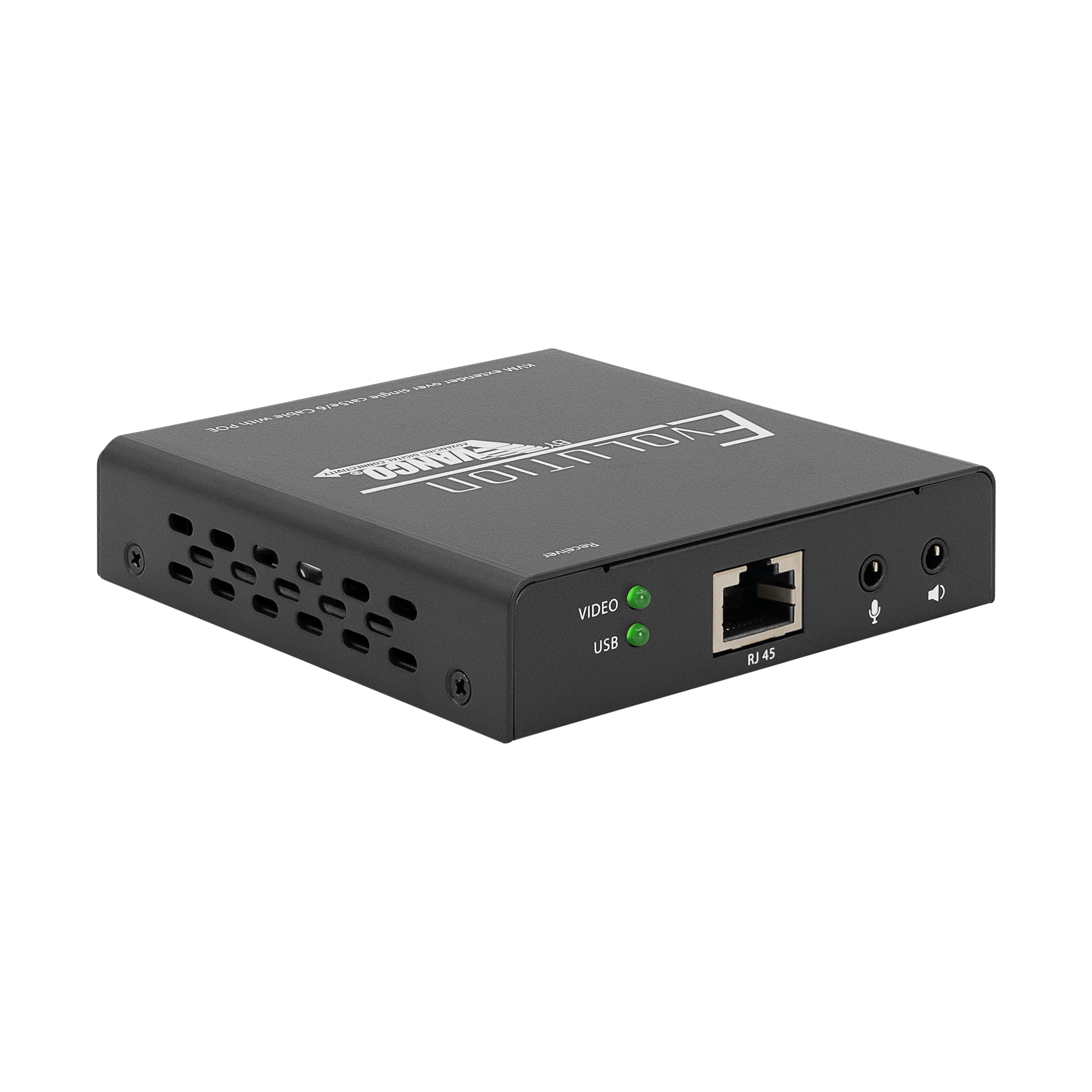

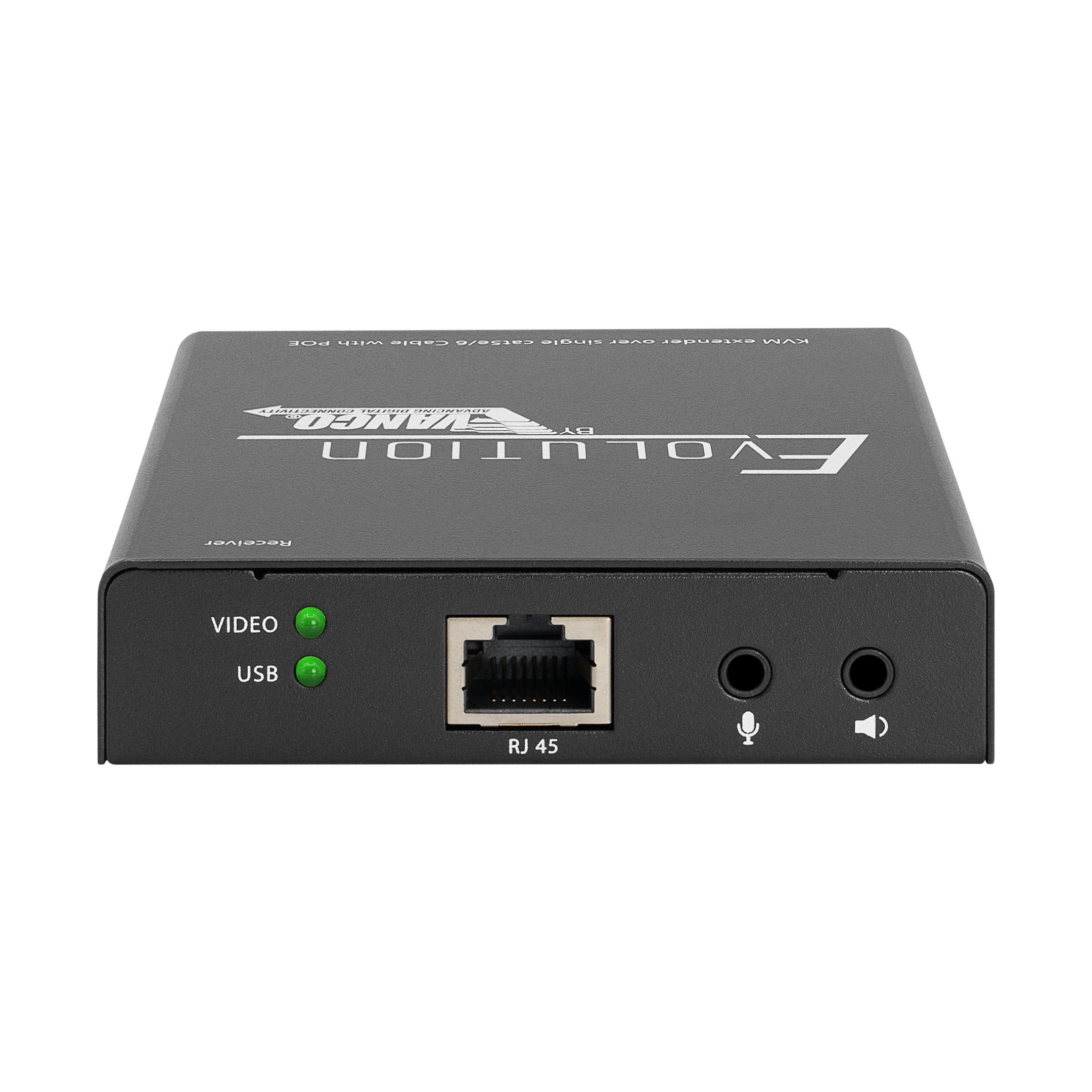

  • RX integrated with Hi-Fi USB audio card- supports analog passive earphone and microphone access
  • VESA DDC and hot swap technology (HPD)
  • Compatible HDMI 1.3/DVI 1.0
  • HDCP 1.4
  • Dimensions: 3.25″ W x .8″ H x 3.6″ D
  • Patent No. 9,710,038 B1

Package Contents:

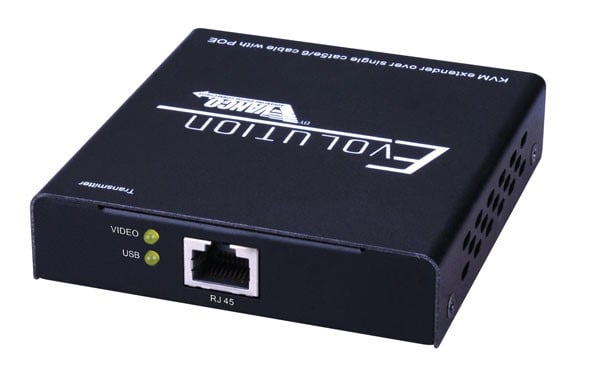

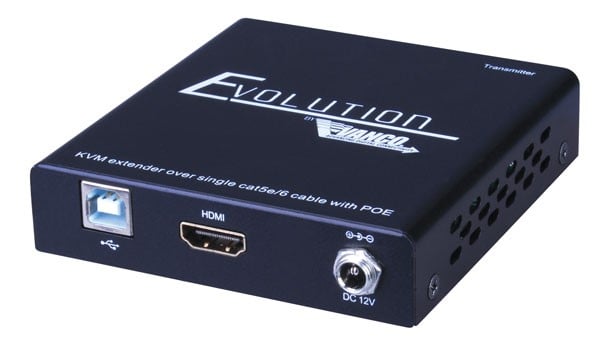

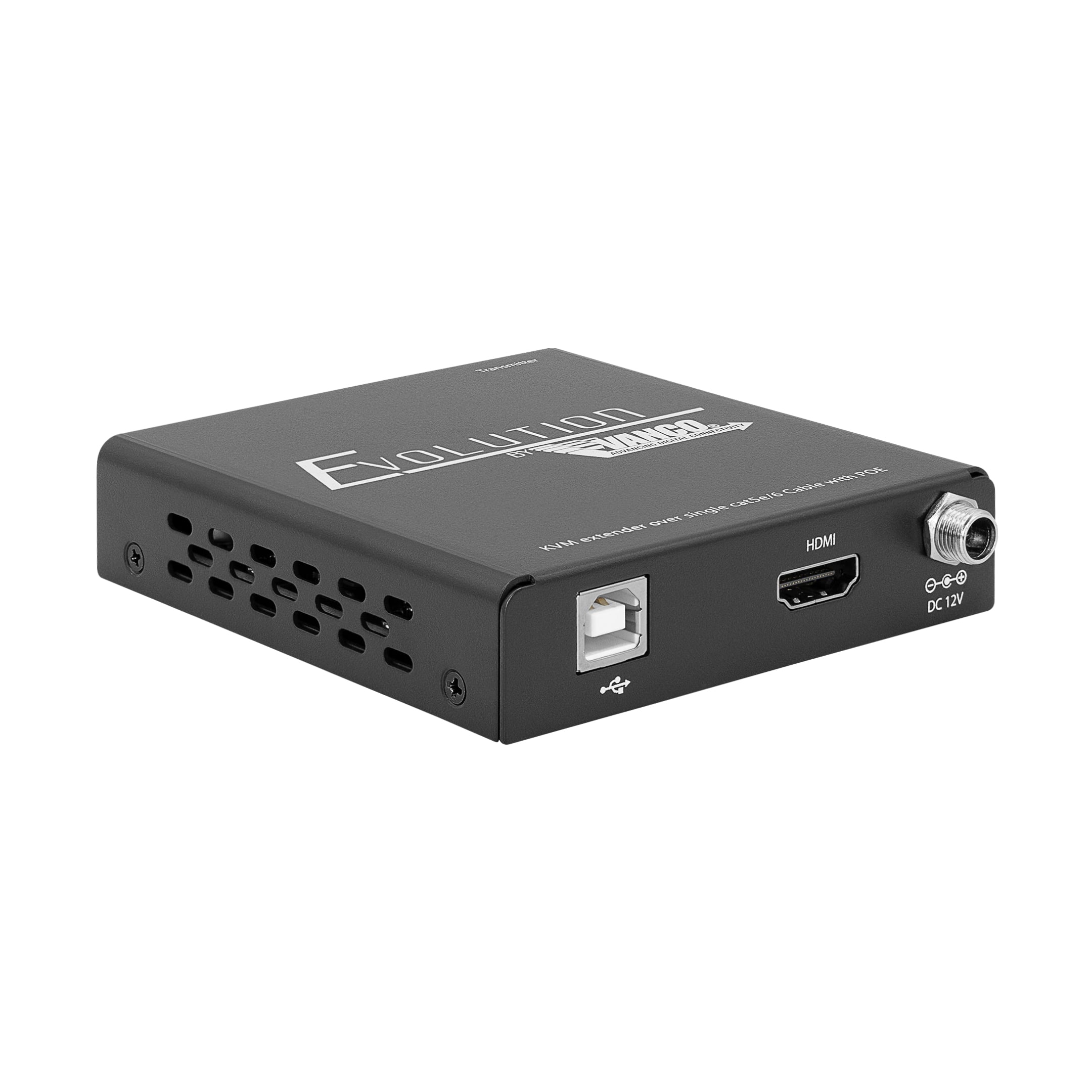

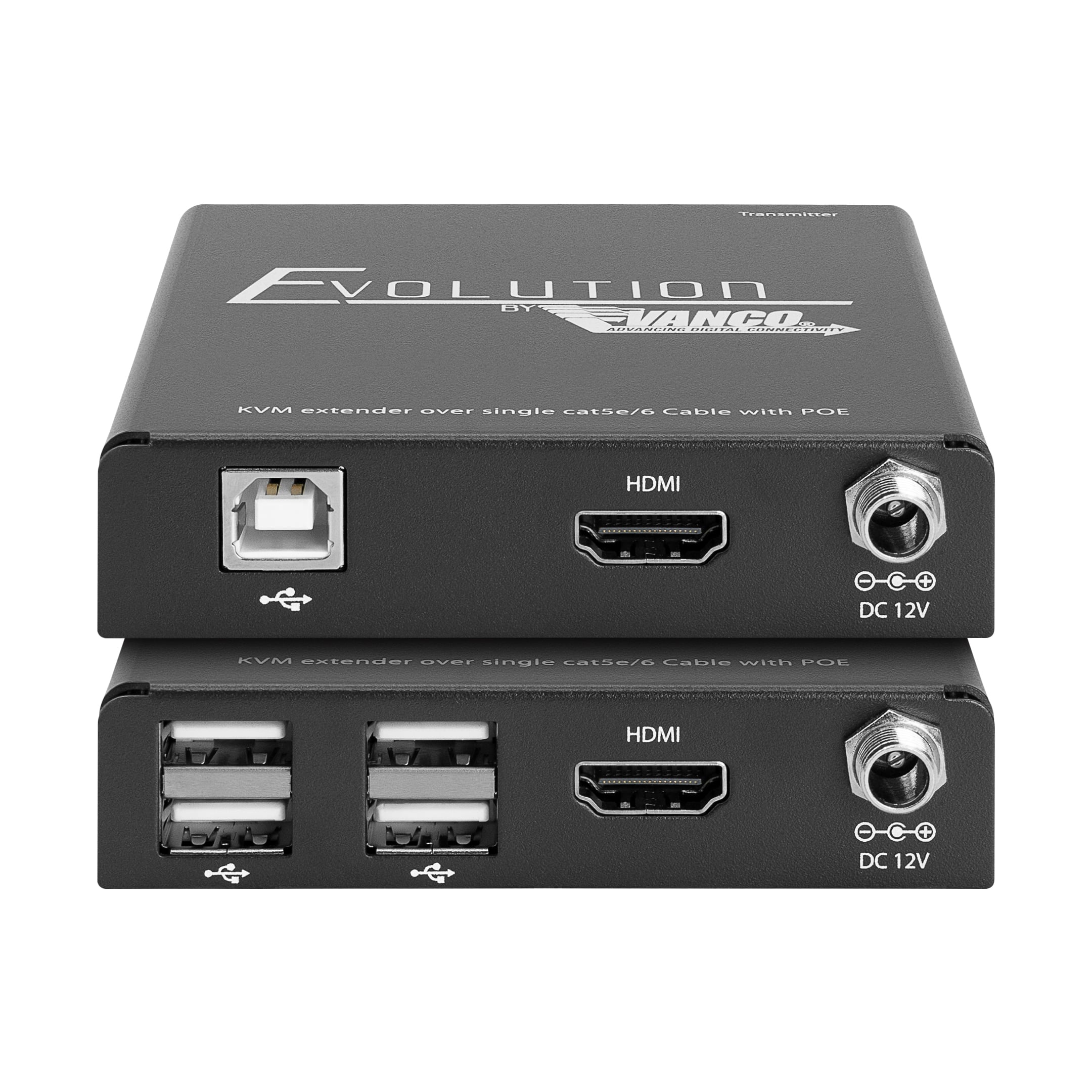

EVEXKVM1 (TX & RX)
USB Type A to Type B cable
(1) DC 12V/2A Power Supply
Product Manual

Additional information

Type

Technology

1 CAT

Resolution

Full HD 1080p

Transmission Distance

51 – 164 ft

EVEXKVM1 Product Manual

Download

This Attachment Never Expires.

EVEXKVM1 Sales Sheet

Download

This Attachment Never Expires.
