• Legacy Extenders

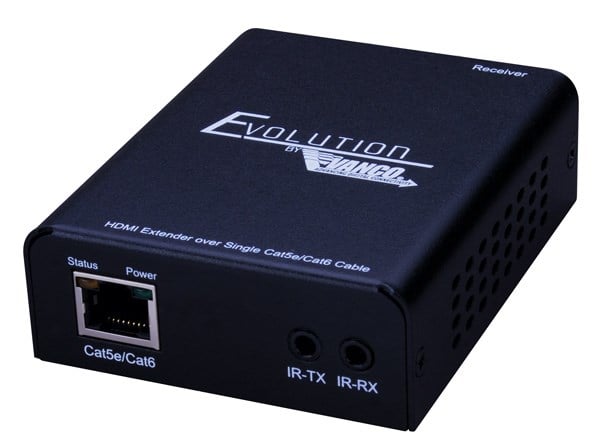

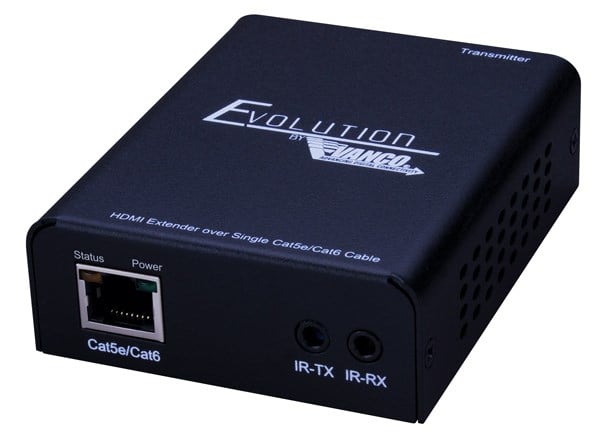

Evolution HDMI® over Single Cat5e/Cat6 Cable Extender

SKU: EVEX2005 Categories: ,

This product has been discontinued.

Description

Replaced by EVEX2006

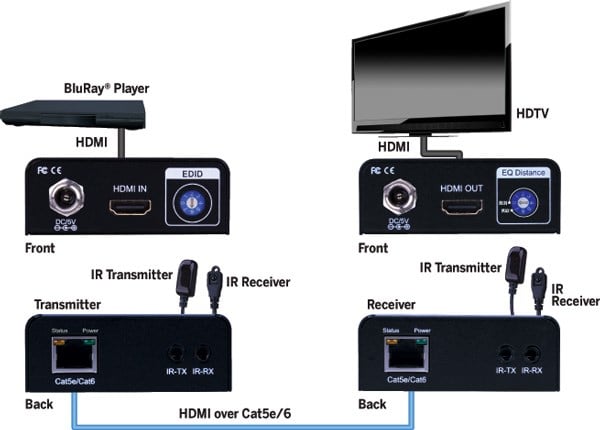

  • Allows HDMI audio/video signals to be transmitted using a single Cat5e or Cat6 Cable
  • Wide band Bi-directional IR system allowing for control of source or display (IR accessories included) Wideband IR signal from 20KHz to 60KHz
  • Transmission Range: Extends 1080p resolution up to 131ft/40m over Cat5e/6
  • Works with HDMI and HDCP compliant devices
  • Supports up to 1080p High Definition resolution
  • Features EDID management which supports default HDMI EDID and has the ability to learn the EDID of display equipment
  • Features EQ distance dial for perfect transmission and reception of HDMI signals
  • Supports HDMI Deep Color & 3D
  • Extends HDMI transmission up to 40m (131ft) from the HDMI source at Full HD 1080p 24-bit
  • HDCP 2.0 compliant
  • EDID manual select control – Supports copy EDID and auto EDID learning
  • Pure unaltered uncompressed 7.1ch digital HDMI over a single Cat5e/6 cable transmission
  • Supports DTS-HD and Dolby TrueHD high bit rate audio
  • Allows cascading to create a larger distribution system
  • Wall mounting housing design for easy installation
  • Fully compatible with any Evolution by Vanco product
  • Dimensions: 3.6” (91mm) W x 1.1” (28mm) H x 2.8” (71mm) D

Package Contents:

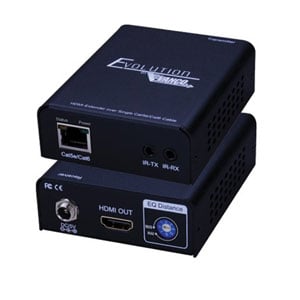

EVEX2005 (TX & RX)
IR Blaster (TX)
IR Receiver (RX)
(2) DC 5V in line power supply
Mounting hardware
Product Manual



EVEX2005 Product Manual

Download

EVEX2005 QuickInstall Guide

Download

EVEX2005 Sales Sheet

Download
