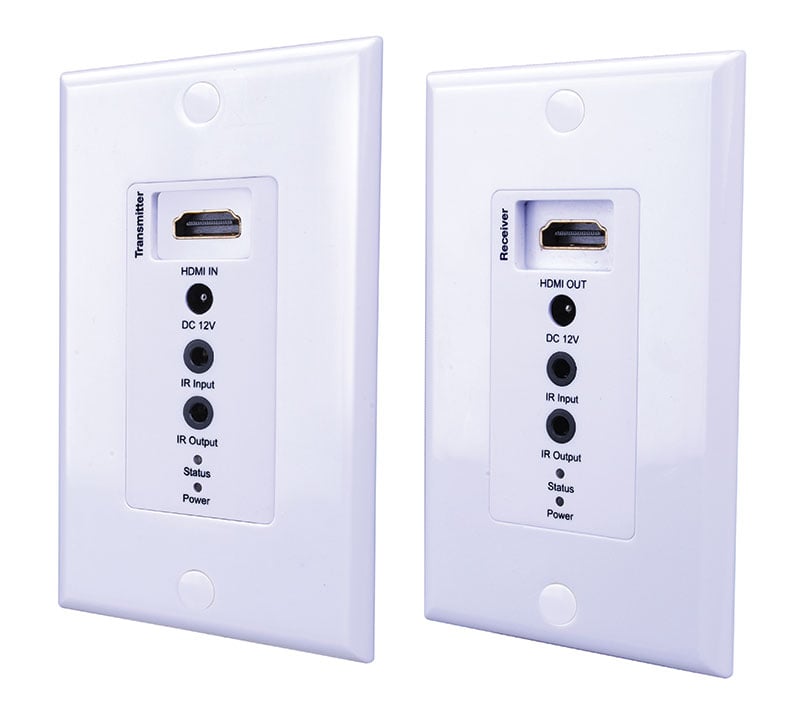

Evolution HDMI® over Single Cat5e/Cat6 Cable Wall Plate Extender with PoE

Evolution HDMI® over Single Cat5e/Cat6 Cable Wall Plate Extender with PoE

SKU: EVWP2006 Categories: ,

Description

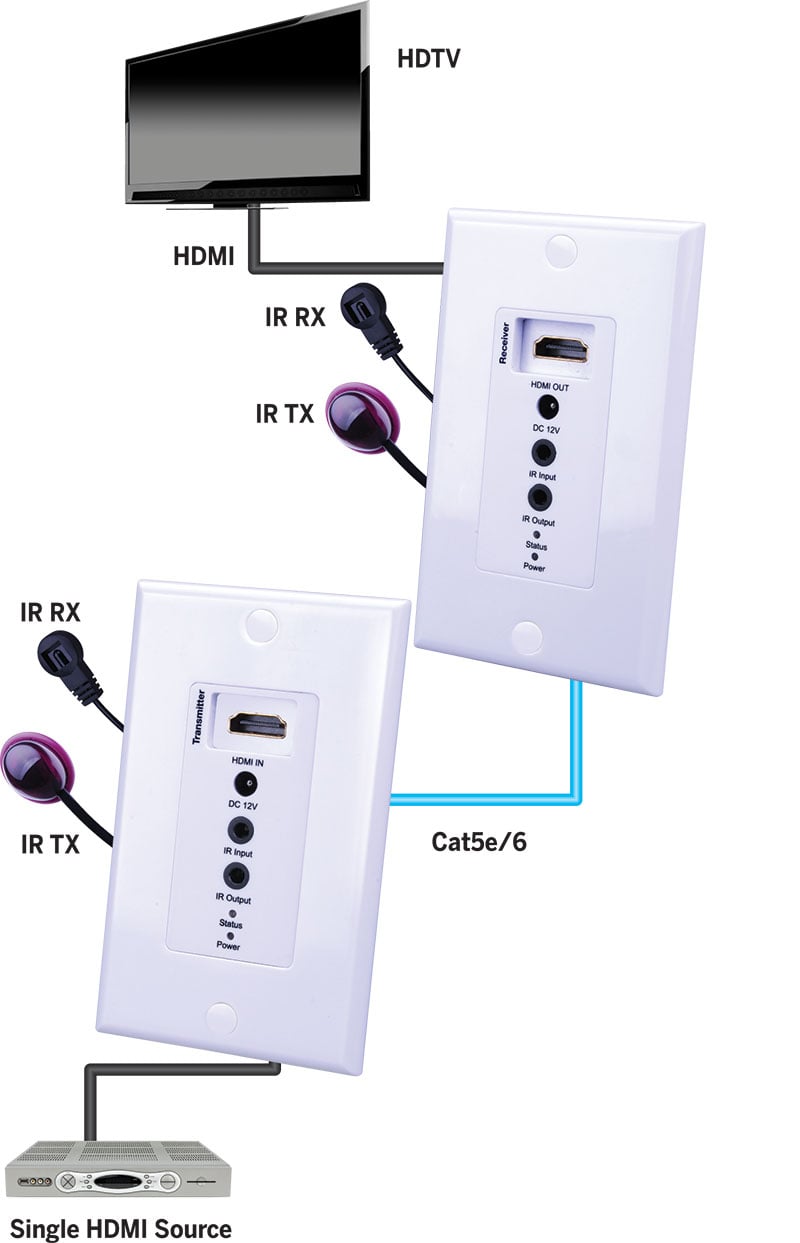

  • Transmits HDMI video- audio- control and power through single CAT5e/6 cable
  • Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/Cat6- allowing the transmitter or receiver to be powered off of a single power supply
  • Fits easily into a single gang low-voltage box and allows for power to be supplied on either the transmitter or receiver for a flexible installation
  • Transmission Range: 164ft/50meters at resolutions 1080p @ 60Hz and 262ft/80 meters at 1080i through single Cat5e/Cat6 cable
  • Features Auto EDID and EQ Management for plug and play installation
  • Supports bi-directional IR 20-60KHz (RX->TX and TX->RX)
  • Supports audio formats- Dolby True HD- DTS-master- etc.
  • Supports all 3D Formats
  • Supports EDID call back
  • Supports CEC pass through
  • VESA DDC and hot swap technology
  • HDCP Compliant
  • Compatible with DVI 1.0
  • Allows cascading to create a larger distribution system
  • Patent No. 9,710,038 B1

Package Contents:

EVWP2006 (TX & RX)
(2) IR Blasters (TX)
(1) IR Receivers (RX)
(1) DC 12V in line power supply
Product Manual



Additional information

Type

, , ,

Technology

1 CAT

Resolution

Full HD 1080p

Transmission Distance

51 – 164 ft
