Evolution HDMI PoE Wall Plate Receiver

Categories: ,

Description

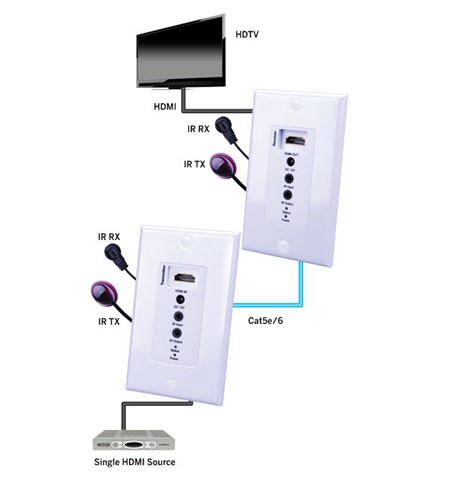

  • To be utilized with Evolution by Vanco matrix units, splitters, and extender transmitters that send HDMI signals over a single Cat5e/6 cable and feature Power over Ethernet (PoE) Technology
  • Transmits HDMI video, audio, control and power through single CAT5e/6 cable
  • Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/Cat6, allowing the transmitter or receiver to be powered off of a single power supply
  • Fits easily into a single gang low-voltage box and allows for power to be supplied on either the transmitter or receiver for a flexible installation •
  • Transmission Range: 164ft/50meters at resolutions 1080p @ 60Hz and 262ft/80 meters at 1080i through single Cat5e/Cat6 cable
  • Features Auto EDID and EQ Management for plug and play installation
  • Supports bi-directional IR 20-60KHz (RX->TX and TX->RX)
  • Supports audio formats, Dolby True HD, DTS-master, etc.
  • Supports all 3D Formats
  • Supports EDID call back
  • Supports CEC pass through
  • VESA DDC and hot swap technology
  • HDCP Compliant
  • Compatible with DVI 1.0
  • Allows cascading to create a larger distribution system

Tech Support Tips:

    • Not compatible with “2nd Generation” EVSP1013 and EVSP1017 HDMI Splitters over UTP. If no version or version number is listed on the EVSP1013 or EVSP1017 splitter, it is then a “1st Generation” unit

Package Contents:

HDMI® POE Wall Plate Receiver EVWP2006RX
IR Blaster (TX)
IR Receiver (RX)
Product Manual

Additional information

Brands

Evolution
