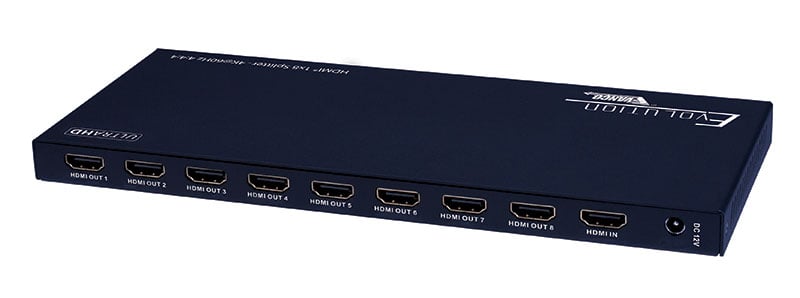

Evolution Premium 1×8 HDMI® 4K Splitter

SKU: EVSP4K18 Categories: ,


  • Transmits audio and video from a single source to 8 HDMI outputs up to 4K2K (2160p) Ultra High Definition resolution without any loss of quality or resolution
  • Supports video formats up to 4K2K@60Hz with 12bit YCBCR 4:4:4 and HDR
  • 3D frame sequential video format up to 1080p@60
  • Supports high-resolution VESA mode video format up to QSXGA 2560×2048@60Hz
  • Compliant with HDCP 2.2 sources and backward compatible with older versions of HDCP
  • Dynamic and Manual EDID management modes to ensure compatibility during installation
  • Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
  • Supports Hot-plug
  • High bandwidth: 18 Gbps
  • Features status indicator for connection & input HDCP compliance
  • Can be cascaded with other Evolution by Vanco products to create additional output options or to create an expanded distribution system
  • Dimensions: 9.6” W x .6” H x 4.1” D

Additional information







EVSP4K18 Product Manual


This Attachment Never Expires.

EVSP4K18 Sales Sheet


This Attachment Never Expires.
