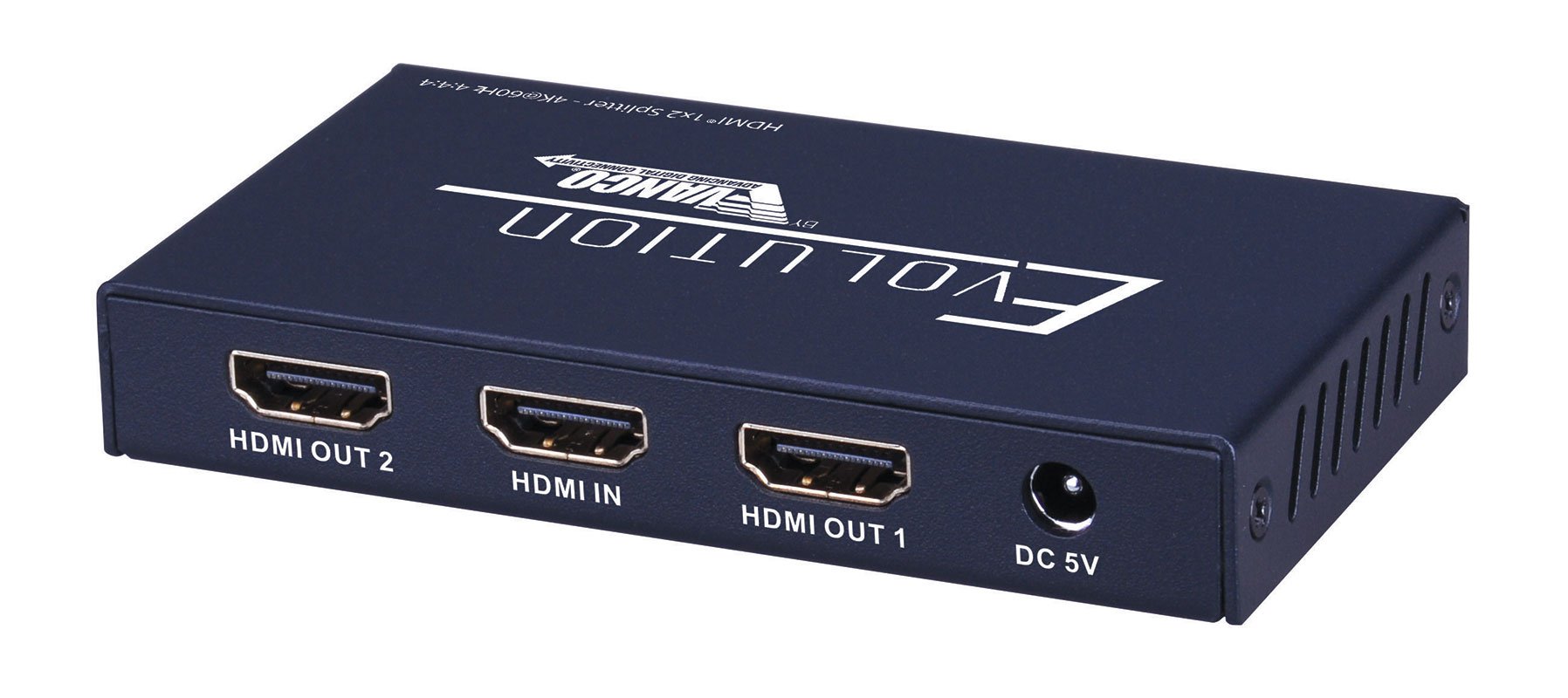

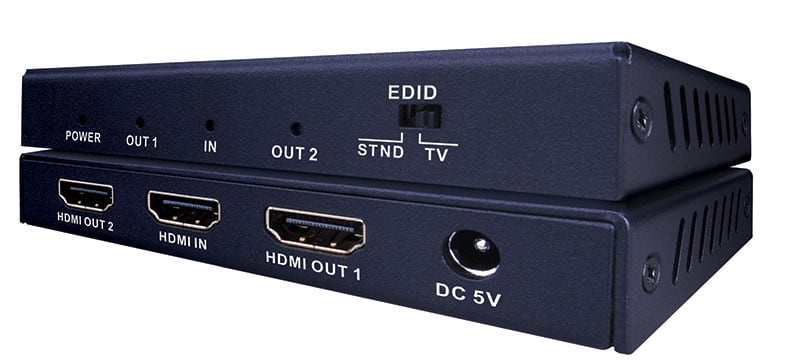

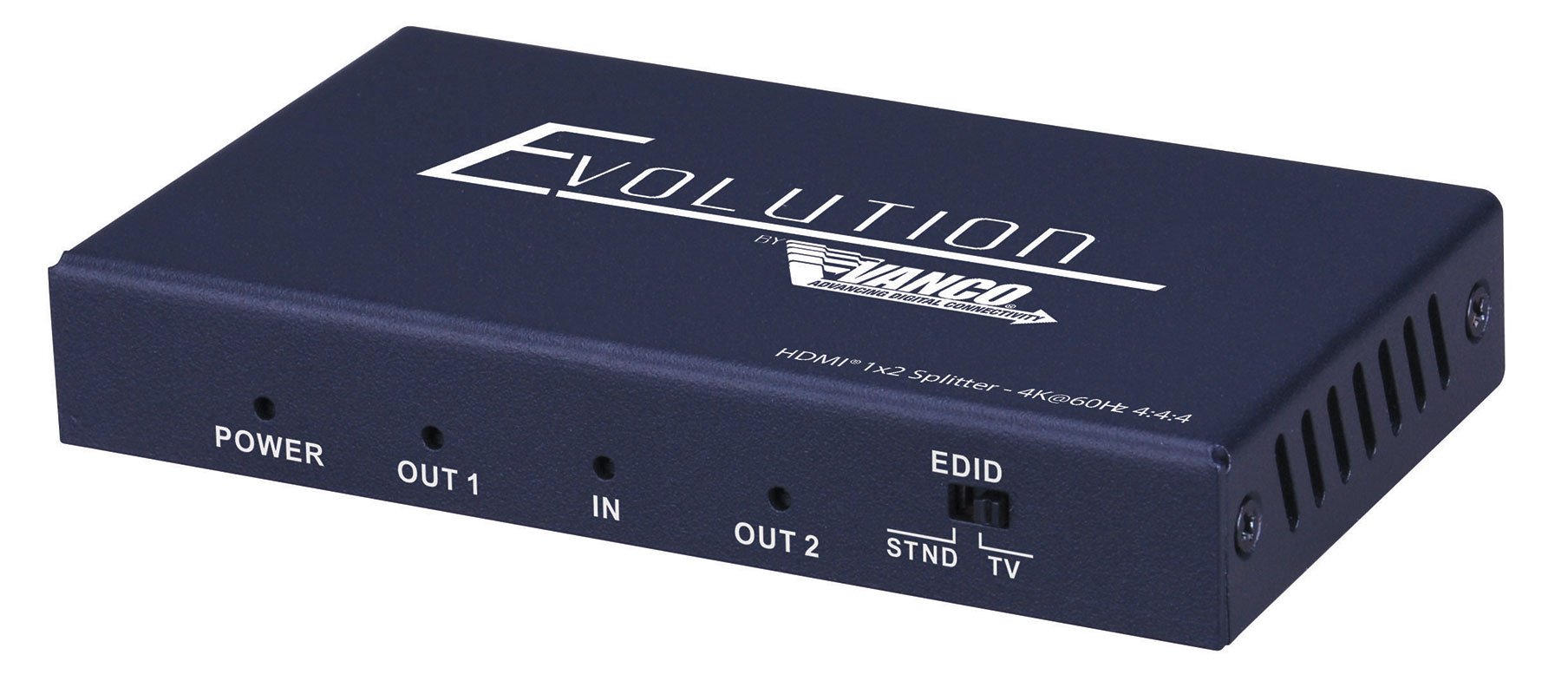

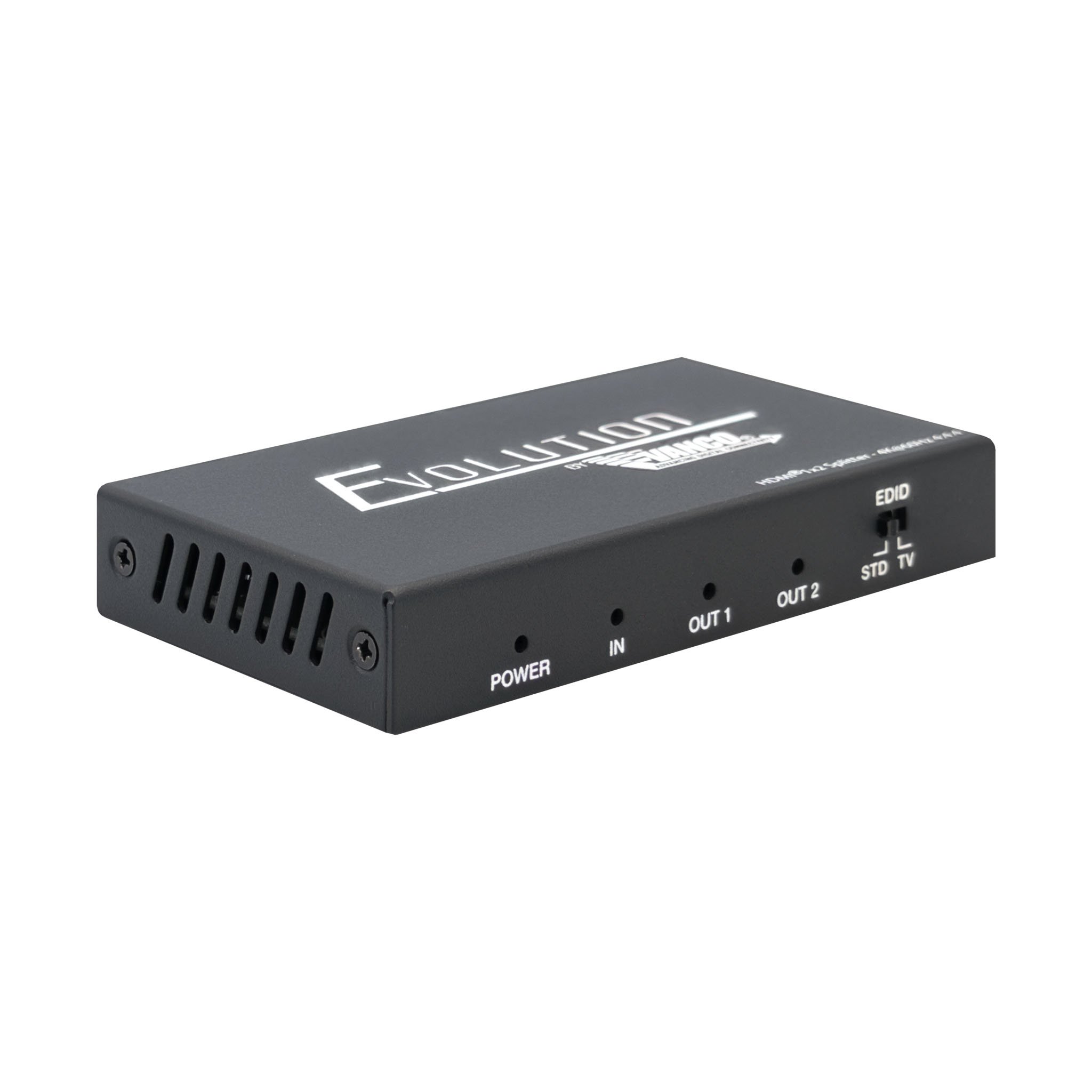

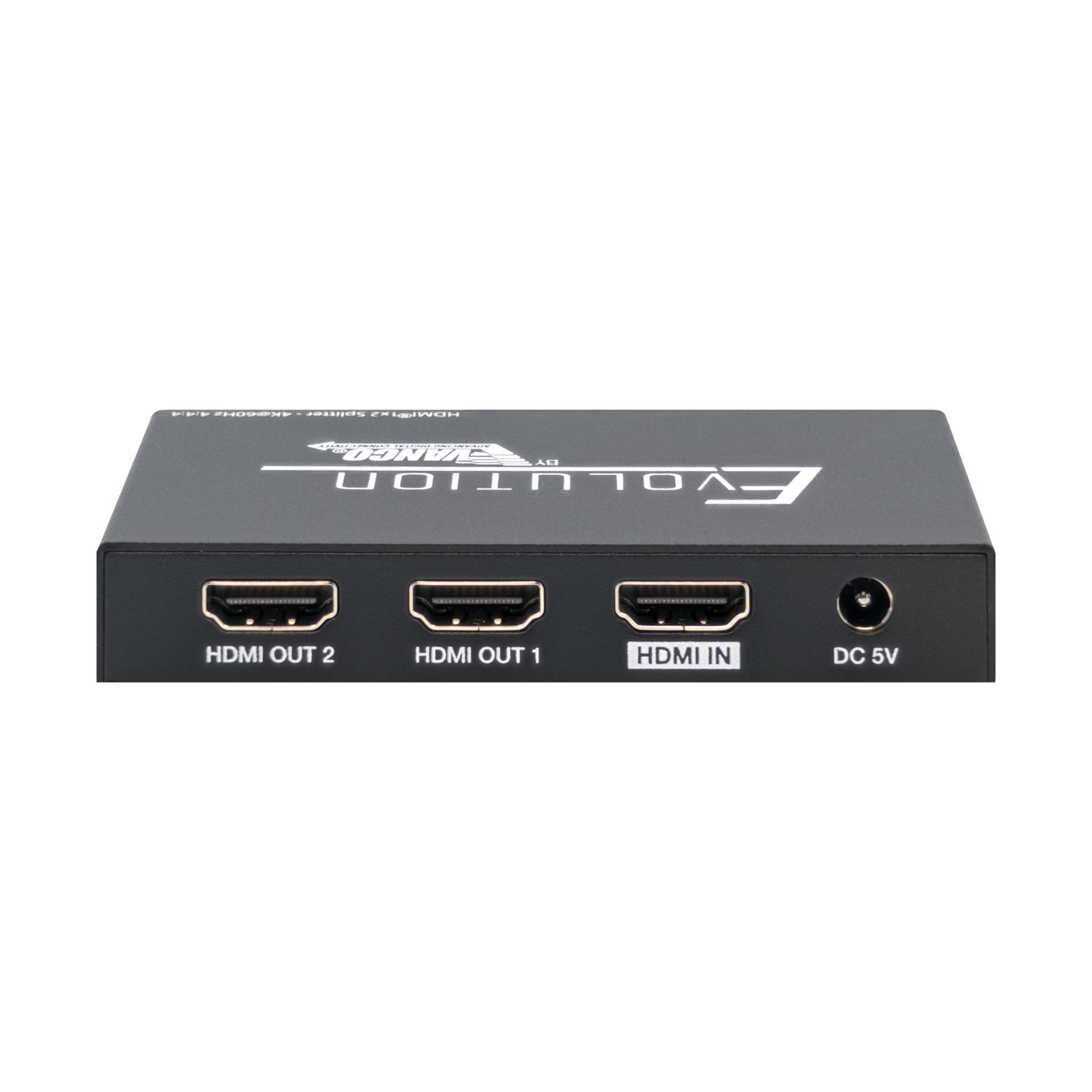

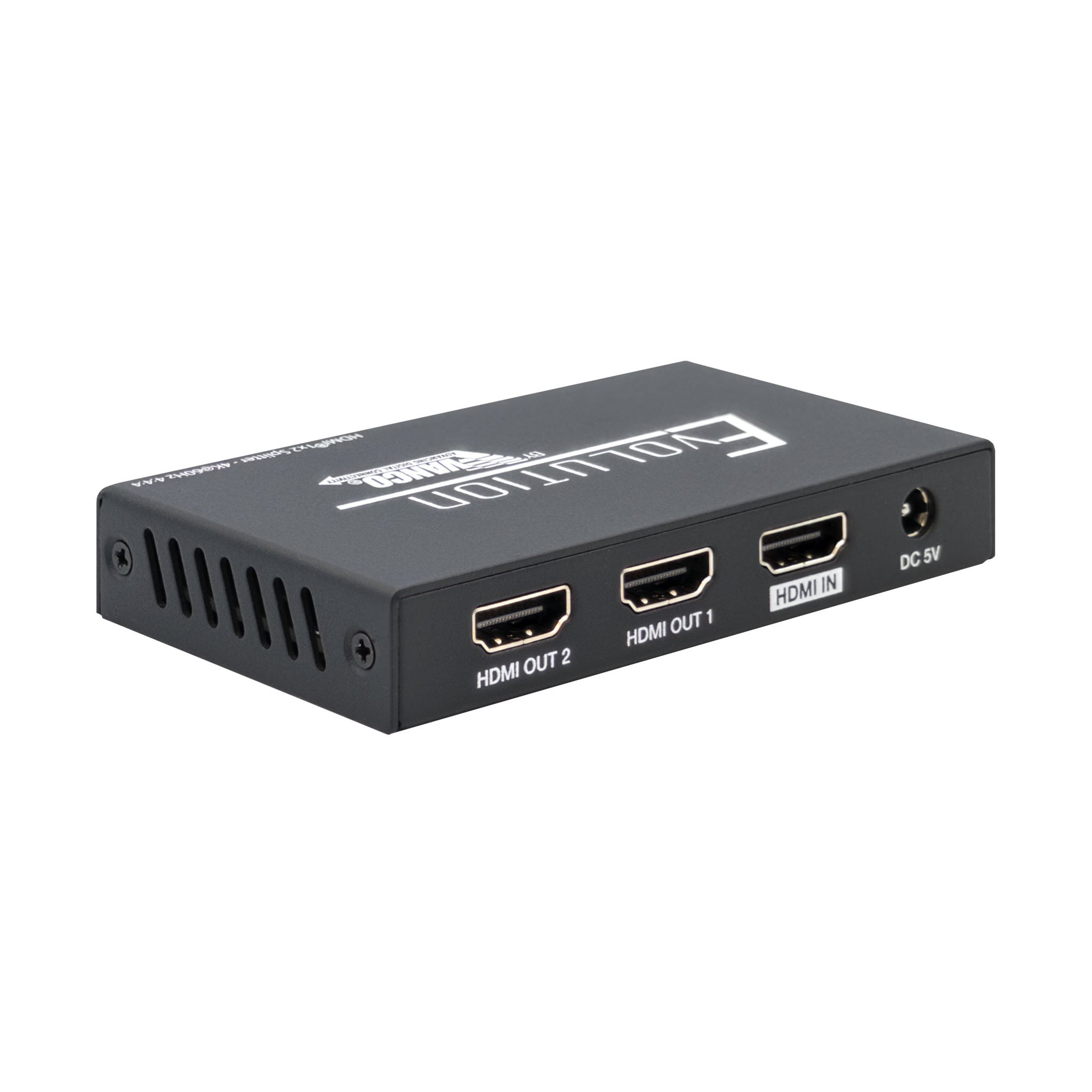

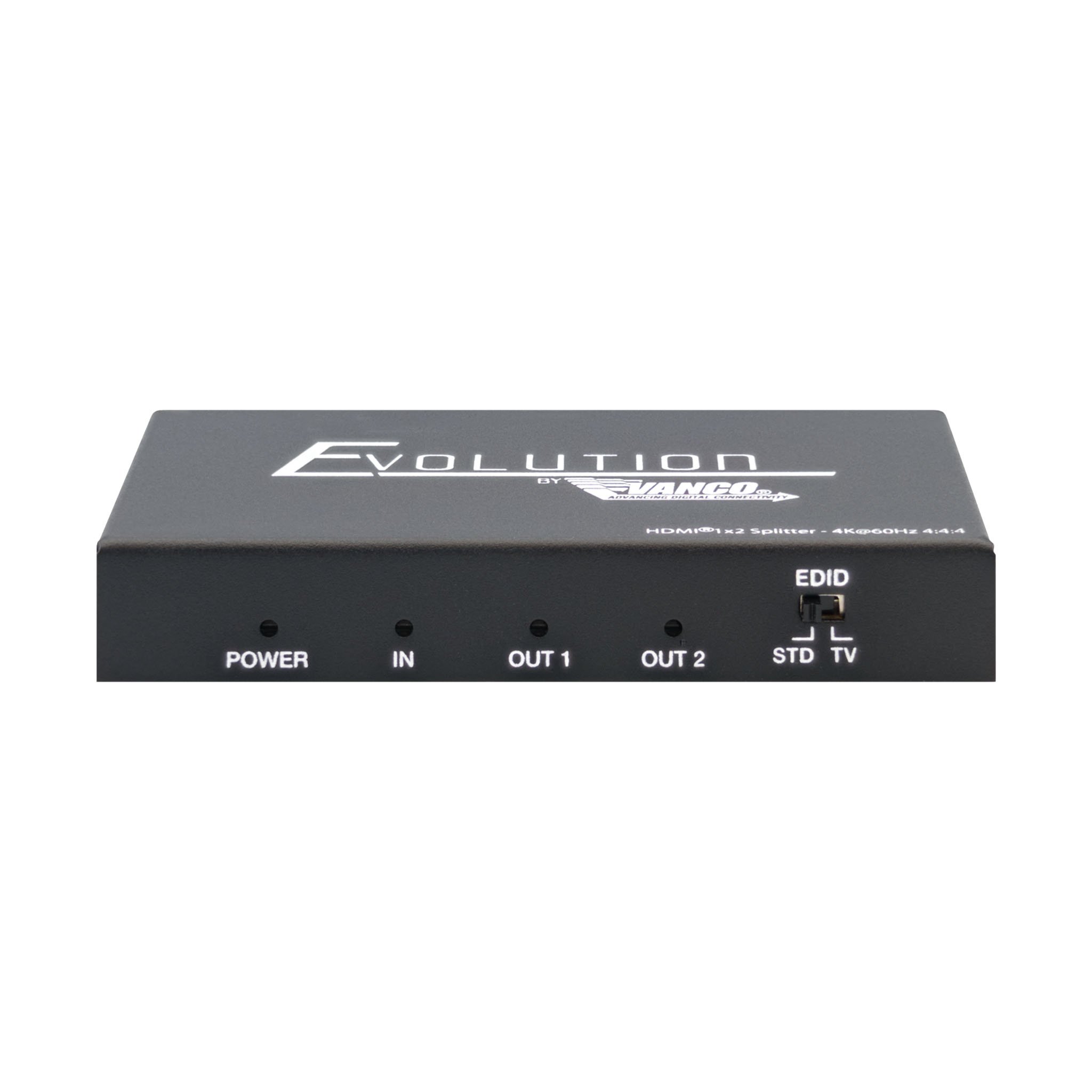

Evolution Premium 4K HDMI® 1×2 Splitter

SKU: EVSP4K12 Categories: ,

Description

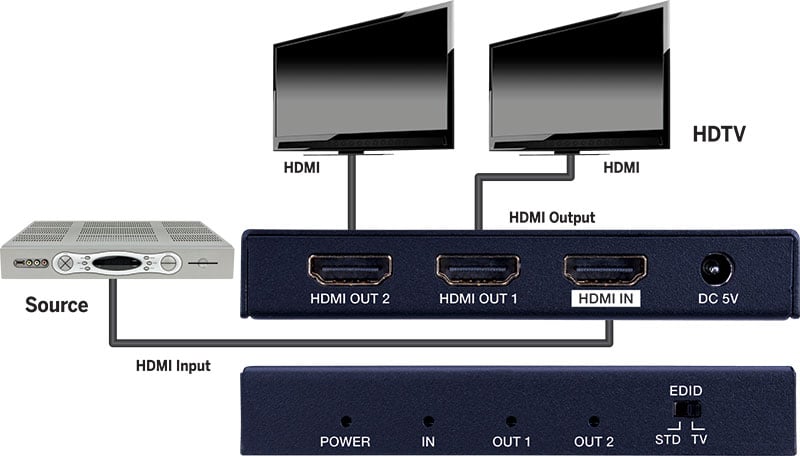

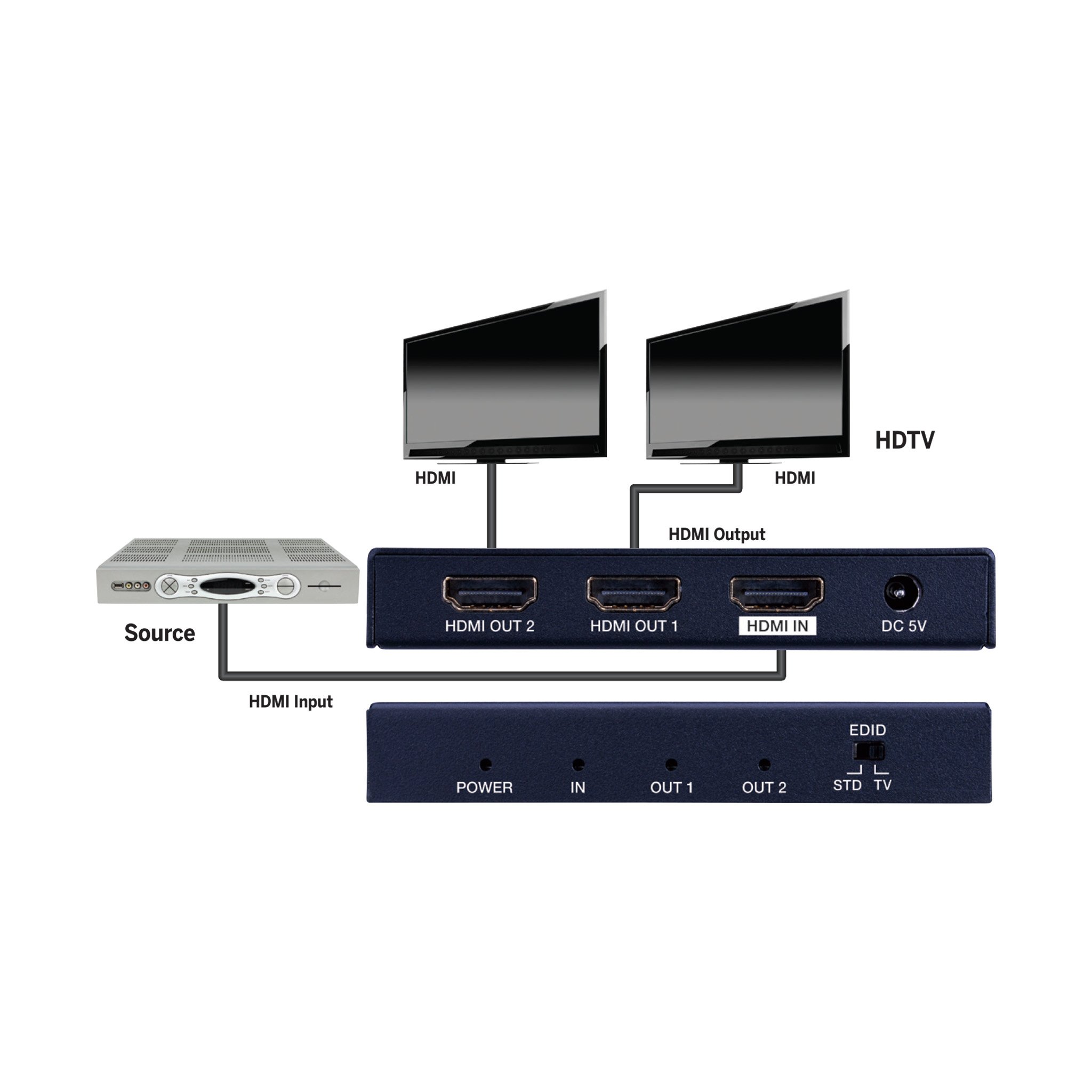

  • Transmits audio and video from a single source to 2 HDMI outputs up to 4K2K (2160p) Ultra High Definition resolution without any loss of quality or resolution
  • Supports video formats up to 4K2K@60Hz with 12bit YCBCR 4:4:4 and HDR
  • 3D frame sequential video format up to 1080p@60
  • Supports high resolution VESA mode video format up to QSXGA 2560×2048@60Hz
  • Compliant with HDCP 2.2 sources and backwards compatible with older versions of HDCP
  • Dynamic and Manual EDID management modes to ensure compatibility during installation
  • Supports LPCM 7.1CH- Dolby TrueHD- and DTS-HD Master Audio
  • Supports Hot-plug
  • High bandwidth: 18 Gbps
  • Features status indicator for connection & input HDCP compliance
  • Can be cascaded with other Evolution by Vanco products to create additional output options or to create an expanded distribution system
  • Dimensions: 4” W x .4” H x 2.3” D

Package Contents:

1×2 Splitter
5V DC Power Supply
Product Manual

Additional information

Inputs/Outputs

1×2

Resolution

4K@60Hz

Technology

HDMI
