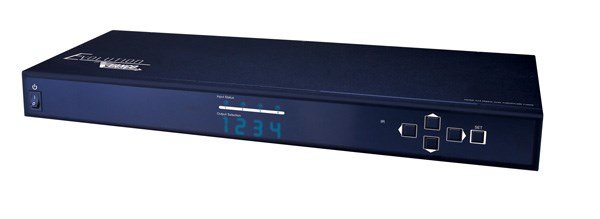

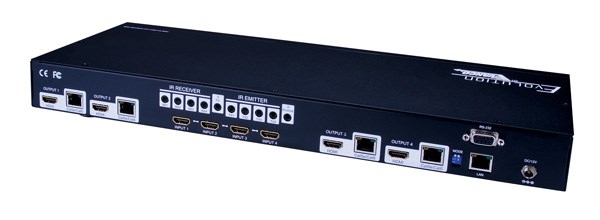

Evolution Quick Install HDMI® 4×4 Matrix Selector Switch over Single Cat5e/Cat6 Cable

SKU: EVMX4044 Categories: ,

Description

Replaced by EVMX44QI

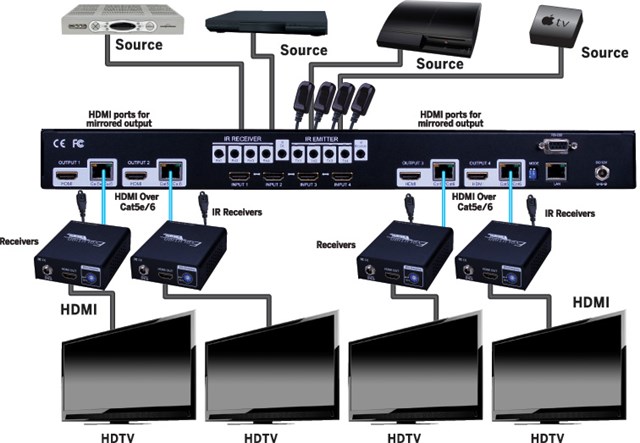

  • Allows up to 4 HDMI sources to be distributed simultaneously to up to 4 displays
  • Transmission Range: Extends 1080p resolution up to 131ft/40m over Cat5e/6
  • 4 additional HDMI outputs for flexibility or mirroring capability; allows for connection of up to 8 displays or the ability to create a larger distribution system by cascading or daisy chaining
  • Quick Install- 1080p HD Matrix Switcher providing a perfect solution for Home or Retail AV as well as Commercial and Hospitality installations with all necessary receivers and IR accessories included
  • Features EDID management which supports default HDMI EDID and has the ability to learn the EDID of display equipment for any “handshake” issues via RS-232 connectivity
  • For even greater control and fine tuning- each receiver features a fully adjustable EQ distance range for optimizing the transmission signal
  • Receivers feature LED indicators for clear power and video signal selection
  • HDCP Compliant
  • Supports HDMI Deep Color and 3D
  • Supports 7.1 channel digital audio
  • Wideband IR pass-through (20kHz to 60 kHz)
  • Choose from 5 switching modes – front panel buttons- Local remote control- RS-232 control- IR call-back (dedicated IR extension cable connected to IR extension port- and IR emitters on sources required)- and IP control utilizing smartphone or tablet via LAN
  • 12V DC- UL Listed Power supply for 4×4 matrix
  • 5V DC- UL Listed Power Supplies for Receivers (4 total)
  • 4×4 Matrix Dimensions: 17.32”(440mm) W x 1.73”(44mm) H x 5.98”(151.8mm) D
  • Receiver Dimensions: 3.6” (92mm) W x 1.1” (28mm) H x 2.9” (74mm) D

Package Contents:

(1) EVMX4044 HDMI 4×4 Matrix Selector Switch
(4) EVRX3001 Receiver
(9) IR Receiver (RX)
(4) IR Blaster (TX)
(1) DC 12V5A power supply (for matrix switch)
(4) DC 5V2A power supply (for receiving units)
(1) Rack-mounting ear set
(1) IR remote control
(1) Installation software CD
(1) User Manual
