Evolution Three Zone Six Source IR Kit

SKU: EV-IRKIT6 Categories: ,

This product has been discontinued. Consider our newer version

Expandable IR Kit with Signal Adjustments

Description

  • Allows for the Transmission of IR Signals from up to 3 IR receivers to 6 dual emitters
  • IR Receiver works in most lighting environments- including CFL
  • Kit includes (1) Connecting Block- (1) Mini IR Receiver- (2) Dual IR Emitters and (1) 12V DC Power Supply
  • A total of 6 IR dual emitters can be supported for up to 12 sources
  • IR Receiver Frequency Range: 34 kHz to 60 kHz- RC-MM codes
  • IR Emitter Frequency Range: 38 kHz to 56 kHz
  • Range: Receiving distance – 25ft; Emitting distance – 4-8in
  • Power Consumption: 12VDC- 30mA max
  • Connecting Block Dimensions: 2.8” W x .90” H x 1.8” D

Package Contents:

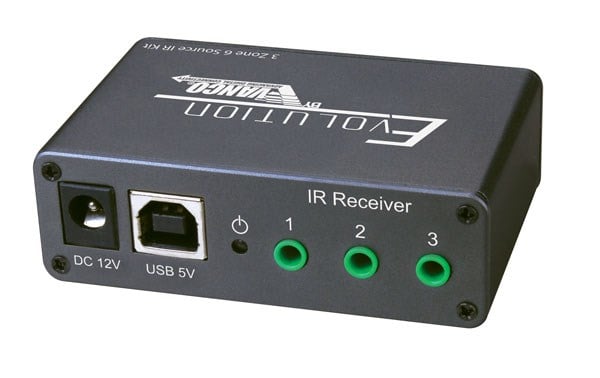

(1) Connecting Block
(1) IR Receiver pigtail

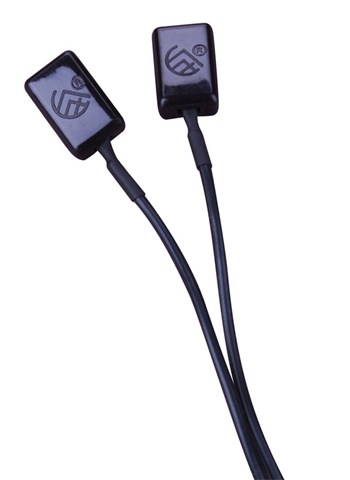

(1) IR dual Emitter pigtail
(1) 12V DC Power Supply
(1)  User Manual



Additional information

Weight 0.6 lbs
Dimensions 6.5 × 4 × 2 in
Brands

Evolution, Vanco

IR Add-Ons

Additional IR Receiver, Additional IR Transmitter

EV-IRKIT6 Product Manual

Download
