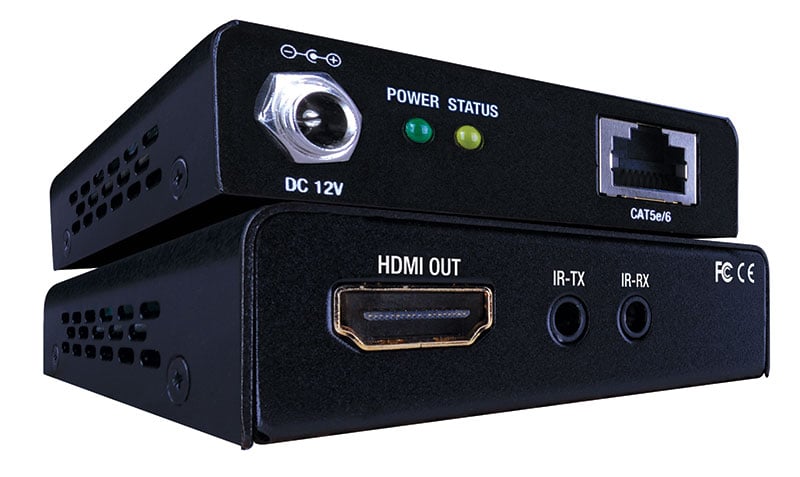

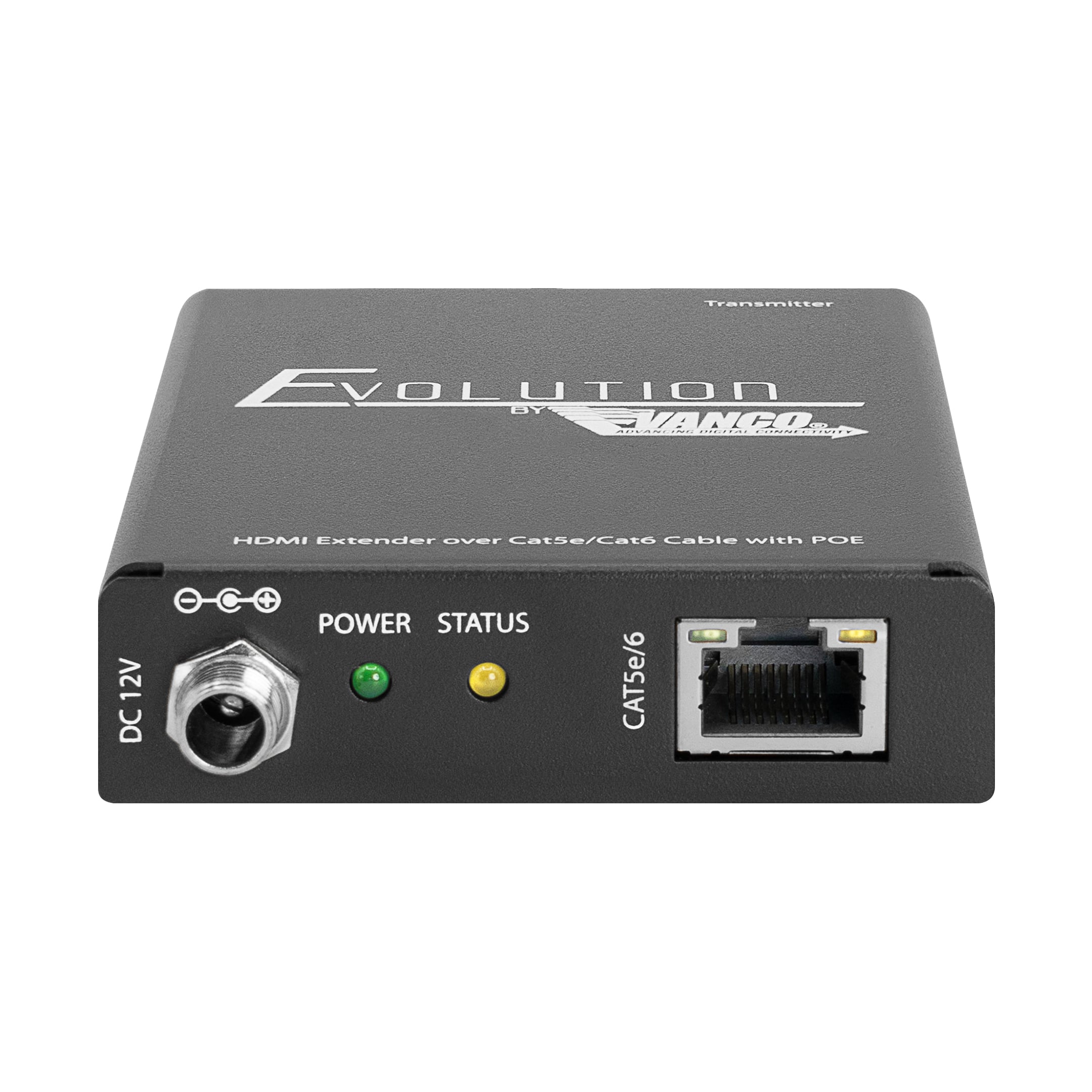

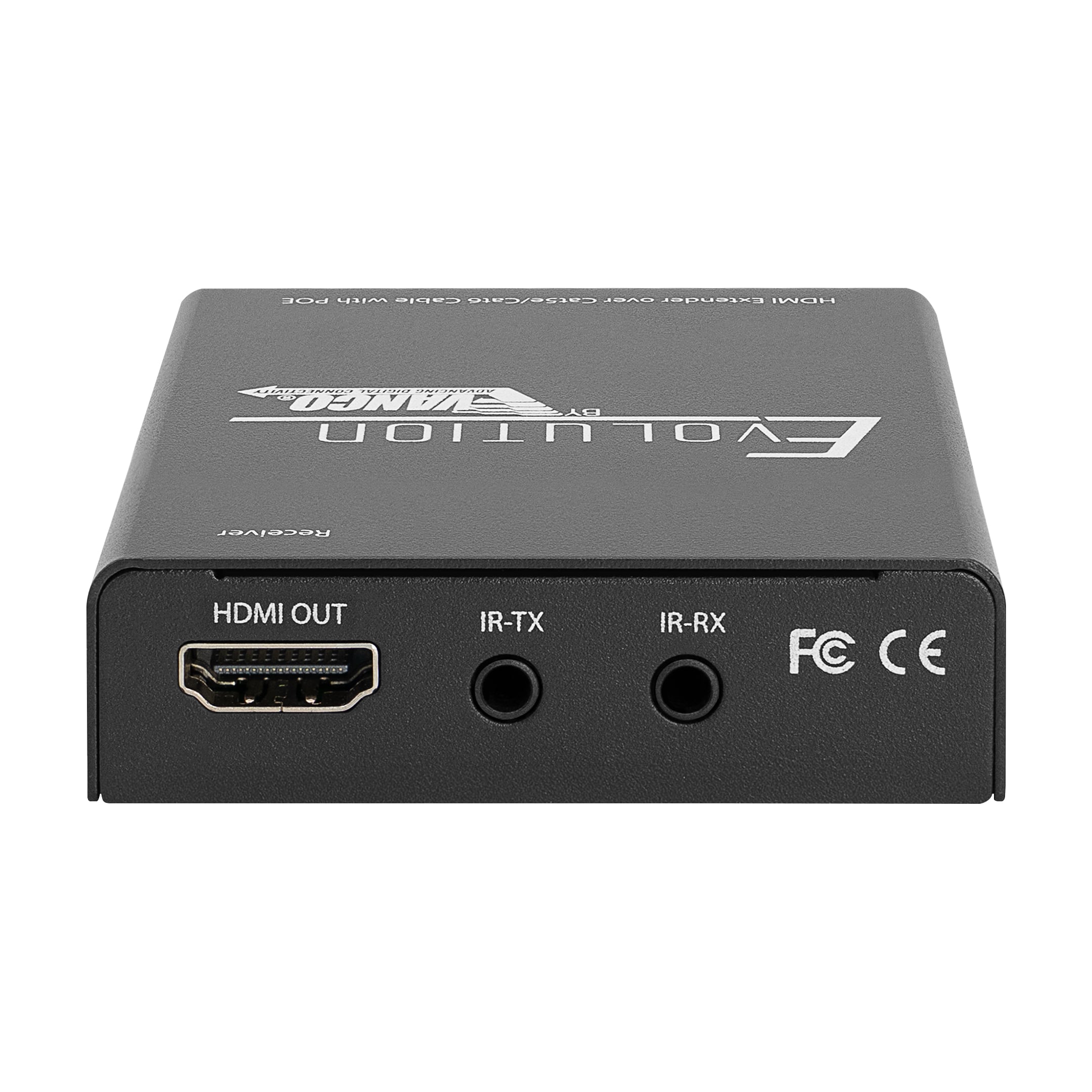

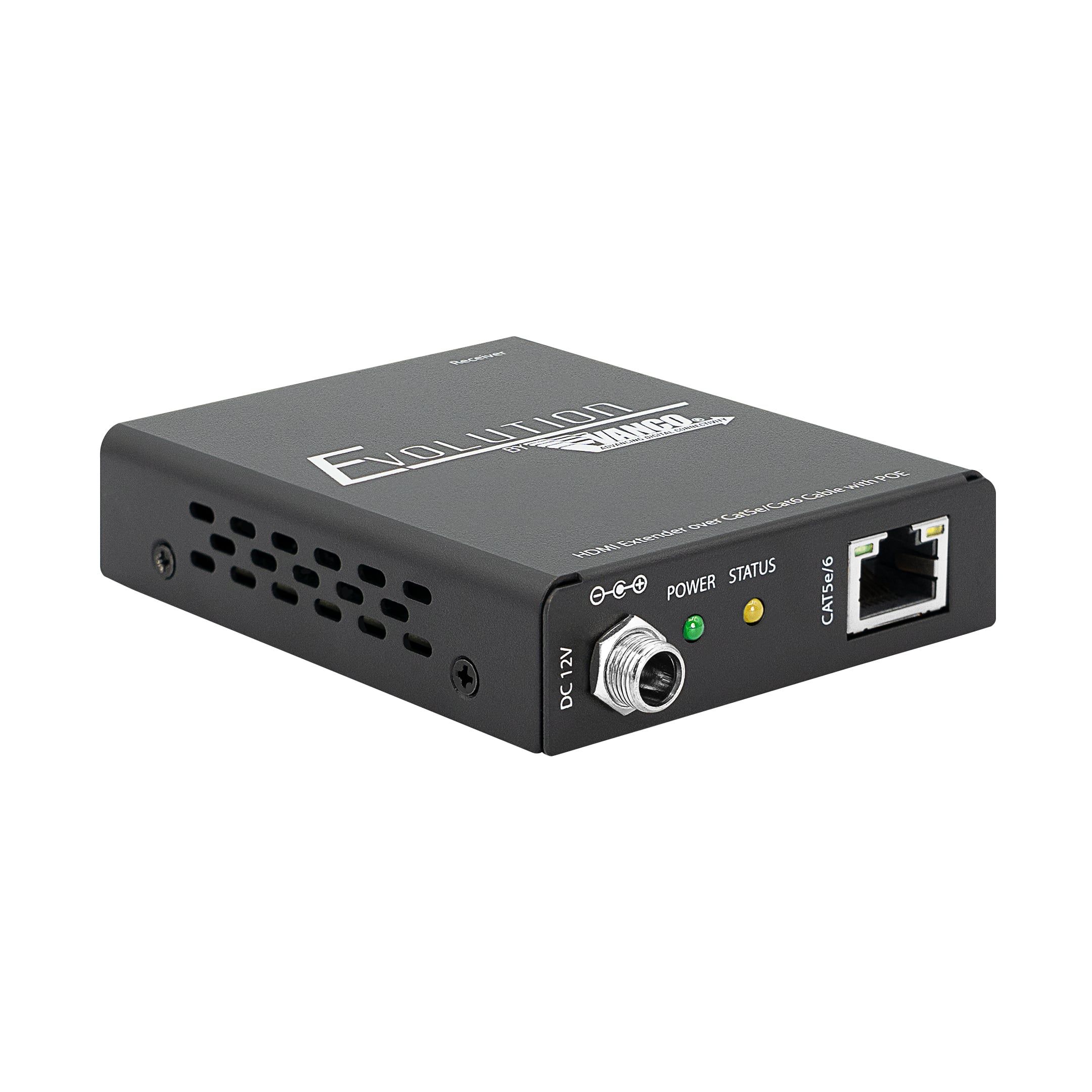

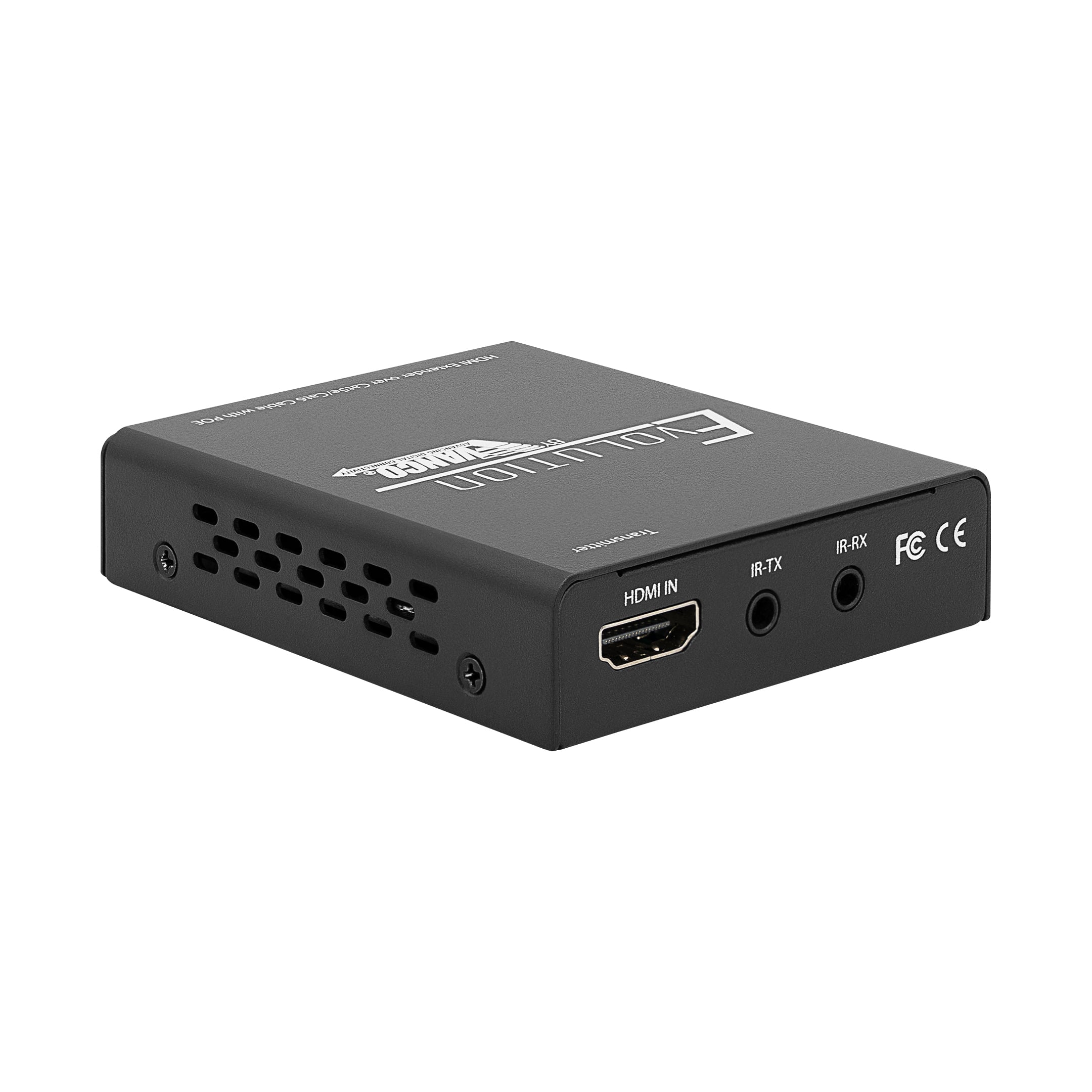

Evolution Ultra Slim HDMI® over Single Cat5e/Cat6 Cable Extender with PoE

SKU: EVEX2006 Categories: , , ,

Description



View Our Extender Comparison Guide

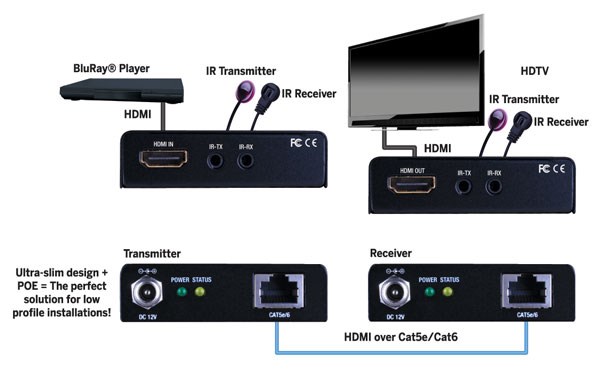

  • Allows HDMI audio/video signals to be transmitted using a single Cat5e or Cat6 Cable
  • Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/Cat6- allowing the transmitter and receiver to be powered off of a single power supply
  • Slim and compact design
  • Wide band Bi-directional IR system allowing for control of source or display (IR accessories included)
  • Wideband IR signal from 20KHz to 60KHz
  • Transmission Range: Extends HDMI transmission up to 50m (164ft) from the HDMI source at Full HD 1080p 24-bit color and 3D
  • Features Auto EDID and EQ Management for plug and play installation
  • Works with HDMI and HDCP compliant devices
  • HDCP 2.0 compliant
  • Pure uncompressed 7.1ch digital audio
  • Supports DTS-HD and Dolby TrueHD high bit rate audio
  • Allows cascading to create a larger distribution system
  • Fully compatible with any Evolution by Vanco product
  • Dimensions: 2.7” (68.58mm) W x .7” (17.78mm) H x 3.25” (82.55mm) D
  • Patent No. 9,710,038 B1

Tech Support Tips:

    • Recommended to be used with a permanent source, or non-rotating source. For any rotating source such as a conference room type setup, it is recommended to use an HDBaseT extender
    • HDMI UHD Deep Color mode on some LG displays may need to be deactivated to avoid video signal issues
    • Input Signal Plus on some Samsung displays may need to be deactivated to avoid video signal issues

Package Contents:
EVEX2006 (TX & RX)
(2) IR Blasters (TX)
(2) IR Receivers (RX)
(1) DC 12V in line power supply
Product Manual





Additional information

Weight 1.5 lbs
Dimensions 9 × 6 × 1.2 in
Type

Technology

1 CAT

Brands

Evolution

Resolution

Full HD 1080p

Transmission Distance

51 – 164 ft

EVEX2006 Product Manual

Download

EVEX2006 Sales Sheet

Download
