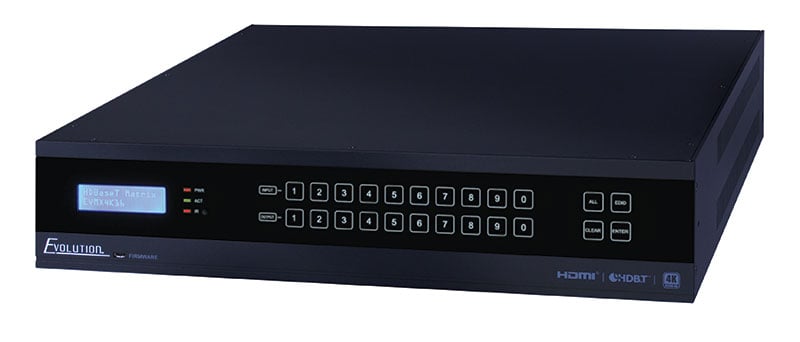

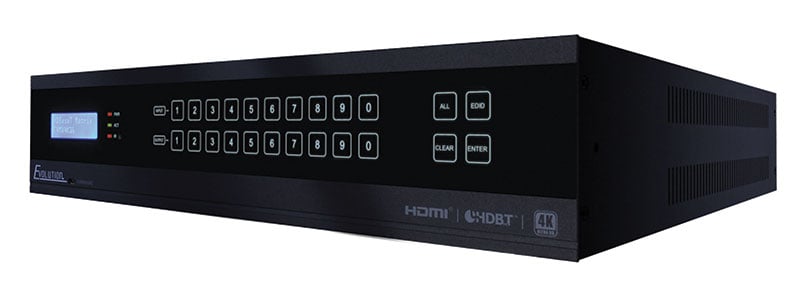

Evolution HDBaseT™ 16×16 Matrix Selector Switch


  • 4K HDBaseT 16X16 Matrix Selector Switch that accommodates 16 HDMI inputs, 14 HDBaseT outputs with 2 HDMI outputs, and 16-analog audio outputs, with IR and RS-232 for control
  • Supports up to 4K/60Hz 4:2:0
  • Extends 4K signals up to 131ft (40m) or 1080p signals up to 230ft (70m) using HDBaseT outputs
  • Features POH (Power over HDBaseT) technology, providing power to the receivers over Cat5e/6 resulting in easy installation – Receivers sold separately – Part # EVRXHD1
  • HDCP 2.2 compatible, supports manual HDCP management
  • Automatic and manual EDID management and EQ
  • LCD screen shows real-time I/O connection status, switching status, HDCP status, and output resolution
  • Controllable via touch-screen front panel, RS-232, IR and TCP/IP
  • Supports bi-directional IR & RS-232 control
  • Built-in GUI for TCP/IP control
  • Rack-mount design
  • Features off memory for reliable operation – input and output mapping is automatically stored and recalled when the unit is powered on and off and in the event of a power outage
  • Features a Micro USB port for Firmware upgrades
  • Easy installation with rack-mounting design
  • Dimensions: 17.2” W x 3.5” H x 15.3” D

Package Contents:

16×16 Matrix EVMX4K16
(16) Wideband IR TX cables
(17) Wideband IR RX cables
IR Remote
2 Mounting ears with screws
4 Plastic cushions with screws
16 Pluggable Terminal Blocks
RS-232 cable
Power Cord
Product Manual

Additional information







Transmission Distance

165 – 230 ft

EVMX4K16 Product Manual


This Attachment Never Expires.

EVMX4K16 Sales Sheet


This Attachment Never Expires.

EVMX4K16 IP and Serial


This Attachment Never Expires.

EVMX4K16 IR Hex Pronto Codes


This Attachment Never Expires.
