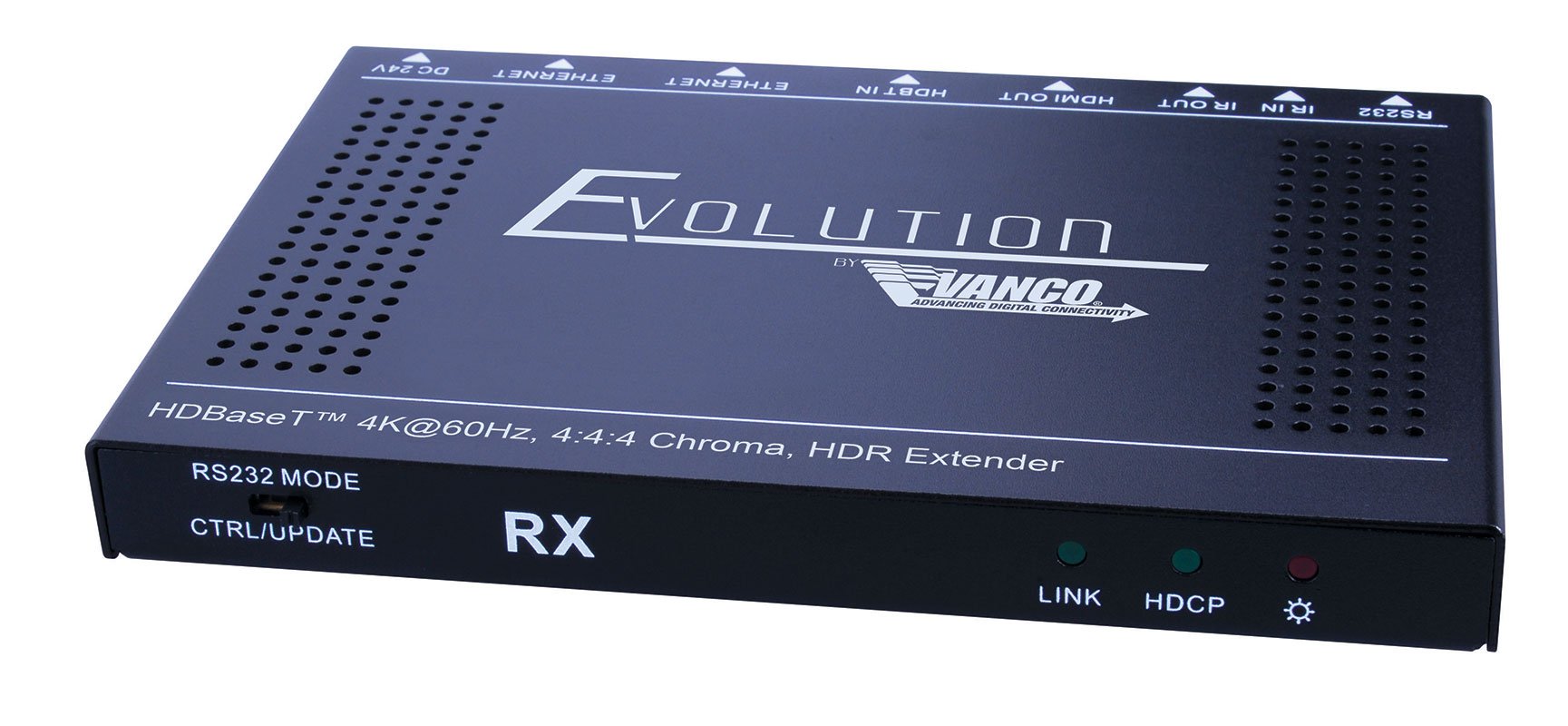

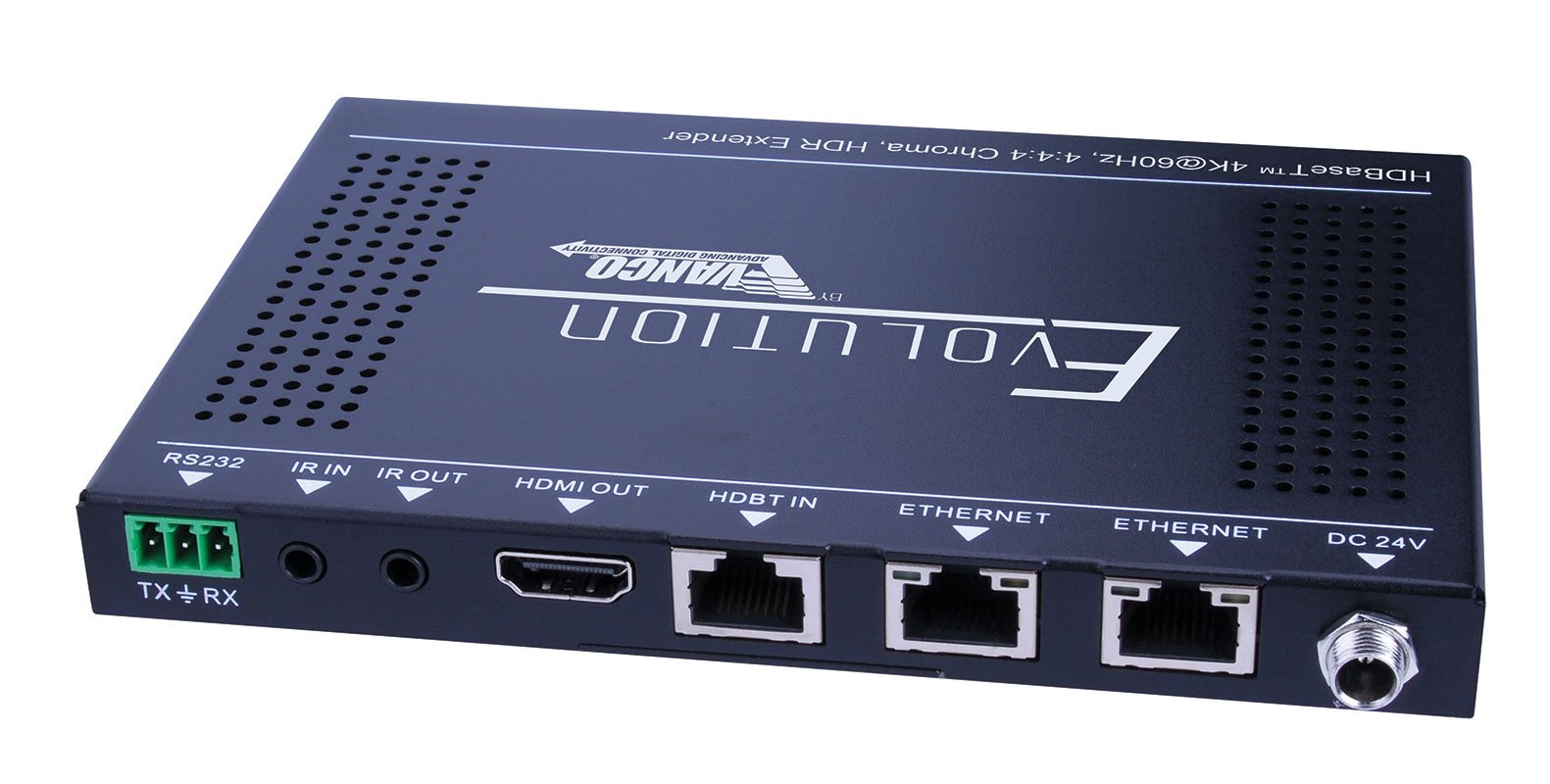

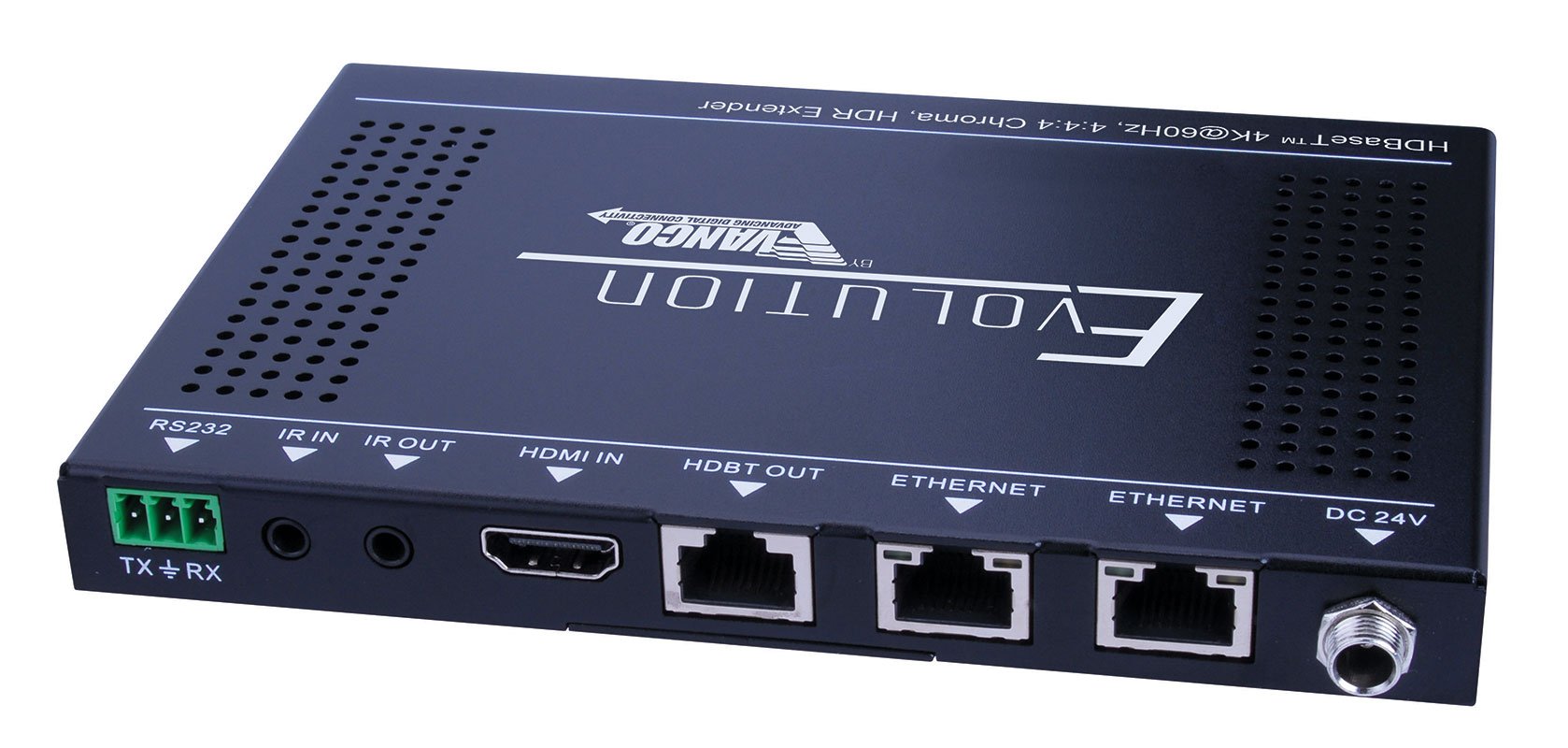

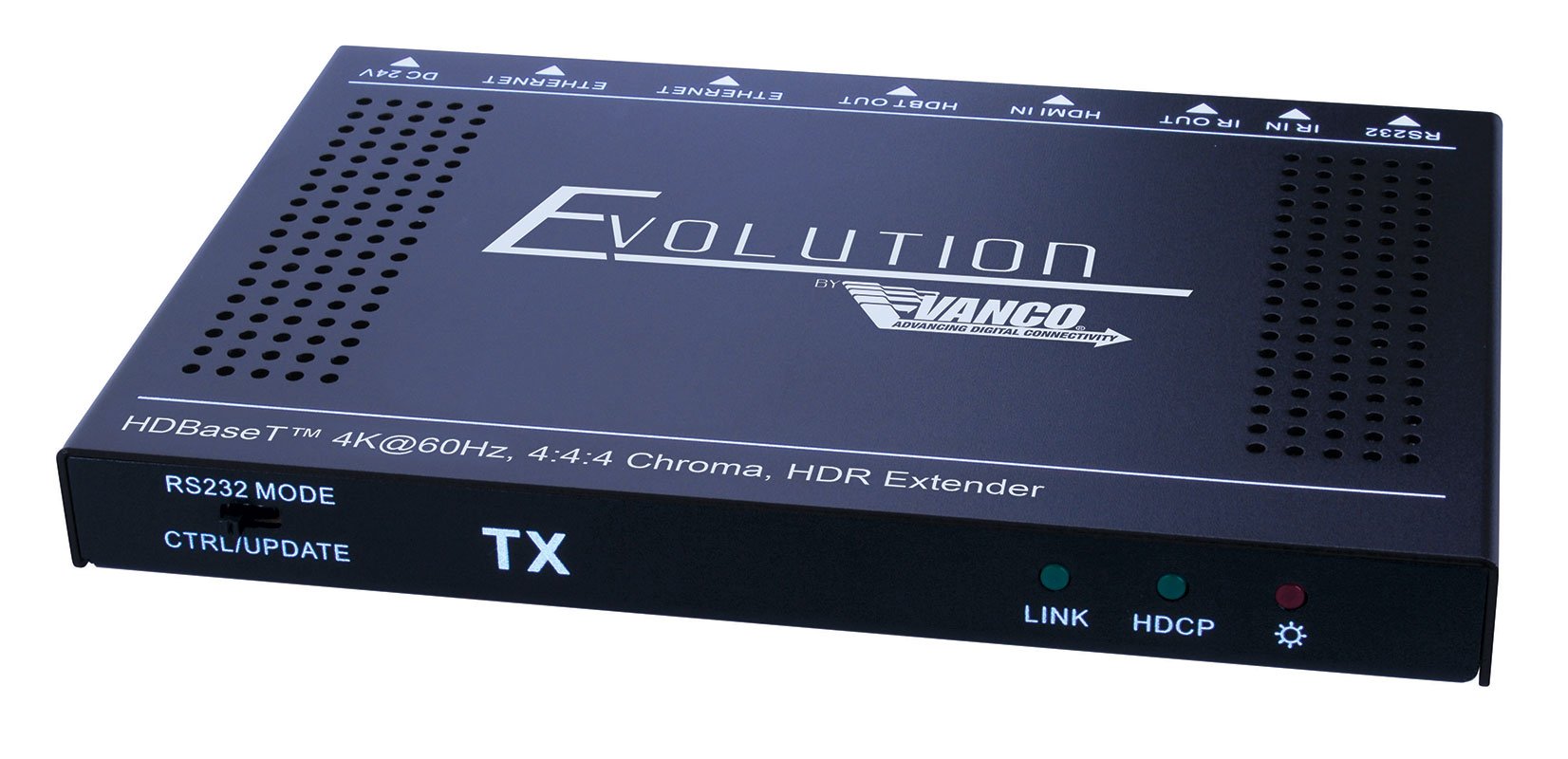

Evolution HDBaseT™ [email protected], 4:4:4 Chroma, HDR Extender 230ft/70m

SKU: EVEXHDB2 Categories: ,


  • Features the latest HDBaseT Technology- optimized for whole-home or commercial distribution of highdefinition signals at much greater distances of standard HDMI cables

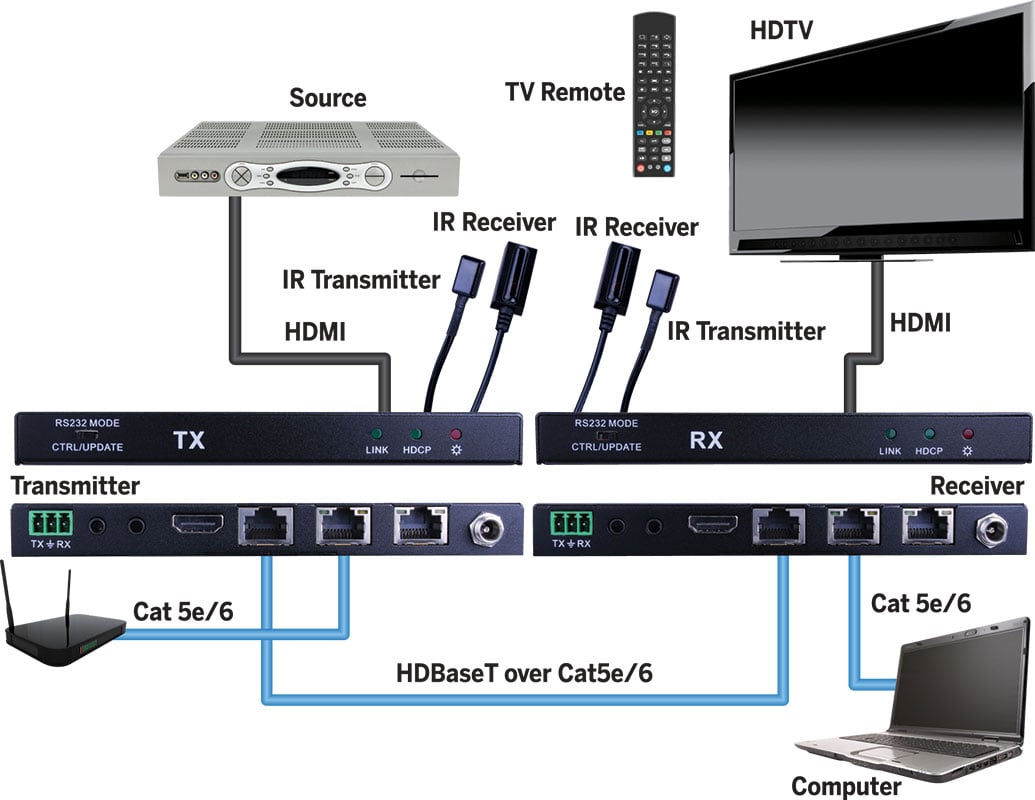

  • Transmission Range: Extends [email protected] 4:4:4 with HDR up to 230ft/70m over a single Cat5e/6 cable and [email protected] up to 330ft/100m
  • Features Power over HDBaseT (PoH) Technology which transmits power over Cat5e/6- allowing for either Transmitter or Receiver to be powered without the use of a power supply
  • Virtually Lossless Compression retains high end audio and video quality
  • 4-10/100 Ethernet ports for directly connecting displays and sources to a network
  • Bi-directional IR and RS232 control
  • Features Auto EDID and EQ Management for plug and play installation
  • HDR Compatible
  • HDCP 2.2 compliant and backward compatible to previous versions
  • CEC Support
  • Slim and compact design
  • Power Supply: DC 24V

Package Contents:

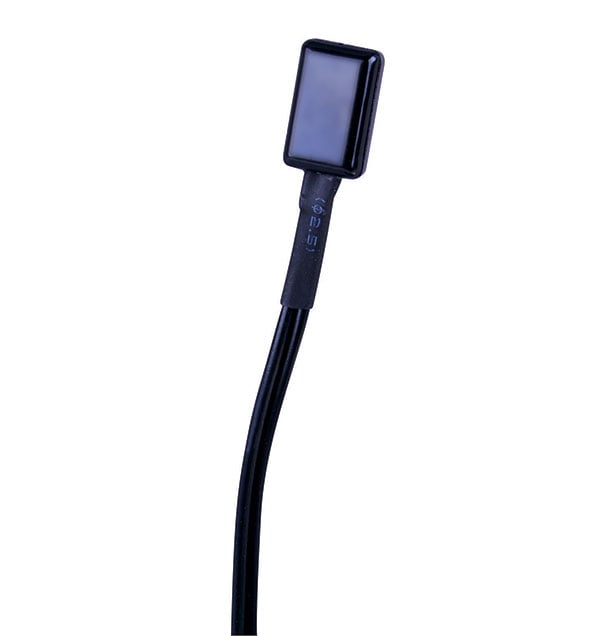

IR Transmitter (IR TX)

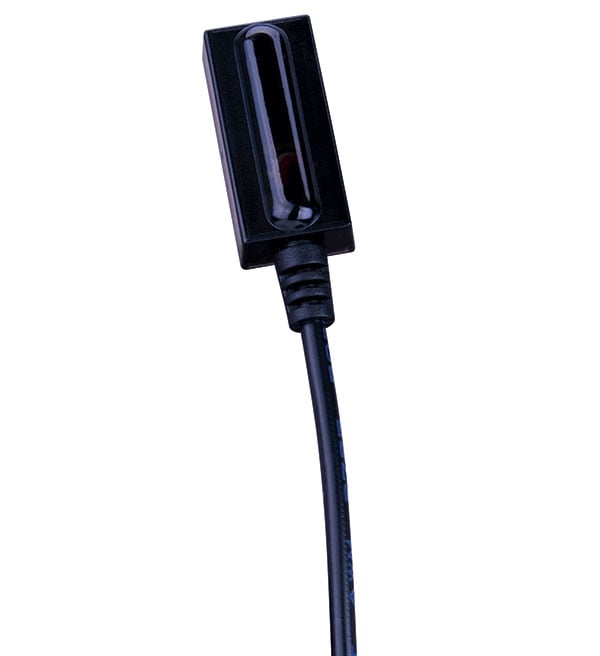

IR Receiver (IR RX)
(2) RS232 Cables (3-pin to DB9)
Mounting Hardware

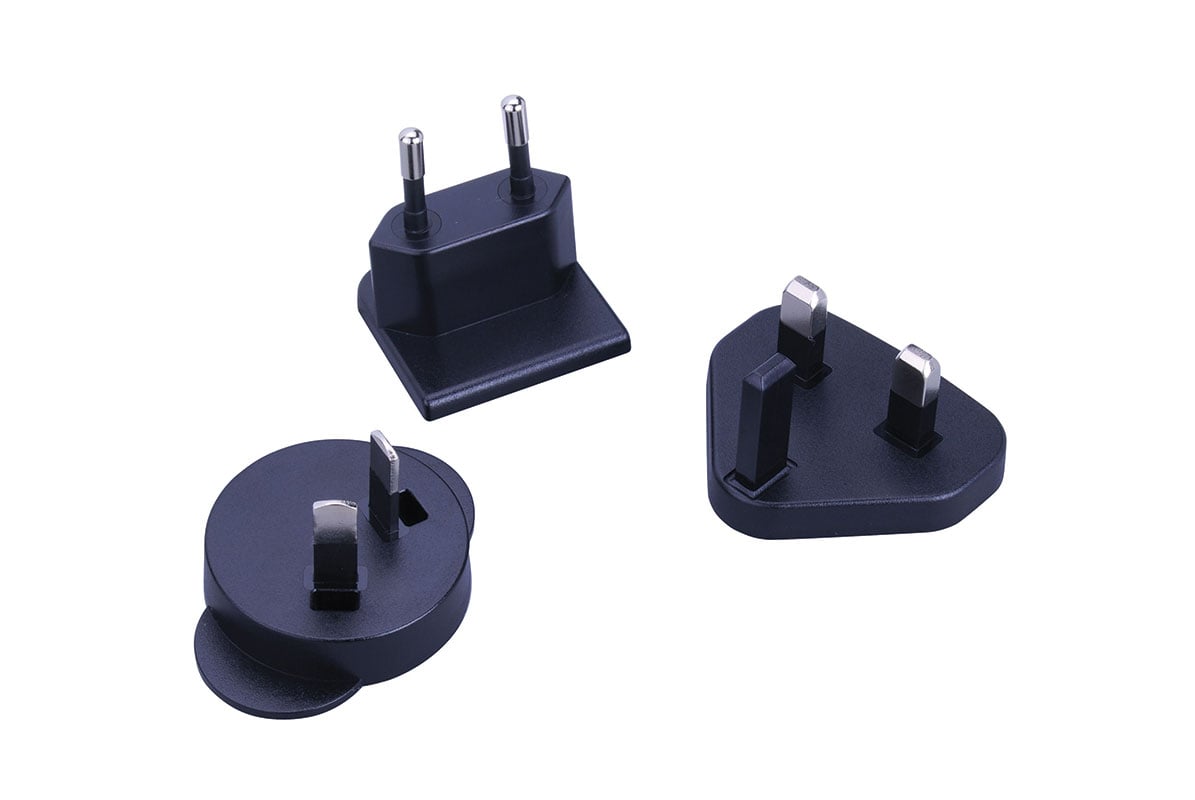

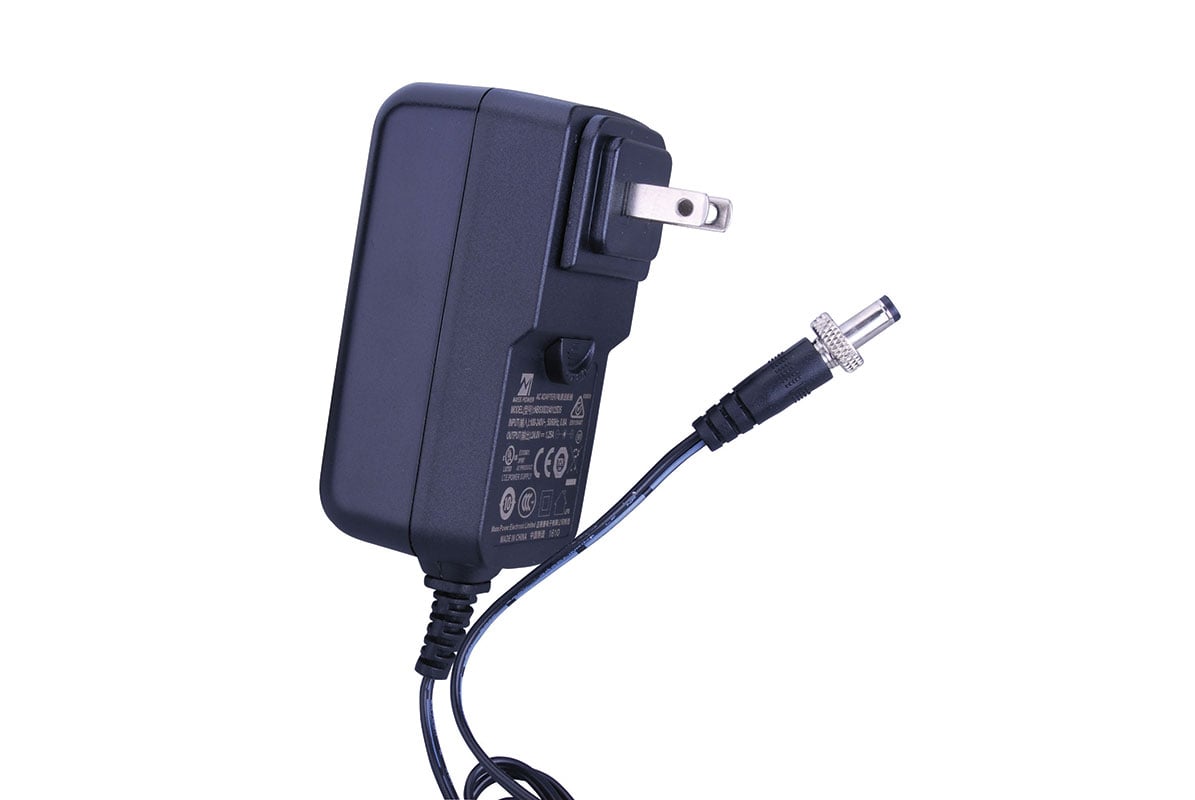

(1) DC 24V Power Supply
Product Manual


Additional information





[email protected]

Transmission Distance

231 – 330 ft

EVEXHDB2 Sales Sheet


EVEXHDB2 Product Manual


EVEXHDB2 Dolby Vision Firmware Update
