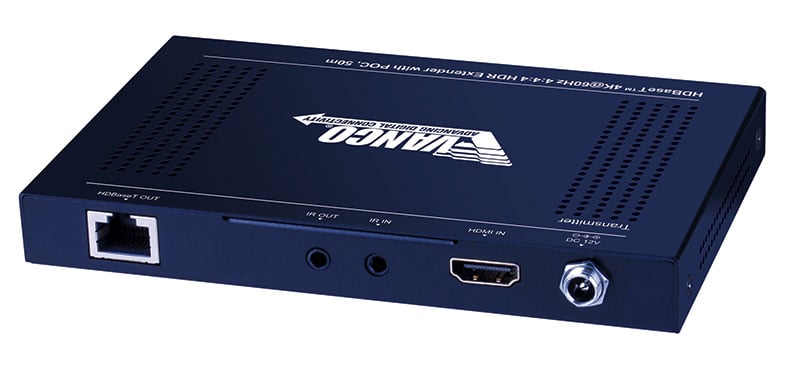

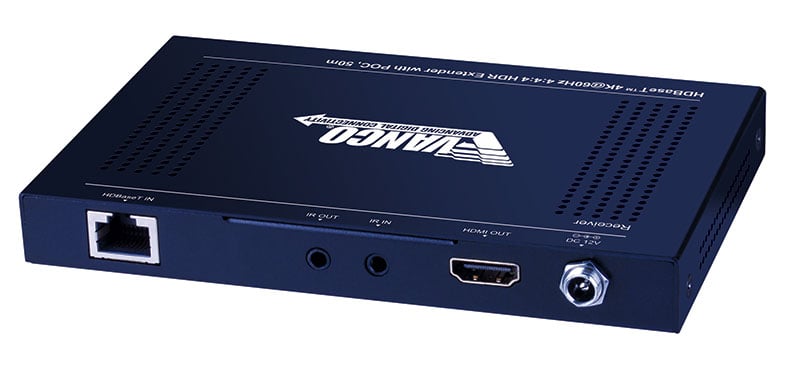

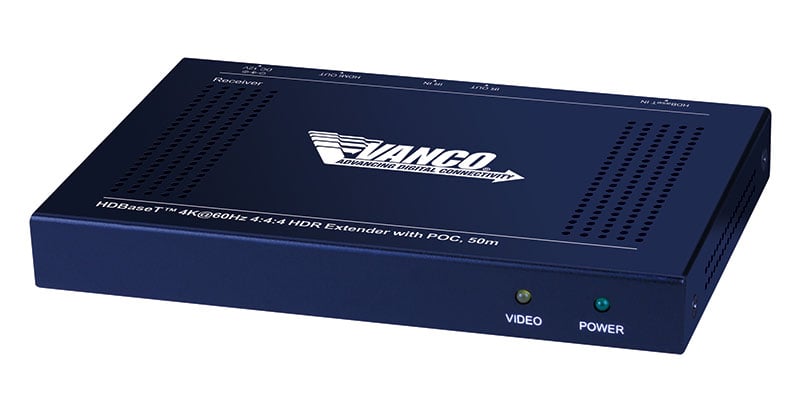

HDBaseT™ 4K@60Hz, 4:4:4 Chroma, HDR Extender

SKU: HDBT4K50 Categories: , ,

Description

  • Features the latest HDBaseT Technology, optimized for whole-home or commercial distribution of highdefinition signals at much greater distances of standard HDMI cables
  • Transmission Range: Extends 4K@60Hz, 4:4:4 with HDR up to 230ft/70m over a single Cat5e/6 cable and 1080p@60Hz up to 230ft/70m
  • Features Power over Cable technology (PoC) which transmits power over Cat5e/6, allowing for either Transmitter or Receiver to be powered without the use of a power supply
  • Virtually Lossless Compression retains high end audio and video quality
  • Bi-directional IR control
  • Features Auto EDID and EQ Management for plug and play installation
  • HDR Compatible
  • HDCP 2.2 compliant and backward compatible to previous versions
  • CEC Support
  • Slim and compact design
  • Power Supply: DC 12V, 2A
  • Dimensions: 5.75” W x .7” H x 3.7” D

Package Contents:

HDBT4K50 (TX & RX)
IR Transmitter (IR TX)
IR Receiver (IR RX)
Mounting Hardware
(1) DC 12V Power Supply
Product Manual

Additional information

Type

Resolution

4K@60Hz

Technology

HDBaseT

Transmission Distance

165 – 230 ft
