HDBaseT™ Extender (230 ft/30m) with POE

SKU: 280621 Categories: , ,

This product has been discontinued.


View Our Extender Comparison Guide

Replaced by HDBTEX70
  • Features HDBaseT Technology- optimized for whole-home or commercial distribution of uncompressed high-definition signals at twice the distance of HDMI cables without degradation

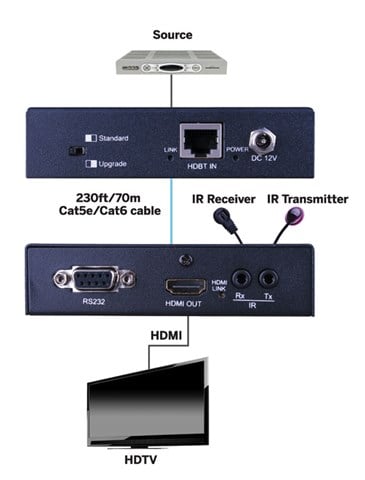

  • HDBaseT Extender can connect uncompressed full HD digital video- audio- IR and various control signals through a single 230ft/70m Cat5e/Cat6 cable
  • Supports Power Over Ethernet (PoE)- integrates power into the Cat5e/6 cable- requiring no power supply for either the Transmitting unit or Receiving unit (opposite of unit that is plugged in to power)
  • Transmission Range: Extends 1080p resolutions up to 230ft (70m) over a single Cat5e/6 cable and 2160p/30hZ (4K2K) resolutions up to 131ft (40m)
  • Features EDID management which supports default HDMI EDID and has the ability to learn the EDID of display equipment
  • 3D Compatible
  • HDCP Compliant
  • CEC support
  • Auto equalization
  • With ESD Protection
  • Pure unaltered uncompressed 7.1ch digital HDMI over Cat.5/5e/6 cable transmission
  • Dolby TrueHD and DTS-HD master audio pass through HDMI output
  • Wideband IR signal from 30KHz to 60KHz (IR RX and TX included)
  • Bi-directional IR and RS232 pass-through
  • Includes Mounting hardware for easy installation
  • Dimensions: 4.2” (107mm) W x 1” (27mm) H x 4.2” (107mm) D

Package Contents:

(1) 280621 (Transmitter and Receiver)
(1) IR Receiver (RX)
(1) IR Transmitter (TX)
(1) DC 12V- 2A power supply
(1) Rack-mounting ear set
(1) User Manual
