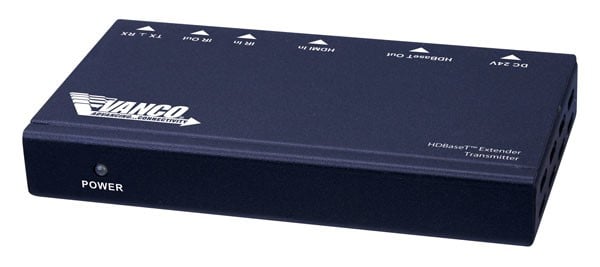

HDBaseT™ Extender

SKU: HDBTEX70 Categories: , ,


View Our Extender Comparison Guide

  • Allows for transmission of HDMI audio and video- control- and power over a single Cat5e/Cat6 Cable up to 230ft/70meters (4K up to 130ft/40m) to a compatible display
  • Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/Cat6- allowing the transmitter and receiver to be powered off of a single power supply
  • Supports resolutions up to 4K x [email protected] 4:2:0 up to 130ft/40m
  • Full HD support of [email protected]@48 bit/pixels- [email protected]@24 bit/pixels- 3D 1080P60Hz and 4K x [email protected]@24bit up to 230ft/70m
  • Wide band Bi-directional IR and RS-232 system allowing for control of source or display (IR accessories included)
  • Supports Dolby- DTS- and PCM multi-channel and stereo audio formats
  • Slim and compact design
  • HDCP 2.2 Compliant
  • Power Supply: DC 24V 1A
  • Dimensions: 3.9” W x .9” H x 2.6”

Package Contents:

HDBaseT Extender Set
2 Wideband IR Tx
2 Wideband IR Rx
1 DC 24V1A power supply
4 Mounting ears
User Manual

Additional information

Weight 1.84 lbs
Dimensions 7.5 × 7.5 × 2.5 in


[email protected]





Transmission Distance

165 – 230 ft

HDBTEX70 Product Manual


HDBTEX70 Sales Sheet
