HDMI® 1×4 4K Splitter with HDR

SKU: HDSP4K14 Categories: , ,

This product has been discontinued.


  • Transmits audio and video from a single source to 4 HDMI outputs up to 4K2K (2160p) Ultra High Definition resolution without any loss of quality or resolution
  • Supports video formats up to [email protected] with 12bit YCBCR 4:4:4 and HDR
  • 3D frame sequential video format up to [email protected]
  • Supports high resolution VESA mode video format up to QSXGA 2560×[email protected]
  • Compliant with HDCP 2.2 sources and backwards compatible with older versions of HDCP

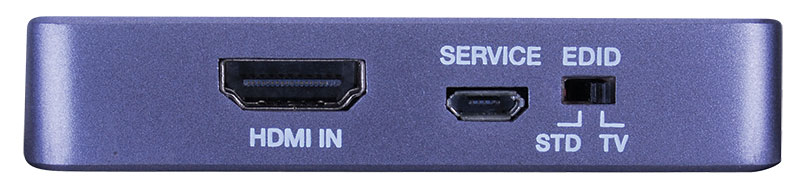

  • Dynamic and Manual EDID management modes to ensure compatibility during installation
  • Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
  • Supports Hot-plug
  • High bandwidth: 18 Gbps
  • Features status indicator for connection & input HDCP compliance
  • Can be cascaded with other Evolution by Vanco products to create additional output options or to create an expanded distribution system
  • Power Supply: DC 5V, 1A
  • Dimensions: 4.7” W x .6” H x 3”

Package Contents:

HDSP4K14 4K HDMI Splitter
(1) DC 5V Power Supply
Product Manual

Additional information

Weight 0.05 lbs
Dimensions 7.5 × 5.75 × 0.25 in






[email protected] HDR

HDSP4K14 Product Manual


HDSP4K14 Sales Sheet
