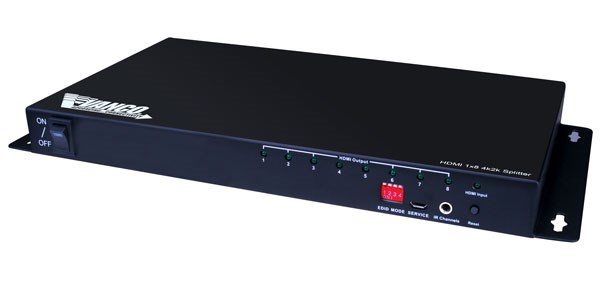

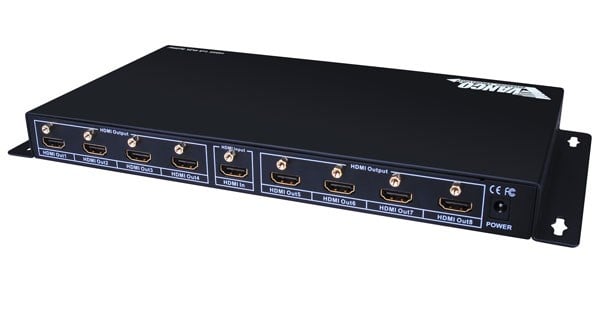

HDMI® 1×8 4K2K Splitter

SKU: 280708 Categories: , ,

Description

  • Allows 1 HDMI source to be displayed on up to 8 HDMI displays
  • Features EDID management which supports default HDMI EDID options or has the ability to copy the EDID of any display connected to the source for any “handshake” issues
  • Supports 4K2K (2160p @30) Ultra High Definition resolution
  • Full high definition resolution support: 2160p- 1080p- 1080i- 720p and other standard video formats
  • Fully cascadable so multiple units may be combined to create an expanded distribution system
  • Supports HDMI 36bit Deep Color and 3D
  • Supports standard audio- DSD audio and HD (HBR) audio- 7.1 and 5.1 surround audio- Dolby digital -Dolby True HD- DTS- and DTS Master audio
  • Features dual band Super IR system for controlling source from any display connected (HDMI IR adapters (Part # 280703) and IR transmitters and receivers are sold separately (Part #s 280720- 280721))
  • HDCP Compliant
  • Compact design for easy installation
  • Power Supply: DC 9V
  • Dimensions: 12.5” (317mm) W x 1” (28mm) H x 6” (156mm) D

Additional information

Type

Inputs/Outputs

1×8

Transmission Distance

0 – 50 ft

280708 Product Manual

Download
