HDMI® 4K Extender

SKU: HD4KEX30 Categories: , , ,


  • Allows HDMI audio/video and control to be transmitted using a single Cat5e or Cat6 cable
  • Supports 4K@60Hz, 4:2:0 Chroma up to 98ft/30m
  • Supports 4K@30Hz and 1080p@60Hz up to 164ft/50m
  • Passes High Dynamic Range (HDR)
  • HDCP 2.2/1.4 Compatible
  • Supports IR callback from display to source
  • Audio Support: LPCM 7.1, Dolby® TrueHD, Dolby Digital® Plus, and DTS-HD Master Audio™
  • Plug and play installation with auto EDID/EQ management
  • Power supplies: (2) 5V DC
  • Dimensions: 2” W x .6” H x 3” D

Package Contents:

HD4KEX30 (TX & RX)

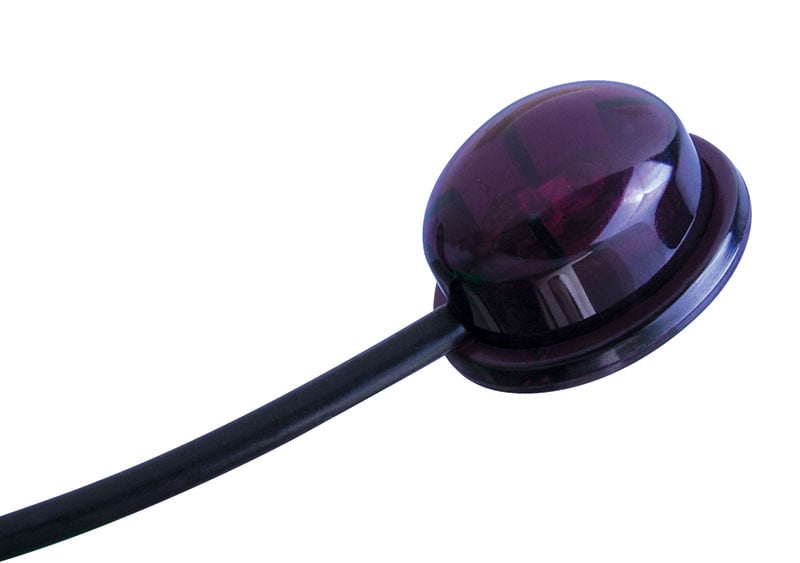

IR Transmitter (IR TX)

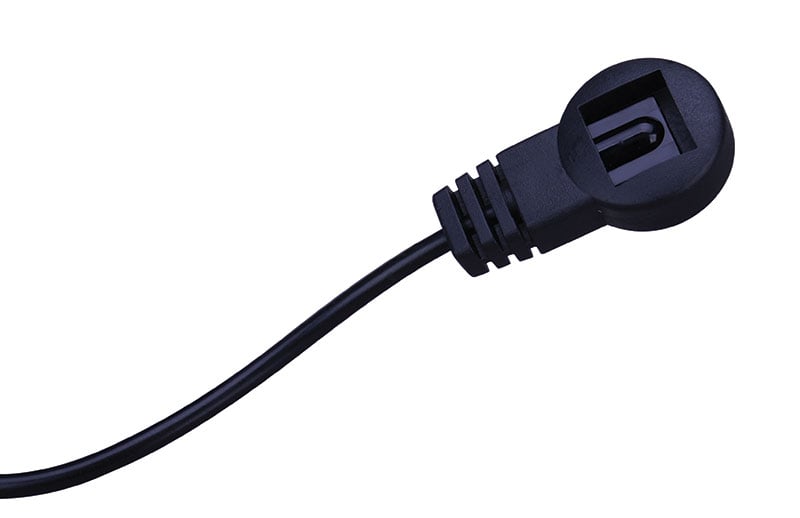

IR Receiver (IR RX)
Mounting Accessories
(2) 5V/1A Power Supplies
Product Manual

Additional information






Transmission Distance

101 – 164 ft

HD4KEX30 Product Manual
