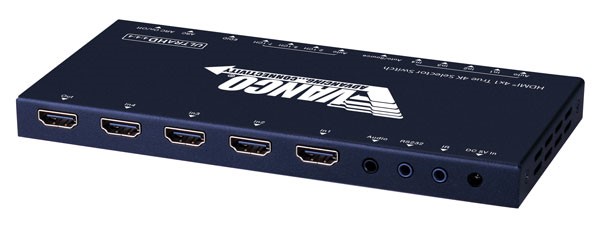

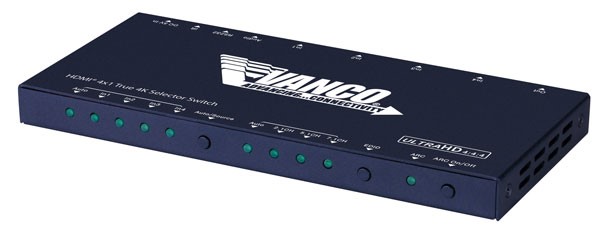

HDMI® 4×1 True 4K Selector Switch with ARC and HDR

SKU: HDMISW41 Categories: , ,

Description

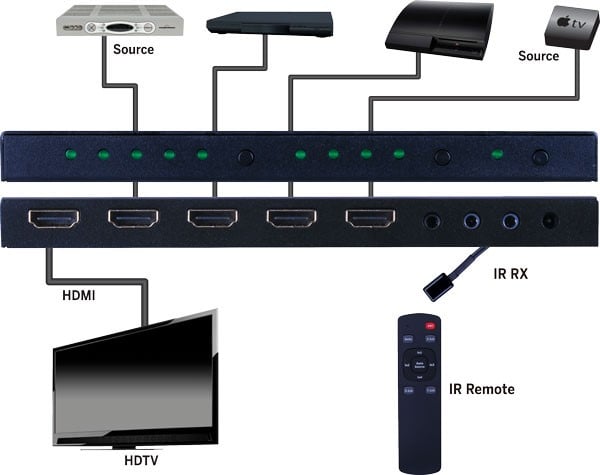

  • Allows 4 HDMI sources to be switched to 1 display
  • Supports 4K2K (2160p @60Hz w/ 4:4:4 color sampling) Ultra High Definition Resolutions
  • Supports HDR (High Dynamic Range)
  • Features Audio EDID management which allows selection of preferred audio channel
  • Supports auto switching or manual switching mode
  • Controllable via RS-232 and/or IR
  • Supports ARC (Audio Return Channel) and CEC (Consumer Electronic Control) functionality
  • Supports PCM- Dolby TrueHD- and DTS-HD Master Audio up to 7.1 CH audio formats
  • Digital and analog audio outputs for audio extraction
  • HDCP 2.2 compliant
  • 5V DC Power Supply
  • 7” W x .5” H x 3.3” D

Package Contents:

HDMISW41 4×1 HDMI Switcher
5V/1A USB Power Adapter
5V USB to DC Power Supply cable
IR Receiver
3.5mm Stereo (male) to 4- 3.5mm Stereo (Female) for IR OUT (WIR-1X4)
Optical convert adapter (for SPDIF audio output)

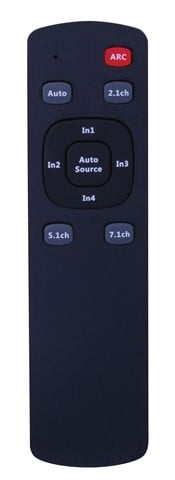

IR Remote
Product Manual



Additional information

Type

Inputs/Outputs

4×1

Resolution

4K@60Hz HDR

HDMISW41 Product Manual

Download

This Attachment Never Expires.

HDMISW41 Sales Sheet

Download

This Attachment Never Expires.

HDMISW41 IR Hex Commands

Download

This Attachment Never Expires.

HDMISW41 Hex RS232 Commands and Protocol

Download

This Attachment Never Expires.
