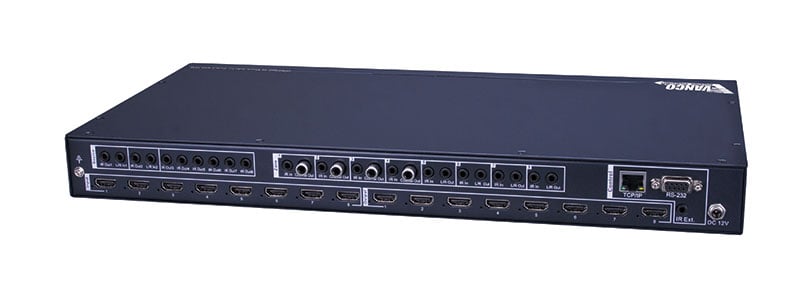

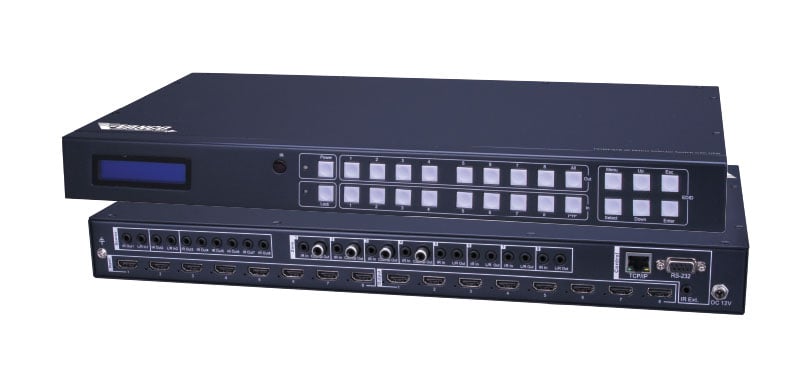

HDMI® 8×8 4K Matrix Selector Switch

SKU: 280688 Categories: ,

This product has been discontinued.

Description

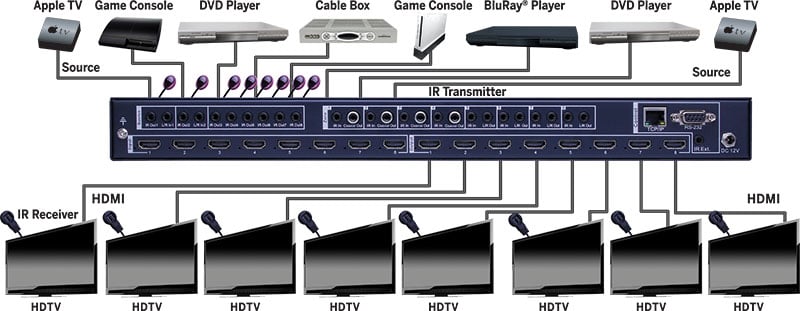

  • Allows up to 8 HDMI sources to be distributed simultaneously to up to 8 displays
  • Supports resolutions up to 4K@60Hz with HDR, 48-bit deep color
  • Advanced EDID management for rapid integration of sources and displays
  • Dolby TrueHD and DTS-HD master audio pass through HDMI output
  • Full 3D pass through

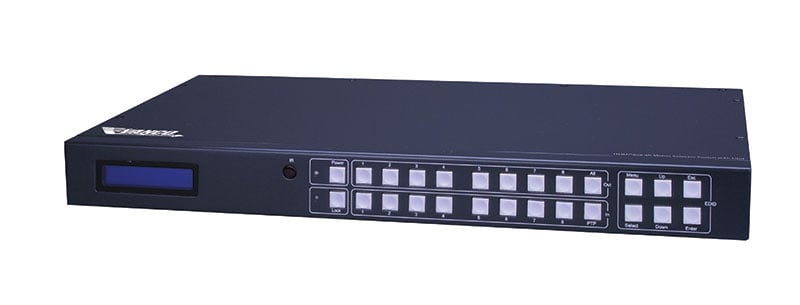

  • Choose from 4 switching modes – Front Panel buttons, IR remote control, RS-232 control, and TCP/IP control
  • HDCP Compliant
  • Wideband bi-directional IR pass-through (30 to 60 kHz) (8 IR Transmitters and 9 IR Receivers included)
  • Dimensions: 17.25” (438mm) W x 1.63” (41mm) H x 7.19” (182mm) D

Package Contents:

(1) 280688 HDMI 8×8 Matrix Selector Switch
(9) IR Receiver (RX)
(8) IR Blaster (TX)
(1) DC 12V5A power supply
(1) Rack-mounting ear set
(1) IR remote control
(1) Installation software CD
(1) User Manual



Additional information

Weight 9.5 lbs
Dimensions 22.5 × 11.8 × 4 in
Inputs/Outputs

8×8

Resolution

4K@60Hz

Brands

Vanco

Technology

HDMI

Transmission Distance

0 – 50 ft

280688 Product Manual

Download

280688 Discreet IR Codes

Download

280688 Hex Serial Commands

Download

280688 UI Software

Download
