Description

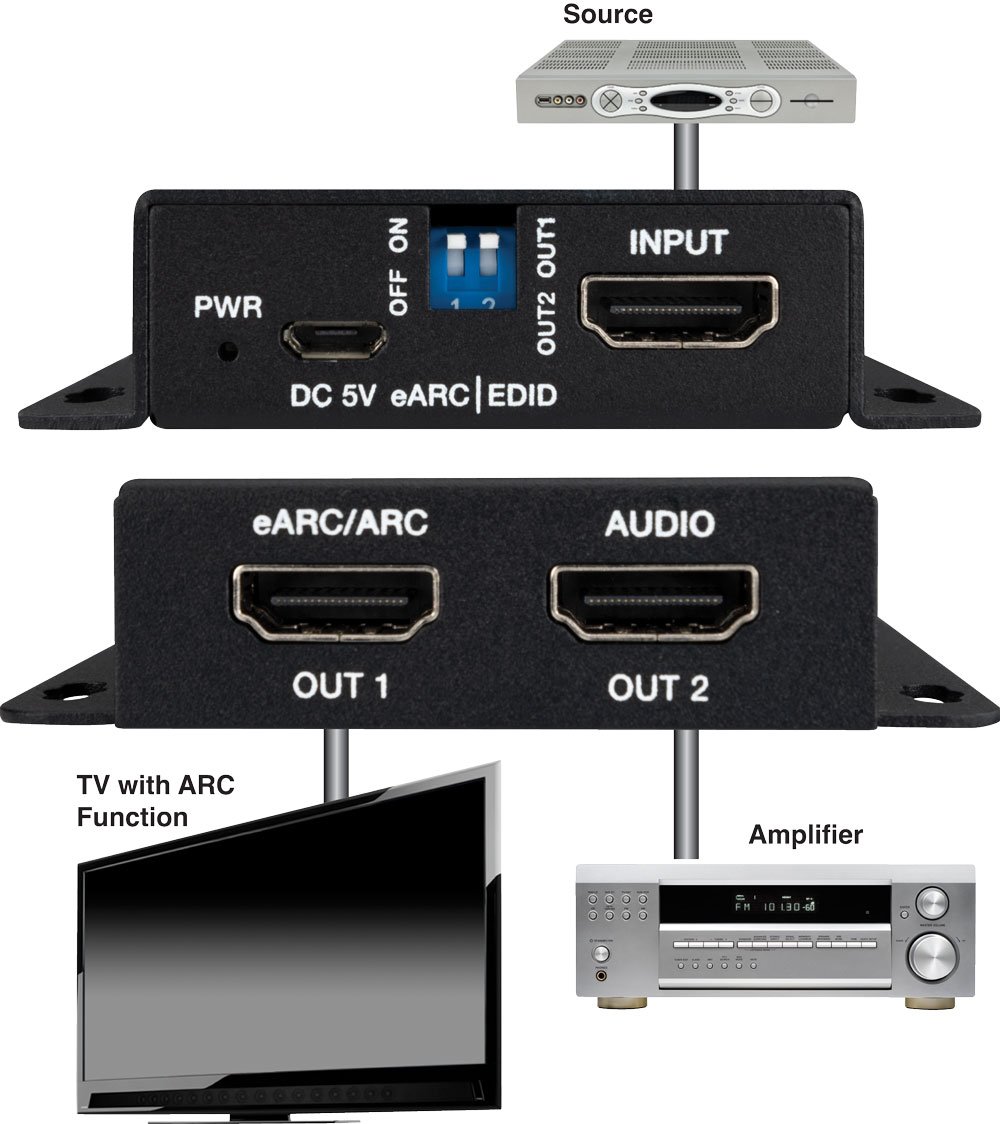

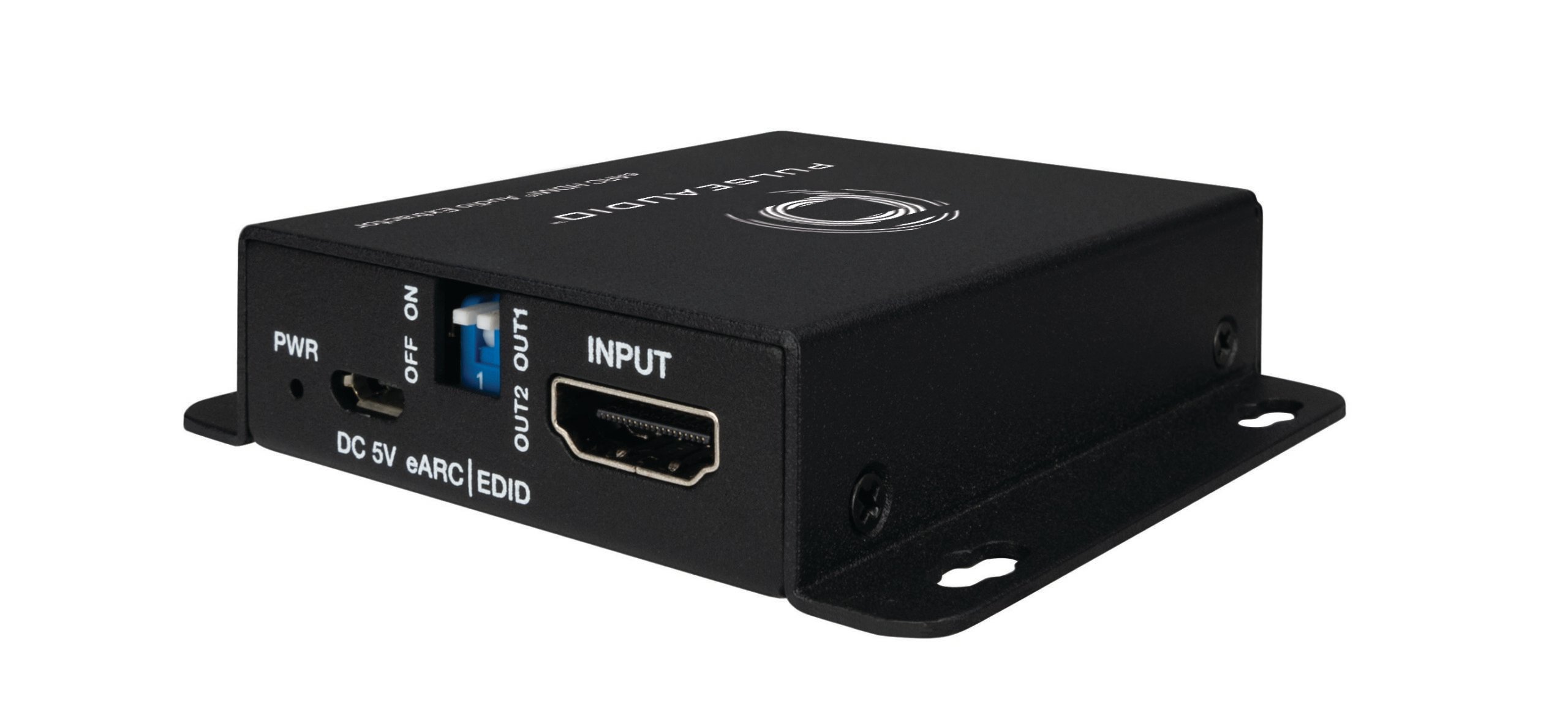

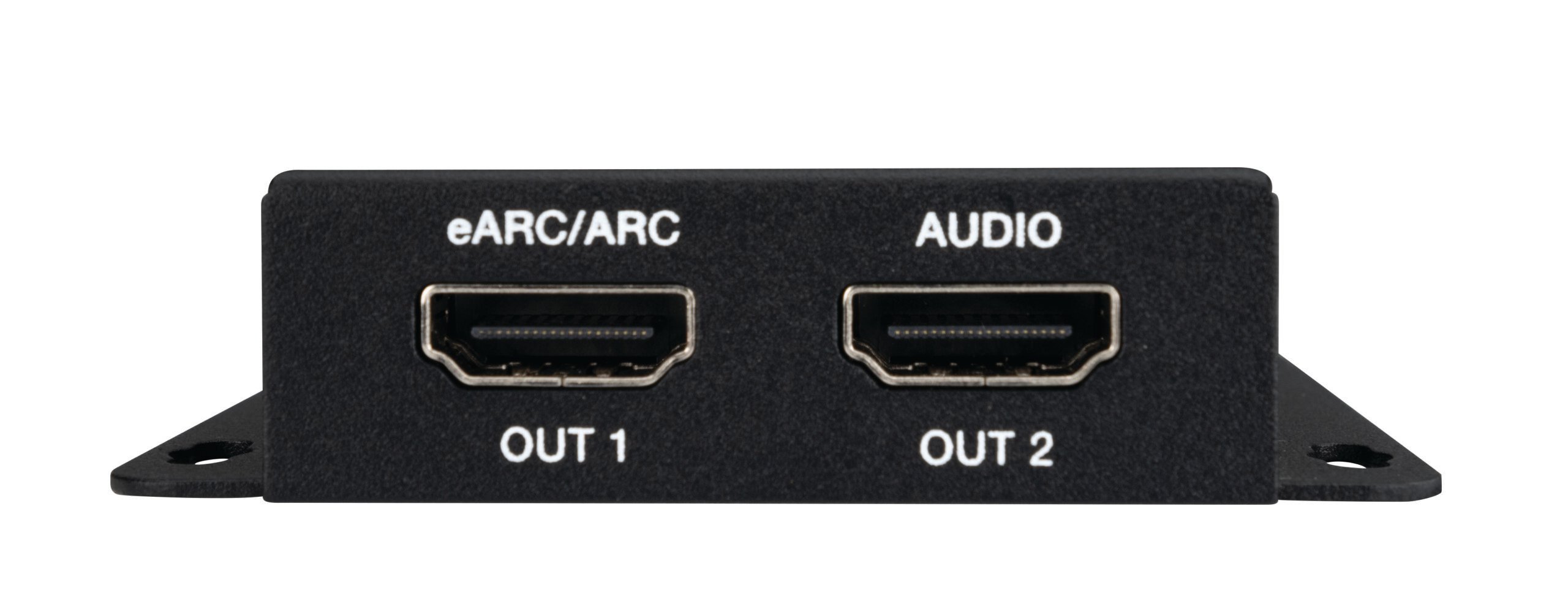

The PulseAudio PA-EARCX is an HDMI audio extractor which can de-embed or break out audio from an HDMI 4K HDR display equipped with Audio Return Channel (ARC) and/or Enhanced Audio Return Channel (eARC). Break out audio from the HDMI signal to a soundbar, A/V Receiver, or amplifier without affecting the HDMI 2.0 output to the main display. Features two HDMI outputs, one for video capable of passing 18 Gbps, 4K@60Hz with HDR content, while the second HDMI output is dedicated for extracting ARC/eARC audio. For extracting audio from the latest 4K and eARC components, the PA-EARCX is the perfect solution.
- Extracts audio signals from an HDMI source signal
- Supports Enhanced Audio Return Channel (eARC) and ARC
- Passes 4K@60Hz 4:4:4 resolution
- Supports HDR (High Dynamic Range) with HDR10, HDR10+, Dolby Vision formats
- Dolby and DTS format pass-through such as Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio
- HDMI 2.0b and HDCP 2.3 compliant
- Supports 18Gbps video bandwidth
- Built-in equalizer
- Support CEC functionality
- Advanced EDID management
- Dimensions: 2.5” W x 2.75” D x 1.5” H (65mm W x 70mm D x 27mm D)
What’s included:
(1) Audio extractor
(1) USB cable (USB-A to Micro USB)
(1) USB power adapter
(1) Product manual
