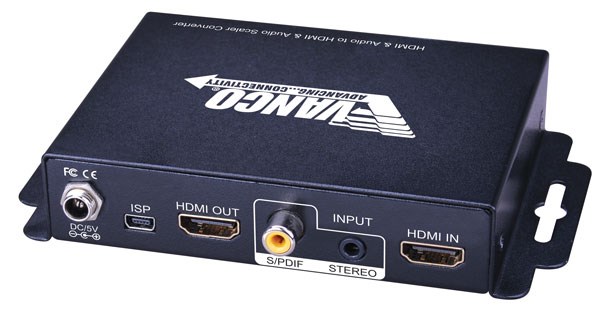

HDMI® Audio & Video Scaler

SKU: 280563 Categories: ,


  • HDMI Resolution Scaler with Audio Embedding/De-embedding and Video Calibration
  • Embeds an analog or digital audio signal onto the HDMI Ouput to combine Video and Audio sources onto a single display
  • Allows for up to 50 different resolutions from an HDMI source to be scaled to 720P or 1080P
  • De-embeds an analog or digital audio signal from the HDMI Input to connect to an external audio receiver or amplifier
  • HDMI 1.3a compliant and DVI 1.0 compliant
  • IR remote control- Remote control via mini-USB
  • OSD control interface
  • Maximum pixel rate : 165MHz
  • Deinterlacer supported
  • Supports noise reduction and video enhancement features
  • Video enhancement support and calibration
  • Over / Under scanning adjustable
  • Video H/V mirror supported
  • Active video area adjustment supported
  • USB firmware upgradable for expanding compatibility
  • Wall-mount housing design for easy installation

Additional information

Weight 1.4 lbs
Dimensions 6.75 × 5 × 5.25 in
