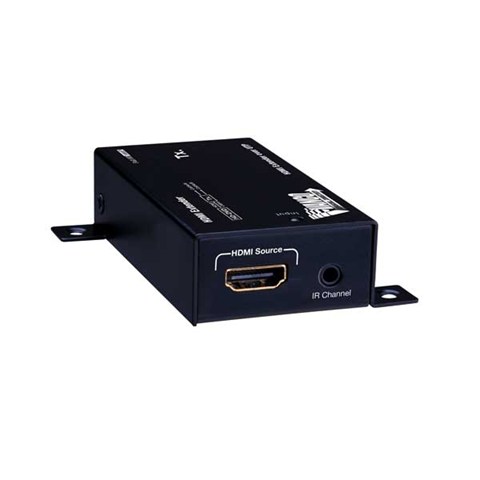

HDMI® Extender over 2 UTP Cables with IR Control (100 ft/30m)

SKU: 280713 Categories: , ,

This product has been discontinued.


View Our Extender Comparison Guide

Replaced by HDMIEX50
  • Allows HDMI Audio/Video Signals to be transmitted over Dual Cat6 Cables
  • Transmission Range: Extends 1080p resolutions up to 100 ft over Cat6 Cables
  • High Speed Chip Set that Supports 3D- FullHD 1080p
  • HDCP Compliant
  • Super IR control system- IR transport channel can be forward or backward. IR transmitters and receivers are needed (Part #s 280720- 280721)
  • Supports Digital Audio Format- DTS-HD/Dolby-True HD/LPCM7.1/AC3/DTS/DSD
  • Unique Circuit Design Allows for Protection against High Voltage and Peak Currents
  • Tested for Compatibility with all leading HD Video brands
  • Tested with 7.1 Home Theater Systems
  • Shelf or Wall Mountable
  • No power supply – Requires Source that Provides 5V DC HDMI Signal
  • Dimensions: 1.25”W x .875”H x 3.25”D

Additional information



280713 Product Manual
