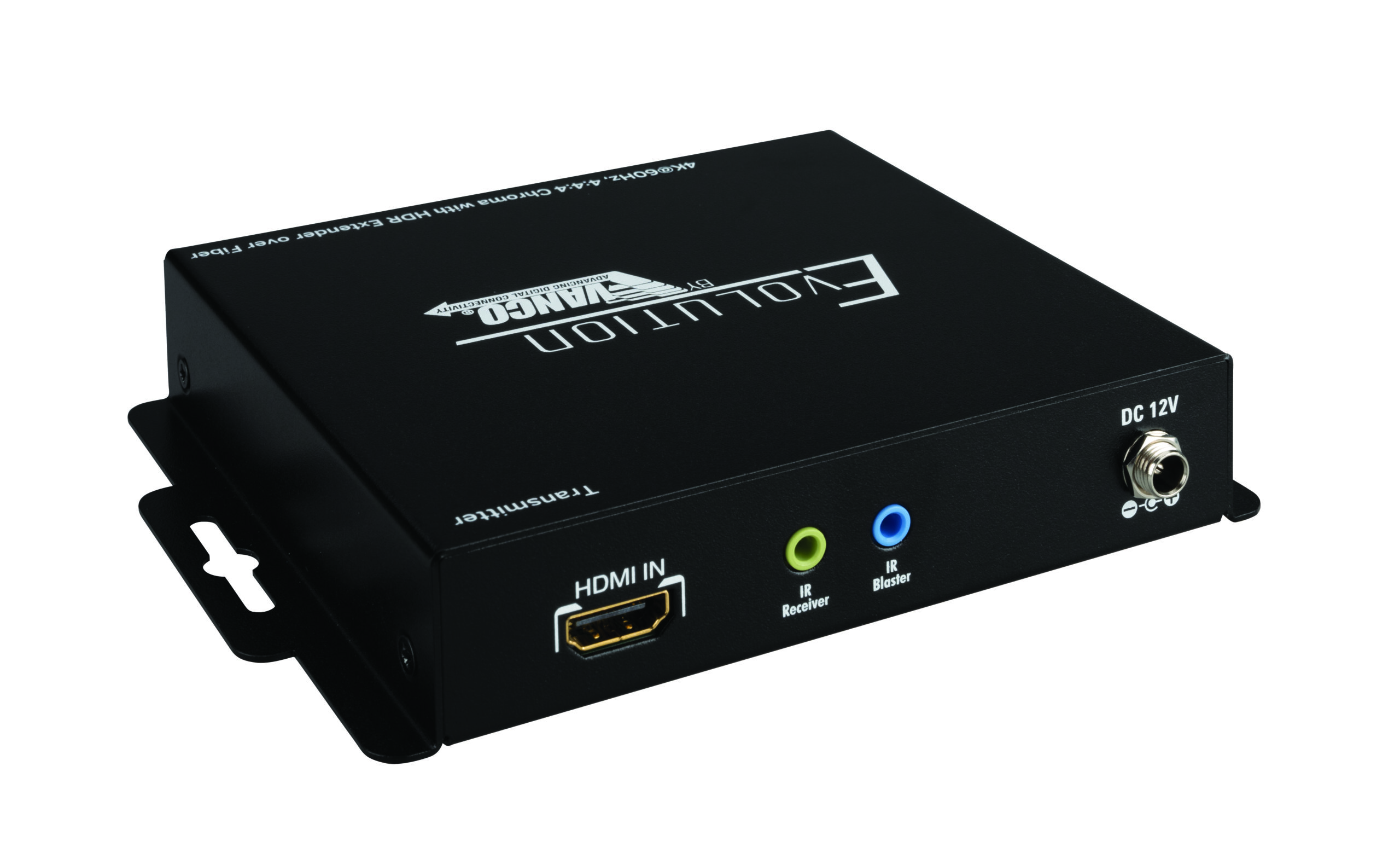

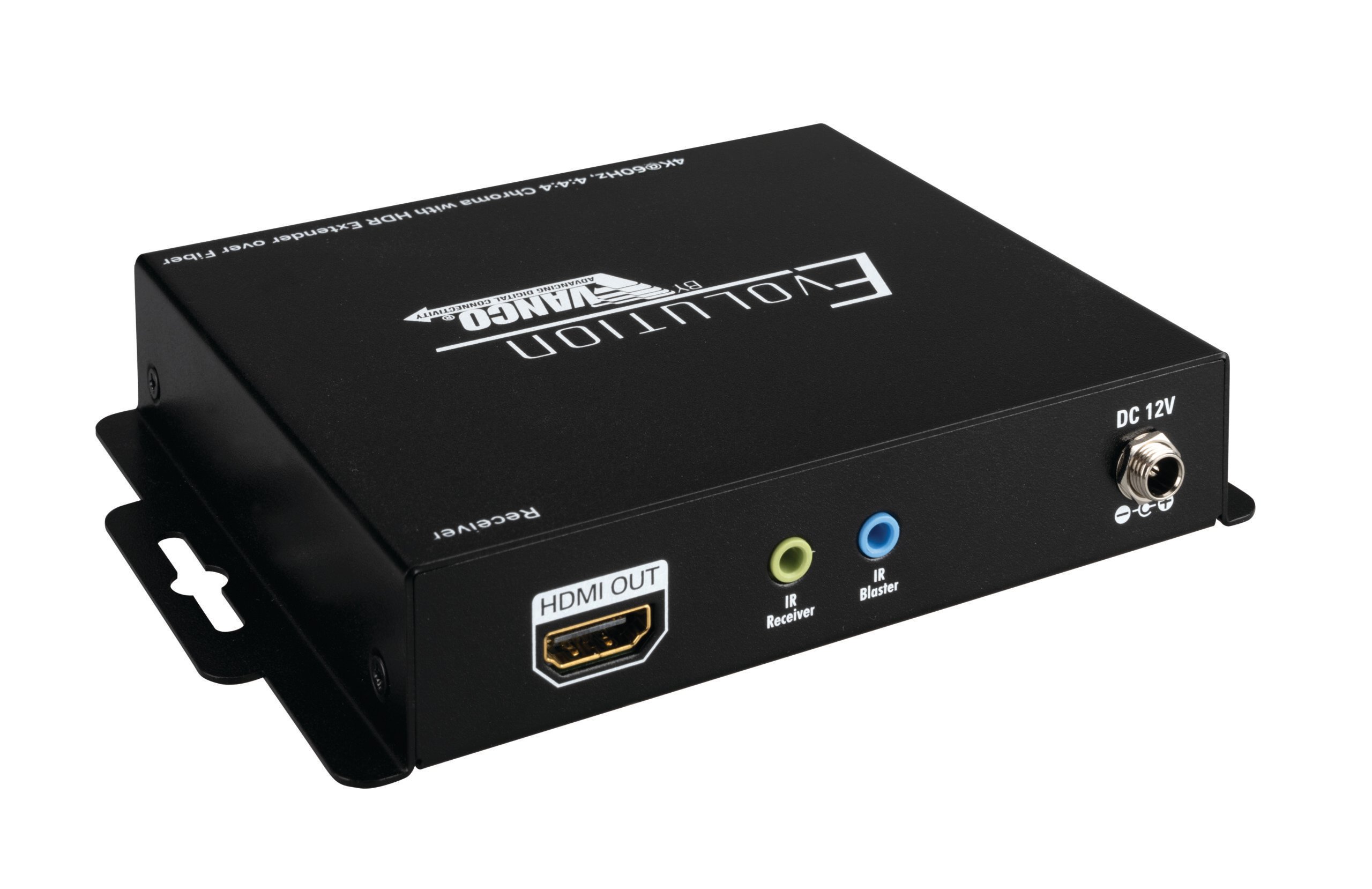

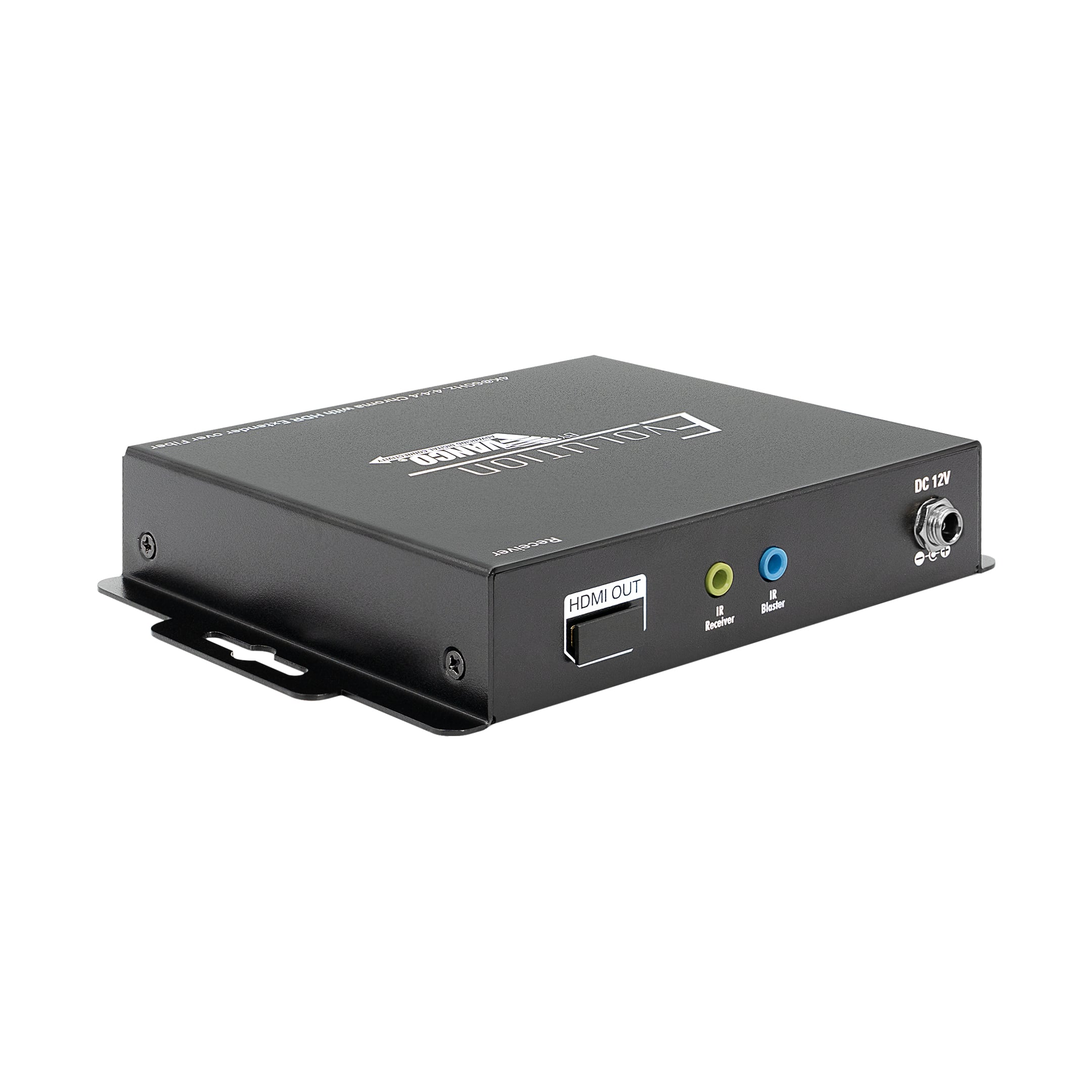

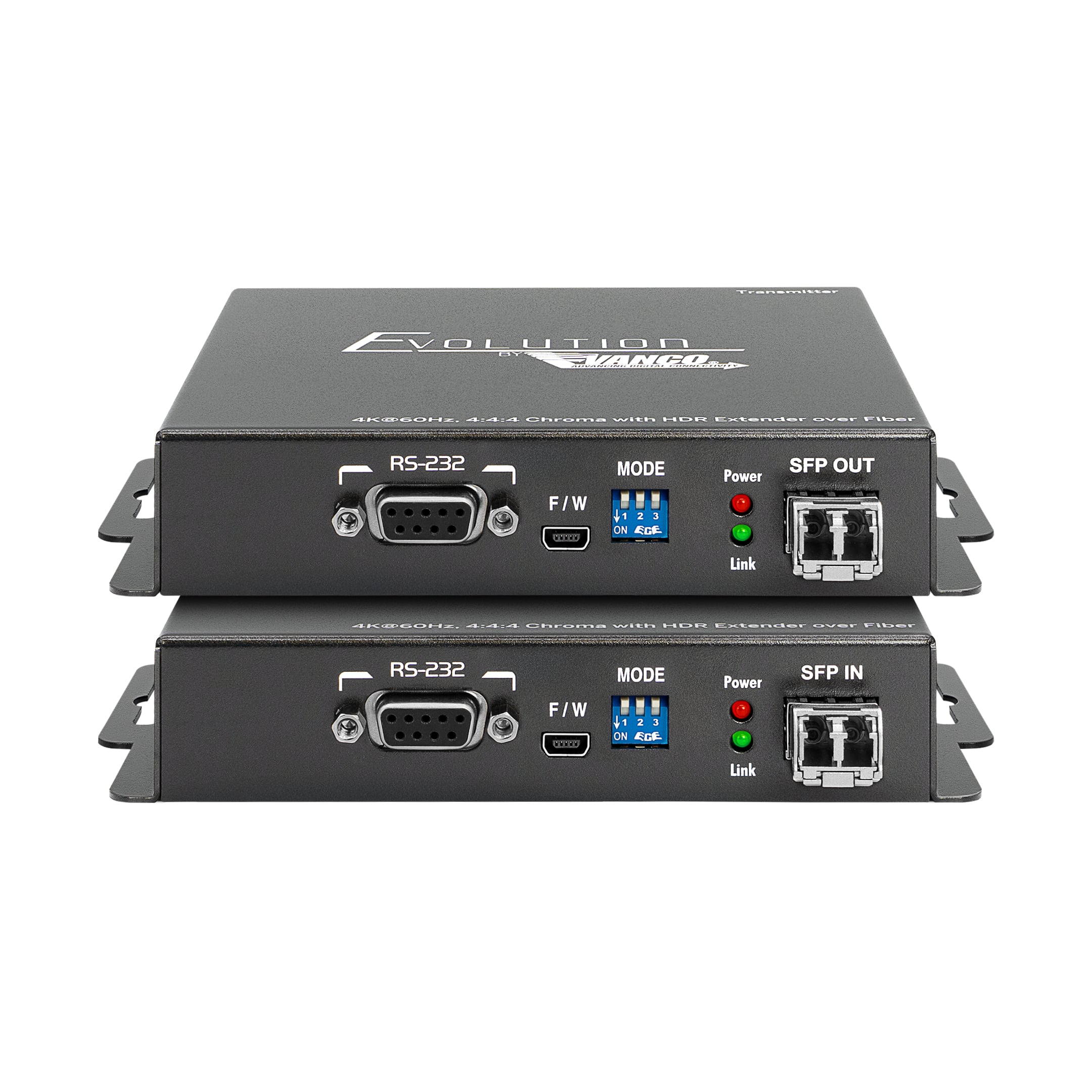

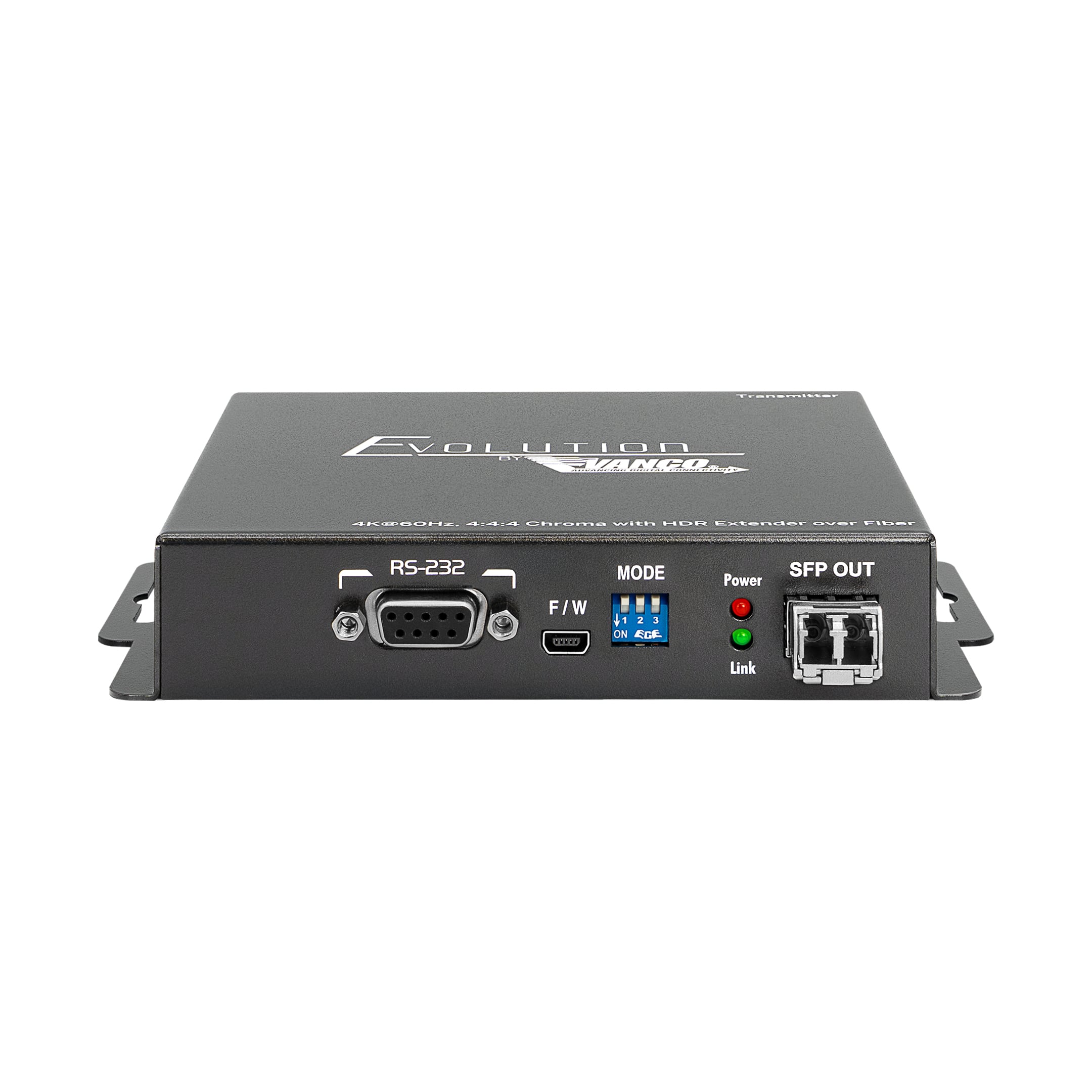

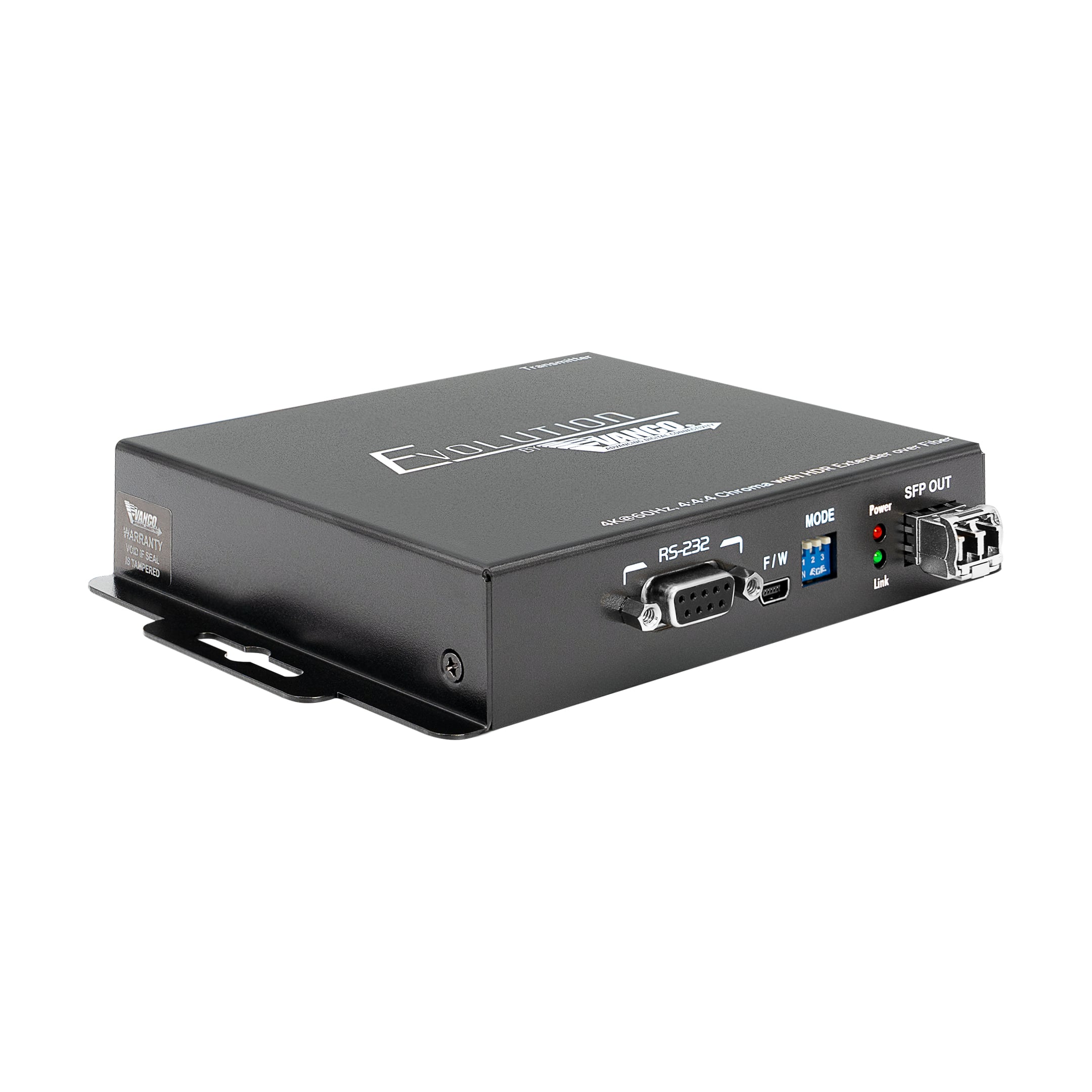

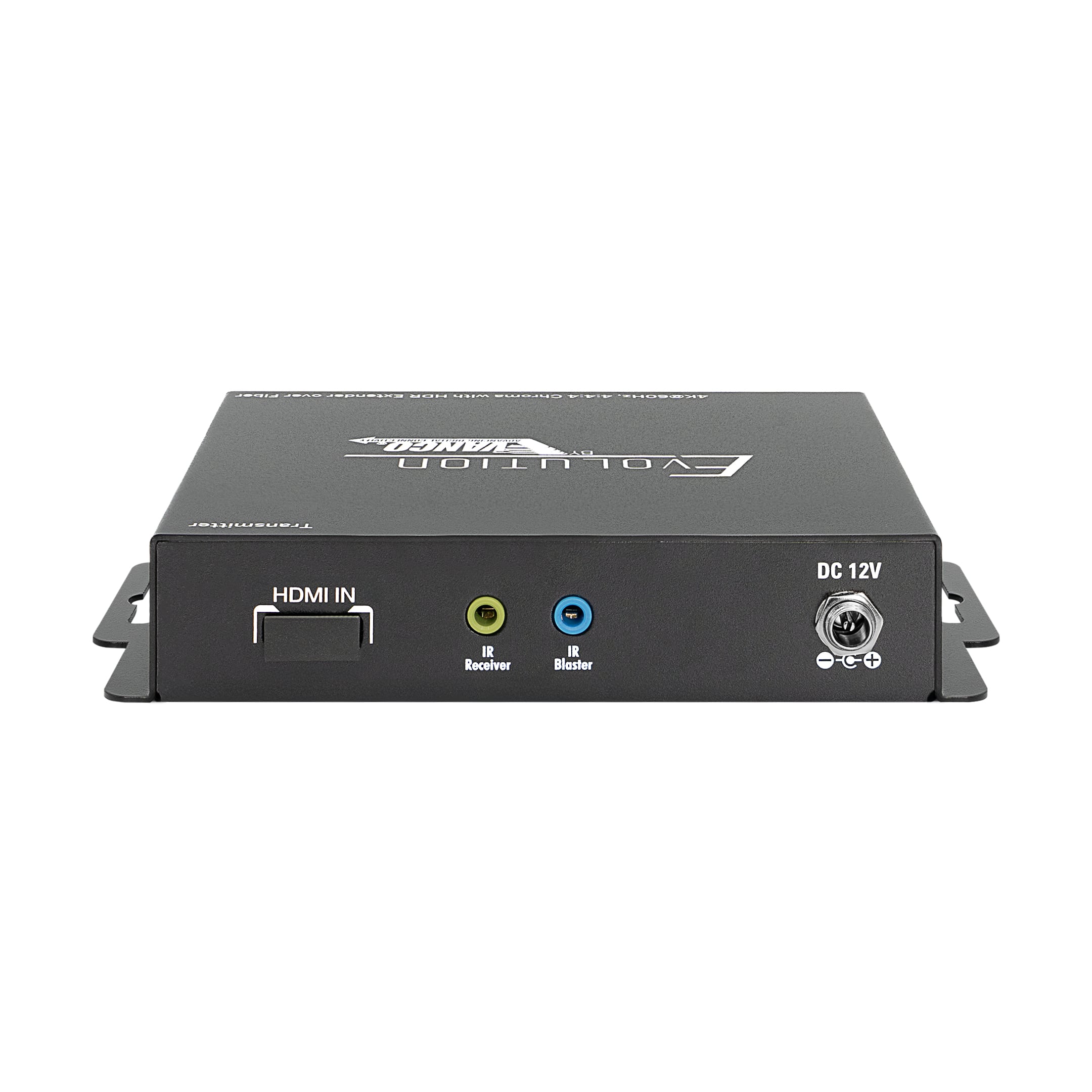

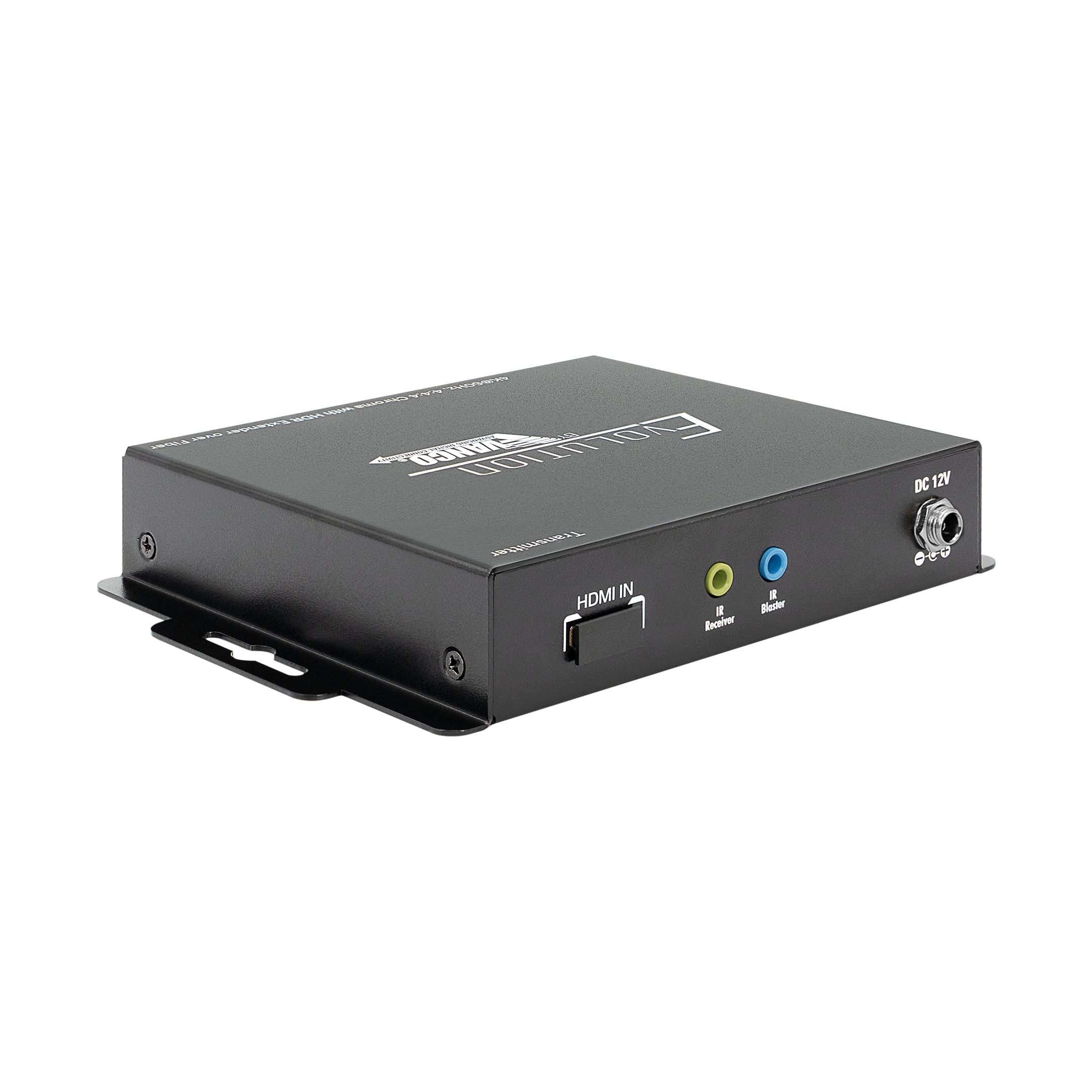

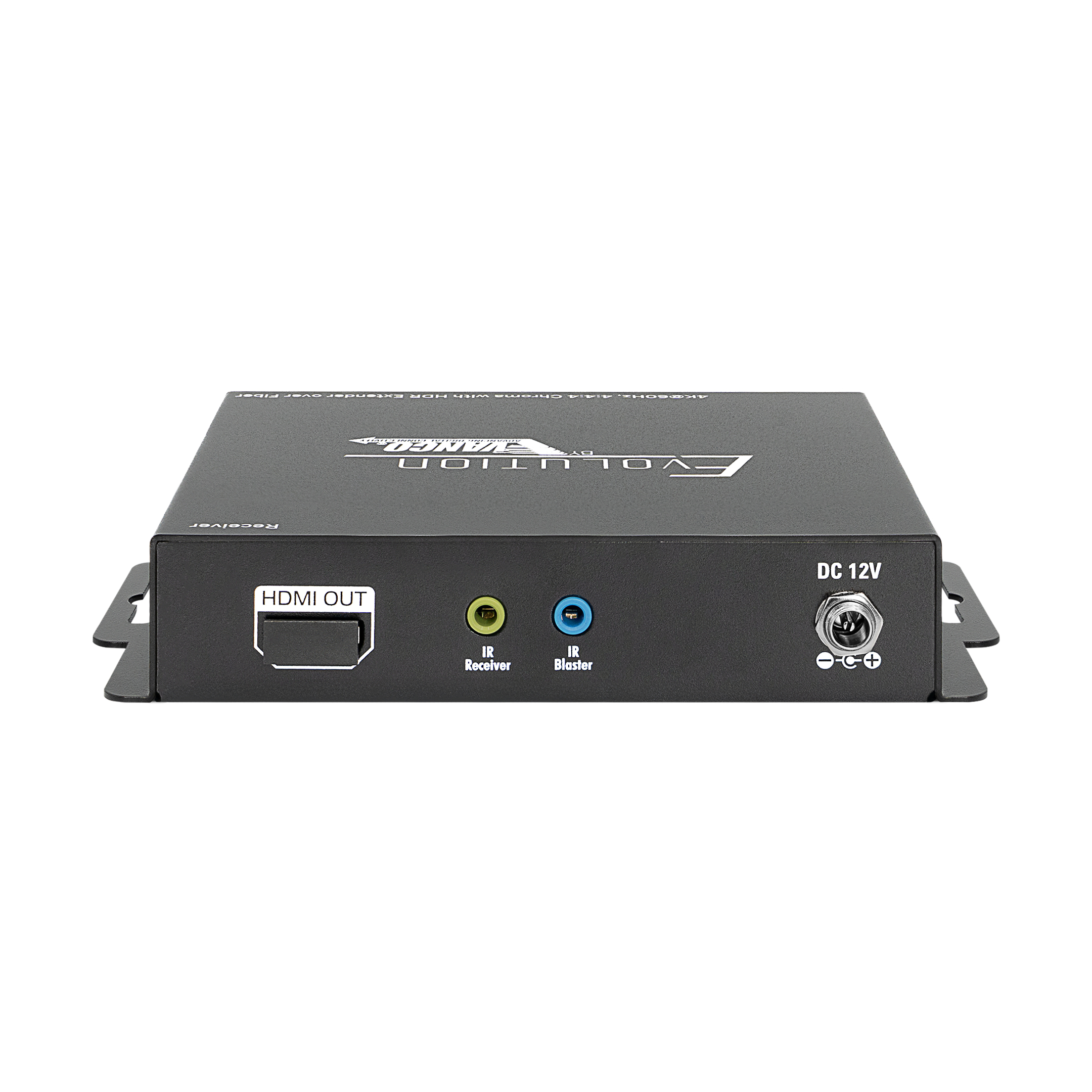

HDMI® Extender over Fiber with IR and RS-232

SKU: EVEXFBR1 Categories: , ,

Description

View Our Extender Comparison Guide

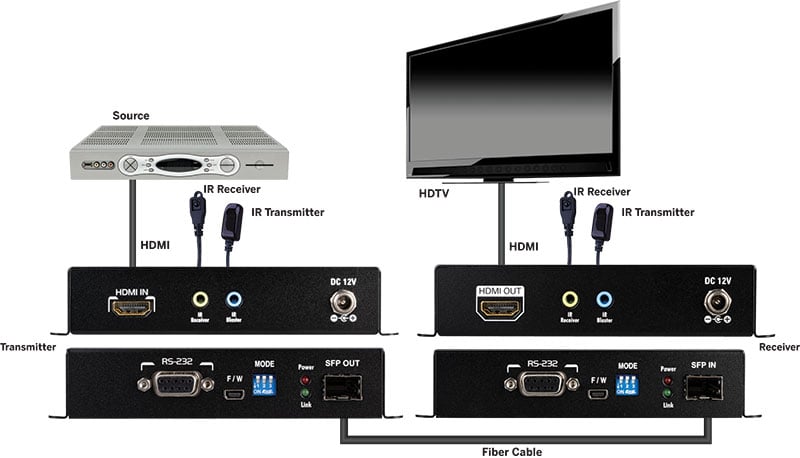

  • Transmits audio and video via HDMI as well as bi-directional IR and RS-232
  • Transmission range: 984ft/300m over duplex multi-mode fiber optic cables; 6.2mi/10km over duplex single mode fiber optic cables
  • Supports 4K@60Hz, 4:2:0 chroma sampling and HDR; 4K@60Hz and 4:4:4 chroma sampling
  • Supports HDR10 and Dolby Vision
  • Features bi-directional IR (20kHz to 60kHz) pass-through for source and/or display control
  • RS-232 pass-through
  • Supports HDCP2.2
  • LC Multi-mode SFP modules included
  • TAA Compliant
  • Dimensions: 4.9” W x 4.4” H x 1.1” D

Tech Support Tips:

    • Supports 4K@60Hz, 4:2:0 HDR10 and 4K@30Hz, 4:2:0 Dolby Vision

Package Contents:
EVEXFBR1 (TX & RX)
(1) IR Transmitter
(1) IR Receiver
(2) DC 12V Power Supply
(2) Multi-mode SFP Modules
(1) Set of Mounting Hardware
Product Manual
