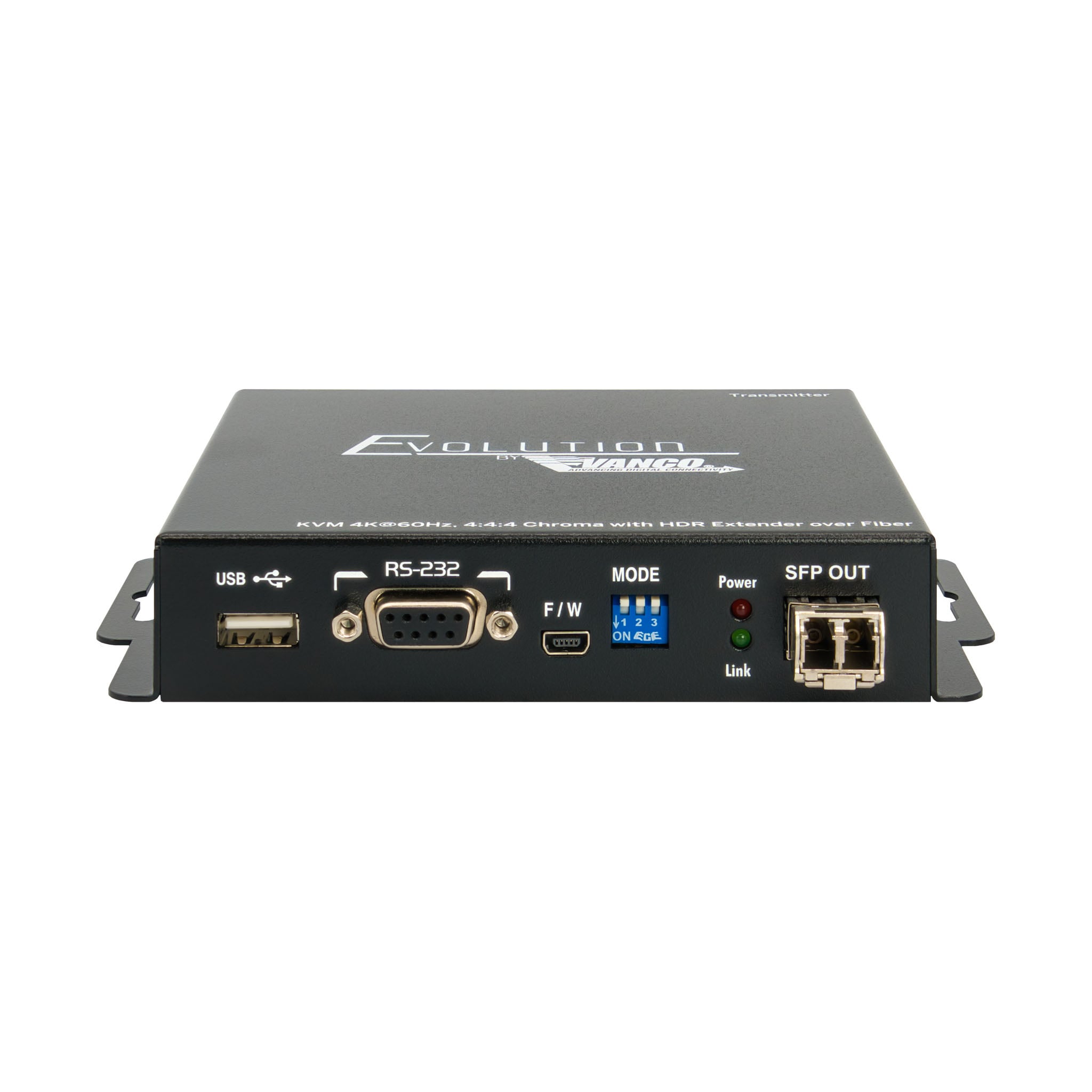

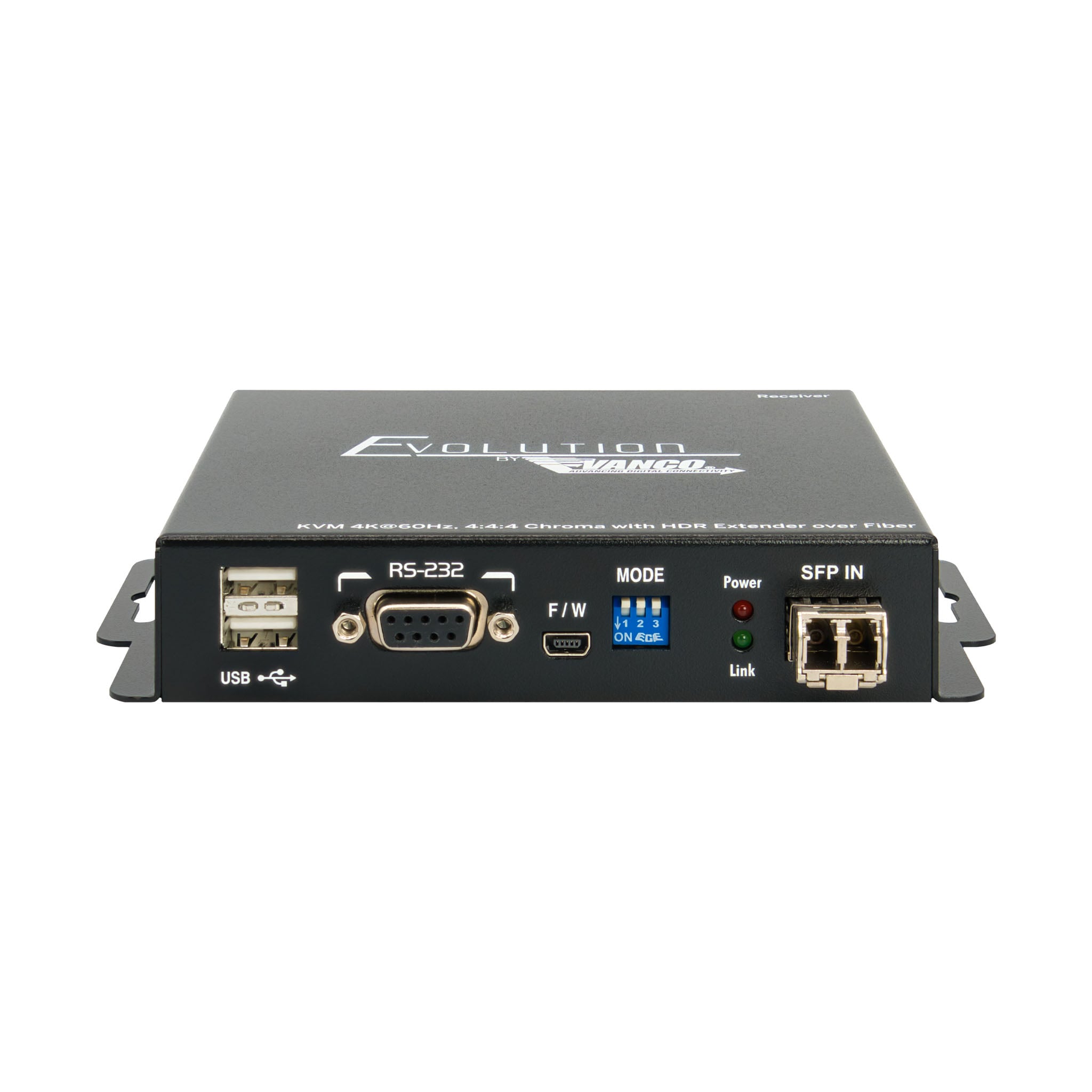

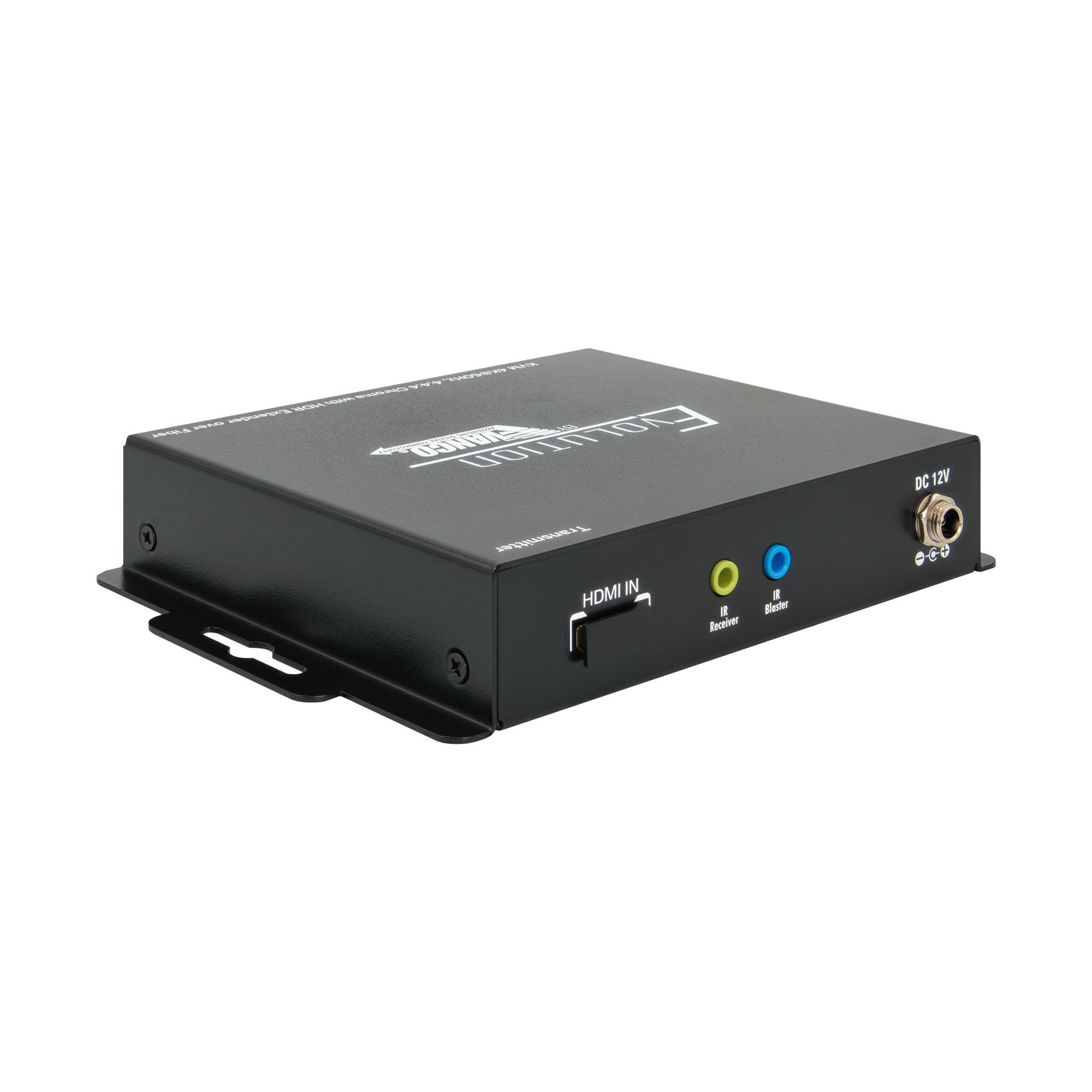

HDMI® Extender over Fiber with KVM USB Pass-through

SKU: EVEXFBRK1 Categories: , ,

Description

View Our Extender Comparison Guide

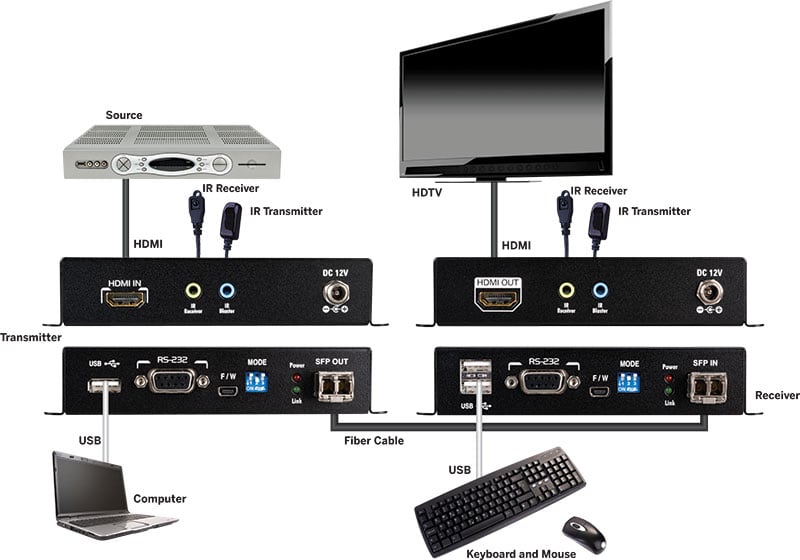

  • Transmits audio and video via HDMI as well as complete KVM (Keyboard, Video, Mouse) functionality via
  • USB 2.0 ports over fiber optic cables
  • Transmission range: 984ft/300m over duplex multi-mode fiber optic cables; 6.2mi/10km over duplex single mode fiber optic cables
  • Supports 4K@60Hz, 4:2:0 chroma sampling and HDR; 4K@60Hz and 4:4:4 chroma sampling
  • Supports HDR10 and Dolby Vision
  • USB 2.0 pass-through
  • Includes (2) USB ports on receiving end for keyboard/mouse connectivity
  • Features bi-directional IR (20kHz to 60kHz) pass-through for source and/or display control
  • RS-232 pass-through
  • Supports HDCP2.2
  • LC Multi-mode SFP modules included
  • TAA Compliant
  • Dimensions: 4.9” W x 4.4” H x 1.1” D

Tech Support Tips:

    • Supports 4K@60Hz, 4:2:0 HDR10 and 4K@30Hz, 4:2:0 Dolby Vision

Package Contents:
EVEXFBR1 (TX & RX)
(1) IR Transmitter
(1) IR Receiver
(2) DC 12V Power Supply
(1) USB 2.0 Male A Male-to-Male Cable
(1) Set of Mounting Hardware
(2) Multi-mode SFP Modules
Product Manual



Additional information

Brands

Evolution

EVEXFBRK1 Product Manual

Download

EVEXFRBK1 Sales Sheet

Download

EVEEXFBRK1 Fiber Cable and Module Specifications

Download
