  • Hdmi® Extender Over Single Cat5e/6 Cable With Ir

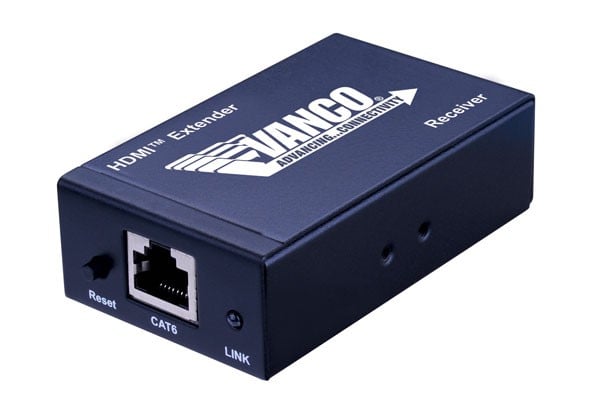

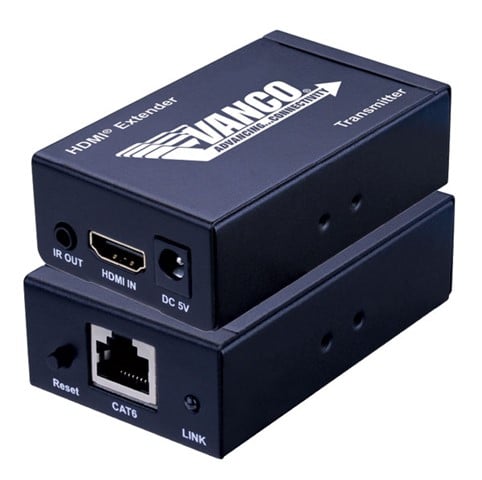

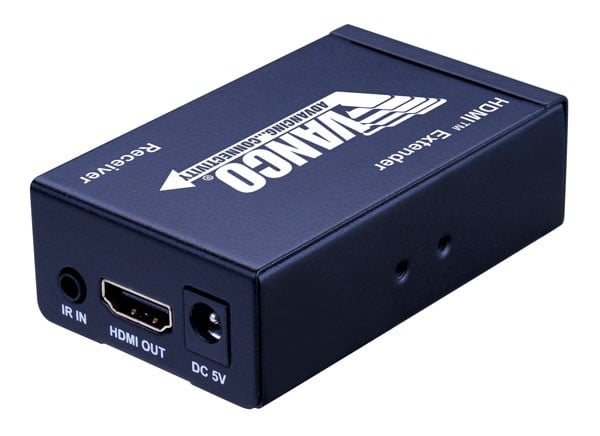

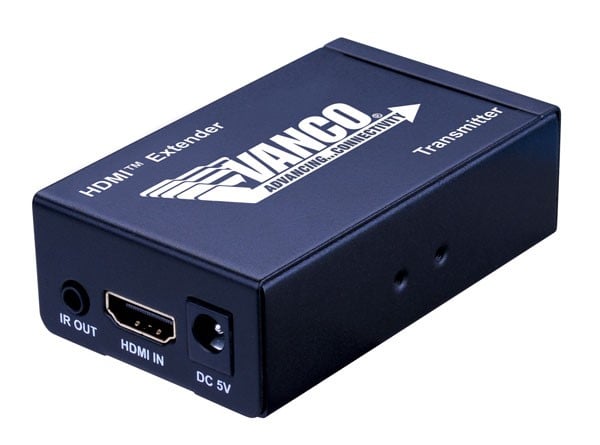

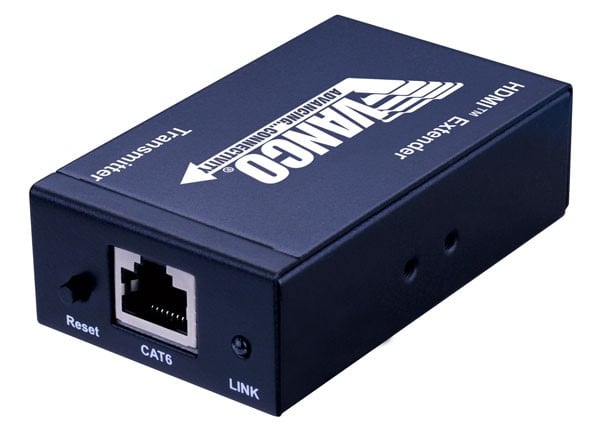

HDMI® Extender over Single Cat5e/6 Cable with IR

SKU: 280501 Categories: , , ,


View Our Extender Comparison Guide

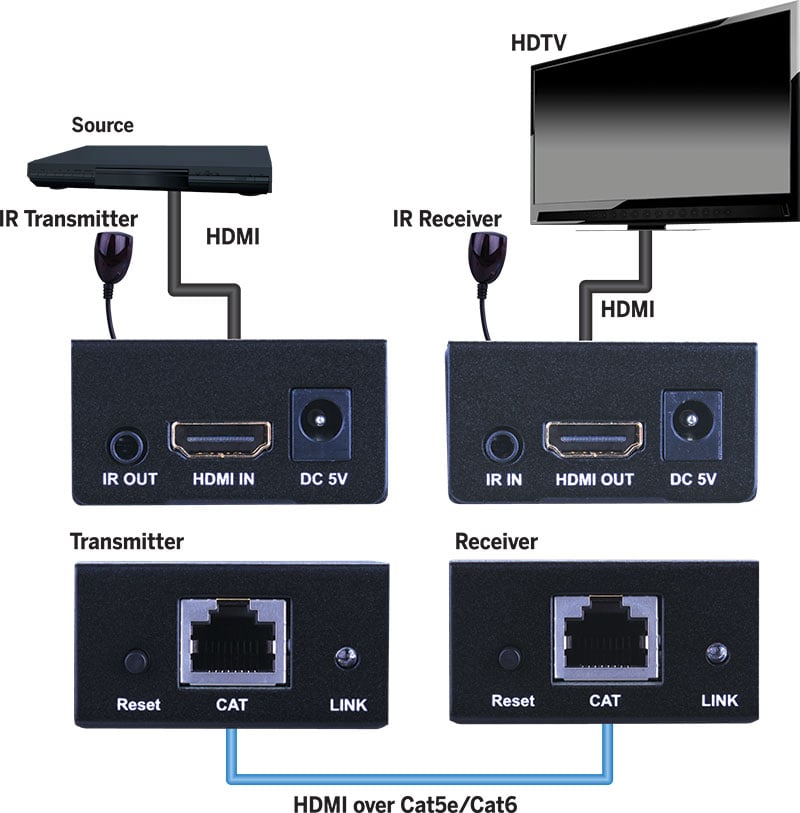

  • Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6 cable
  • Transmission Range: Extends 1080p resolution up to 196ft/60m over a single Cat5e or Cat6 cable
  • IR system allows for control of source at display location (IR accessories included)
  • Auto EQ distance for perfect transmission and reception of HDMI signals by just a push of a button
  • Works with HDMI and HDCP compliant devices
  • Supports up to 1080p High Definition resolution
  • Power Supply: 5V, 1A DC
  • Dimensions: 1.875” W x 1” H x 3.25” D

Tech Support Tips:

    • Recommended to be used with a permanent source, or non-rotating source. For any rotating source such as a conference room type setup, it is recommended to use an HDBaseT extender
    • HDMI UHD Deep Color mode on some LG displays may need to be deactivated to avoid video signal issues
    • Input Signal Plus on some Samsung displays may need to be deactivated to avoid video signal issues
    • Unit features directional PoE, connect the included 5V DC Power Supply to the Transmitting unit only, not the Receiving unit

Package Contents:

280501 (TX & RX)
IR Blaster (TX)

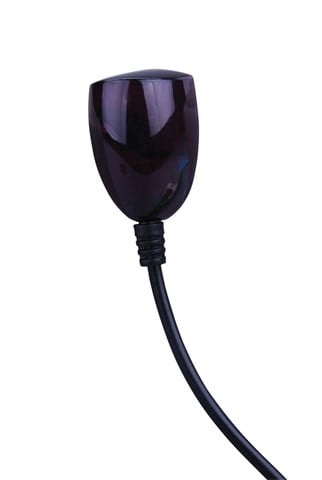

IR Receiver (RX)
(1) 5V DC Power Supply
Product Manual


Additional information

Weight 1.25 lbs
Dimensions 8.5 × 7.5 × 2.5 in


Full HD 1080p





Transmission Distance

165 – 230 ft

280501 Product Manual


280501 Sales Sheet
