HDMI® Extender over Single Cat5e/Cat6 Cable

SKU: HDMIEX50 Categories: , , ,

Description

View Our Extender Comparison Guide

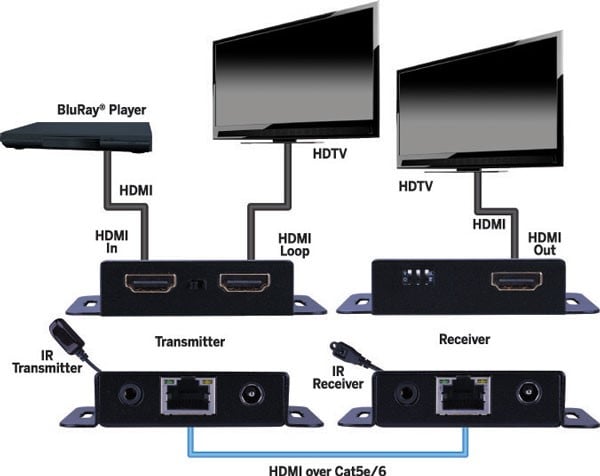

  • Allows HDMI audio/video and control to be transmitted up to 164 ft/ 50m using a single Cat5e or Cat6 cable

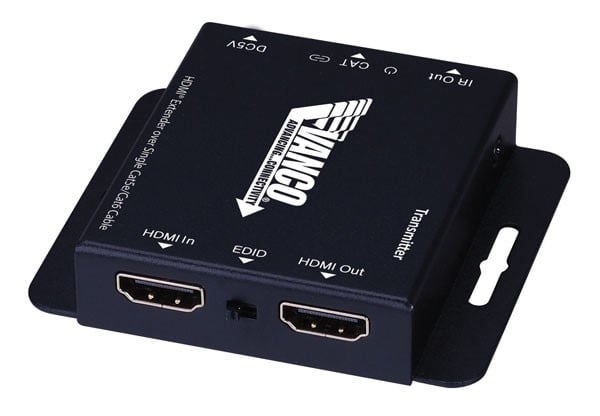

  • Features HDMI Loop-out port on the transmitter to split of cascade audio and video signals for additional displays
  • IR pass-through control from the receiver to the transmitter with the provided IR cables
  • Full HD support of 1080p @60Hz
  • Compatible with Dolby- DTS and PCM audio formats

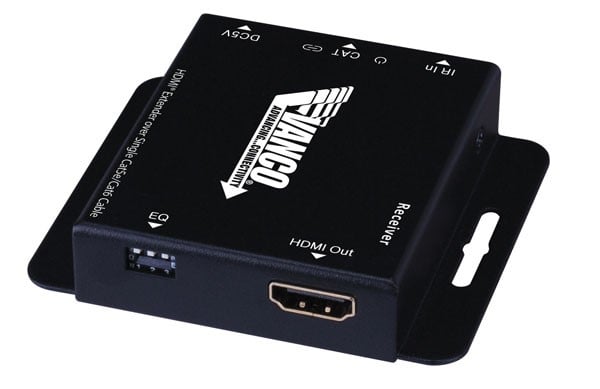

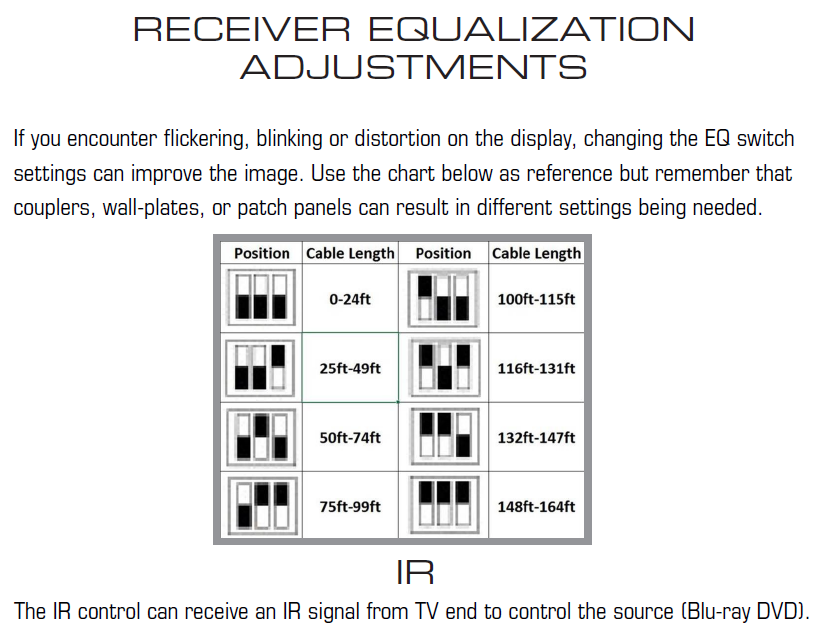

  • EQ settings on the receiver allows for easy adjustment based on cabeling distance
  • EDID settings on the transmitter allow for EDID to be managed through either the HDMI Loop-out of the HDMI output of the receiver for an easy and cost effective solution
  • HDCP Compliant
  • Power supplies: (2) 5V DC
  • Dimensions: 3.3”W x .6” H x 2.6” D

Tech Support Tips:

    • Not recommended to be used with other HDMI distribution products such as splitters and matrix units. HDBaseT extenders are recommended for combining with HDMI distribution products
    • Recommended to be used with a permanent source, or non-rotating source. For any rotating source such as a conference room type setup, it is recommended to use an HDBaseT extender
    • HDMI UHD Deep Color mode on some LG displays may need to be deactivated to avoid video signal issues
    • Input Signal Plus on some Samsung displays may need to be deactivated to avoid video signal issues

Package Contents:

HDMI Extender Set
1 Wideband IR Tx
1 Wideband IR Rx
2 DC 5V1A power supply
1 User Manual

Additional information

Weight 1.2 lbs
Dimensions 8 × 4.75 × 2 in
Type

Resolution

Full HD 1080p

Brands

Vanco

Technology

1 CAT

Transmission Distance

101 – 164 ft

HDMIEX50 Product Manual

Download

HDMIEX50 Sales Sheet

Download
