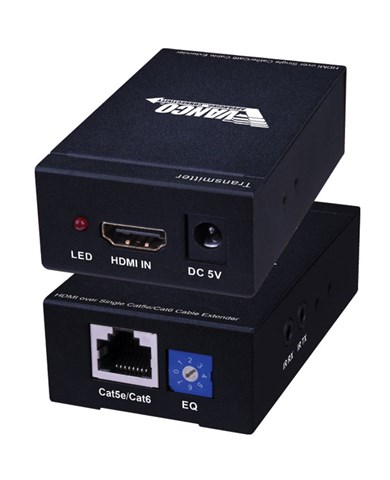

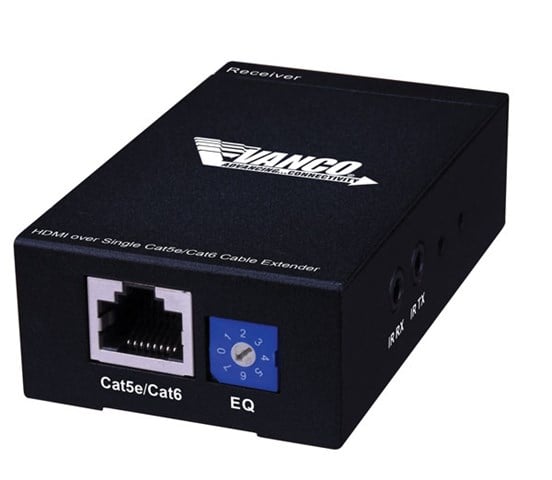

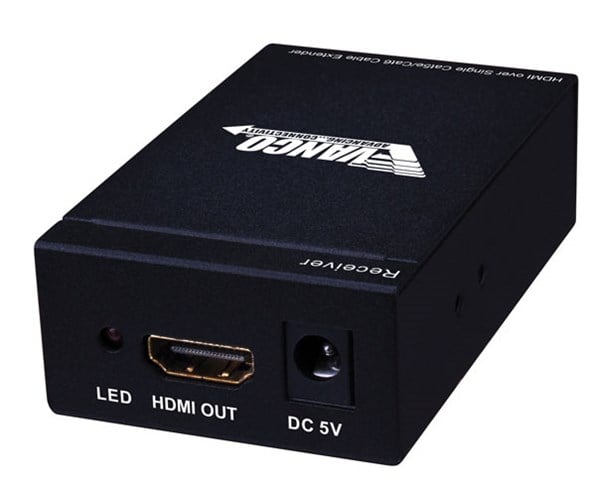

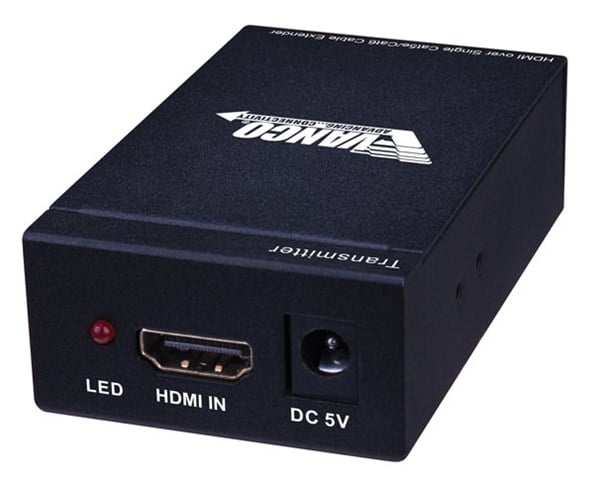

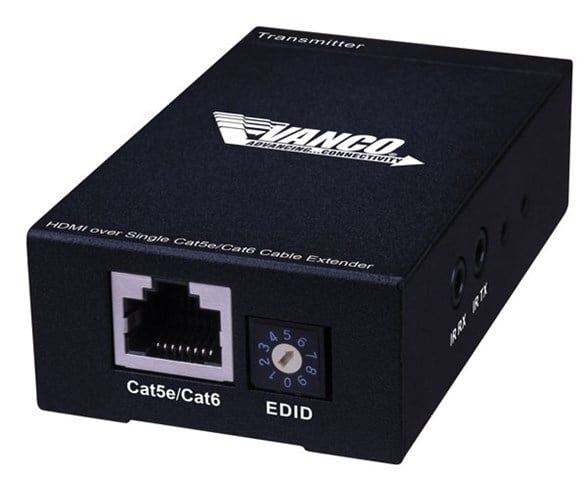

HDMI® over Single Cat5e/Cat6 Cable Extender

SKU: 280591 Categories: , ,

This product has been discontinued.


View Our Extender Comparison Guide

Replaced by HDMIEX50

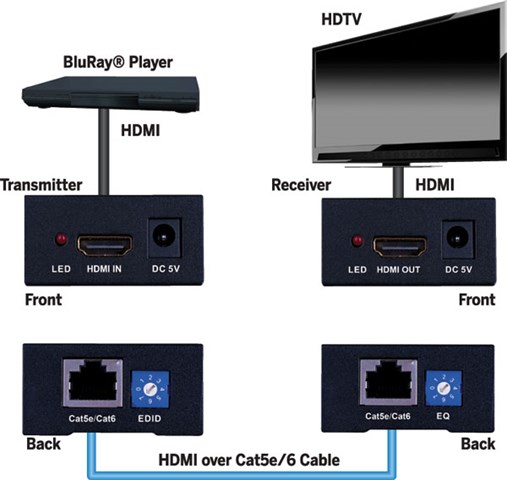

  • Allows HDMI Audio/Video signals to be transmitted over a single Cat5e/6 cable
  • Transmission Range: Extends 1080p resolution up to 164ft/50m over a single Cat5e or Cat6 cable
  • Wideband Bi-directional IR system allowing for control of source or display (IR accessories included)
  • Wideband IR signal from 20KHz to 60KHz
  • Features EDID management which supports default HDMI EDID and has the ability to learn the EDID of display equipment
  • Features EQ distance adjustment switch for perfect transmission and reception of HDMI signals
  • Pure unaltered uncompressed 7.1ch digital HDMI over a single Cat5e/6 cable transmission
  • Supports DTS-HD and Dolby TrueHD high bit rate audio
  • Works with HDMI and HDCP compliant devices
  • Supports up to 1080p High Definition resolution
  • Compact design for an easy and flexible installation
  • Power Supply: 5V DC
  • Dimensions: 1.9” (49mm) W x 1” (25mm) H x 3.2” (80mm) D

Package Contents:

(1) 280591 [TX & RX]
(1) IR Blaster (TX)
(1) IR Receiver (RX)
(2) DC 5V in line power supply
(1) User Manual


Additional information



280591 Product Manual
