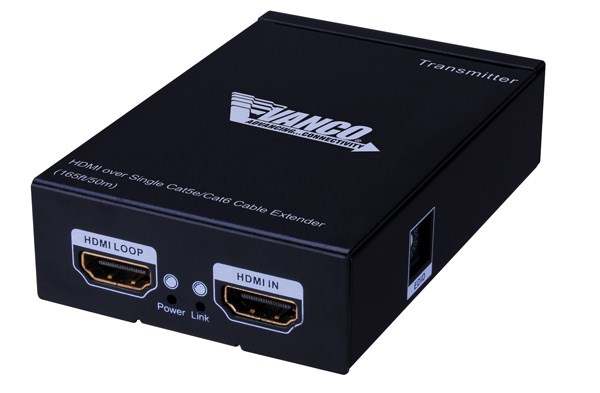

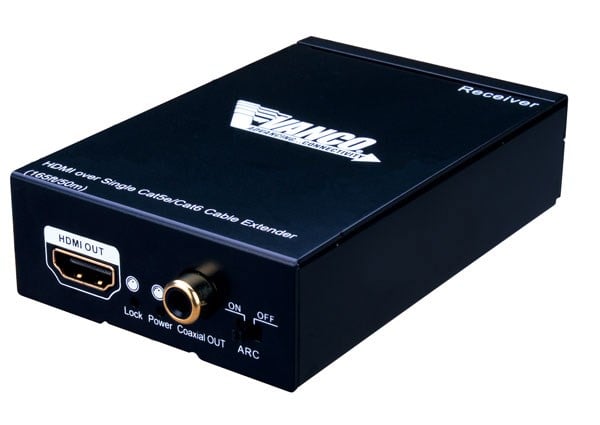

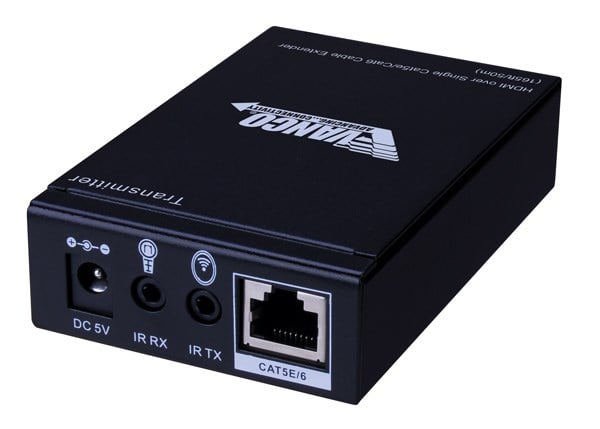

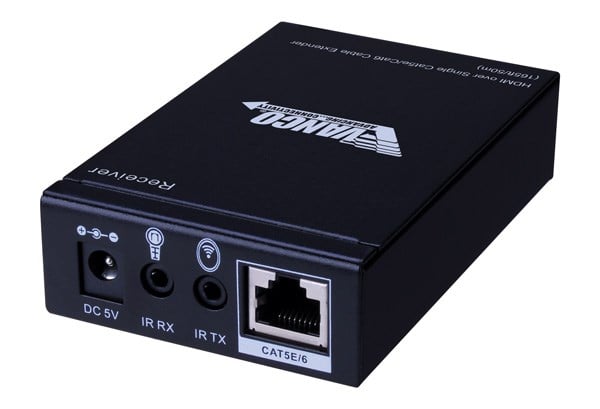

HDMI® over Single Cat5e/Cat6 Cable Extender

SKU: 280592 Categories: ,

Description

  • Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6 cable
  • Bi-directional IR system allowing for control of source or display (IR accessories included)
  • Features EDID management which supports default HDMI EDID and has the ability to learn the EDID of display equipment
  • Features auto EQ adjustment for perfect transmission and reception of HDMI signals
  • Features ARC for two way communication between ARC equipped display and ARC equipped A/V receiver
  • Features coaxial break out to extract audio

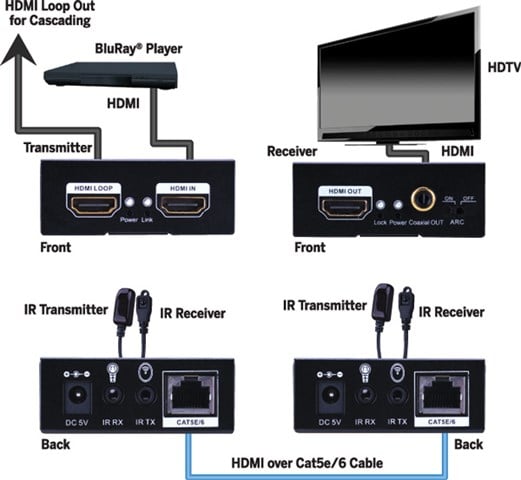

  • Allows for cascading or connecting a local display via additional HDMI loop out port
  • Transmission Range: Extends 1080p resolution up to 164ft/50m over a single Cat5e or Cat6 cable
  • Works with HDMI and HDCP compliant devices
  • Supports up to 1080p High Definition resolution
  • Compact design for an easy and flexible installation
  • Dimensions 4” W x 1” H x 2.5” D

Package Contents:

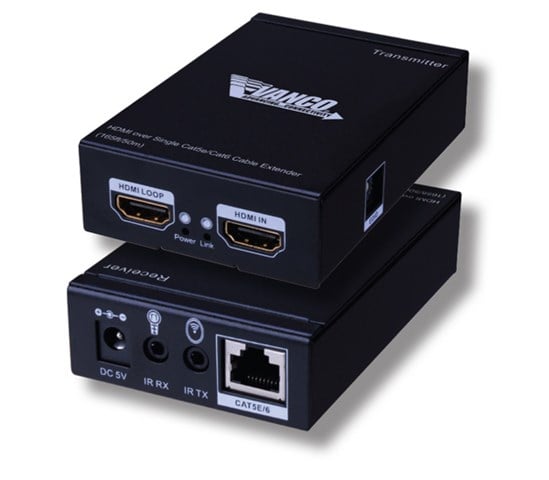

  • (1) 280592 [TX & RX]
  • (2) IR Blaster (TX)
  • (2) IR Receiver (RX)
  • (2) DC 5V in line power supply
  • (1) Rack-mounting ear set
  • (1) User Manual
