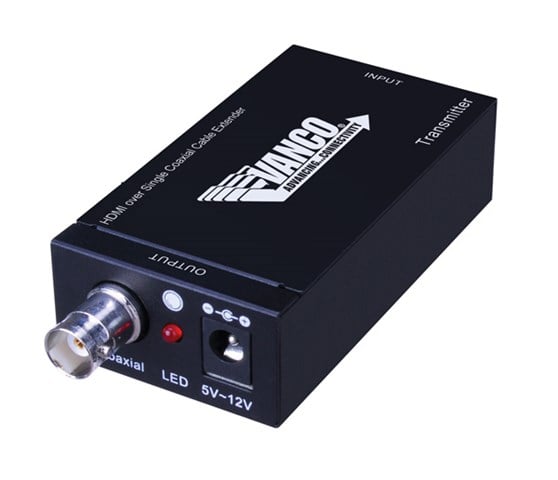

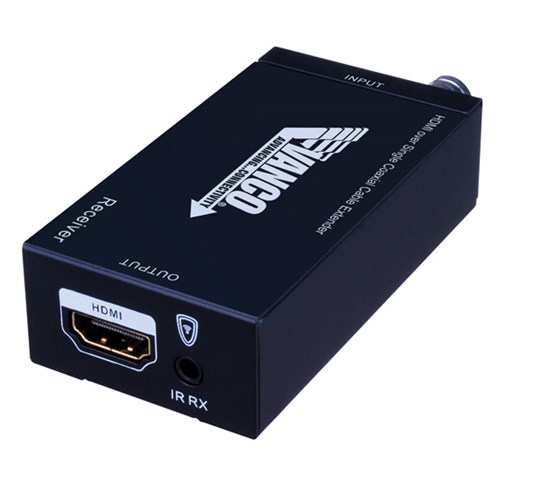

HDMI® over Single Coax Cable Extender

SKU: 280567 Categories: , ,

This product has been discontinued.



View Our Extender Comparison Guide


  • Allows HDMI Audio/Video and IR signals to be transmitted over a single coax cable
  • Wideband IR system that allows for controlling the source at the display location (1 IR RX and 1 IR TX included)
  • Transmission Range: Extends 1080p resolution up to 100m/328ft over a single RG6 Coax cable; Extends 1080p resolution up to 60m/196ft over a single RG59 Coax cable
  • Works with HDMI and HDCP compliant devices
  • Supports up to 1080p High Definition resolution
  • Compact design for an easy and flexible installation
  • Power Supply: DC 5V
  • Dimensions: 3.2” W x .98” H x 1.6” D

Package Contents:

(1) 280567 [TX & RX]
(1) IR Blaster (TX)
(1) IR Receiver (RX)
(2) DC 5V in line power supply
(1) Rack-mounting ear set or adhesive for mounting
(1) User Manual


Additional information






Transmission Distance

231 – 330 ft
