One Zone Six Source IR Kit with In-Wall Receiver

SKU: 280733 Categories: , ,

Description

  • Allows for the Transmission of IR signals from up to 6 IR Emitters to one IR Receiver
  • IR Receiver works in most lighting environments- including CFL

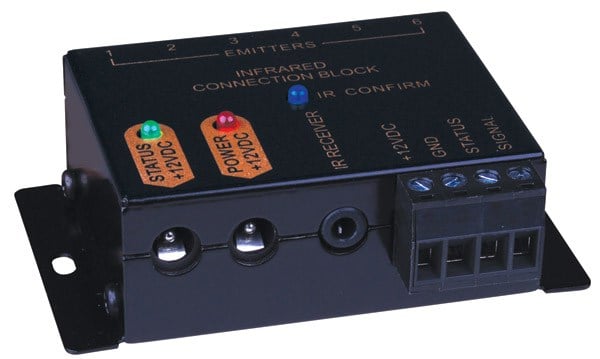

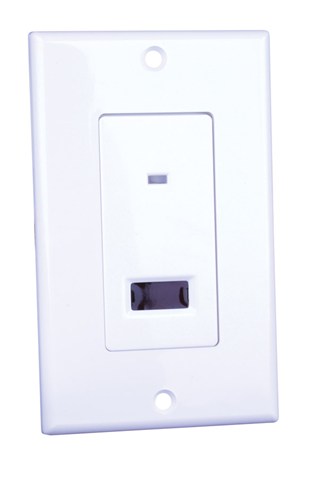

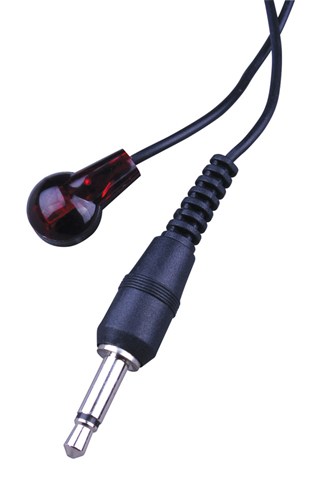

  • Kit includes (1) Connecting Block- (1) In-Wall IR Receiver- (2) Single IR Emitters and (1) 12 VDC Power Supply
  • A total of 6 IR Emitters can be supported
  • Requires 18 AWG 4 Conductor Low Voltage Wire (Not Included)
  • IR Receive Frequency: 34 kHz to 60 kHz
  • IR Transmit Frequencies: 38 kHz & 56 kHz
  • Range: 40 ft at 38 kHz & 25 ft at 56 kHz
  • Power Supply- 12 VDC- 3 milli-amps
  • Connecting Block Dimensions: 2.36” W x 1” H x 3.22” D
