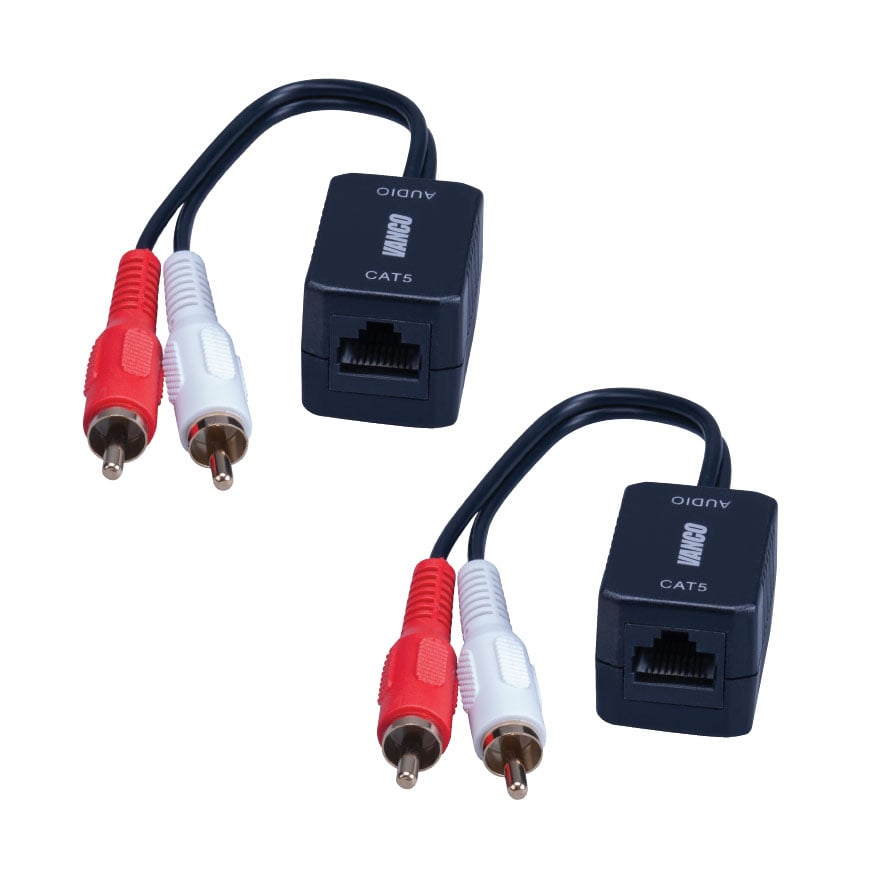

Passive Analog Audio Extender

SKU: 280756 Categories: , , ,

Description



View Our Extender Comparison Guide



  • Allows audio signals via stereo connection to be transmitted and extended using a single Cat5e/Cat6 cable
  • Extends audio up to 240 ft
  • Features dual RCA connectors for stereo applications
  • Passive; no power supply needed
  • Bi-directional as audio can travel either way

Tech Support Tips:

    • The pinout configuration document for this product is located within the downloads tab. Note that “L” is the LEFT channel audio, and “R” is the RIGHT channel audio.
    • Both the 280754 and 280756 units use the same pinout configuration, and thus can be interchanged to extend and convert 3.5mm to RCA and vice versa.

Additional information

Weight 0.1 lbs
Dimensions 6 × 5 × 0.2 in
Brands

Vanco

280756 Product Manual

Download

280754 3.5mm Analog Audio Extender and 280756 RCA Analog Audio Extender Pinout Configuration

Download
