PulseAudio Digital-Analog Audio Extender

SKU: PA-EXTDA Categories: , ,

Description

  • Analog audio extension over a single Cat5e/6 via 3.5mm connection
  • Digital audio extension over a single Cat5e/6 via Toslink and/or Coax connection
  • Inputs can be manually switched
  • Three audio synchronous outputs: TOSLINK, COAX & RCA (L+R)
  • Supports PCM, DTS, and Dolby audio formats
  • POC technology allows Transmitter to be powered up by the Receiving unit for easy installation
  • Transmits analog audio signals up to 557ft/170m over a single CAT5e/6 cable
  • Transmits digital audio signals up to 951ft/290m over a single Cat5e/6 cable

Package Contents:

Digital-Analog Audio Extender (Transmitter and Receiver)
Power Adapter (12VDC, 1A)
Mounting ears and screws
8 Plastic Cushions
Product Manual

PA-EXTDA Product Manual

Download

This Attachment Never Expires.

Digital Analog Audio Extender

Download

This Attachment Never Expires.

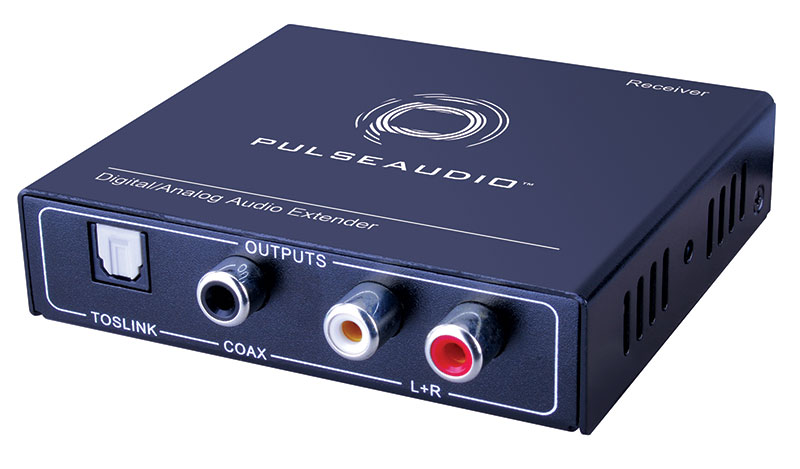

PA-EXTDA-RX Output Angle

Download

This Attachment Never Expires.

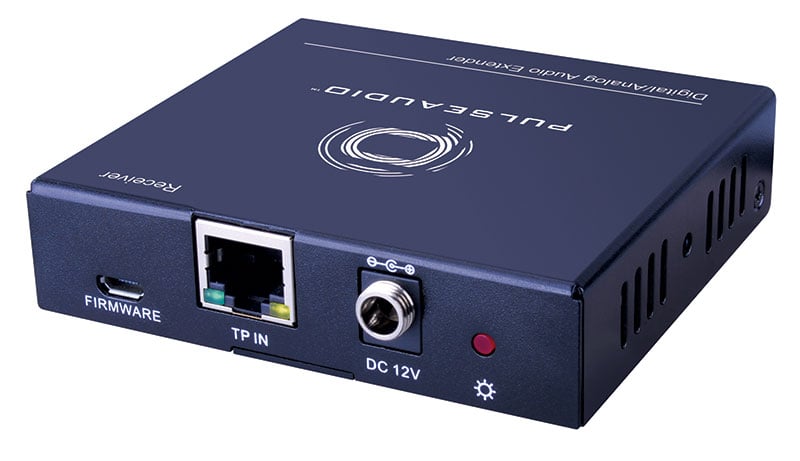

PA-EXTDA-RX-TP Input Angle

Download

This Attachment Never Expires.

PA-EXTDA-TX Input Angle

Download

This Attachment Never Expires.

PA-EXTDA Connection Diagram

Download

This Attachment Never Expires.

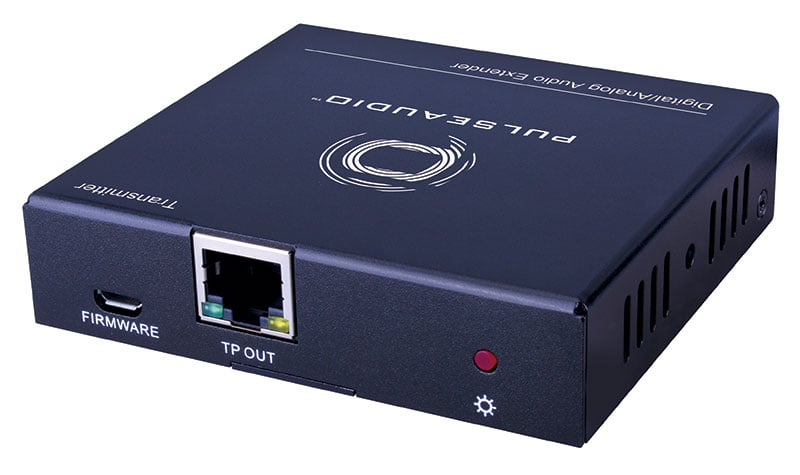

PA-EXTDA-TX-TP Output Angle

Download

This Attachment Never Expires.
