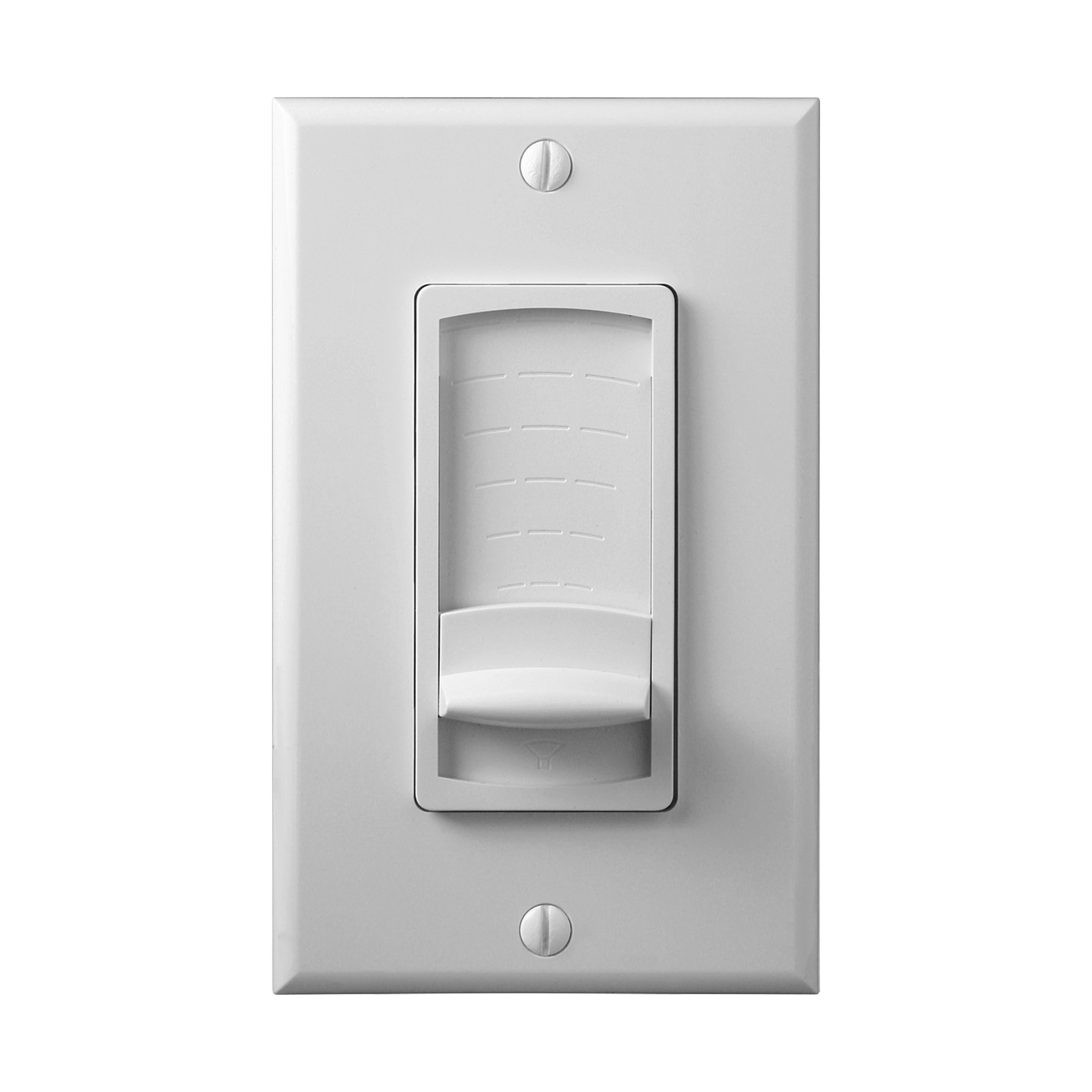

Rotary Knob & Slider 70/100V In-Wall Volume Controls

SKU: N/A Categories: , ,
New Product

The VCRV100 and VCSV100 are 70/100V volume controls that are essential in commercial applications such as restaurants, bars, office buildings, and more.


A great solution for applications with multiple audio zones, with the ability to easily control the volume level in each zone. With an option for a rotary knob (VCRV100), or a slider (VCSV100), the Beale Street Audio 70/100v volume controls are a perfect pairing to any 70/100v audio system, allowing for adjustment for any commercial audio setting. Simple, reliable, flexible. Turn up the fun with the VCRV100 and VCSV100 70V Volume Controls by Beale Street Audio.

  • Peak RMS power rating: 350W (both)
  • Continuous RMS power: 105W (both)
  • Frequency response: DC to 500kHz +/- 0.1db
  • Mounting depth: Rotary: 1.8” (45mm) / Slider: 1.6” (42mm)
  • Electrical box junction: Single gang junction box
  • Speaker: 70V or 100V (single or multiple speakers)
  • Connection: Removable screw terminals

Additional information


Beale Street

Knob Type

Rotary Knob, Slider

VCRV100 & VCSV100 Sales Sheet


VCRV100 & VCSV100 Product Manual
