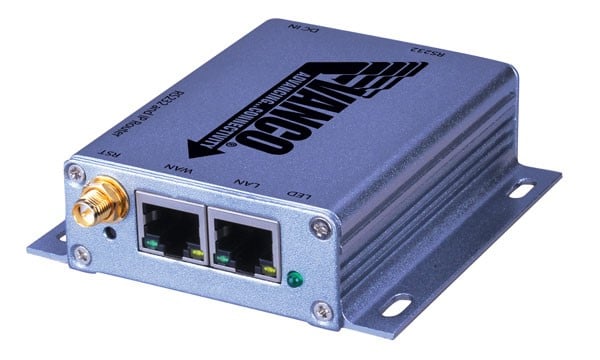

RS232 and IP Router

SKU: RS232-IP Categories: ,

Description

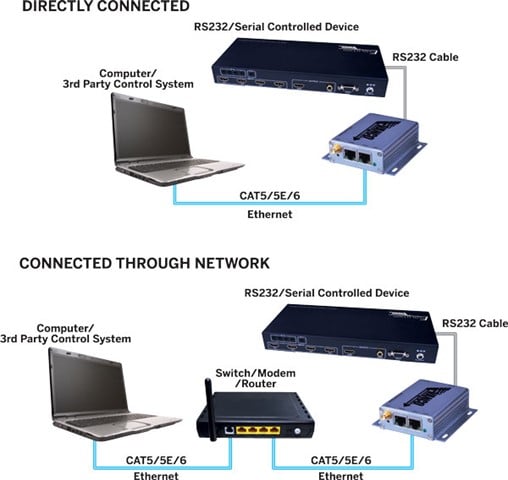

  • LAN/Wi-Fi to Serial adapter that allows for remote access, configuration, and the ability to control any serial device over an IP network
  • Enables seamless communication via serial port, Ethernet, or any wireless network interface
  • Wired/Wireless Router, and wireless access point capability
  • Converts commands received over UDP or TCP/IP to Serial
  • Supports RS232 and RS485 interfaces
  • Extremely low latency
  • DC 5-18V ultra wide voltage input provides 2A current for increased reliability
  • Suitable for use in battery powered systems
  • Transparent Transmission Mode, RS232/RS485 to RJ45, RS232/RS485 to WIFI
  • RJ45 to WIFI can be achieved simultaneously to ensure stable of data transmission
  • Supports WEP/WAP-PSK/WAP2-PSK/WAPI
  • Encipher Type: WEP64/WEP128/TKIP/AES
  • Power Supply: 5V
  • Dimensions: 1.1” W .3” H x 1.6” D

Recommended products to be used with RS232-IP: HDMISW41, 280595, 280564, HDMX4K44, EVSW1061, EVSW1040, EVSW1042, EVSW21MV, PA66AMP and PA66KIT

Additional information

Weight 1.15 lbs
Dimensions 9.25 × 6.5 × 2.25 in
Brands

Vanco

RS232-IP Product Manual

Download

RS232-IP Sales Sheet

Download
