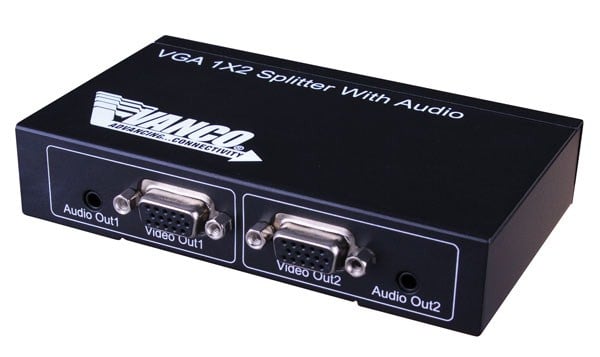

S-VGA 1×2 Splitter with Audio

SKU: 280442 Categories: , ,

Description

  • Use to Duplicate and Amplify VGA and Audio Signals from a Single Source to Two Monitors or other Display Devices
  • Enhances Video Signals for Long Distance Broadcast up to 164 ft (50m)
  • Supports VGA- SVGA- XGA- SXGA- UXGA and Multi-Sync Compliant Monitors
  • Supports Video Resolutions up to 1920×1200 at 60 Hz
  • Supports 500 MHz Video Bandwidth for Each Port
  • Supports Two Channel Stereo Audio- Bandwidth: 30 KHz
  • (1) Input Connector:   HD-DB15 (15 Pin) Female Jack and 3.5mm Female Jack- (2) Output Connectors: HD-DB15 (15 Pin) Female Jacks and 3.5mm Female Jacks
  • Includes 6 ft VGA Male/Female Cable
  • Power Supply: 5 V DC- UL Listed
  • Dimensions: 4.7” W x .9” H x 2.8″ D

Additional information

Type

Inputs/Outputs

1×2

Resolution

1900 x 1200

Transmission Distance

51 – 164 ft
