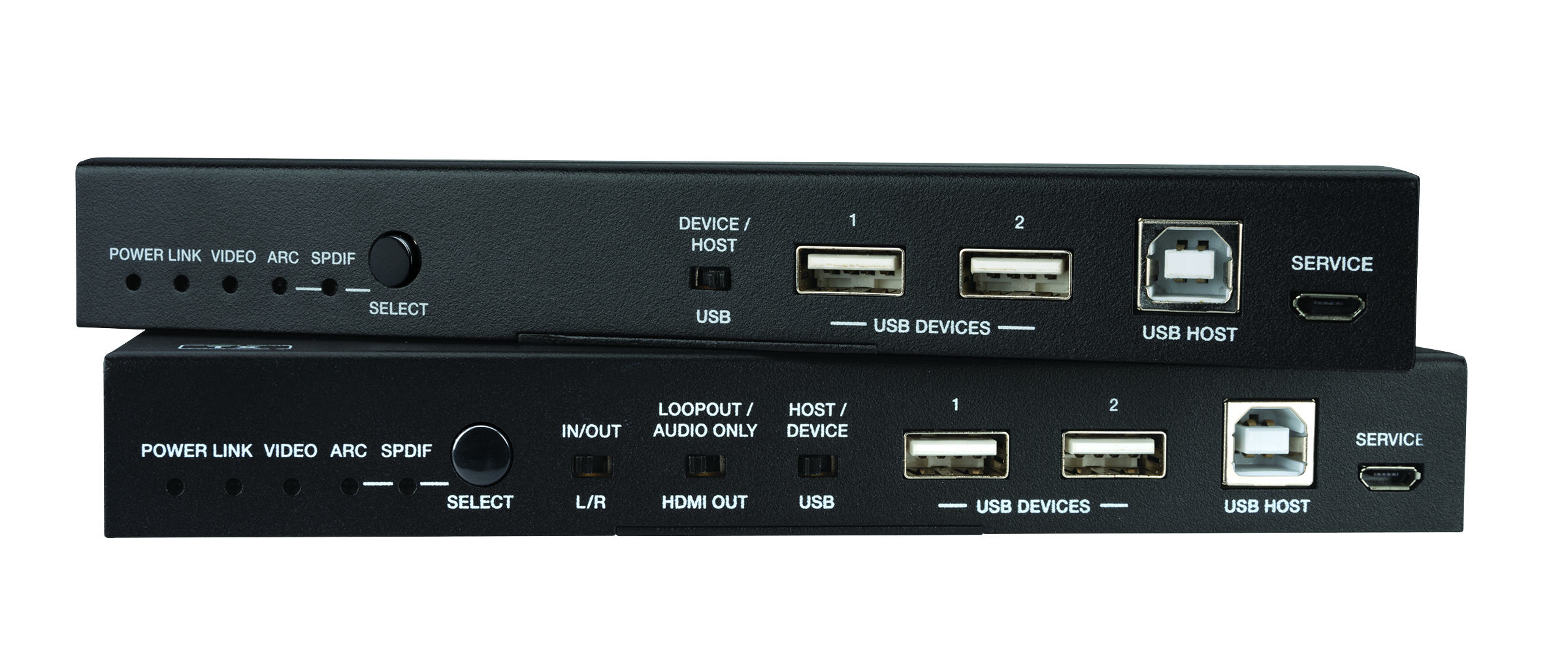

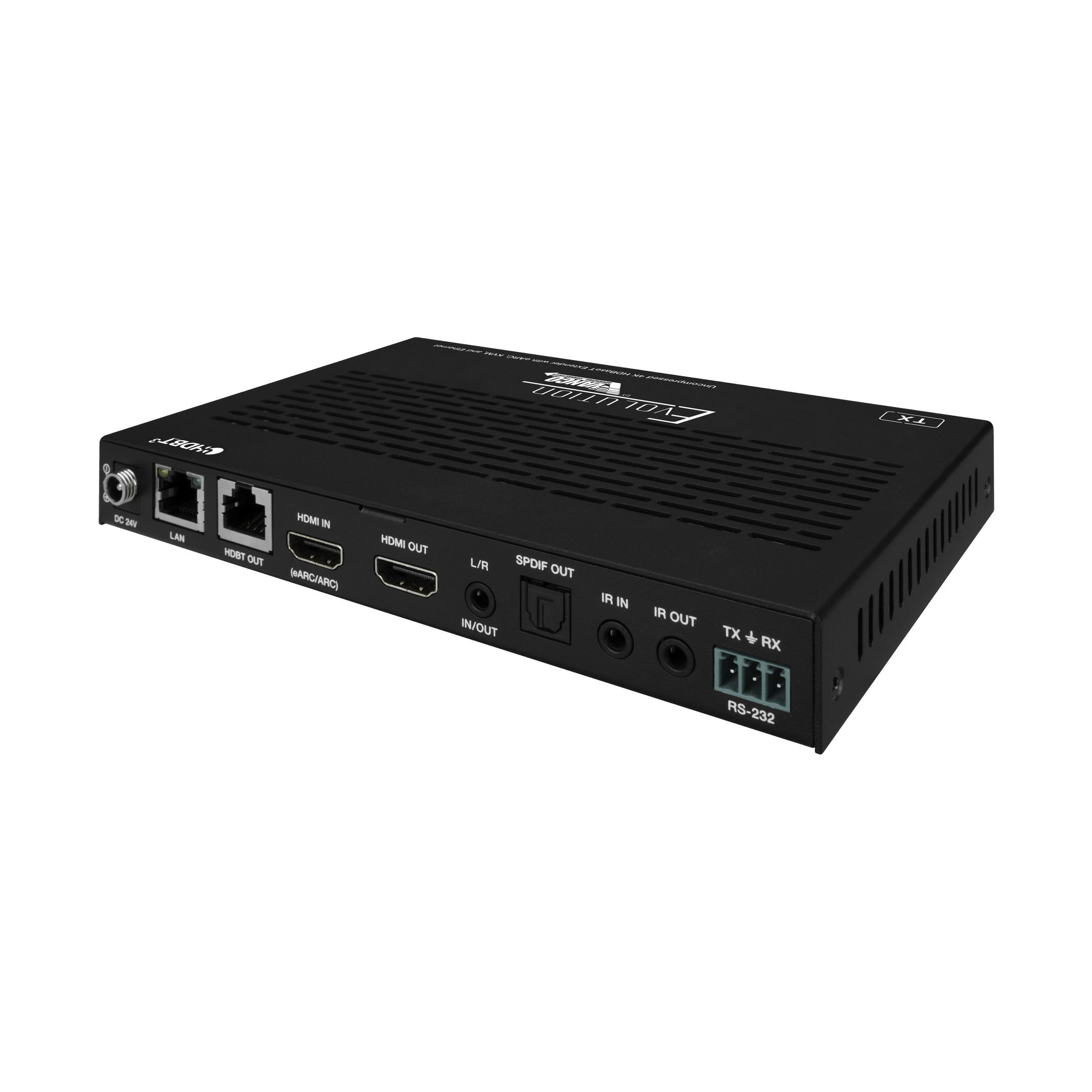

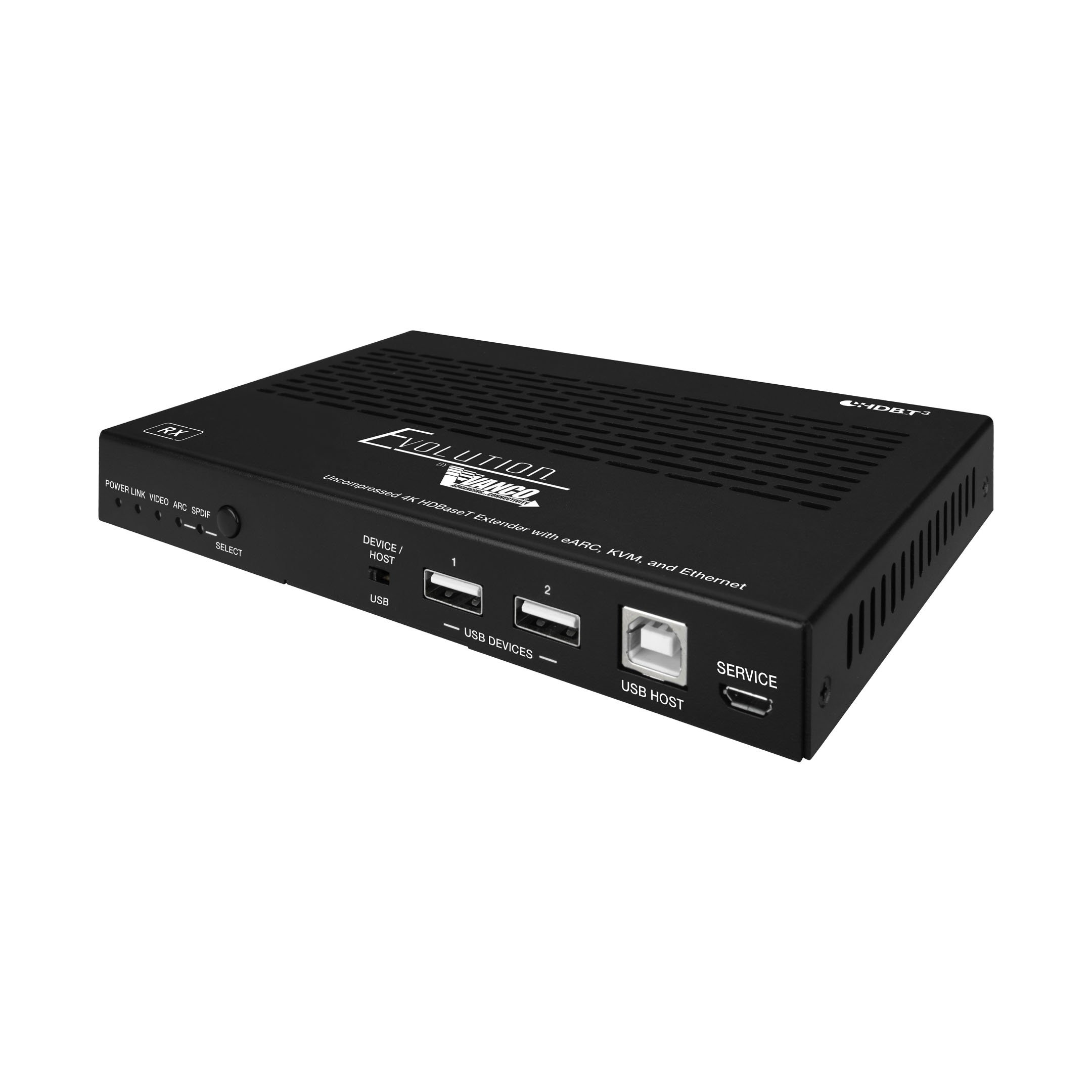

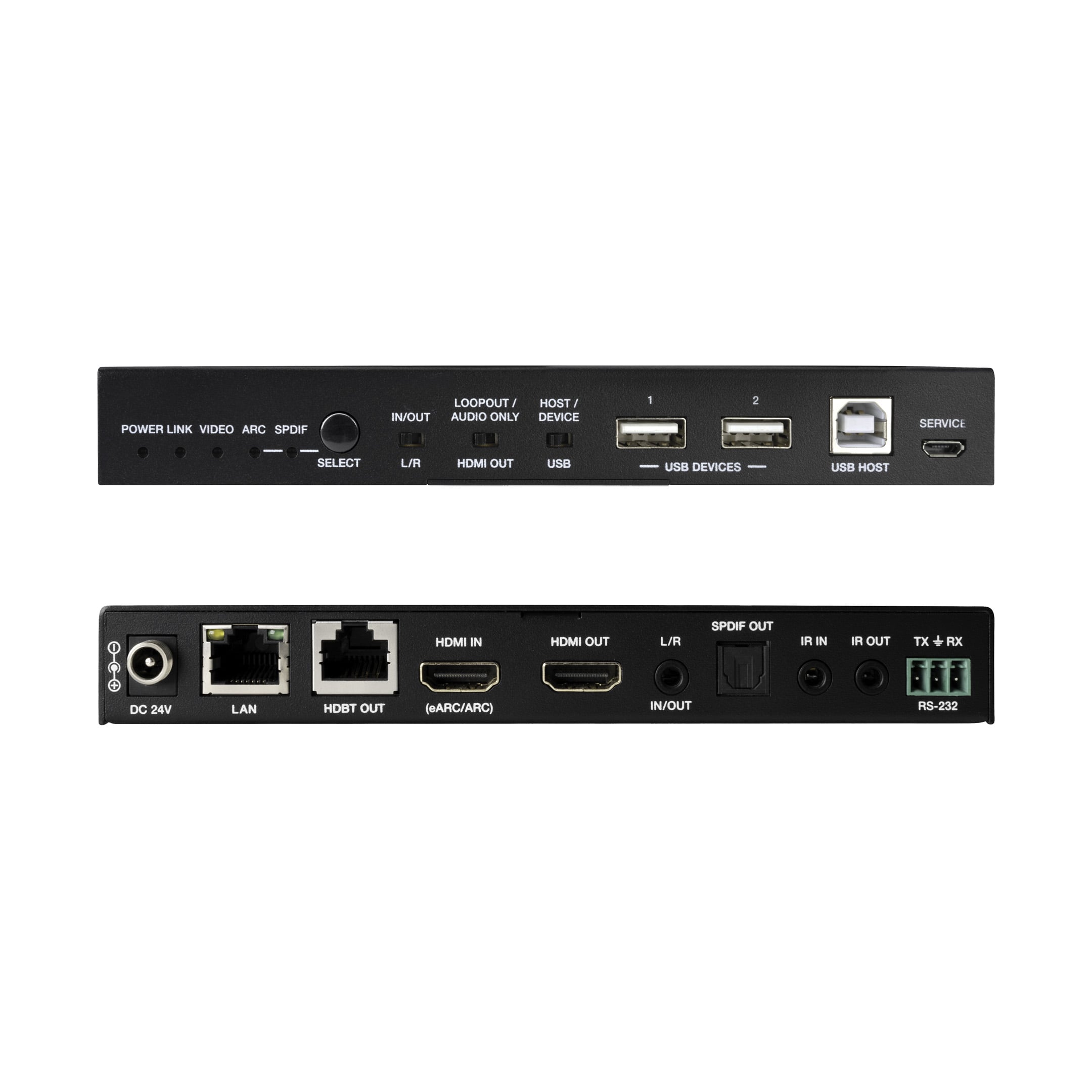

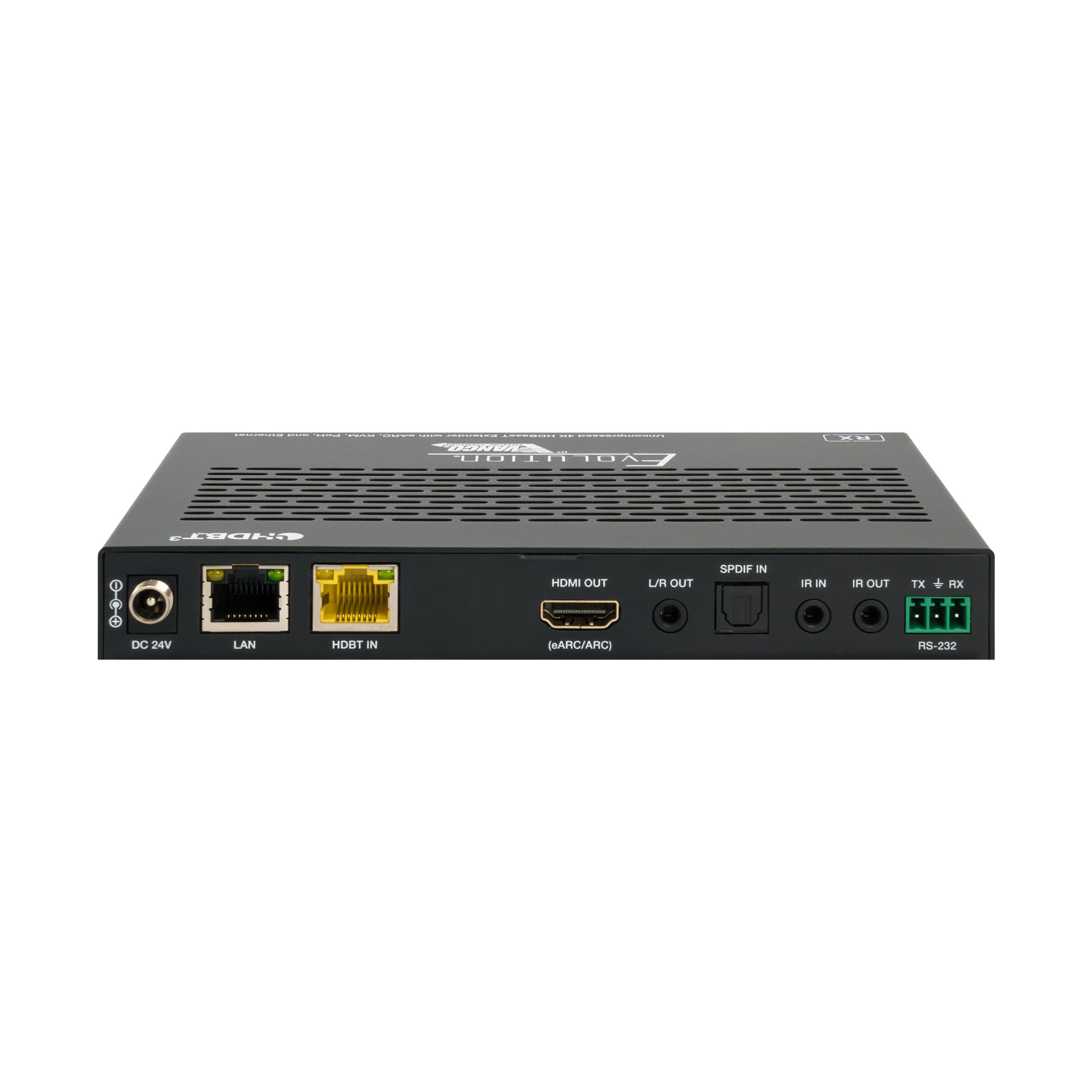

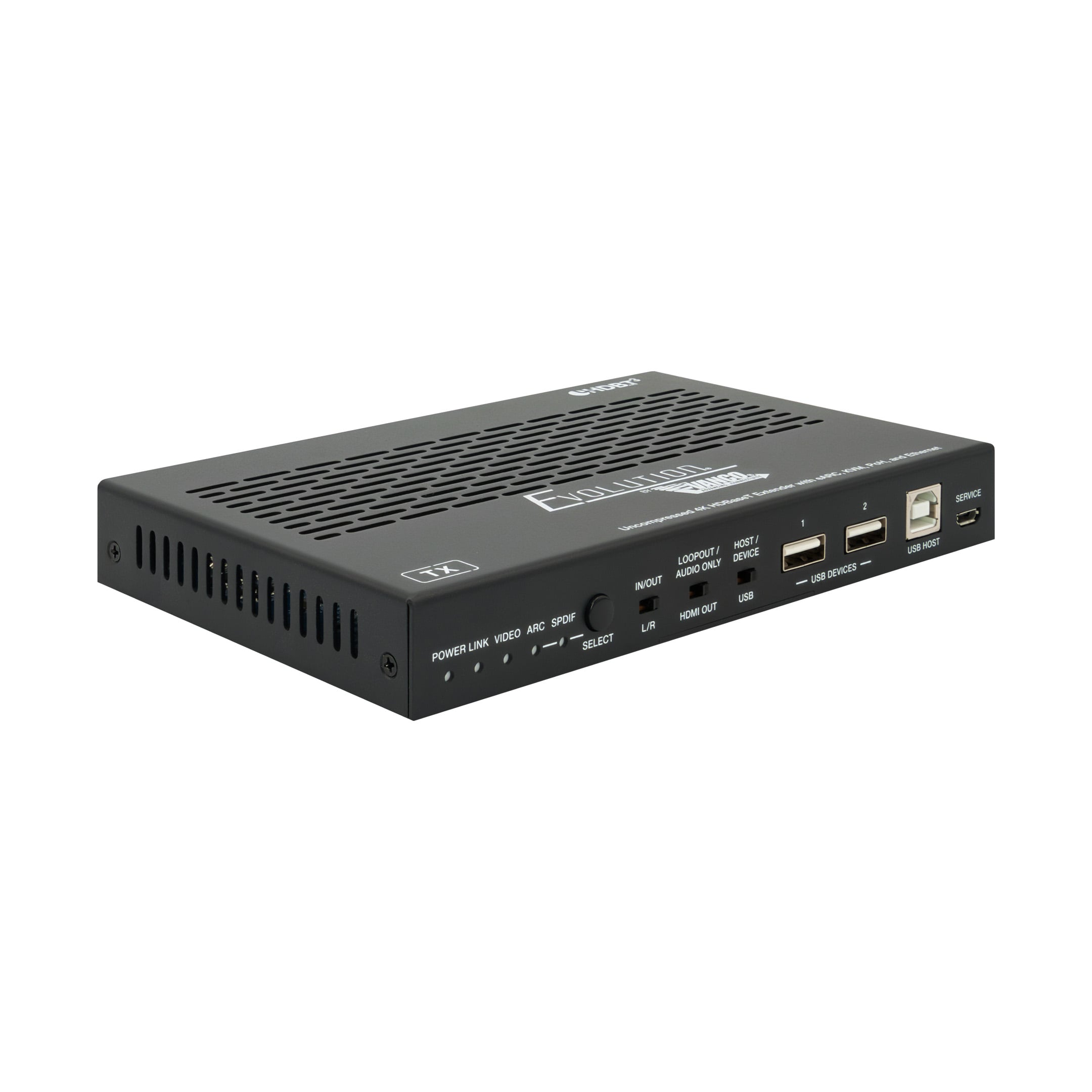

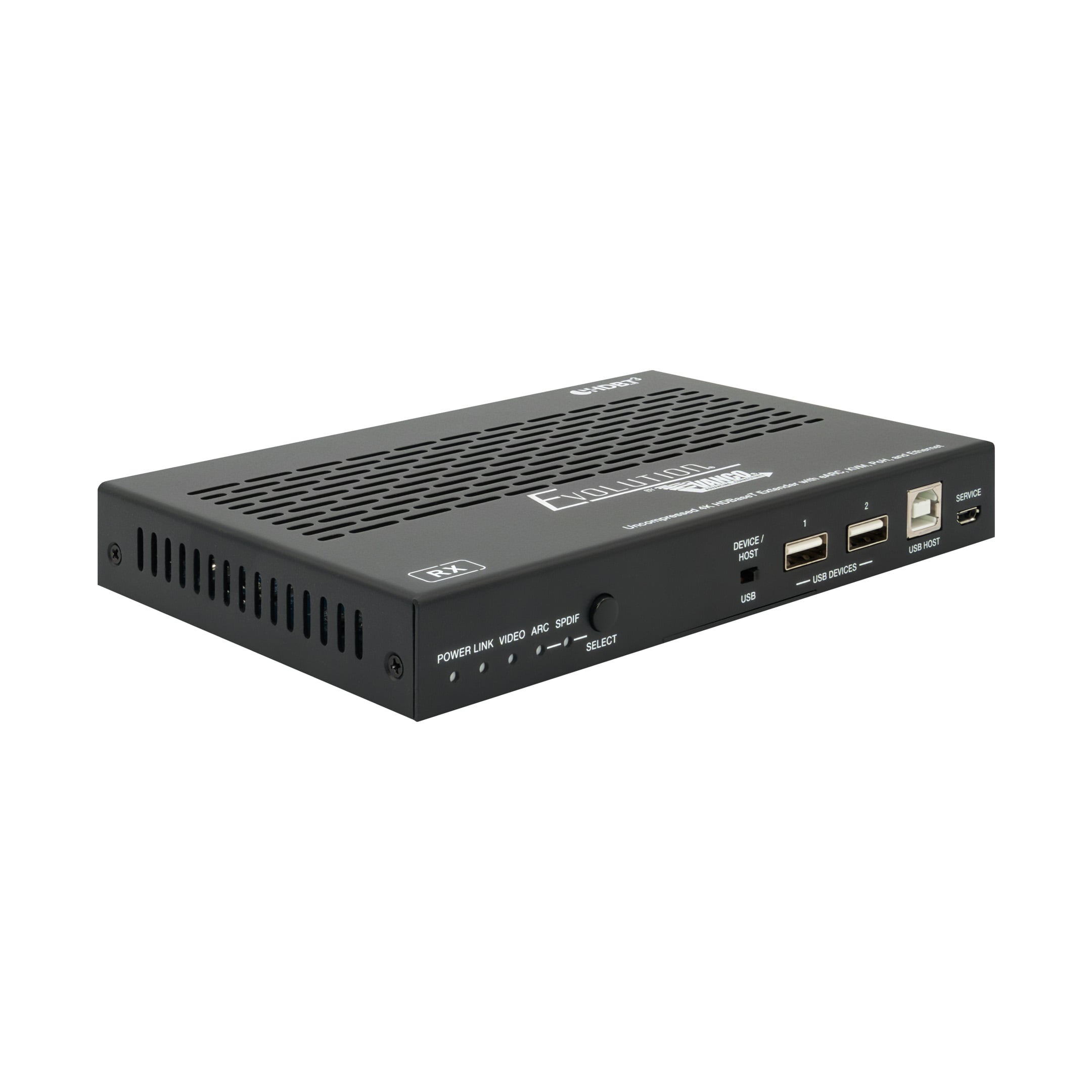

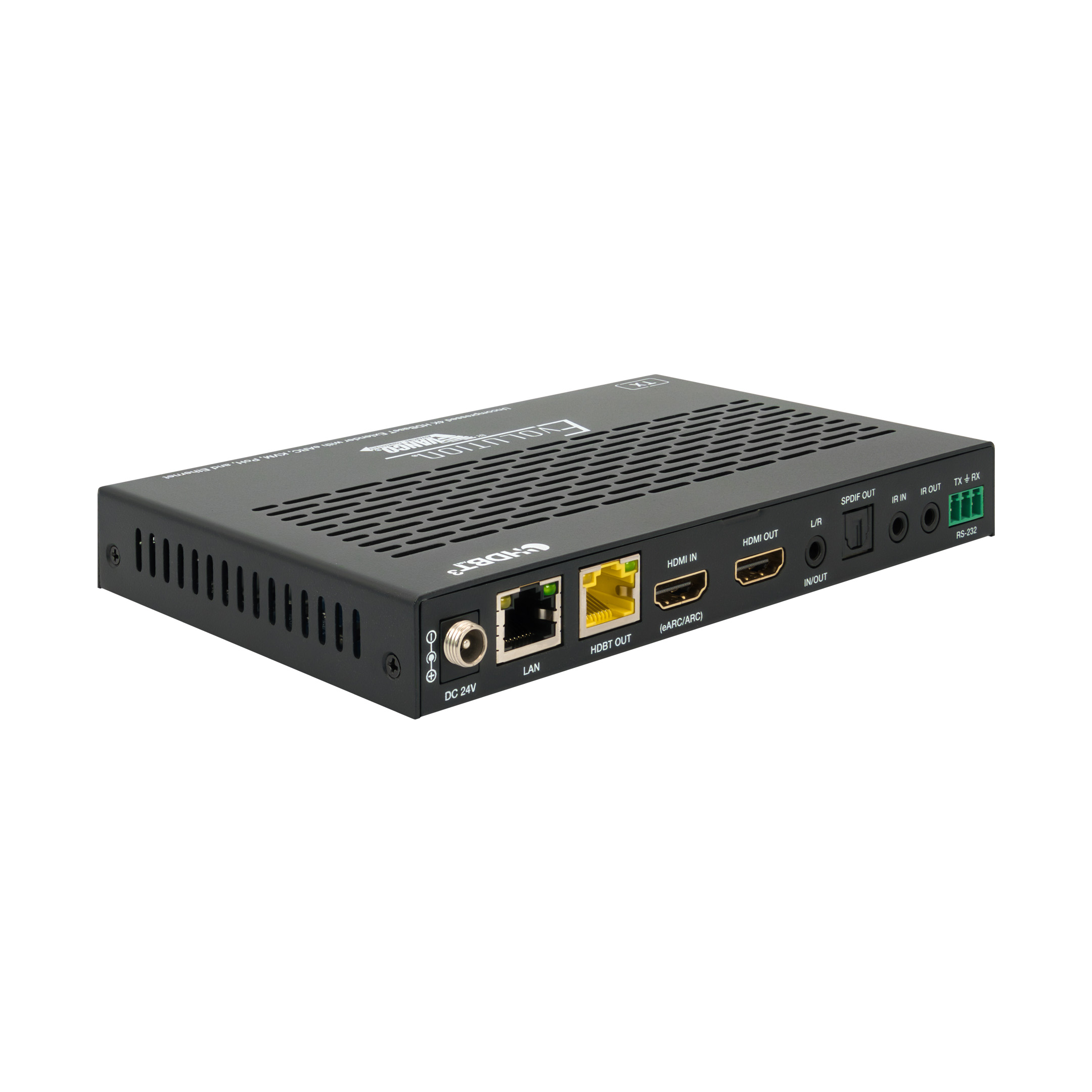

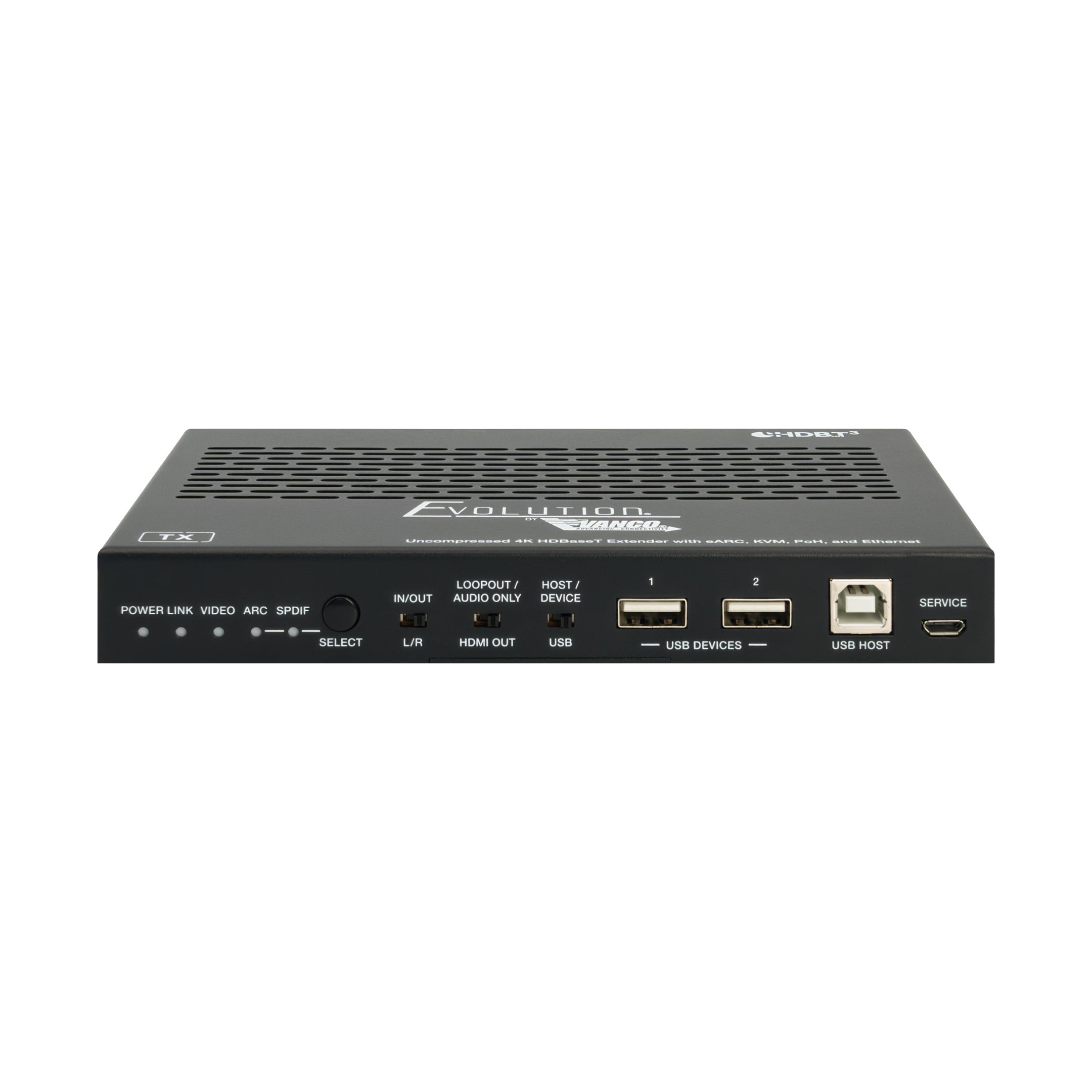

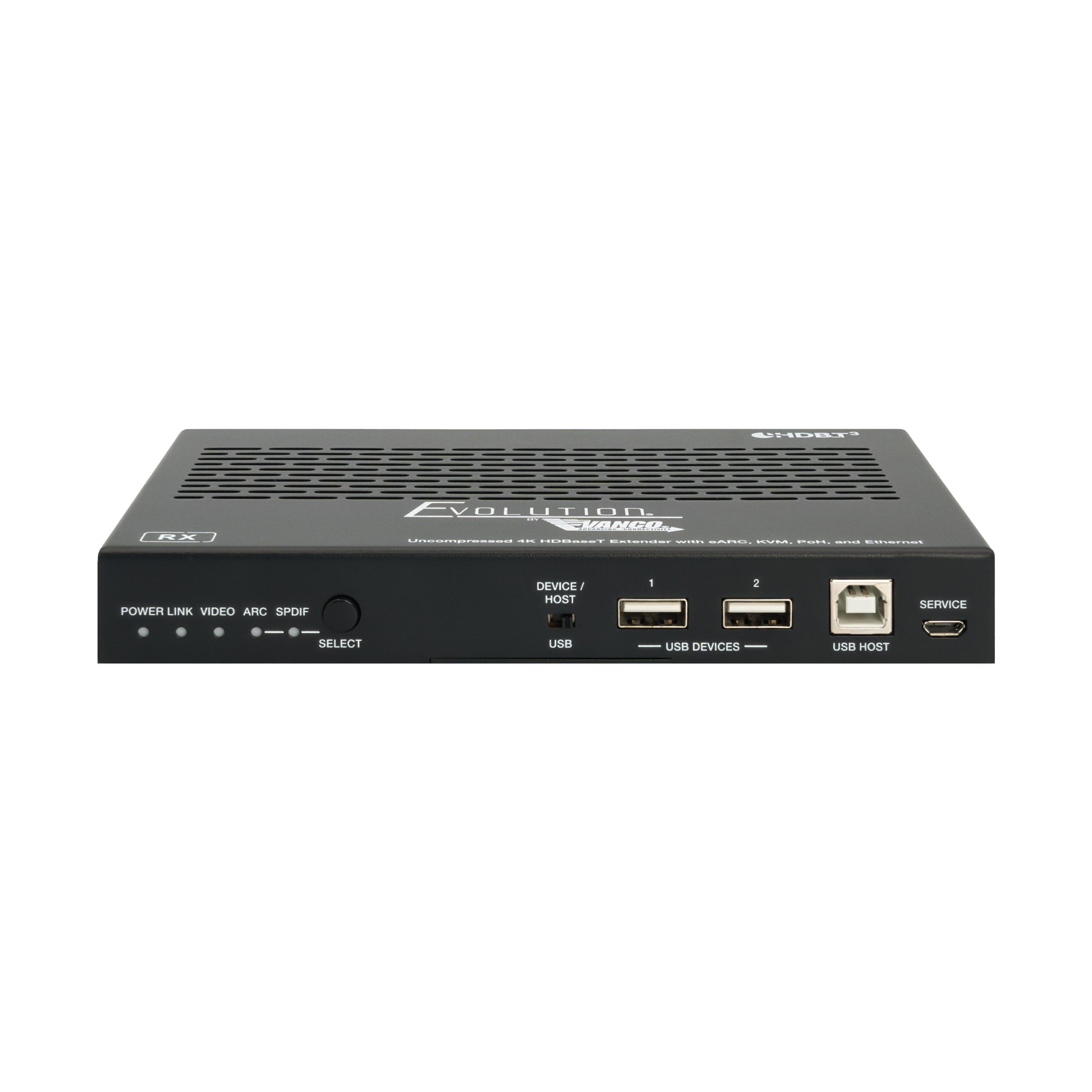

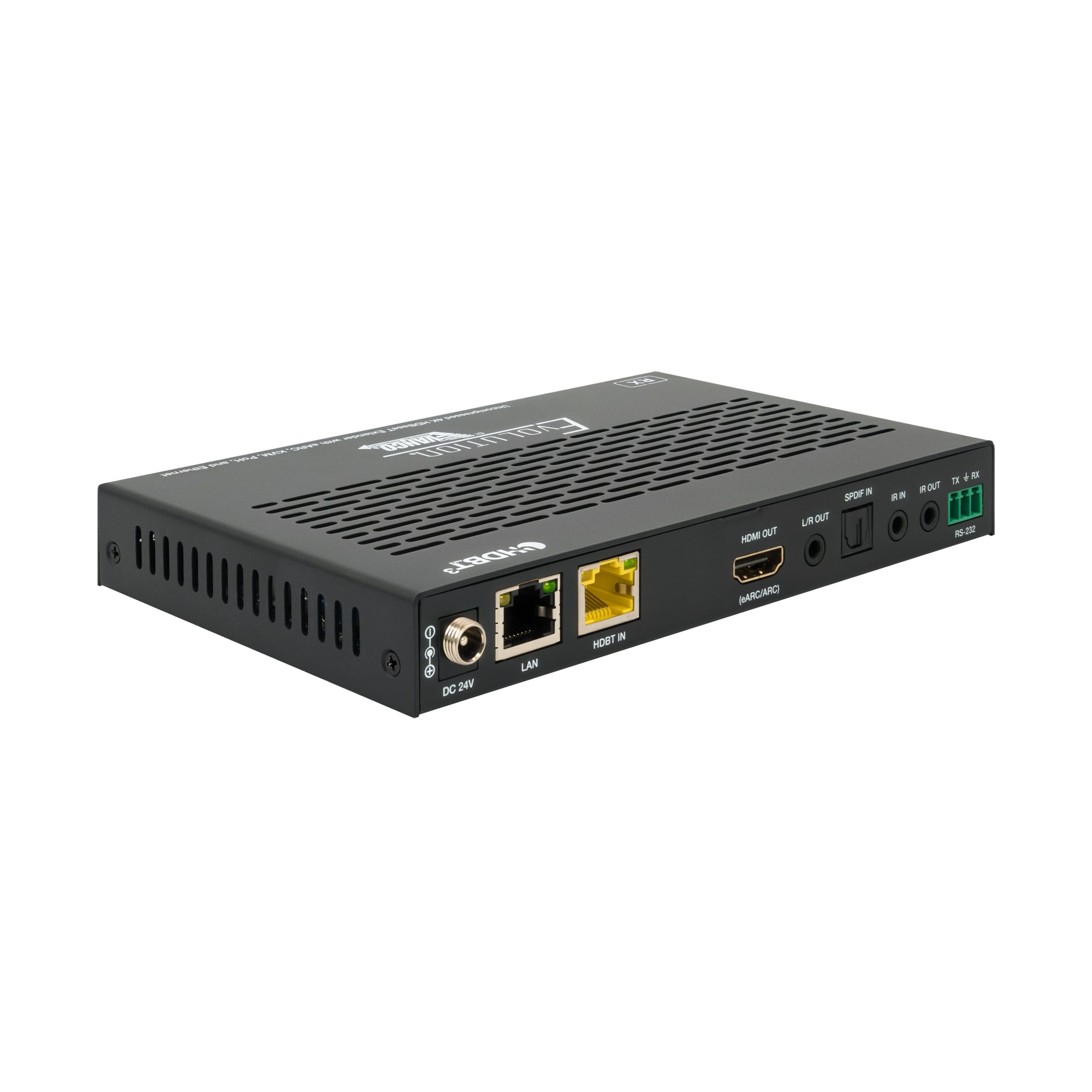

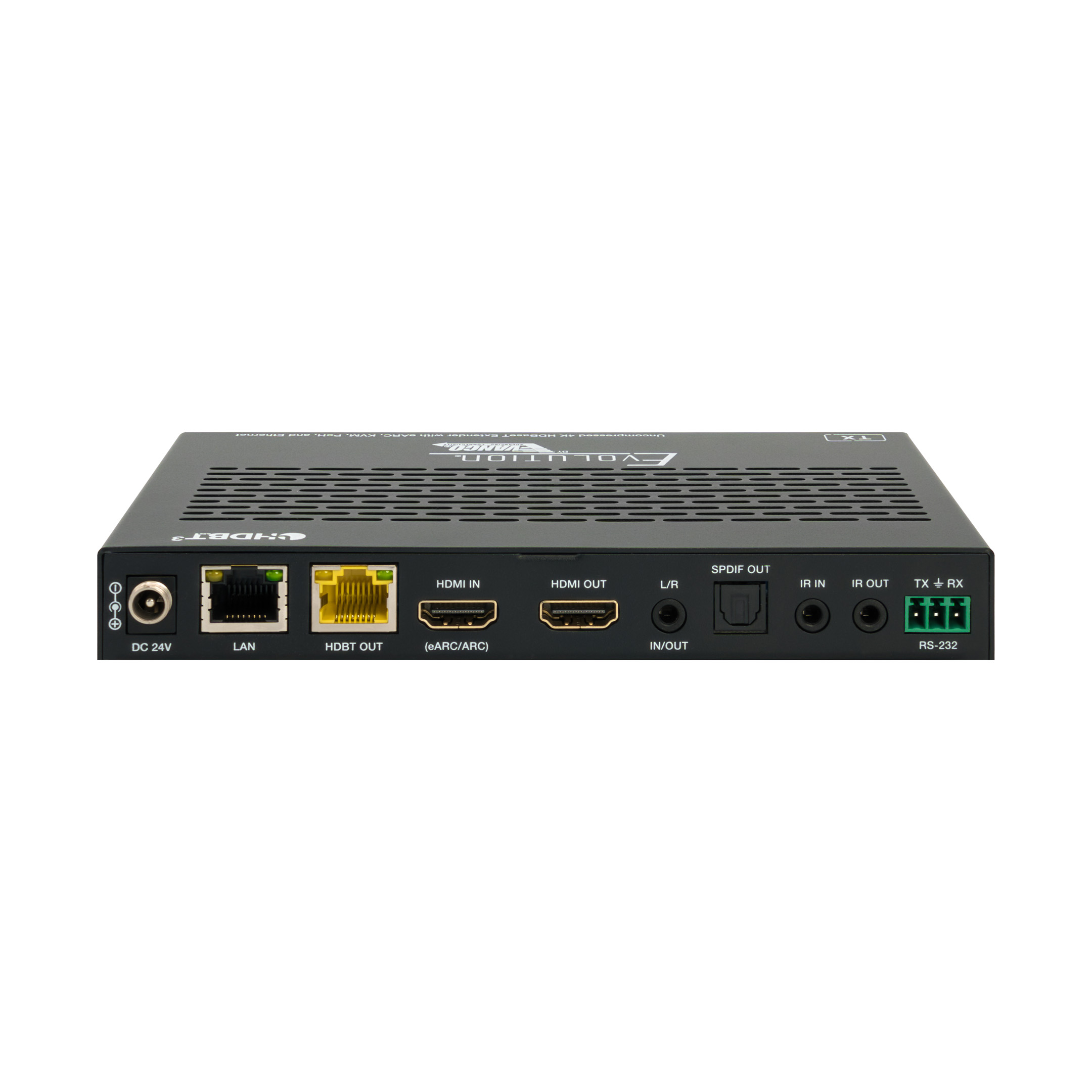

Uncompressed 4K HDBaseT Extender with eARC, KVM, PoH and Ethernet

SKU: EVEXHDB3 Categories: , , ,

Description

View Our Extender Comparison Guide

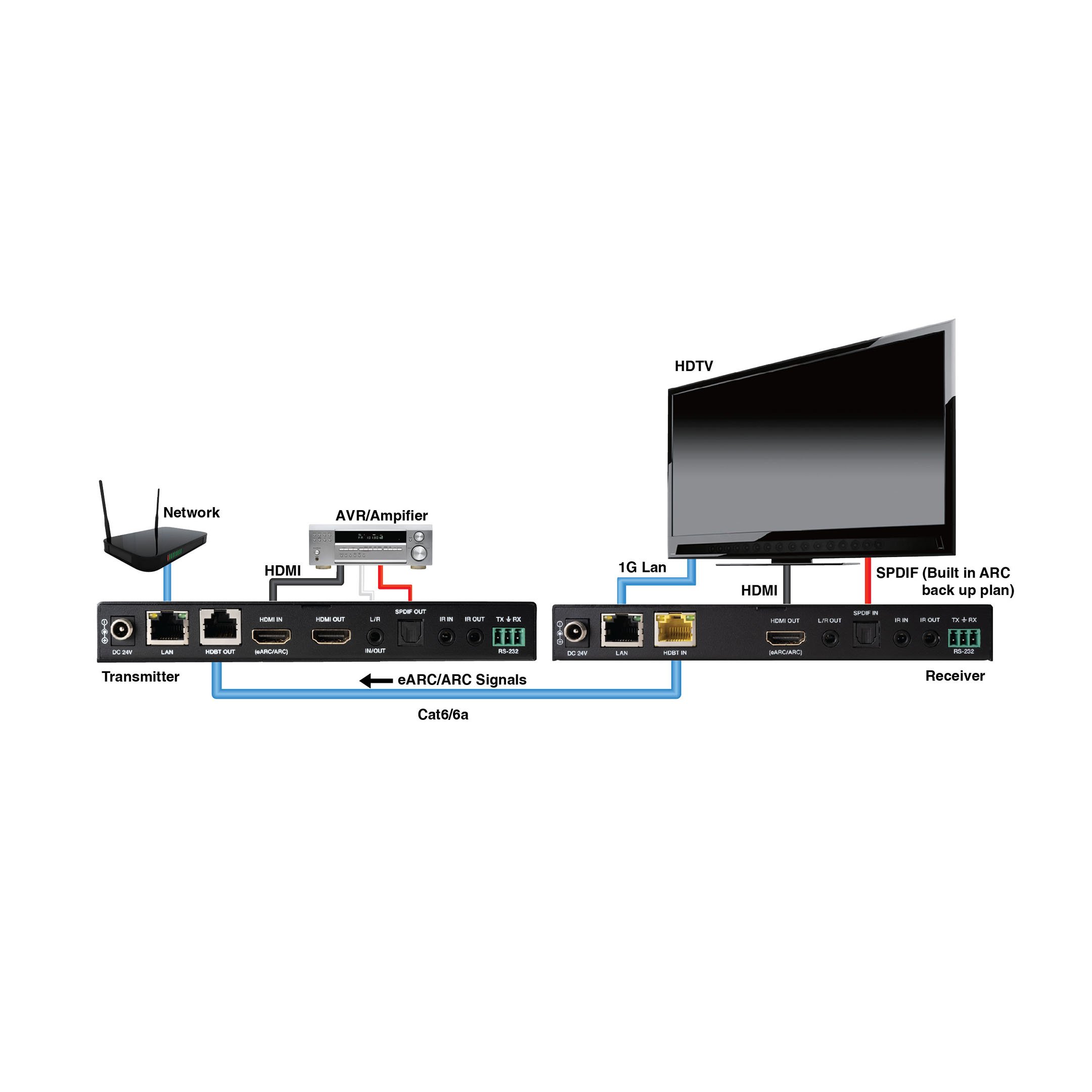

  • Allows HDMI audio/video signals to be transmitted using a single Cat6/6A/7 Cable HDMI 2.0b, HDCP 2.3/1.4 and HDBaseT 3.0 compliant
  • Extends uncompressed [email protected], 4:4:4, 18Gbps and HDR up to 328ft/100m
  • Transmission distance up to 328ft/100m via a single CAT6a/7 cable, or 164ft/50m using a single Cat6 cable
  • HDR compatible: passes HDR10, HDR10+, Dolby Vision and HLG formats
  • Supports Enhanced Audio Return Channel (eARC) and Audio Return Channel (ARC)
  • Supports multiple audio formats such as LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and more
  • Able to embed audio from a separate audio source, or de-embed to break out or extract audio
  • Bi-directional IR, RS-232 and 1Gb Ethernet signal pass through
  • Extends and supports USB 2.0 functions such as mouse, keyboard, and touch screen control, as well as data, microphone and webcams
  • HDMI loop-out for local monitoring, use with other HDMI distribution products, or for de-embedding audio from the source or display end
  • Features Power over HDBaseT technology (PoH) which transmits power over Cat6/6a/7, allowing for either Transmitter or Receiver to be powered without the use of a power supply
  • Dimensions: 6.7” W x 4” D x 0.9” H (170mm W x 102mm D x 22mm H)

Package Contents:
(1) EVEXHDB3 (TX and RX)
(1) IR Emitter
(1) IR Receiver
(4) Mounting Ears
(8) Mounting Screws
(2) 3-pin Phoenix Connector
(1) 24V/1A Locking Power Adapter
(1) Product Manual
