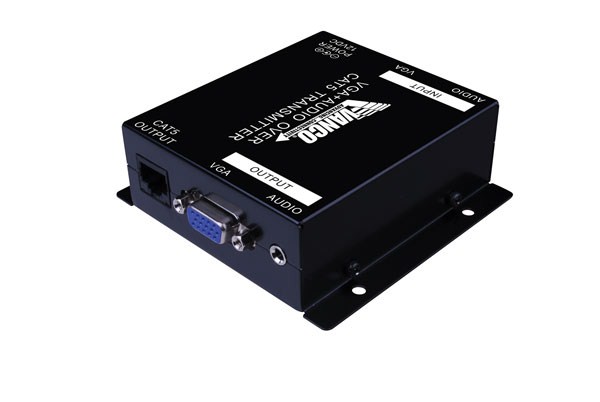

VGA over Cat5e/Cat6 Extender with Audio (1000 ft)

SKU: 280546 Categories: , ,

Description

  • Allows VGA and Audio Signals to be Transmitted using one Cat5e or Cat6 cable
  • Transmission Range up to 1000 ft.
  • 350 MHz signal transmission bandwidth
  • Receiver features adjustable EQ and GAIN controls

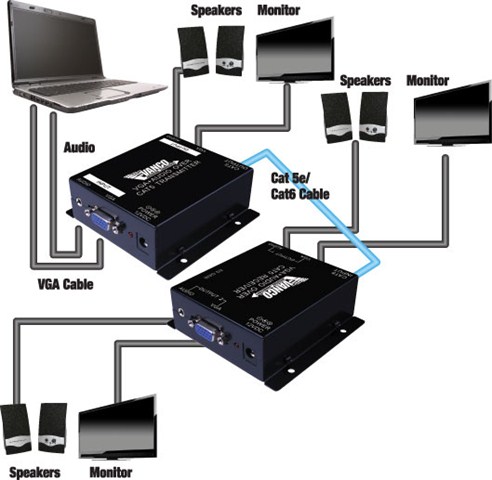

  • Dual Output allows for one display with audio at origin location and an additional display device with audio in a remote location
  • Supports computer resolutions UXGA (1600×1200) SXGA (1280×1024)- XGA (1024×768)- SVGA (800×600) and VGA (640×480)
  • Supports up to 100 meters (330 ft) with resolution 1200×1600
  • Supports up to 120 meters (396 ft) with resolution 1280×1024
  • Supports up to 180 meters (594 ft) with resolution 1024×768
  • Supports up to 200 meters (660 ft) with resolution 800×600
  • Supports up to 300 meters (1000 ft) with resolution 640×480
  • Power Supply: (2) 12V DC- UL Listed
  • Dimensions: 3.69” W x 1.25”H x 3.75”D

Additional information

Type

Resolution

1200 x 1600

Technology

1 CAT

Transmission Distance

> 500 ft
