VGA over Cat5e/Cat6 Extender with Audio (500 ft)

SKU: 280544 Categories: , ,

Description

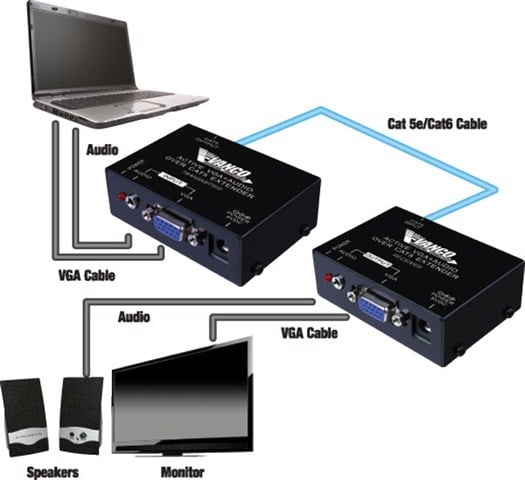

  • Allows VGA and Audio Signals to be Transmitted using one Cat5e or Cat6 cable
  • Transmission Range up to 500 ft.
  • Built-in equalizer for signal boosting
  • Supports computer resolutions UXGA (1600×1200) SXGA (1280×1024)- XGA (1024×768)- SVGA (800×600) and VGA (640×480)
  • Supports up to 60 meters (198 ft) with resolution 1600×1200
  • Supports up to 80 meters (264 ft) with resolution 1280×1024
  • Supports up to 100 meters (330 ft) with resolution 1024×768
  • Supports up to 120 meters (396 ft) with resolution 800×600
  • Supports up to 150 meters (500 ft) with resolution 640×480
  • Power Supply: (2) 5V DC- UL Listed
  • Dimensions: 2.88” W x 1”H x 2”D

Package Contents:

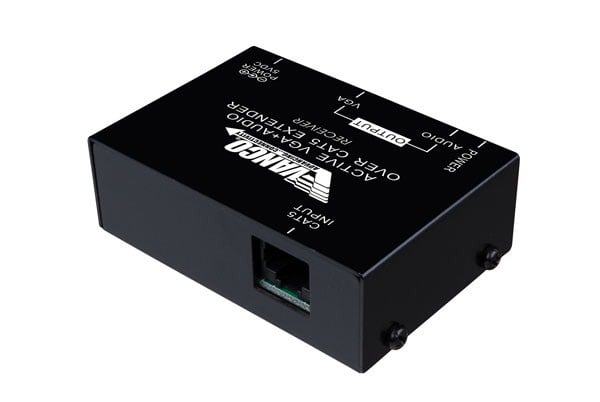

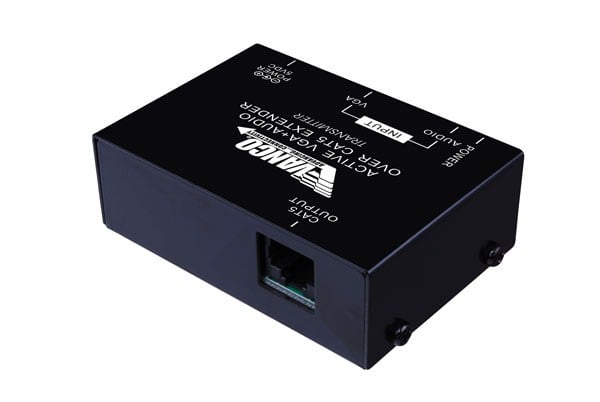

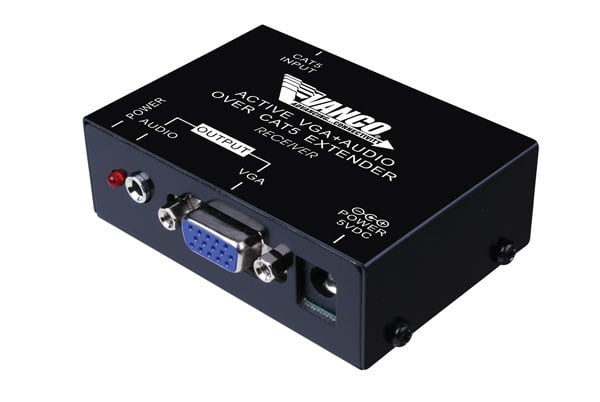

Transmitter and Receiver
(2) 5V/1A DC Power Supply
User’s Manual

Additional information

Type

Resolution

1200 x 1600

Technology

1 CAT

Transmission Distance

331 – 500 ft

280544 Product Manual

Download
