Wall Plate Mixing Microphone and Analog Audio Extender

SKU: PA-WPMIX Categories: , , ,

Description

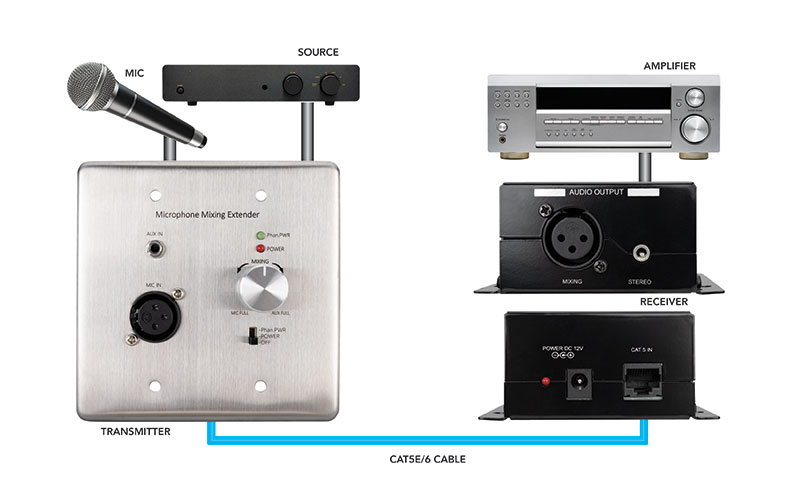

  • Extends balanced XLR and 3.5mm stereo audio over a single Cat5e/6 up to 300m/984ft

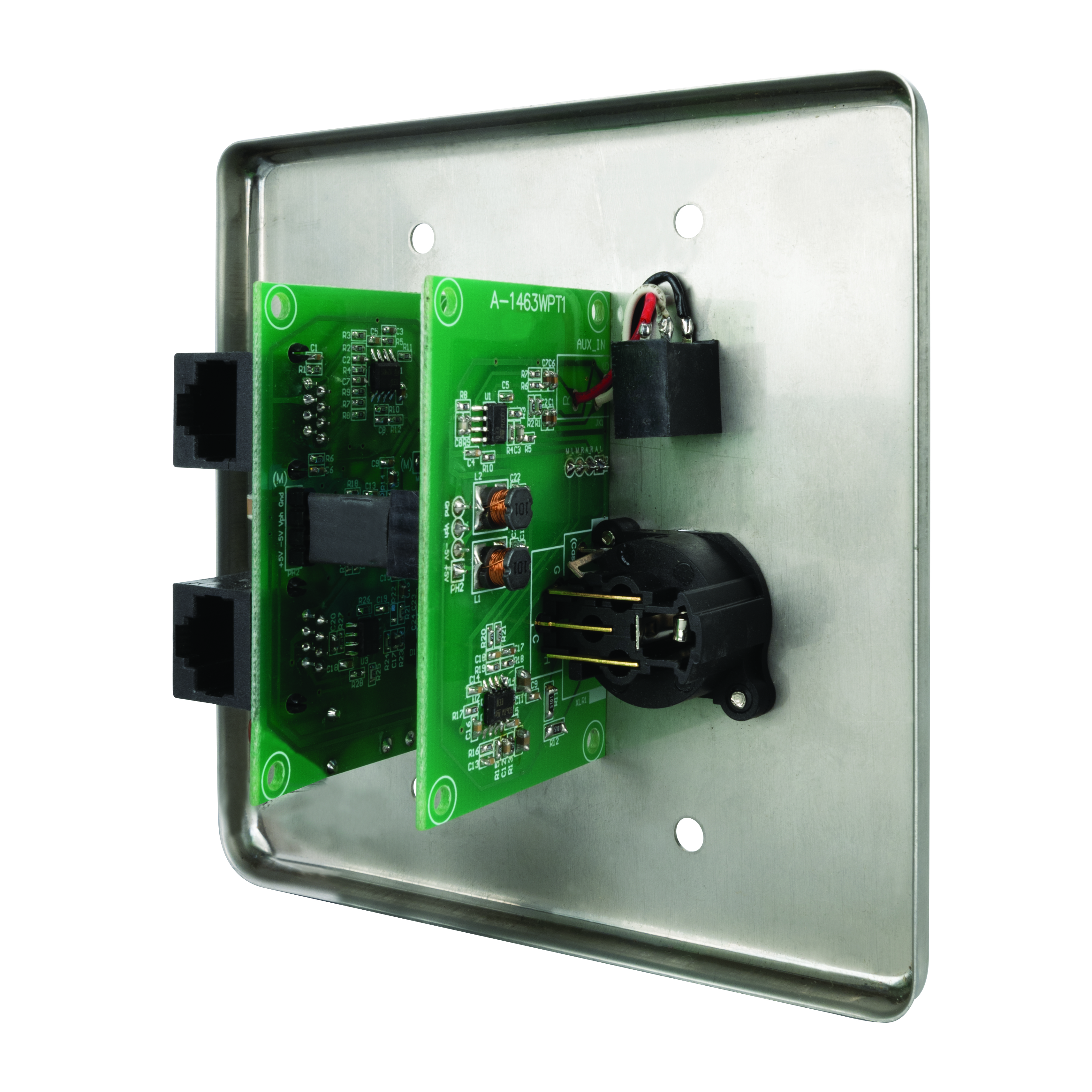

  • Dual-gang wall plate Transmitter can be installed into the wall for a clean installation
  • Features Power over Cable (PoC), allowing the extender set to be powered off a single power supply, powered on the receiver end

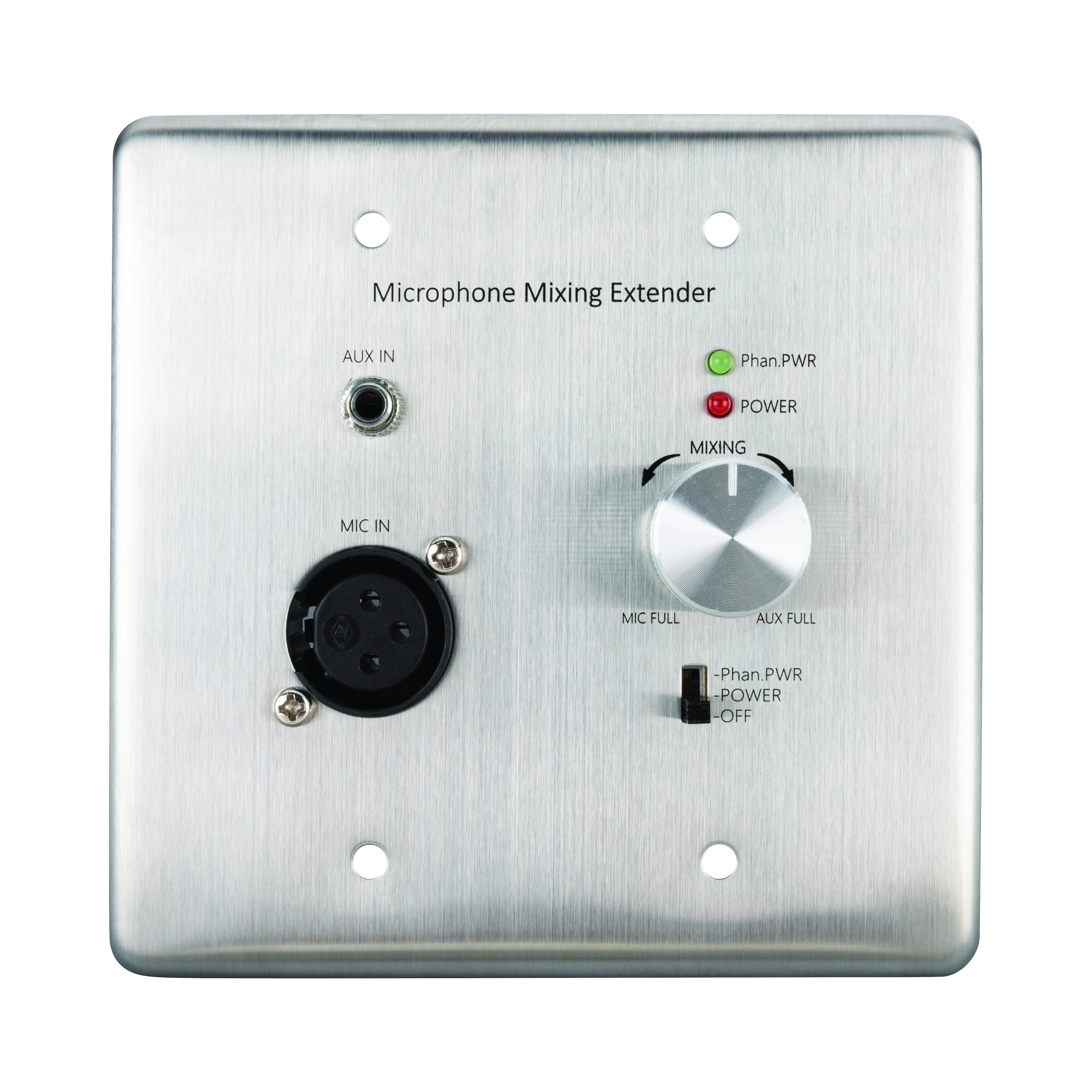

  • Mixing built in with an easy to use dial to mix between the XLR and stereo AUX inputs
  • Mic input (XLR) and AUX input with balanced level control
  • Supports two types of microphones, Dynamic and Condenser
  • 12V Phantom power option

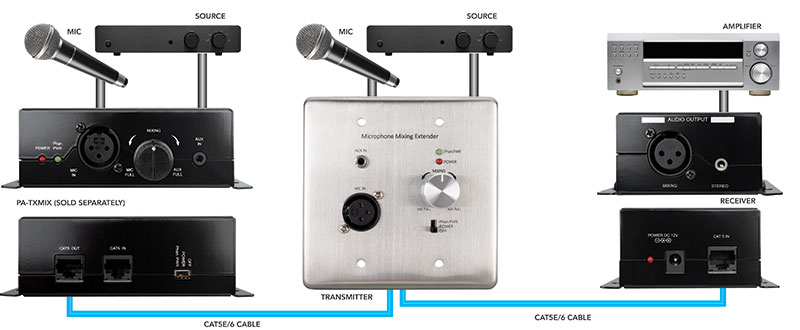

  • Ability to cascade with connections for additional PA-TXMIX transmitters (sold separately) to add additional sources
  • Dimensions: TX: 5” x 2.9” x 1.6”



Package Contents:
PA-WPMIX Extender set
12V Power Supply
Mounting screws
Product Manual
