Description

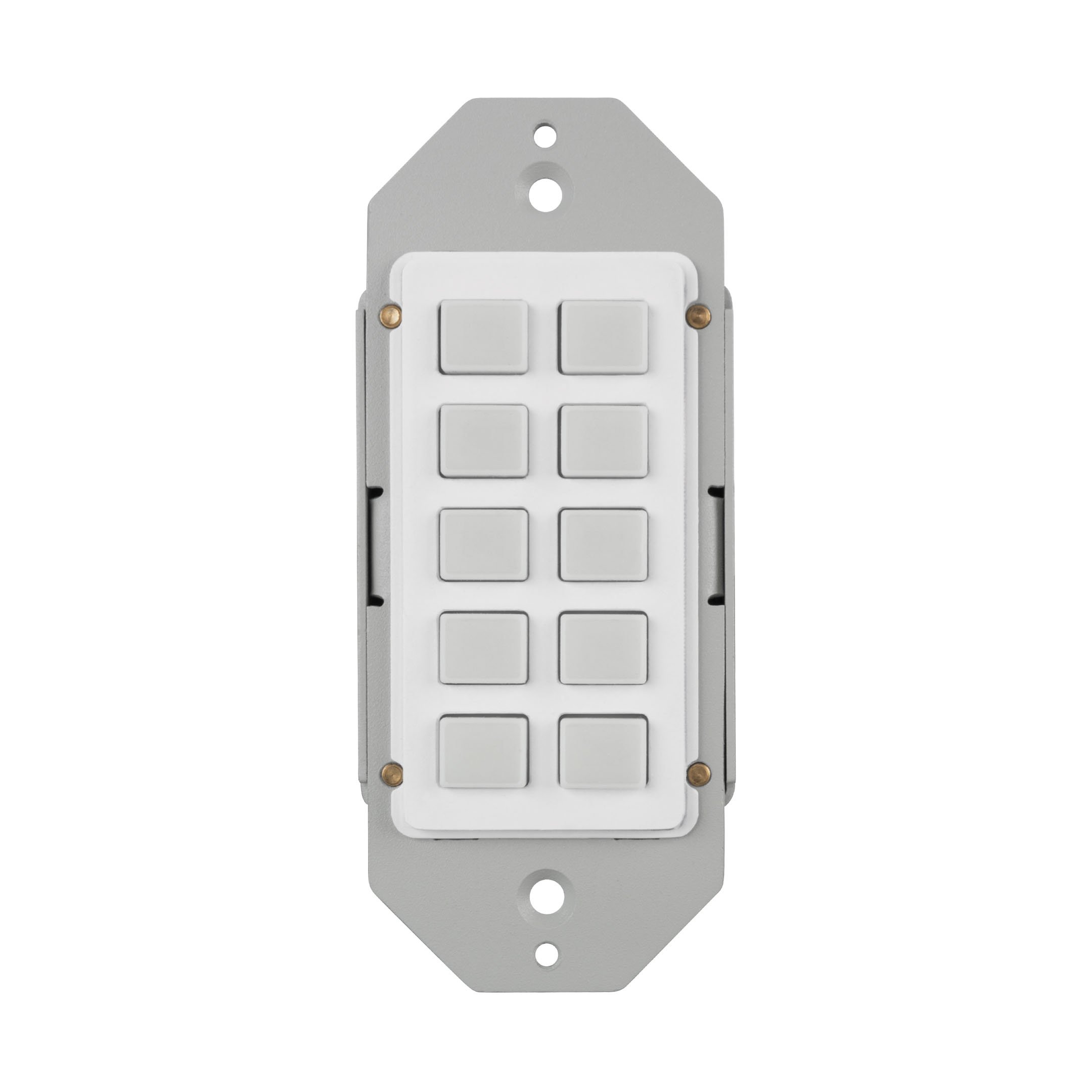

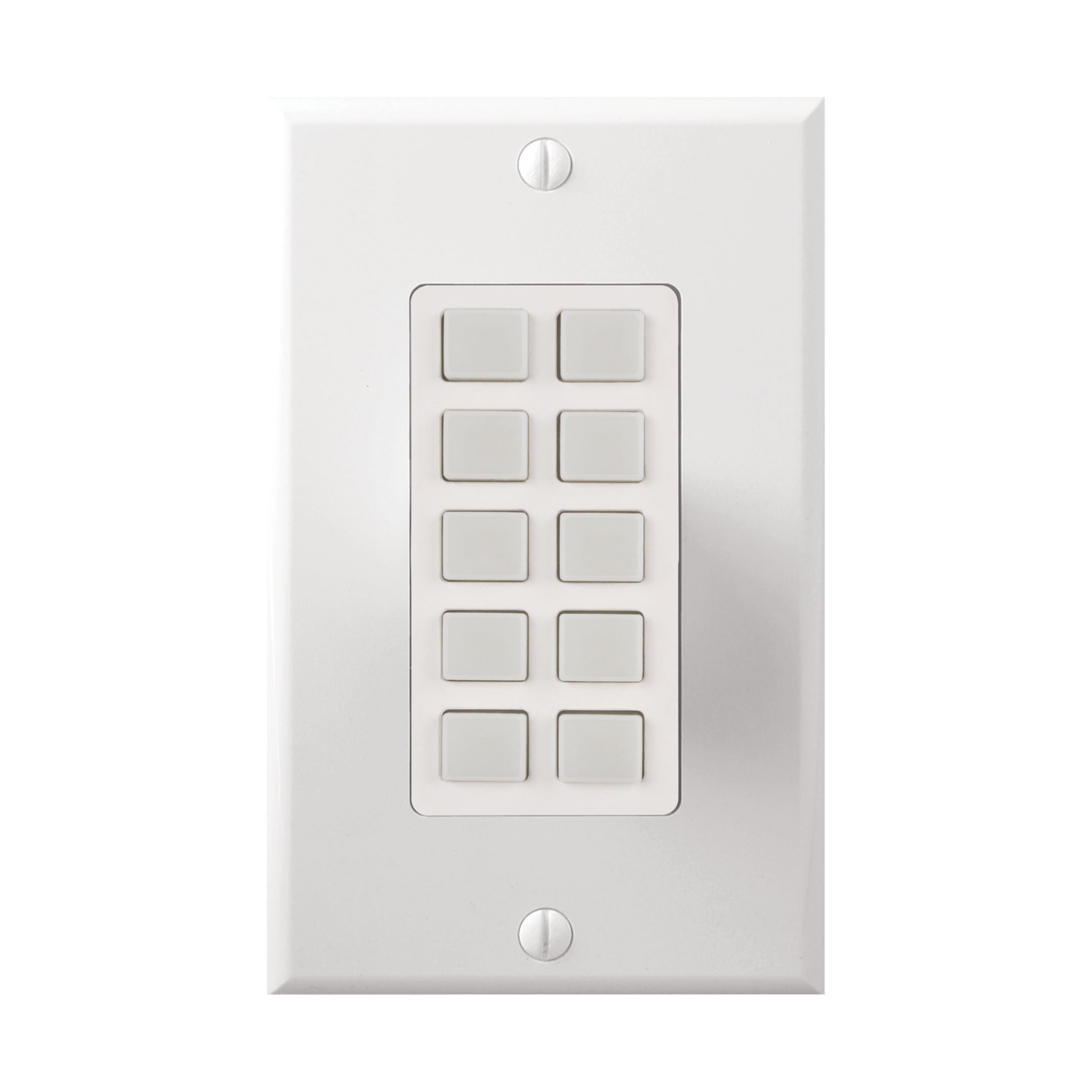

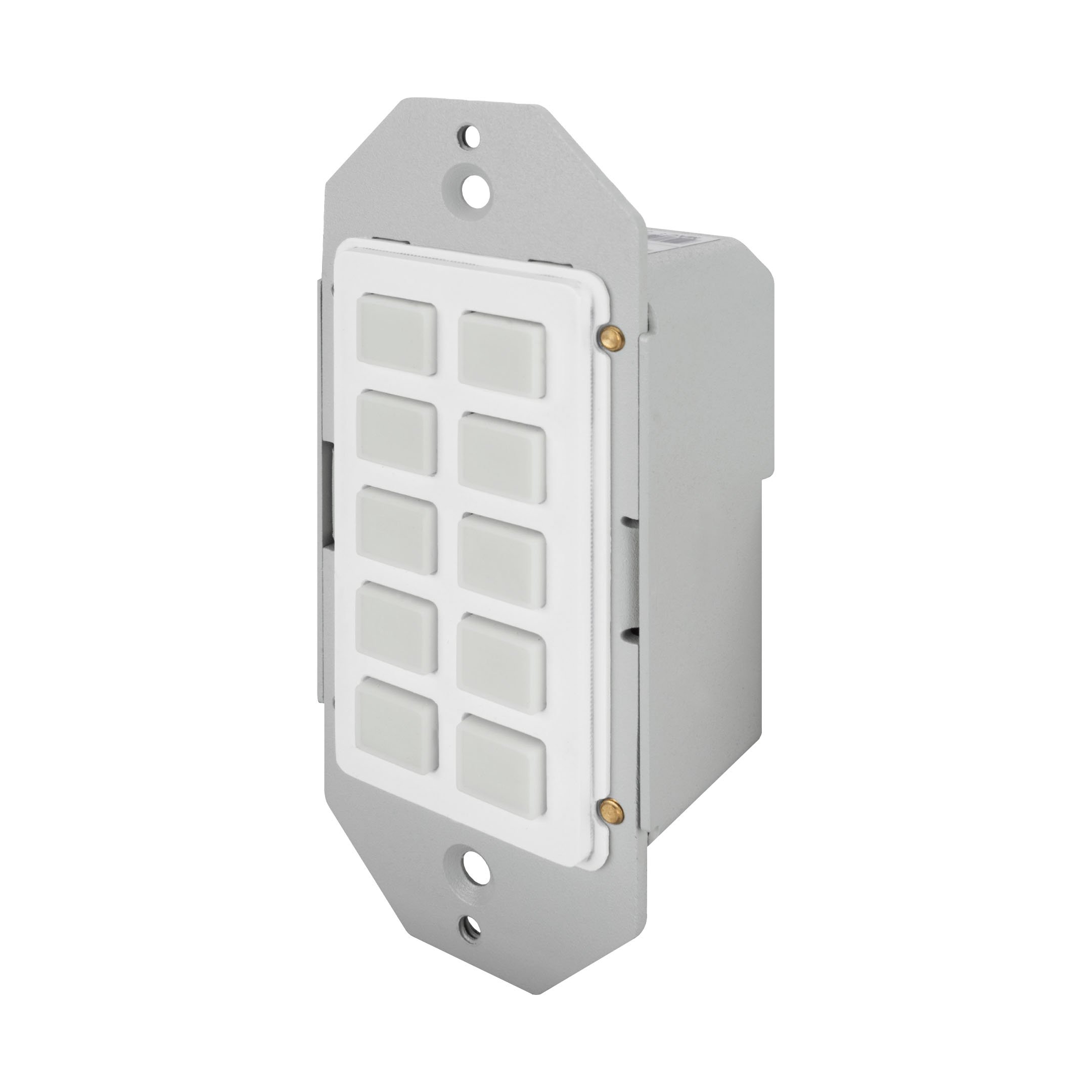

- 10 button custom programmable control keypad
- Single gang design
- Able to be powered remotely over PoE or hardwired 2-conductor cabling using the Vanco 110018
- Universal Power Supply (sold separately)

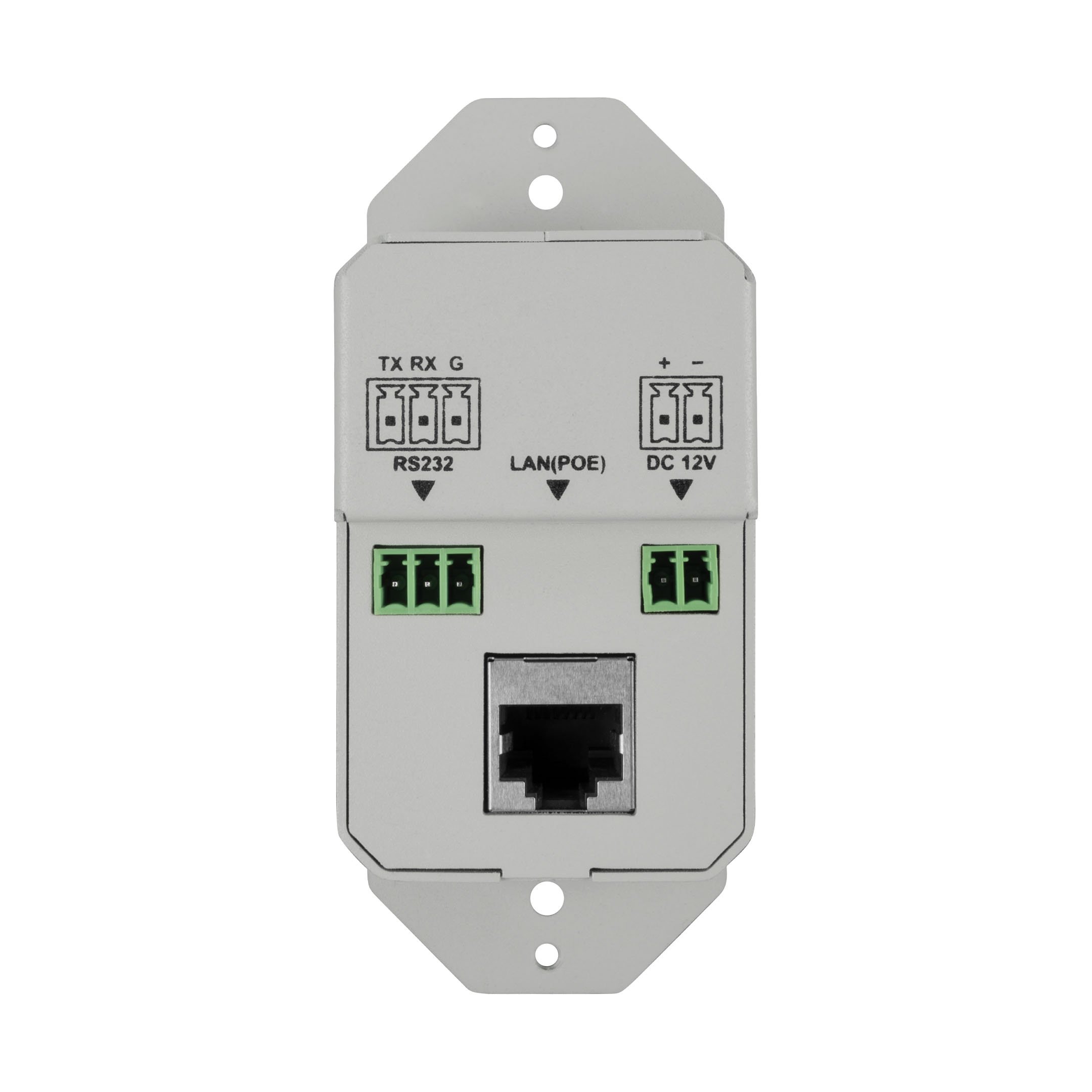

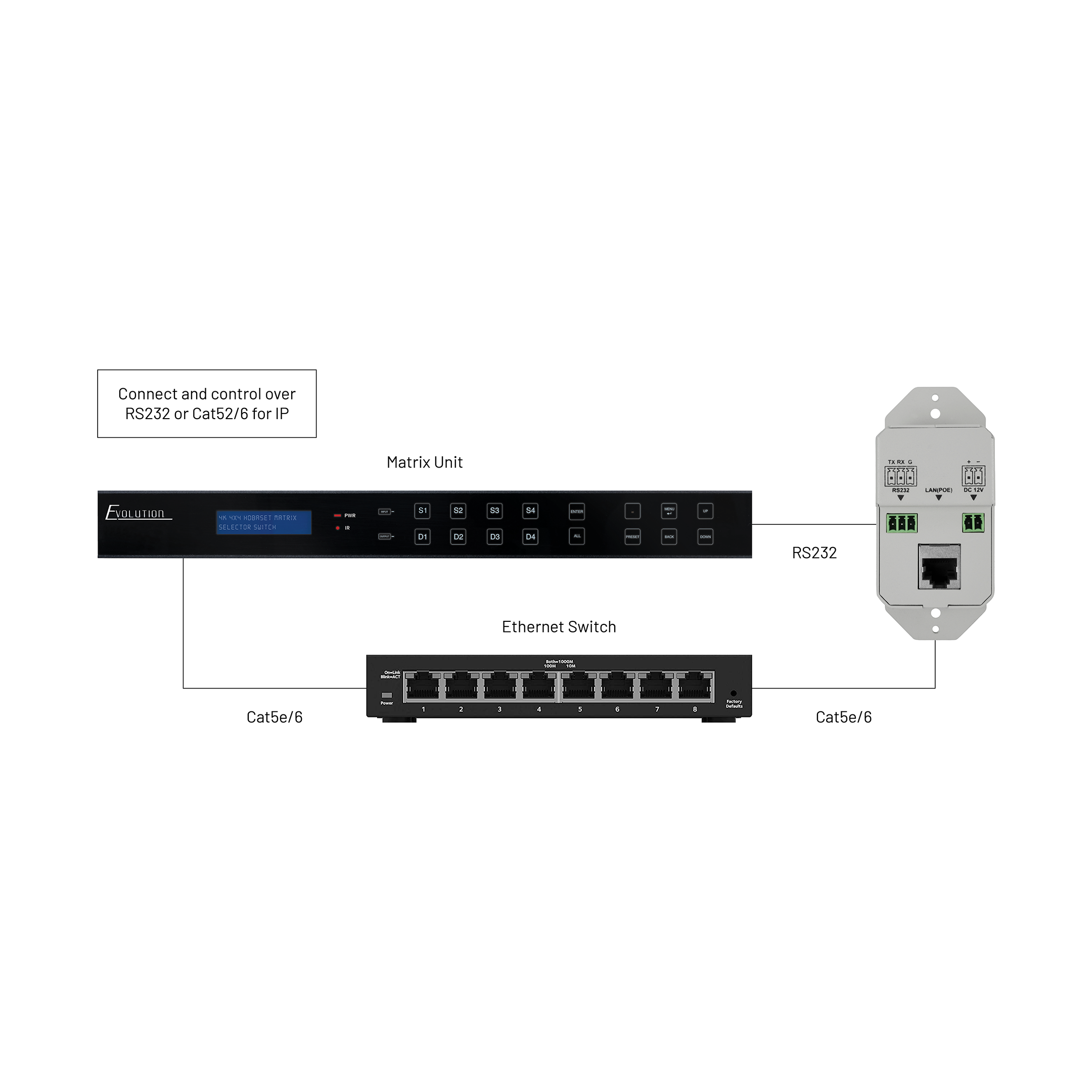

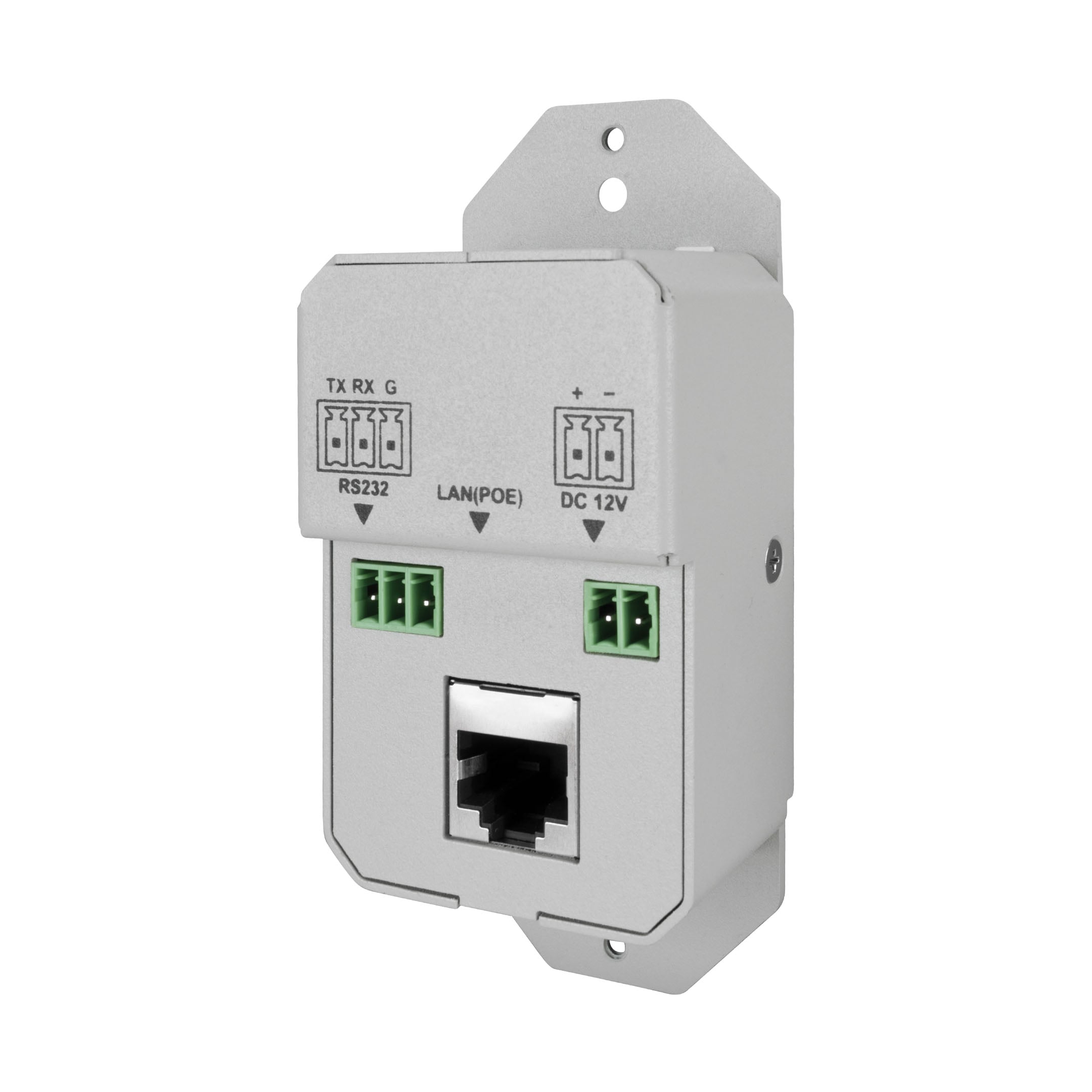

- Controls devices over TCP/IP and RS232 protocols
- Software allows for customizing commands, macros, or to backup or upload templates from previously configured keypads

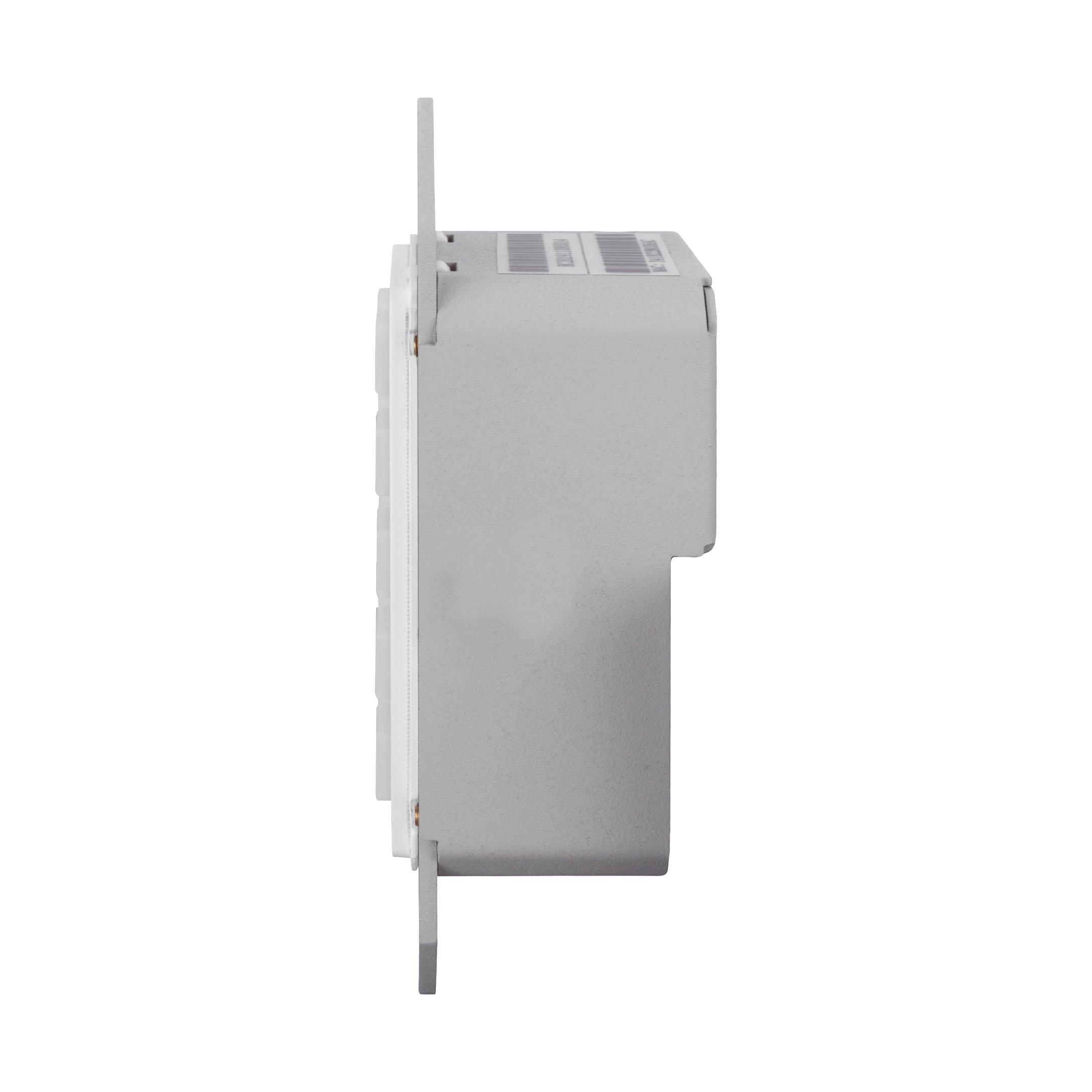

- Dimensions: 1.77” W x 4.16” H x 1.42” D (45mm x 105.6mm x 36mm)
Tech Support Tips:
-
- The 3.5mm Line In port is used to embed audio from an external microphone over the USB connection between the video bar and computer for additional integration options
Package Contents:
(1) EVCTL10B Keypad
(1) Single Gang White Decora Plate
(1) Phoenix Male Connector (3.5mm, 2 Pins)
(1) Phoenix Male Connector (3.5mm, 3 Pins)
(1) Set of Mounting Hardware
(1) Sheet of pre-printed button labels
(1) Product Manual
