Description

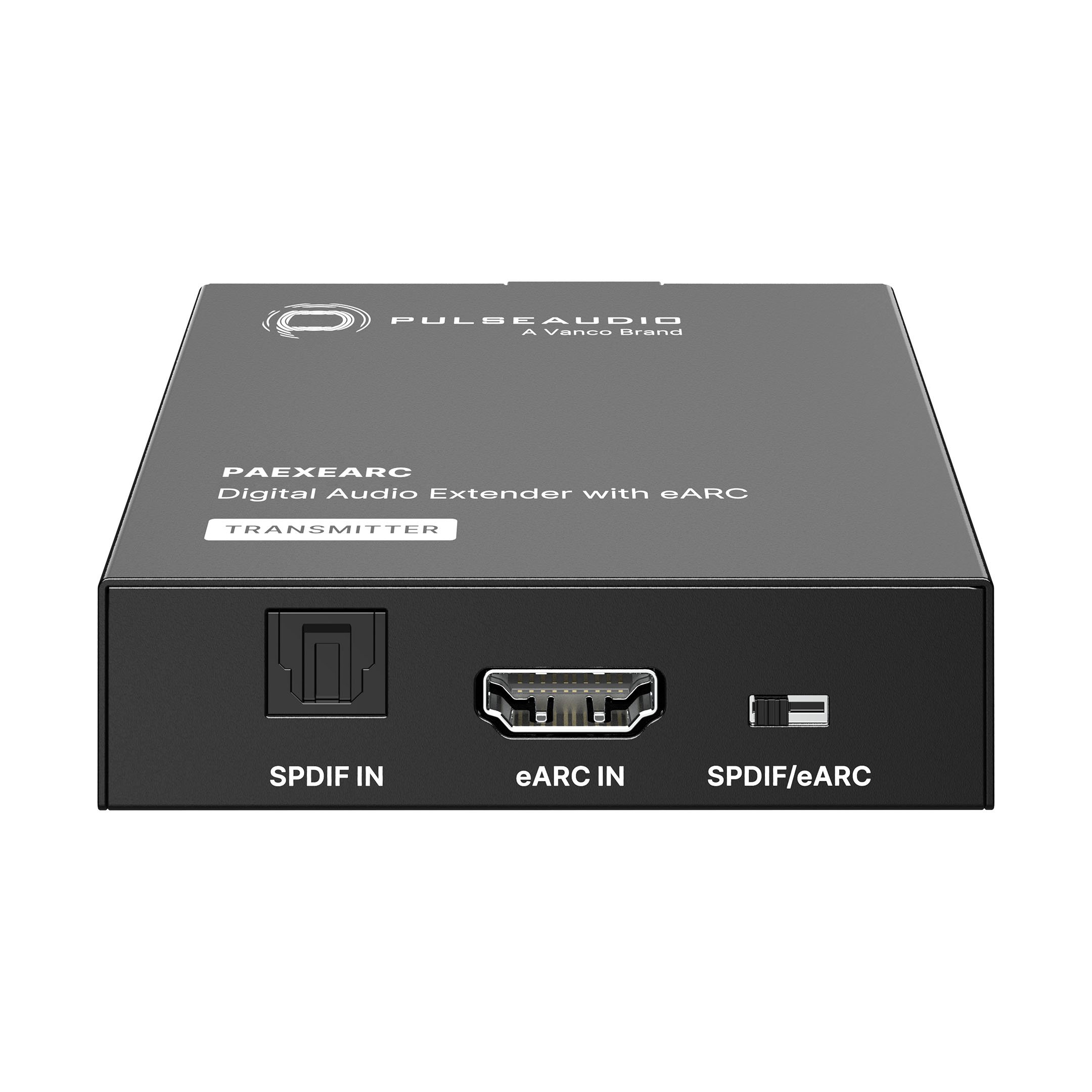

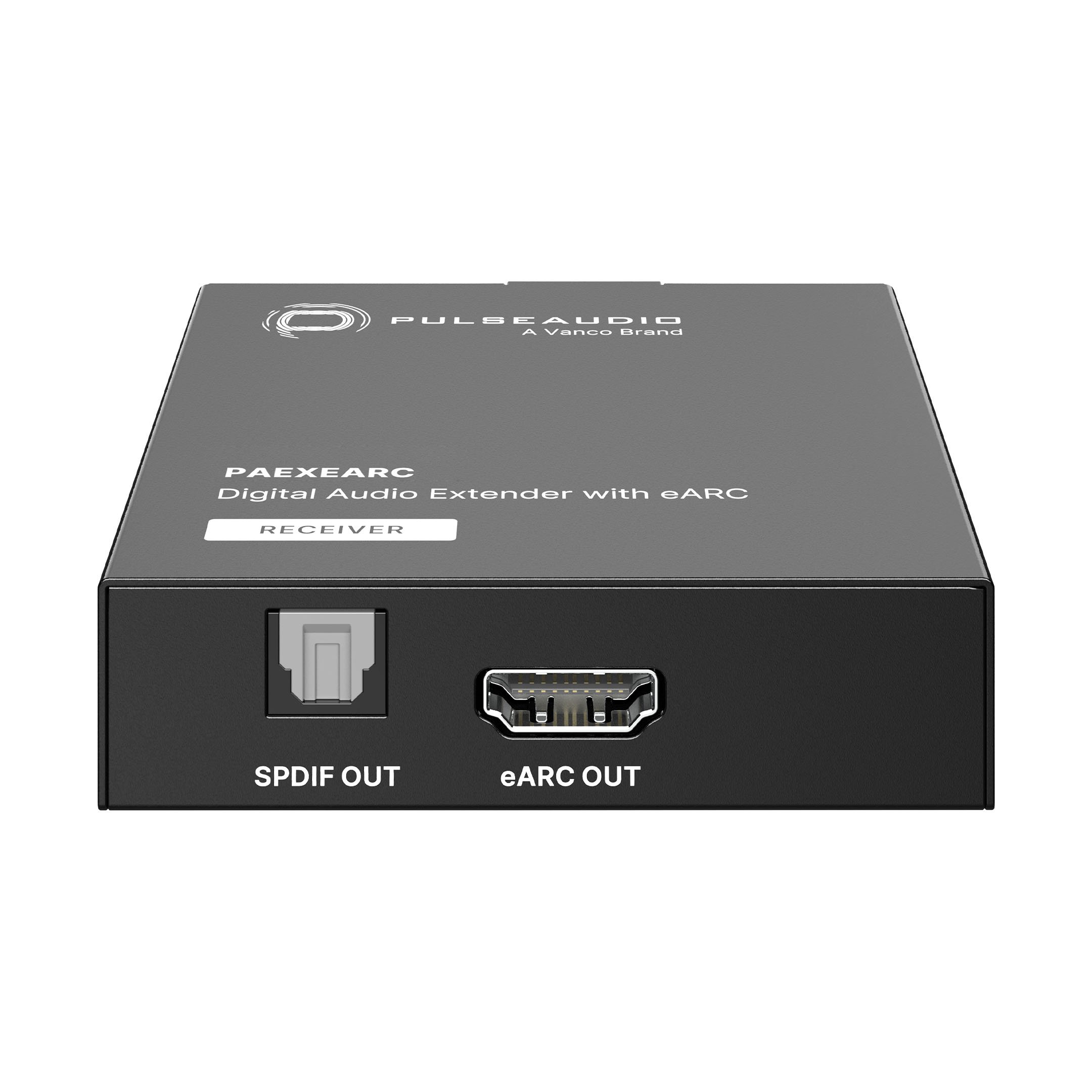

The PulseAudio PAEXEARC digital audio extender with eARC is capable of transmitting HDMI eARC or ARC digital audio signals up to 328ft (100m) over a single CAT5e/6 cable. It can also transmit digital optical audio signals up to 656ft (200m). The receiver is equipped with a built-in ARC backup plan, ensuring that both SPDIF and HDMI outputs are active to accommodate various scenarios. The extender features bi-directional PoC (power over cable), allowing either end to be plugged into power for flexible installation. It also supports CEC pass-through when HDMI eARC/ARC audio is selected.
Key features:
- Extends eARC/ARC or optical digital audio signals over a single Cat5e/6 cable
- Supports eARC/ARC distribution up to 328ft (100m)
- Supports optical audio distribution up to 656ft (200m)
- Supports CEC pass-through when HDMI eARC/ARC mode is selected
- SPDIF and HDMI outputs are always live for a truly customized audio solution
- Features bi-directional PoC (Power over Cable)
- Selection between HDMI eARC/ARC or optical digital audio via switch on the TX
Measurements:
- TX weight: 0.33lbs (150g)
- TX dimensions: 3.15in x 0.83in x 2.91in (80mm x 21mm x 74mm)
- RX weight: 0.33lbs (150g)
- RX dimensions: 3.15in x 0.83in x 2.91in (80mm x 21mm x 74mm)
Package contents:
- (1) Digital audio extender set – TX and RX
- (1) Power adapter (12VDC, 1A)
- (1) Mounting brackets and screws
- (1) Quick start guide
