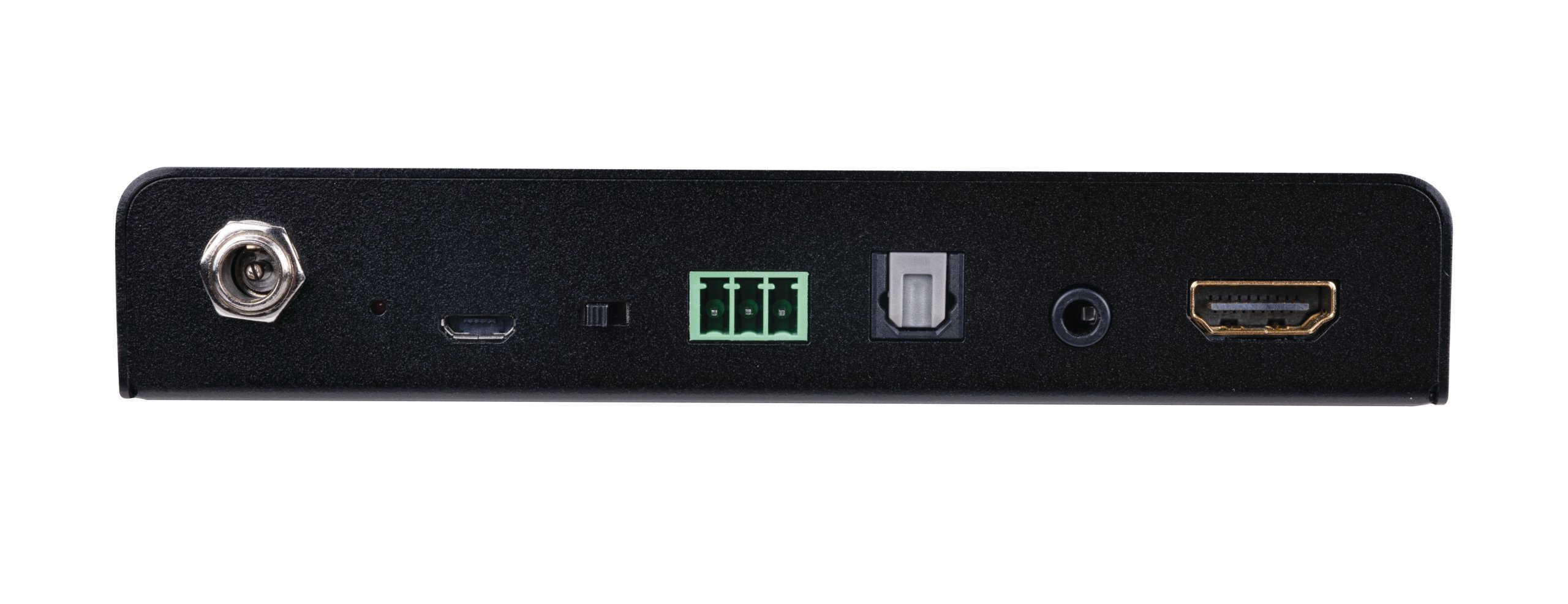

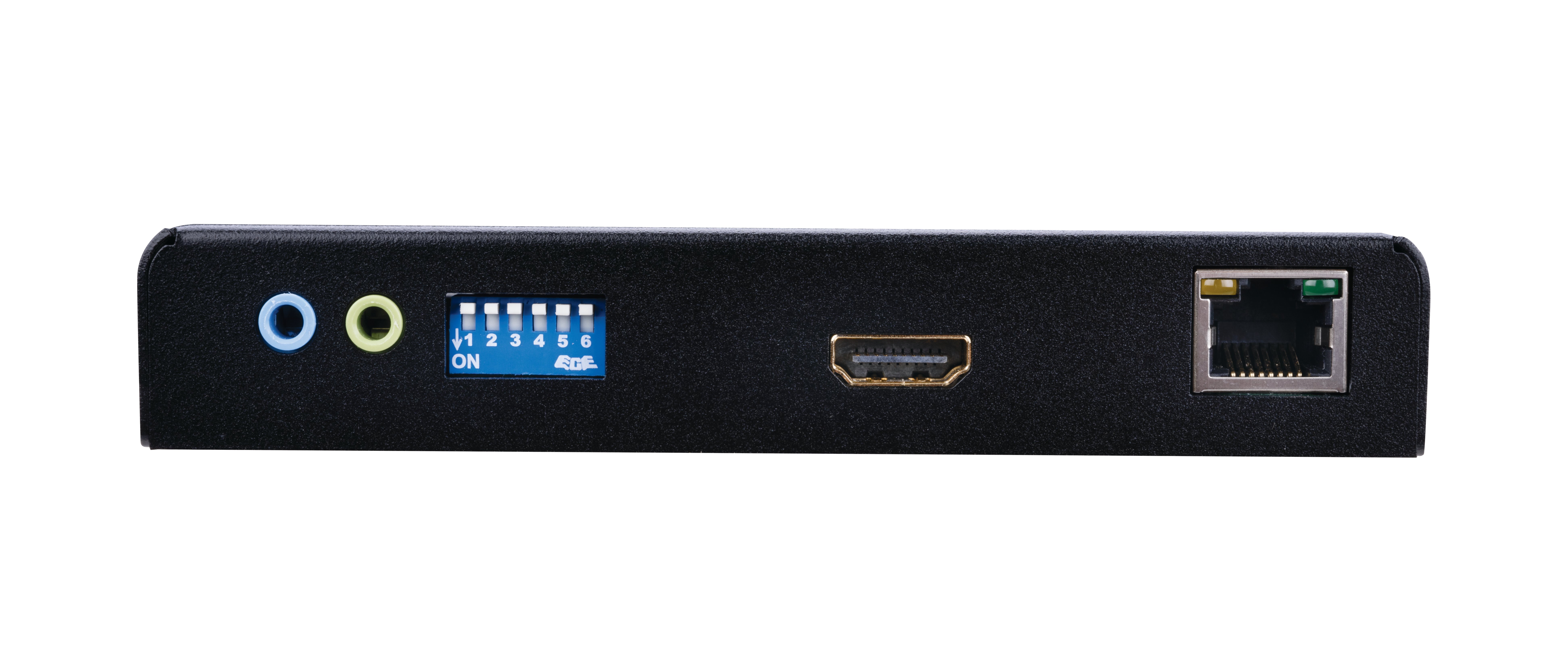

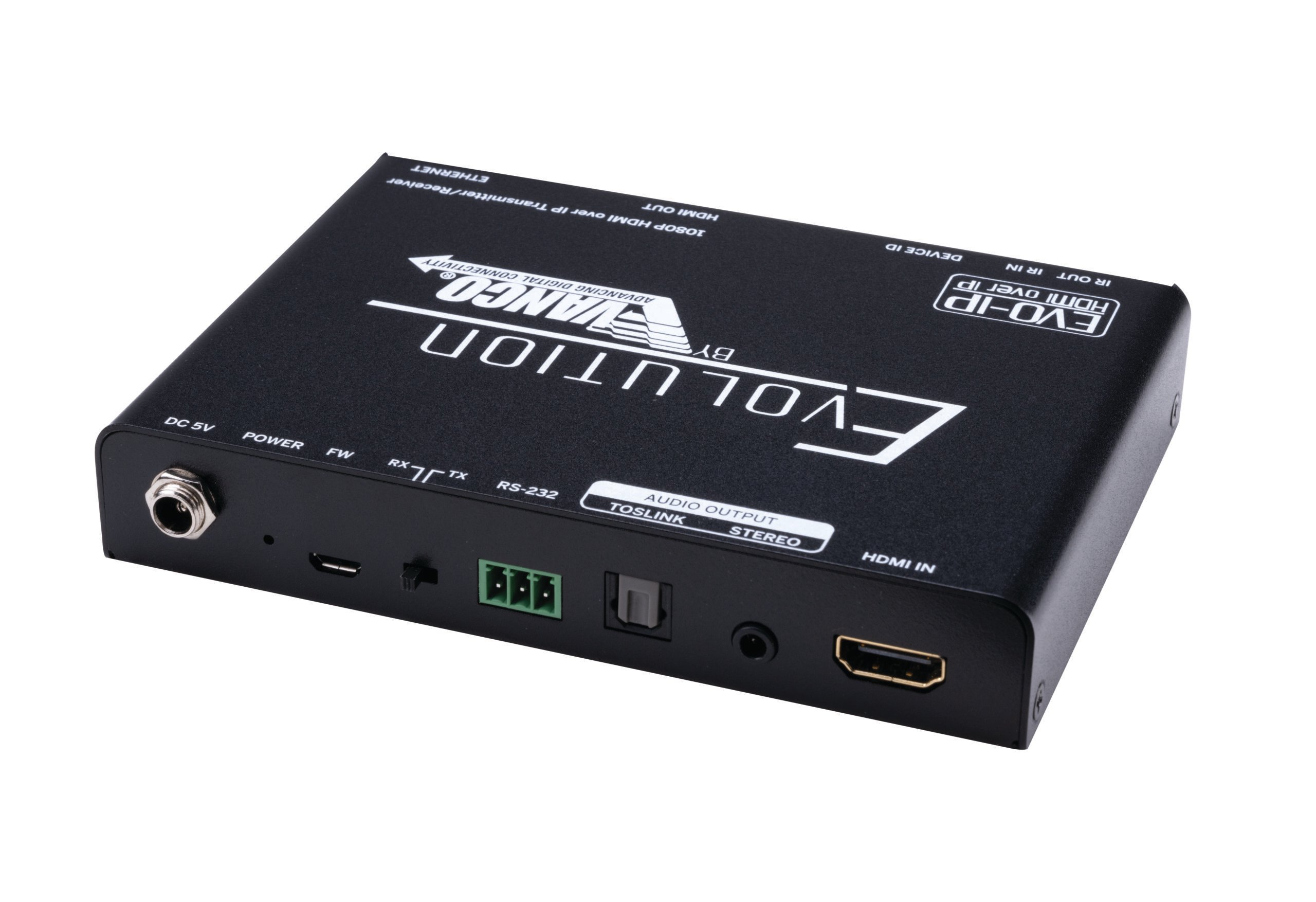

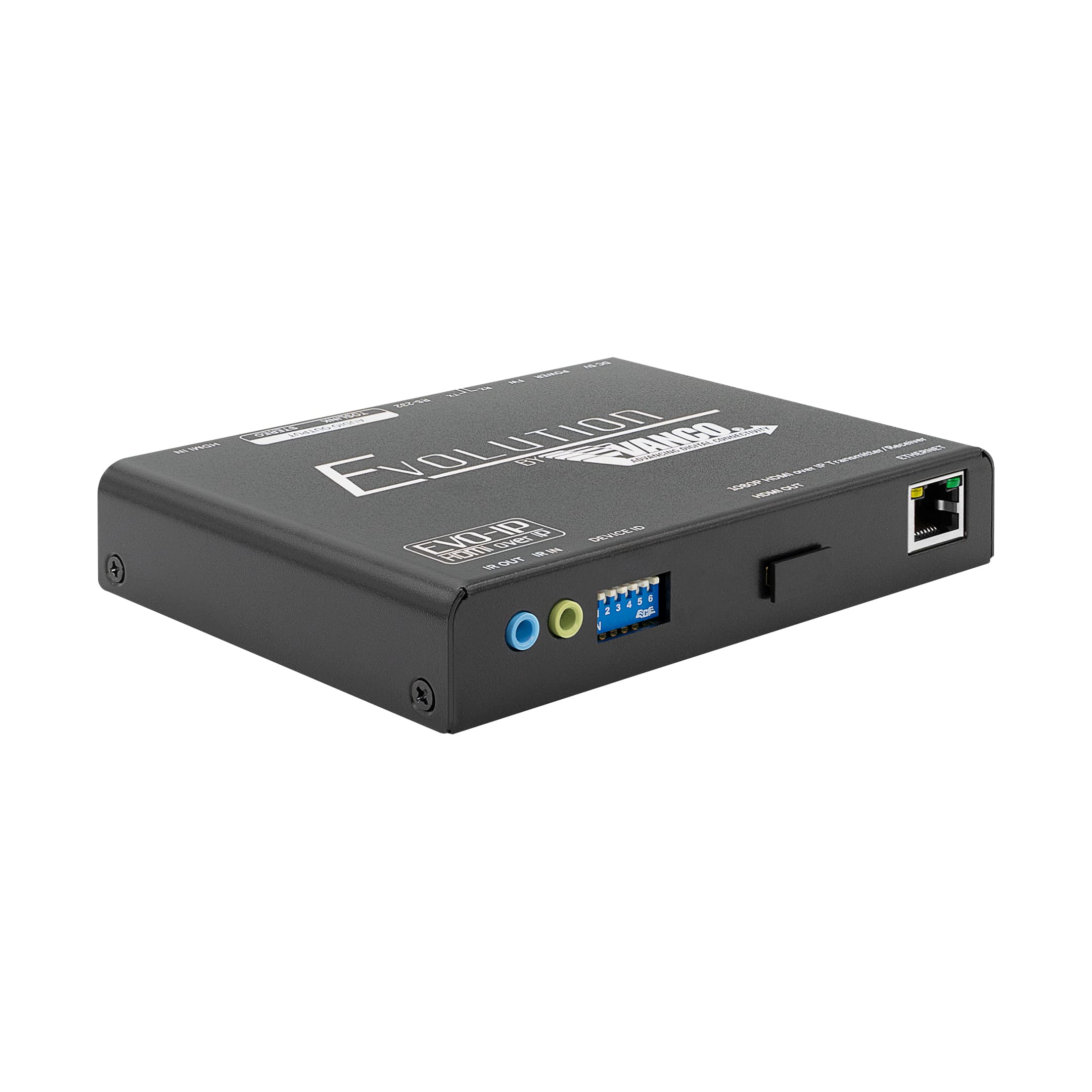

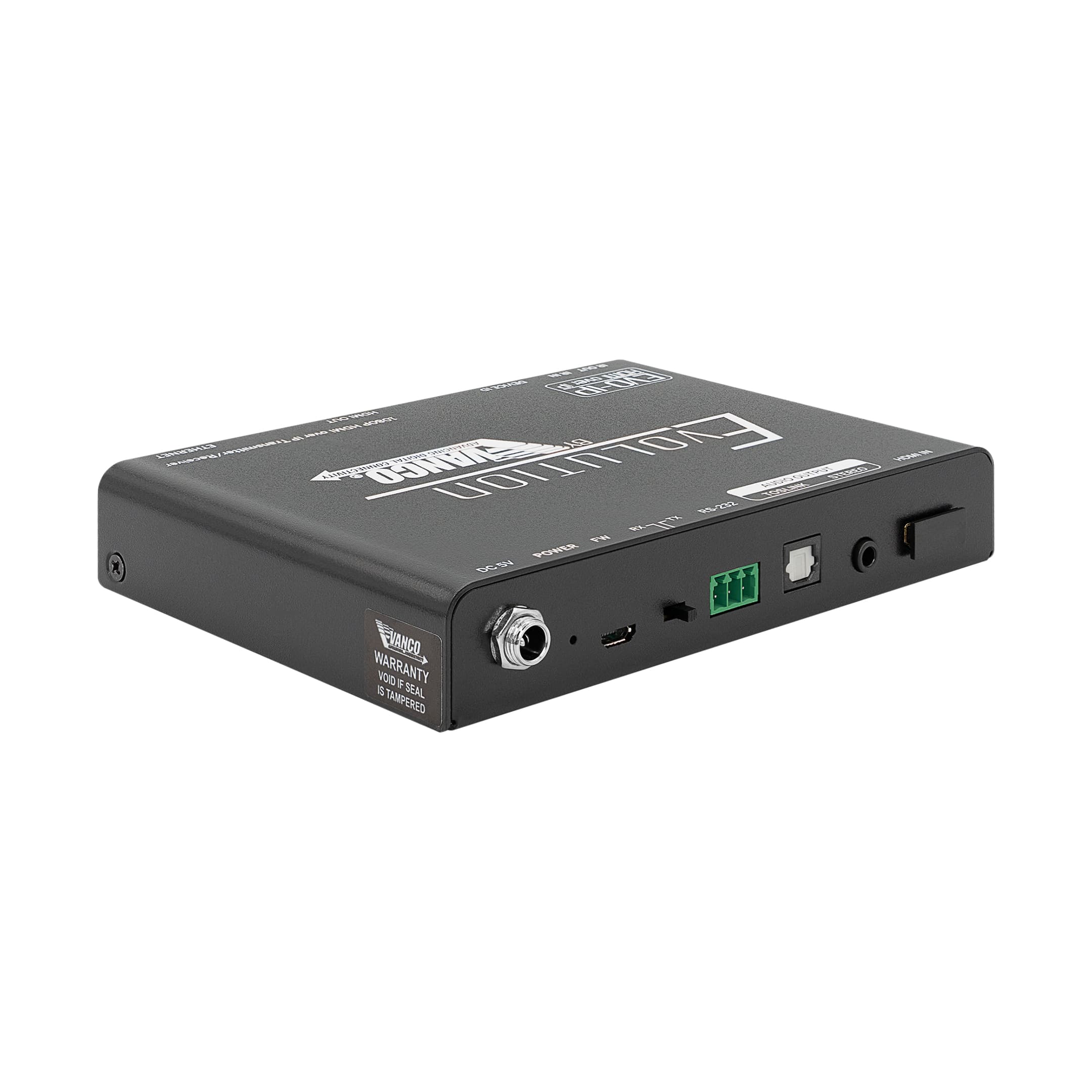

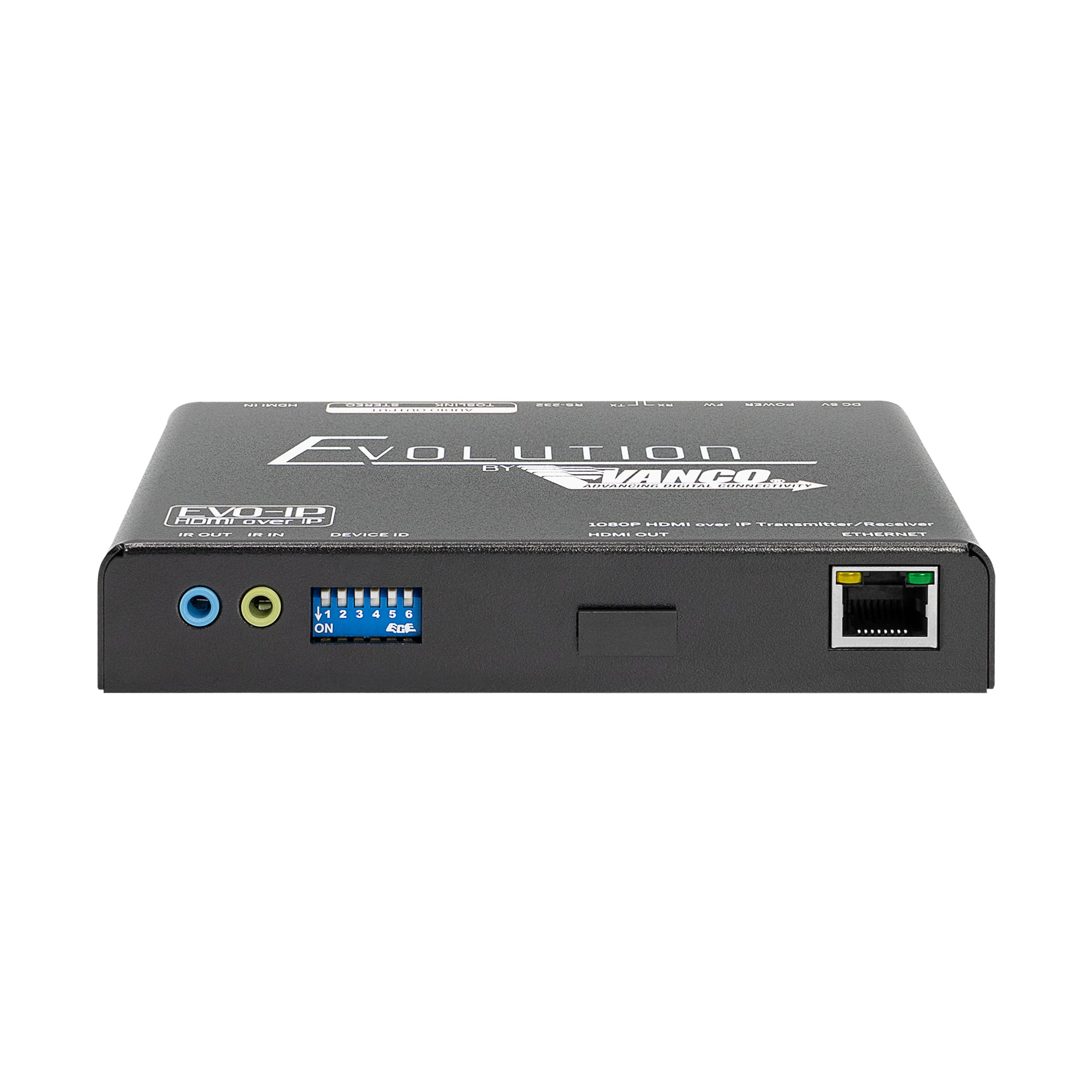

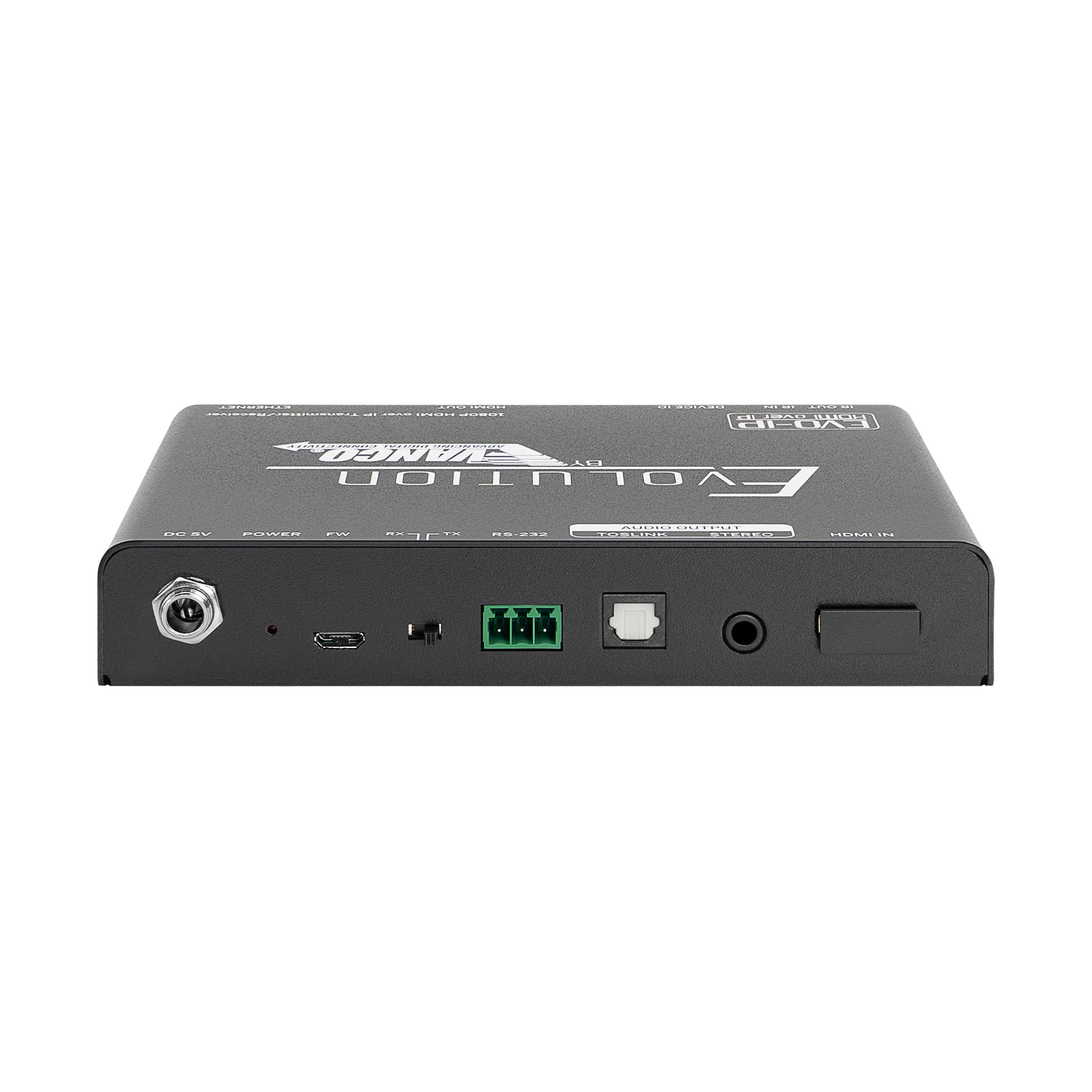

EVO-IP Transmitter / Receiver

SKU: EVOIPLITE Categories: ,
View EVO-IP API Documentation

Description

  • HDMI over IP unit that can be set to transmit or receive
  • Supports 1080p@60Hz
  • System can support over multiple transceivers
  • HDCP 1.4 Compliant
  • POE or can be powered using provided power supply
  • Manual dip switch configurable for a truly IP-Less installation
  • Easy GUI automatically detects new devices in the system
  • iOS and Android app available
  • Customizable labels and names of sources and displays
  • Setup through the GUI can be done without a computer even being on site
  • Analog and Digital audio breakouts
  • Dynamic EDID
  • IR and RS232 Pass-through
  • Supports Protocol: IP, TCP, UDP, RTP, IPv4, DHCP, HTTP, IGMP, ICMP, MULTICAST, UNICAST
  • Bitstream rate of up to 15Mbps
  • Latency: 720P (190-240ms), 1080P (380-430ms)
  • Connects to the cloud to schedule events or to troubleshoot a situation remotely (opportunity for recurring revenue)
  • Able to be controlled with Alexa for voice controlled switching
  • TAA Compliant
  • Dimensions: 5.2” x 3.8” x 0.8”

Tech Support:

    • A managed switch is required. Click on the downloads tab for a list of recommended switches

Package Contents:

EVOIPLITE HDMI over IP Transmitter/Receiver
(1) IR Transmitter
(1) IR Receiver
5V 2A Power Supply
Set of mounting ears/screws
Product Manual



View EVO-IP API Documentation
View EVO-IP API Documentation

Additional information

Brands

Evolution

View EVO-IP API Documentation
View EVO-IP API Documentation

EVOIPLITE Product Manual

Download

EVOIPLITE Sales Sheet

Download

EVO-IP Comparison Guide

Download

EVO-IP Alexa Control

Download

EVO-IP Firmware

Download

EVO-IP Crestron Driver v1.0.1

Download

EVO-IP Switch Requirements

Download

EVO-IP Cisco Configuration Instructions

Download

EVO-IP Luxul Configuration Instructions

Download

EVO-IP TrendNet Configuration Instructions

Download

EVO-IP Ubiquiti Configuration Instructions

Download

EVO-IP Control 4 Driver

Download

EVO-IP RTI Driver

Download

EVO-IP URC Driver

Download

EVO-IP NETGEAR 4250 SERIES CONFIGURATION INSTRUCTIONS

Download

Guide to ASCII Command Structure and Communication

Download

EVO-IP NETGEAR CONFIGURATION INSTRUCTIONS

Download

TP Link EVO-IP Installation Guide

Download

EVO-IP Sales Sheet

Download
View EVO-IP API Documentation
View EVO-IP API Documentation
View EVO-IP API Documentation
Find a Distributor
EVOIPTX1/RX1EVOIPLITE Transmitter/Receiver
Resolution Supported4K/60Hz, 4:4:4, and HDR1080p/60Hz
Matrix ModeXX (EVOIPLITE source cannot be sent to an EVOIPRX1 and vice versa
Video Wall ModeX
OSD ModeX
Schedule ModeXX (cannot schedule switching)
Event ModeXX
Access ModeXX
Quick SetupXX
Digital and Analog Audio BreakoutsXX (only in transmitter mode)
Bi-directional IRXX
RS-232 pass-throughXX
HDMI LoopoutX
IP-less ModeXX
PoEXX
App available on iOS and AndroidXX
GUI via IP addressXX
Single unit that can either be TX or RXX
