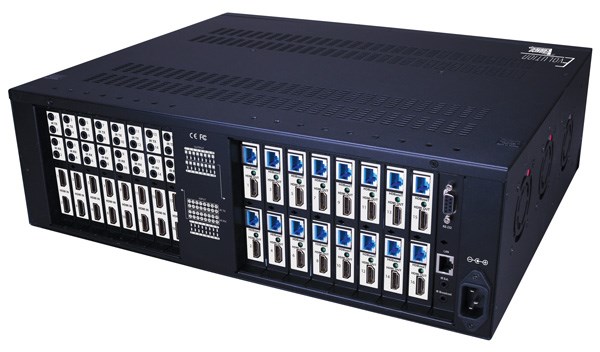

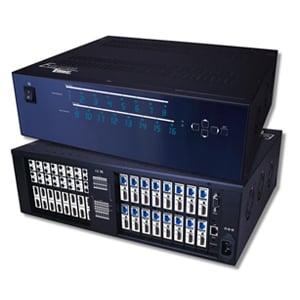

Evolution HDBaseT™ 16×16 Matrix Selector Switch (230ft/70m)

SKU: EVMX4016 Categories: ,

LEGACY PRODUCT - This product is no longer available from Vanco.

Description

Replaced by EVMX4K16
  • Allows up to 16 HDMI sources to be distributed simultaneously to up to 16 displays
  • 16 additional HDMI outputs for flexibility or mirroring capability; allows for connection of up to 32 displays or the ability to create a larger distribution system by cascading or daisy chaining
  • HDBaseT Technology that supports HDMI Deep Color- 3D- and 4K x 2K resolution
  • Supports Power Over Ethernet (PoE) which integrates power into the Cat5e/Cat6 cable- requiring no power supply for receiving unit
  • Transmission Range: Extends 1080p resolutions up to 230ft (70m)
  • Features EDID management which supports default HDMI EDID and has the ability to learn the EDID of display equipment for any “handshake” issues via RS-232 connectivity
  • Receivers (sold separately) feature LED indicators for clear power and video signal selection
  • HDCP Compliant
  • Supports HDMI Deep Color and 3D
  • Supports 7.1 channel digital audio
  • Wideband IR pass-through (20kHz to 60 kHz)

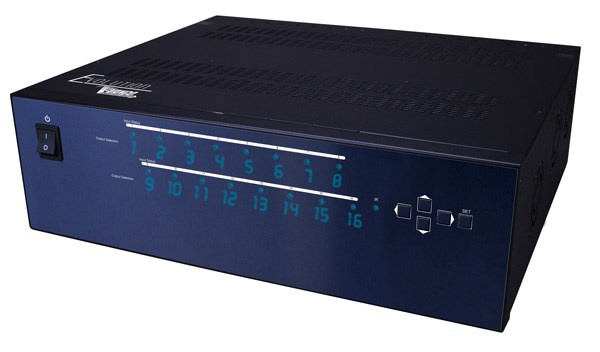

  • Choose from 5 switching modes – front panel buttons- Local remote control- RS-232 control- IR call-back (dedicated IR extension cable connected to IR extension port- and IR emitters on sources required)- and IP control utilizing smartphone or tablet via LAN
  • 17.3″ (440mm)W x 13.7″ (349mm)H x 5.21″(31.4mm)D

Compatible Receiver: EVRX3000



Package Contents:

(1) EVMX4016 HDBaseT 16×16 Matrix Selector Switch
(17) IR Receiver (RX)
(16) IR Blaster (TX)
(1) UL AC C13 power cord
(1) Rack-mounting ear set
(1) Handle Bar set
(1) Installation software CD
(1) IR remote control
(1) User Manual

Additional information

Inputs/Outputs

16×16
