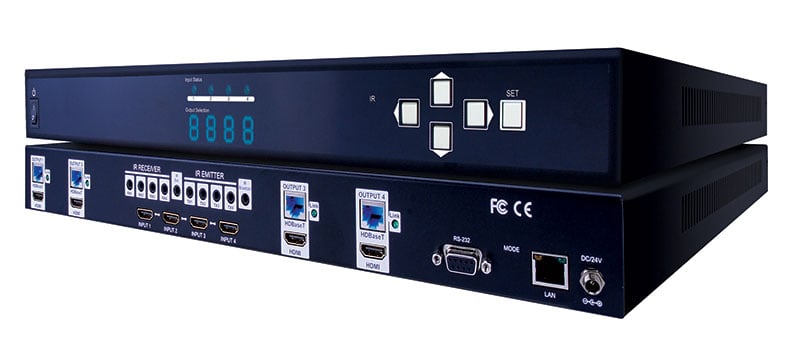

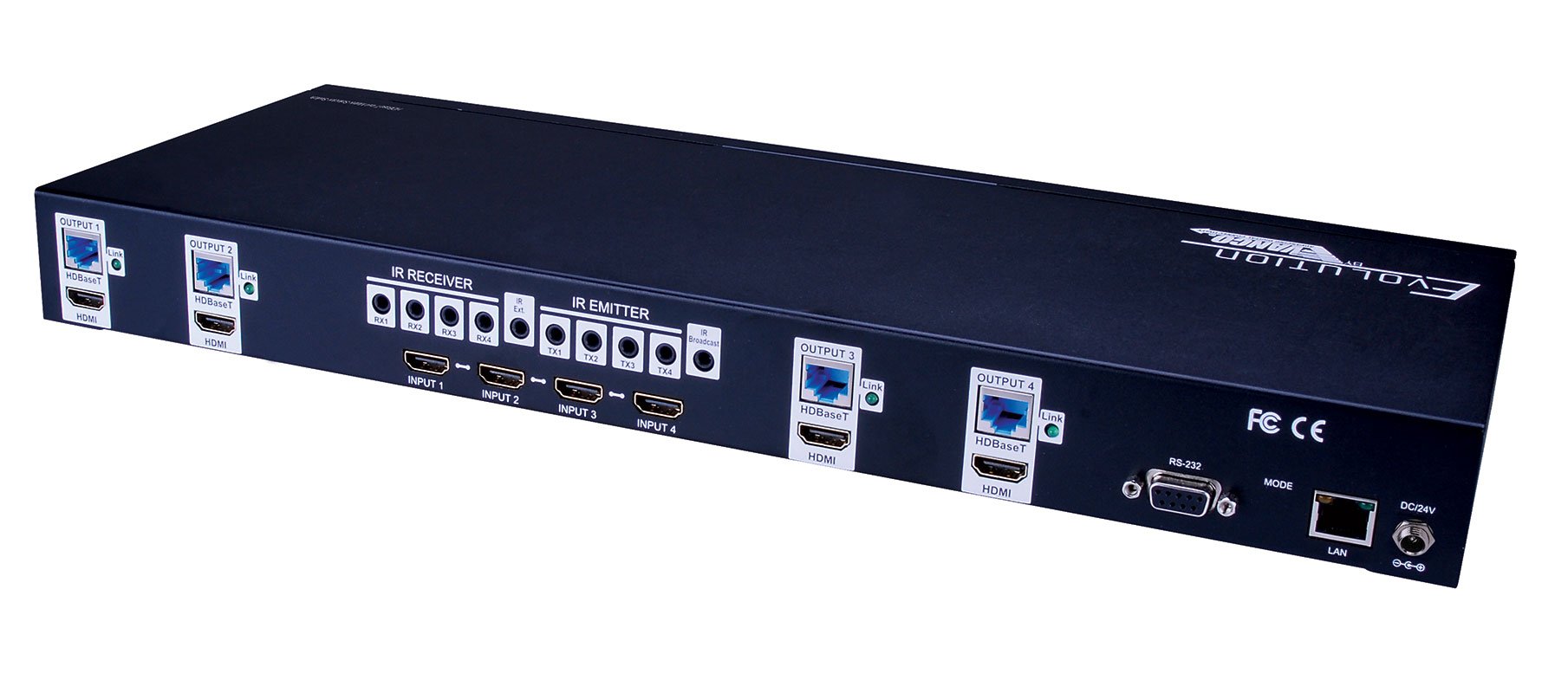

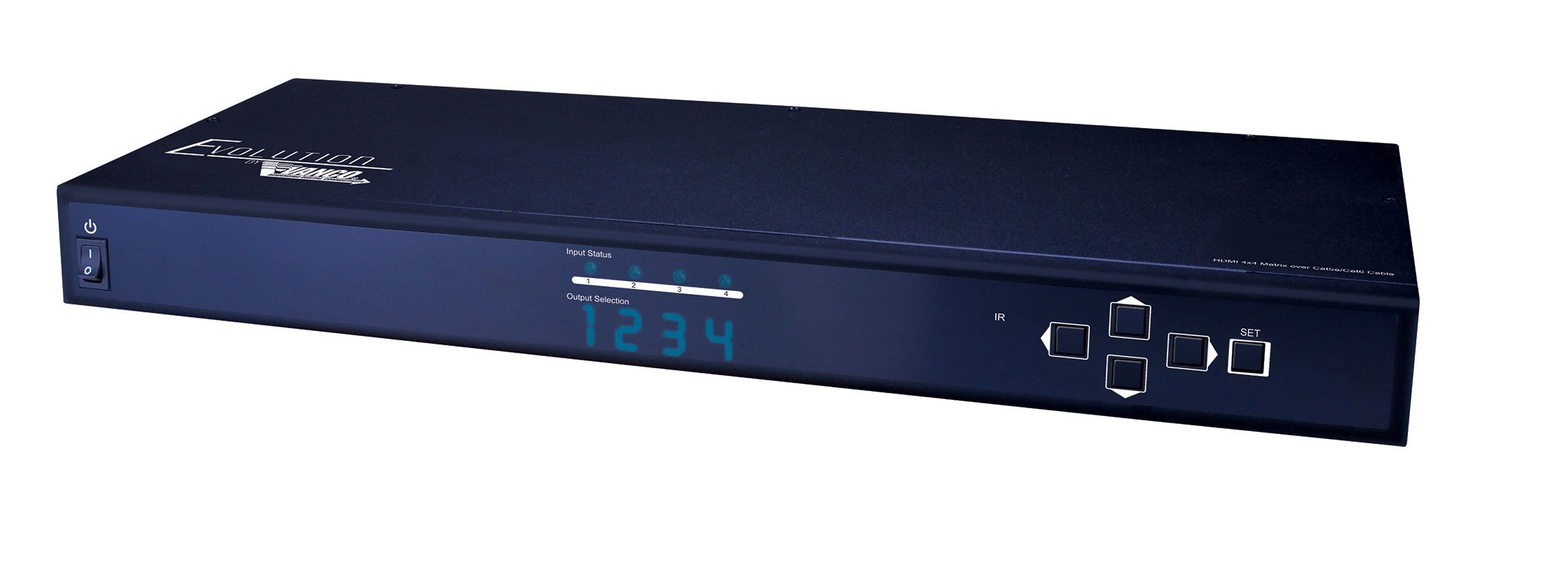

Evolution HDBaseT™ 4×4 Matrix Selector Switch (230ft/70m)

SKU: EVMX4004 Categories: ,

Description

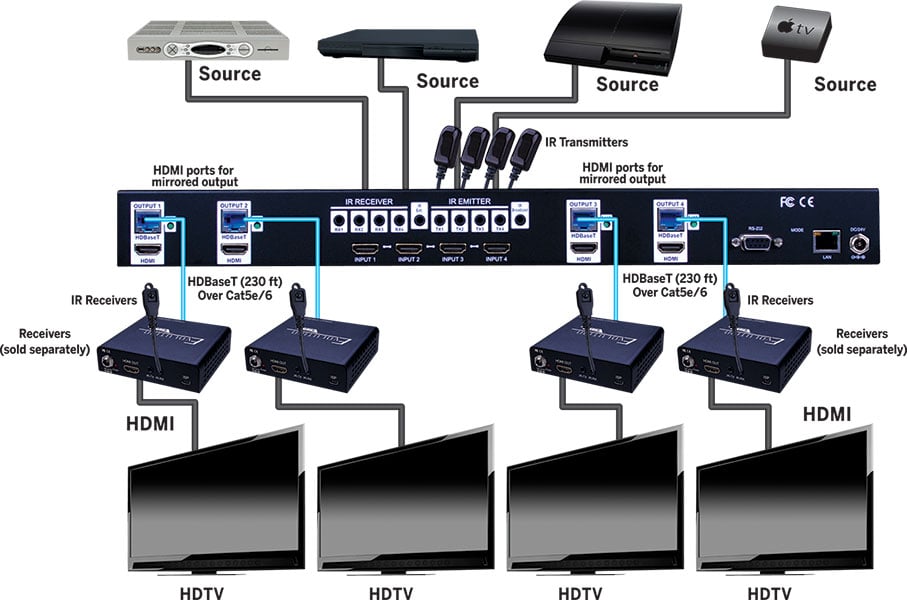

  • Allows up to 4 HDMI sources to be distributed simultaneously to up to 4 displays
  • 4 additional HDMI outputs for flexibility or mirroring capability; allows for connection of up to 8 displays or the ability to create a larger distribution system by cascading or daisy chaining
  • HDBaseT Technology that supports HDMI Deep Color- 3D- and up to 1080p High Definition resolution
  • Supports Power Over Ethernet (PoE) which integrates power into the Cat5e/Cat6 cable- requiring no power supply for Receiving unit
  • Transmission Range: Extends 1080p resolutions up to 230ft (70m)
  • Features EDID management which supports default HDMI EDID and has the ability to learn the EDID of display equipment for any “handshake” issues via RS-232 connectivity
  • Receivers (sold separately) feature LED indicators for clear power and video signal selection
  • HDCP Compliant
  • Supports HDMI Deep Color and 3D
  • Supports 7.1 channel digital audio
  • Wideband IR pass-through (20kHz to 60 kHz)
  • Choose from 5 switching modes – front panel buttons- Local remote control- RS-232 control- IR call-back (dedicated IR extension cable connected to IR extension port- and IR emitters on sources required)- and IP control utilizing smartphone or tablet via LAN
  • 24V 3.75A DC- UL Listed Power supply for 4×4 matrix
  • 4×4 Matrix Dimensions: 17.32”(440mm) W x 1.69”(43mm) H x 7.96”(202.3mm) D

Compatible Receiver: EVRX3000

Package Contents:

(1) EVMX4004 HDBaseT 4×4 Matrix Selector Switch
(5) IR Receiver (RX)
(4) IR Blaster (TX)
(1) DC 24V3.75A power supply
(1) Rack-mounting ear set
(1) Installation software CD

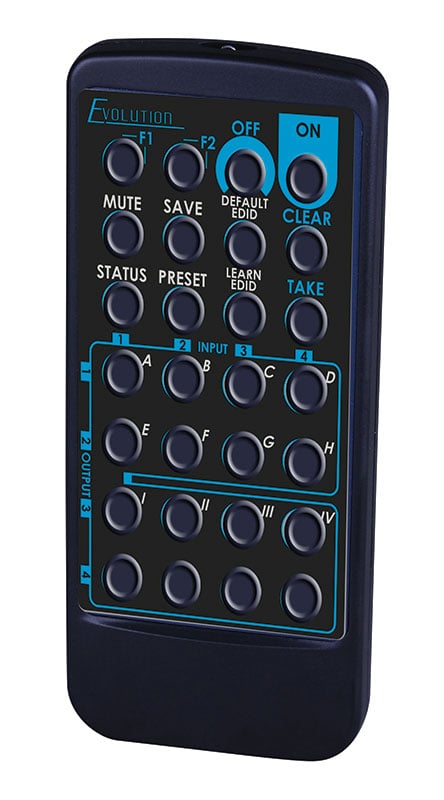

(1) IR remote control
(1) User Manual



Additional information

Inputs/Outputs

4×4

Resolution

Full HD 1080p

Technology

HDBaseT

Transmission Distance

165 – 230 ft

EVMX4004 Product Manual

Download

This Attachment Never Expires.

AMX Driver

Download

This Attachment Never Expires.

Control4 Driver

Download

This Attachment Never Expires.

Crestron Driver

Download

This Attachment Never Expires.

RTI Driver

Download

This Attachment Never Expires.

EVMX4004 Discreet IR Hex Codes

Download

This Attachment Never Expires.

EVMX4004 Firmware and Software

Download

This Attachment Never Expires.
