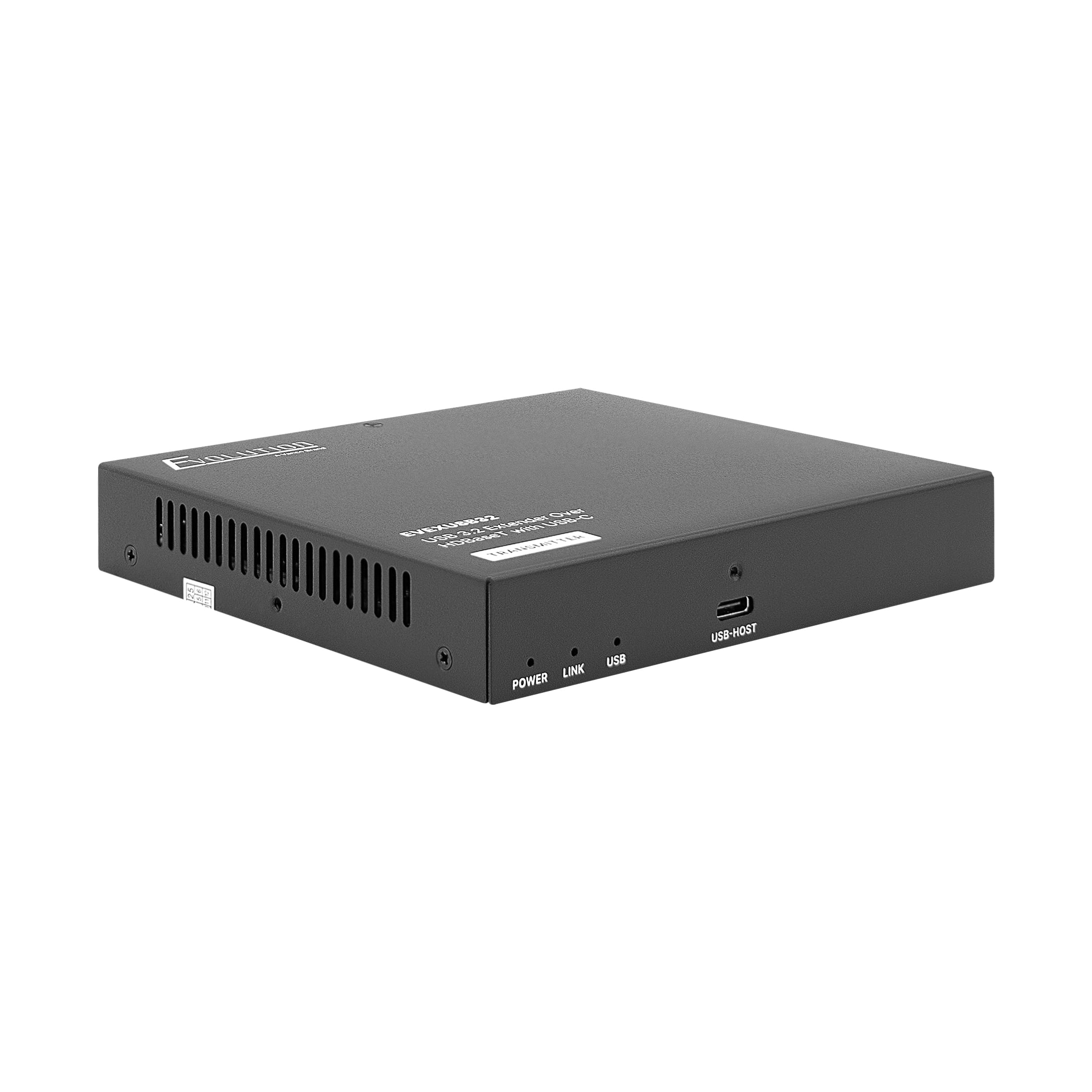

  • Front angle of the transmitter for the Evolution by Vanco EVEXUSB32 USB 3.2 Extender Over HDBaseT with USB-C

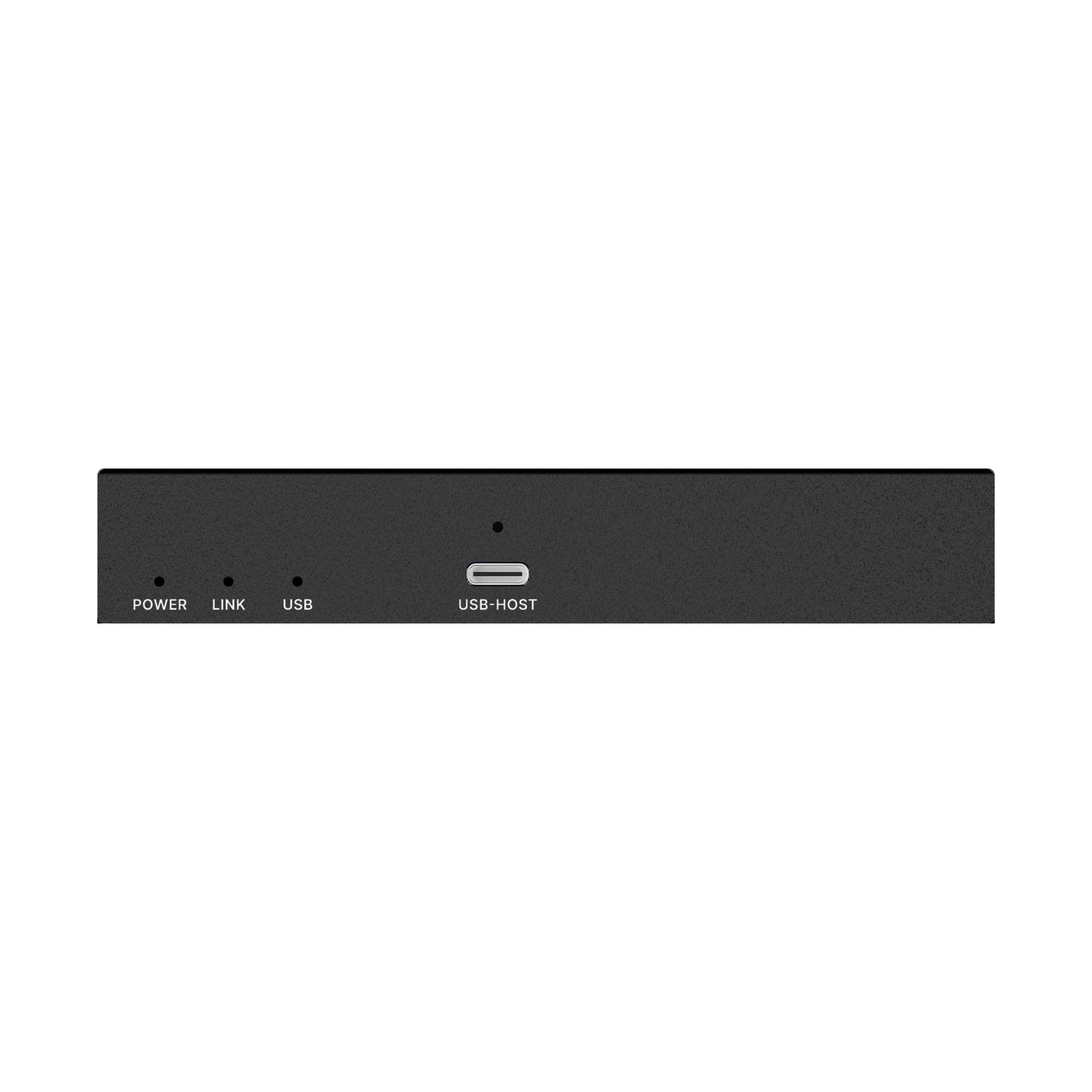

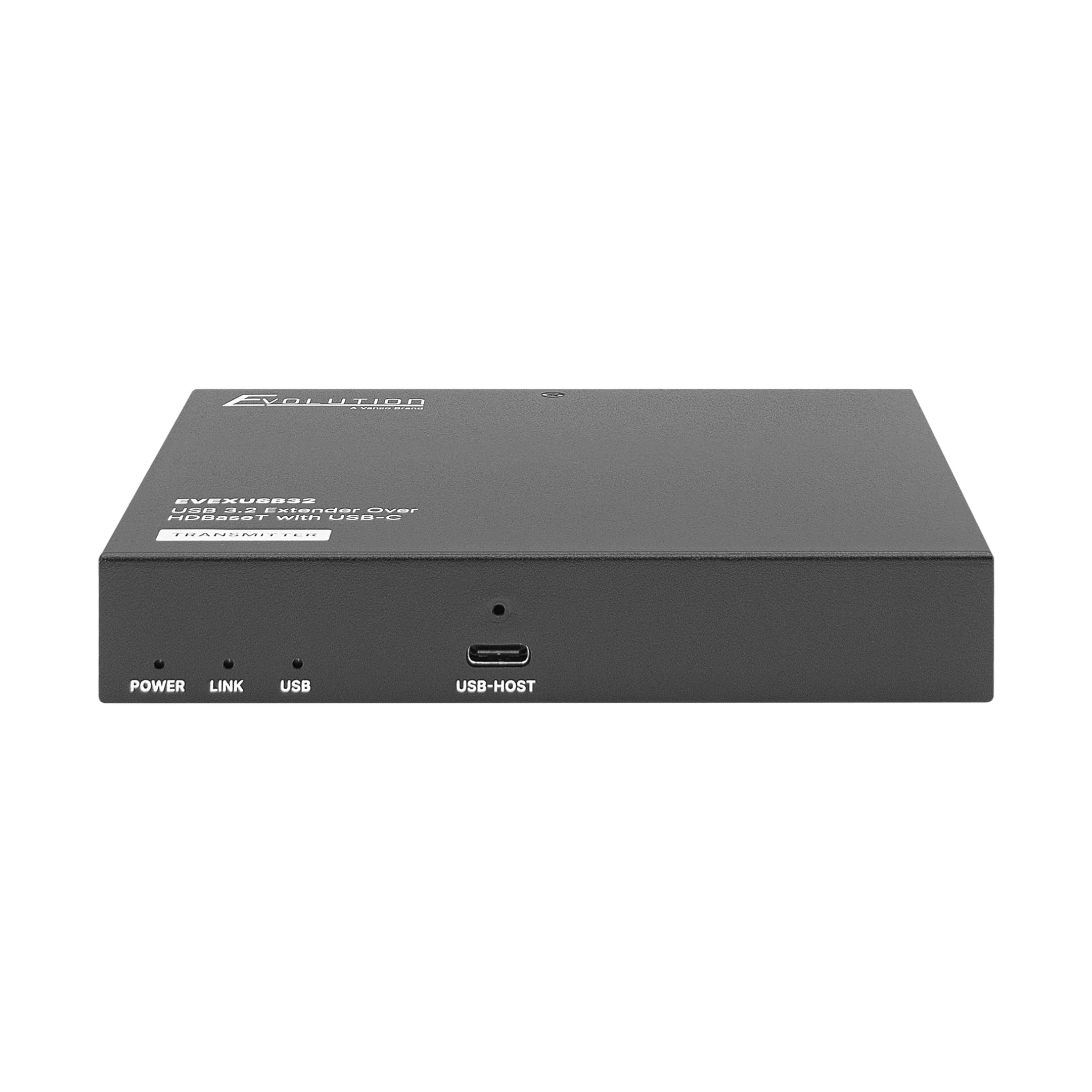

  • Front of the transmitter for the Evolution by Vanco EVEXUSB32 USB 3.2 Extender Over HDBaseT with USB-C

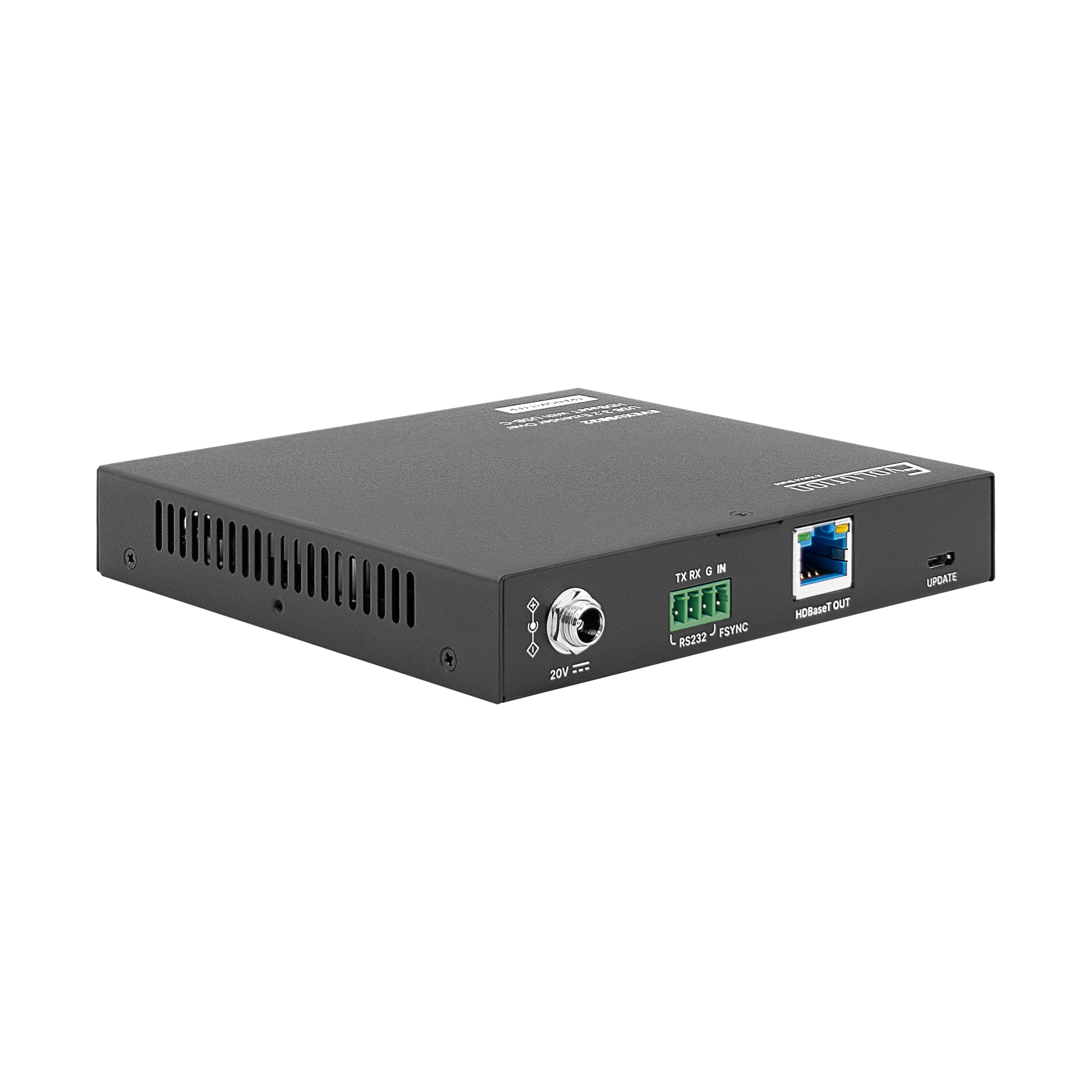

  • Back angle of the transmitter for the Evolution by Vanco EVEXUSB32 USB 3.2 Extender Over HDBaseT with USB-C

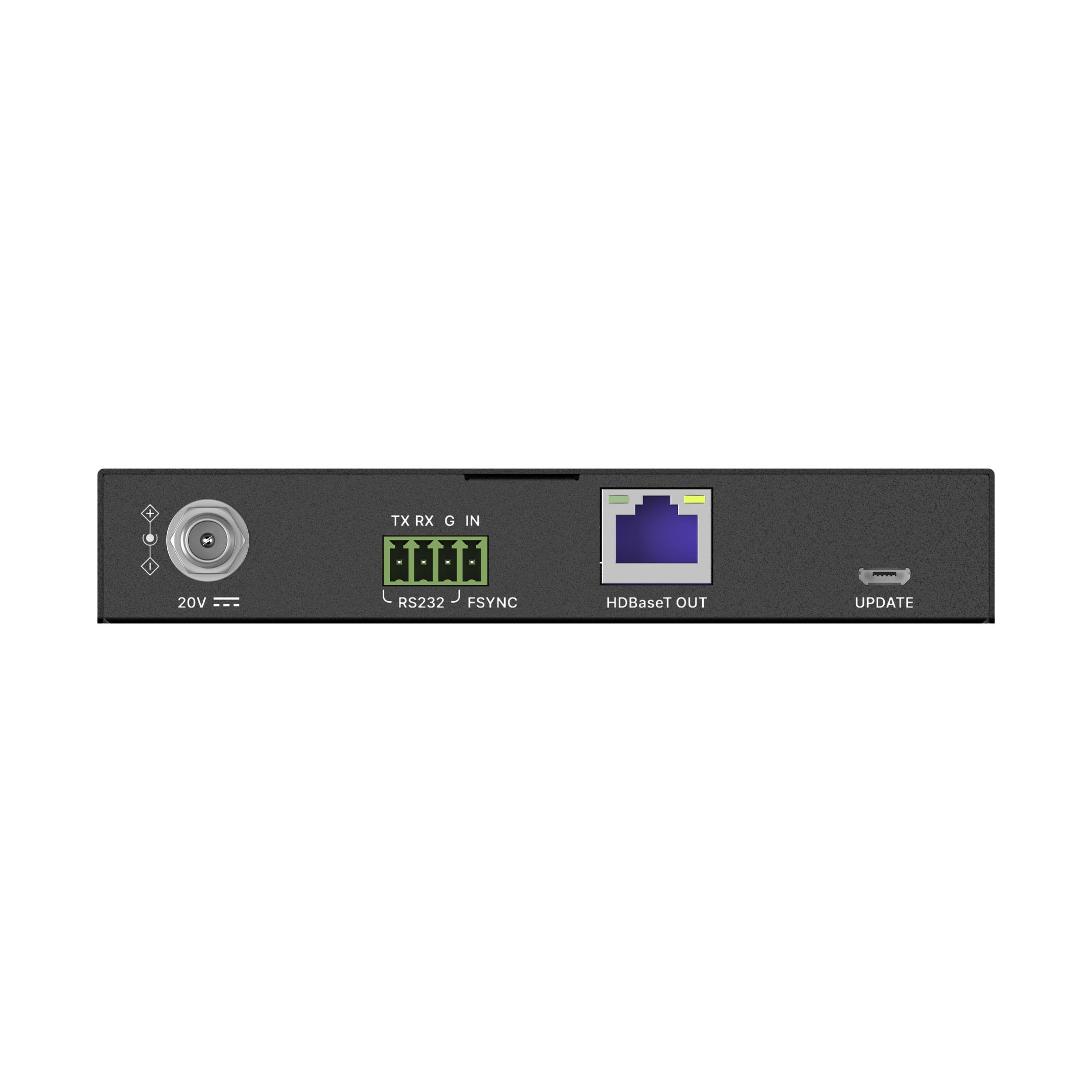

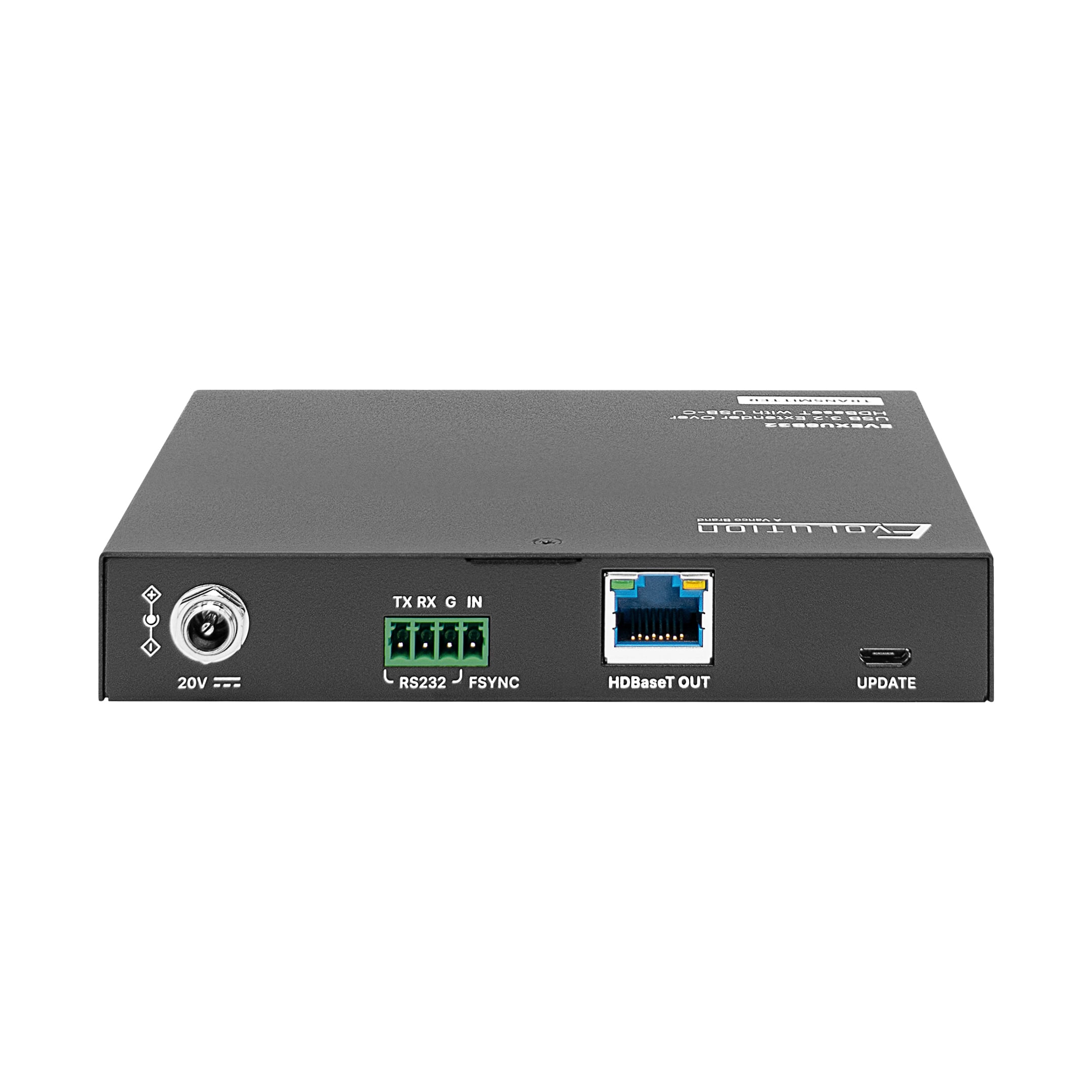

  • Back of the transmitter for the Evolution by Vanco EVEXUSB32 USB 3.2 Extender Over HDBaseT with USB-C

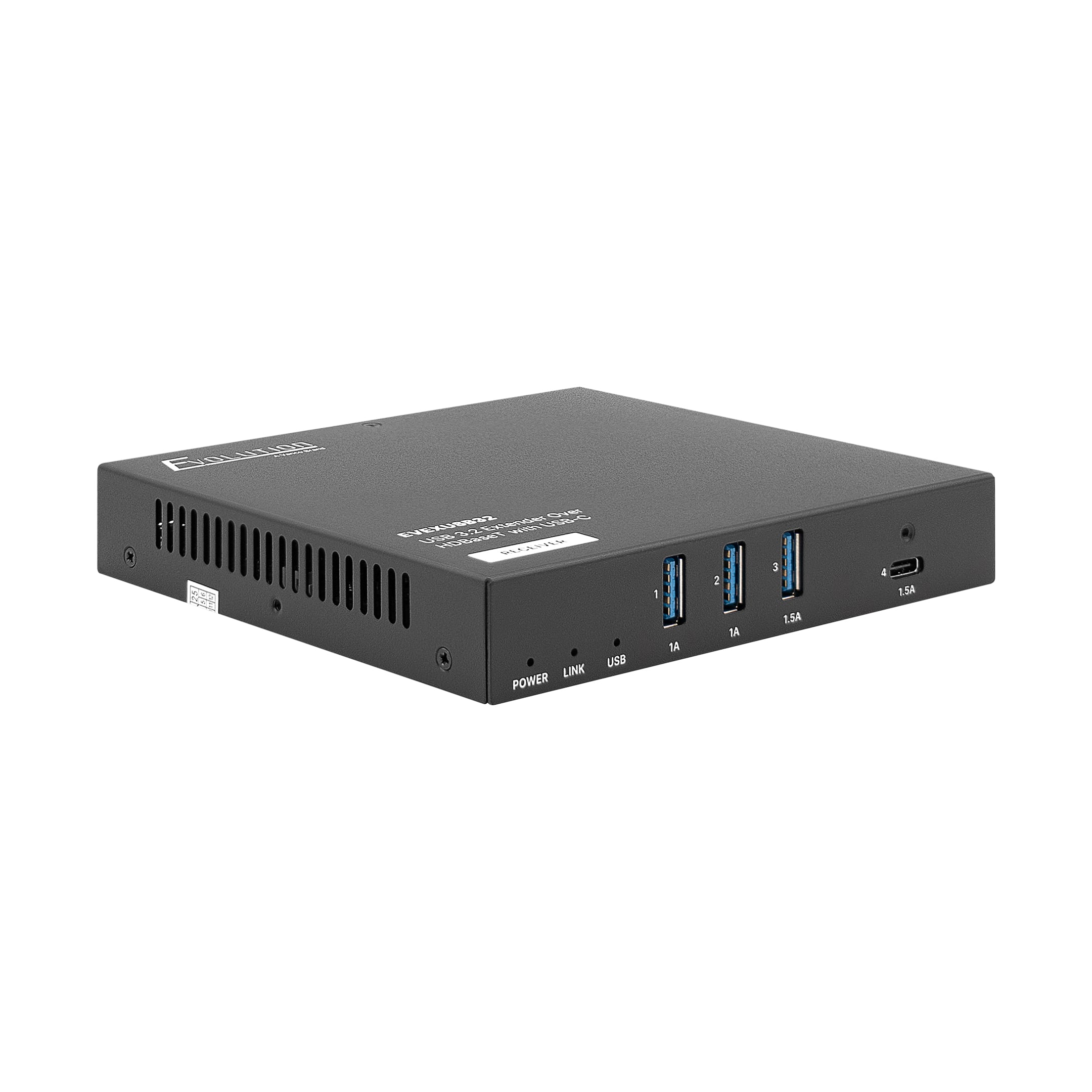

  • Front angle of the receiver for the Evolution by Vanco EVEXUSB32 USB 3.2 Extender Over HDBaseT with USB-C

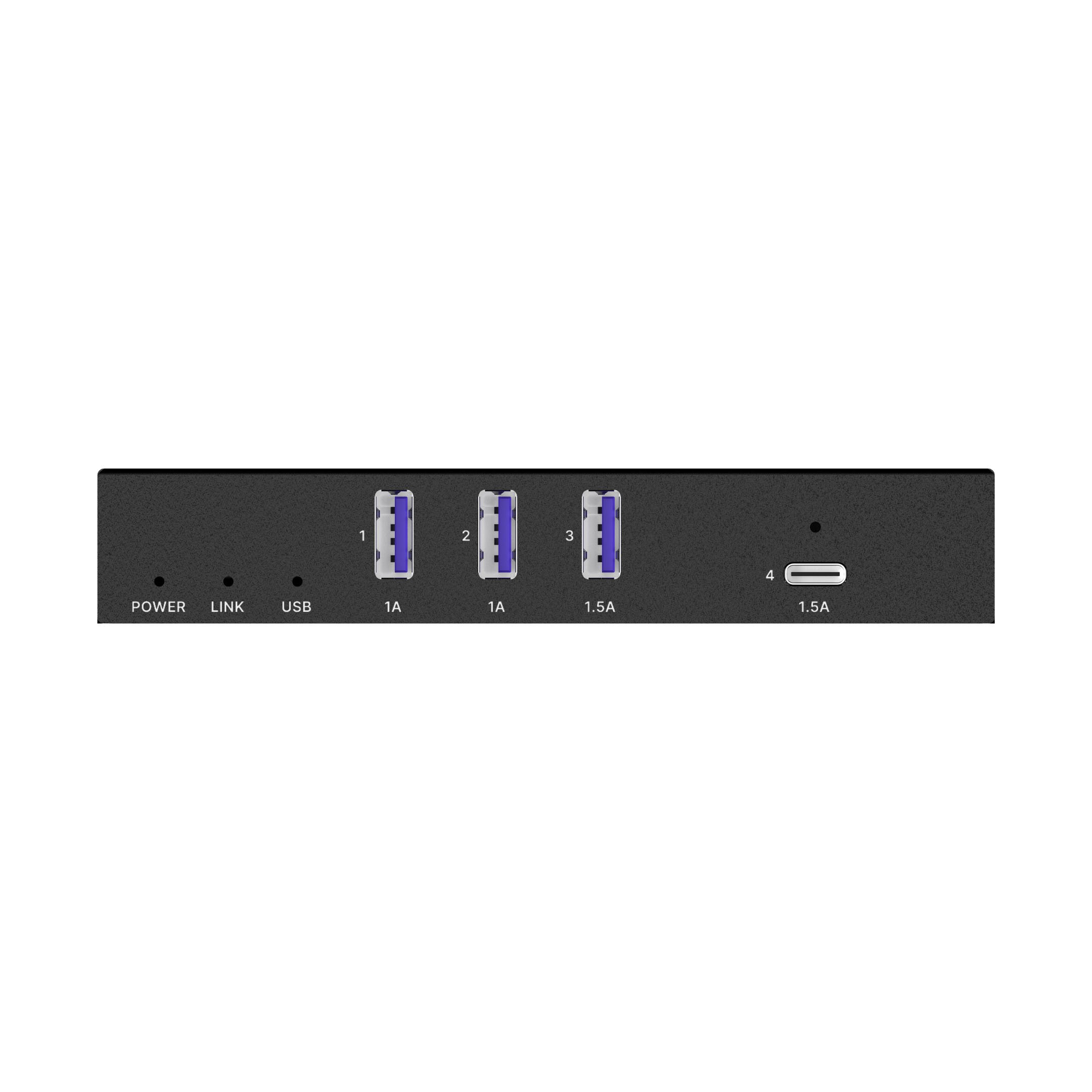

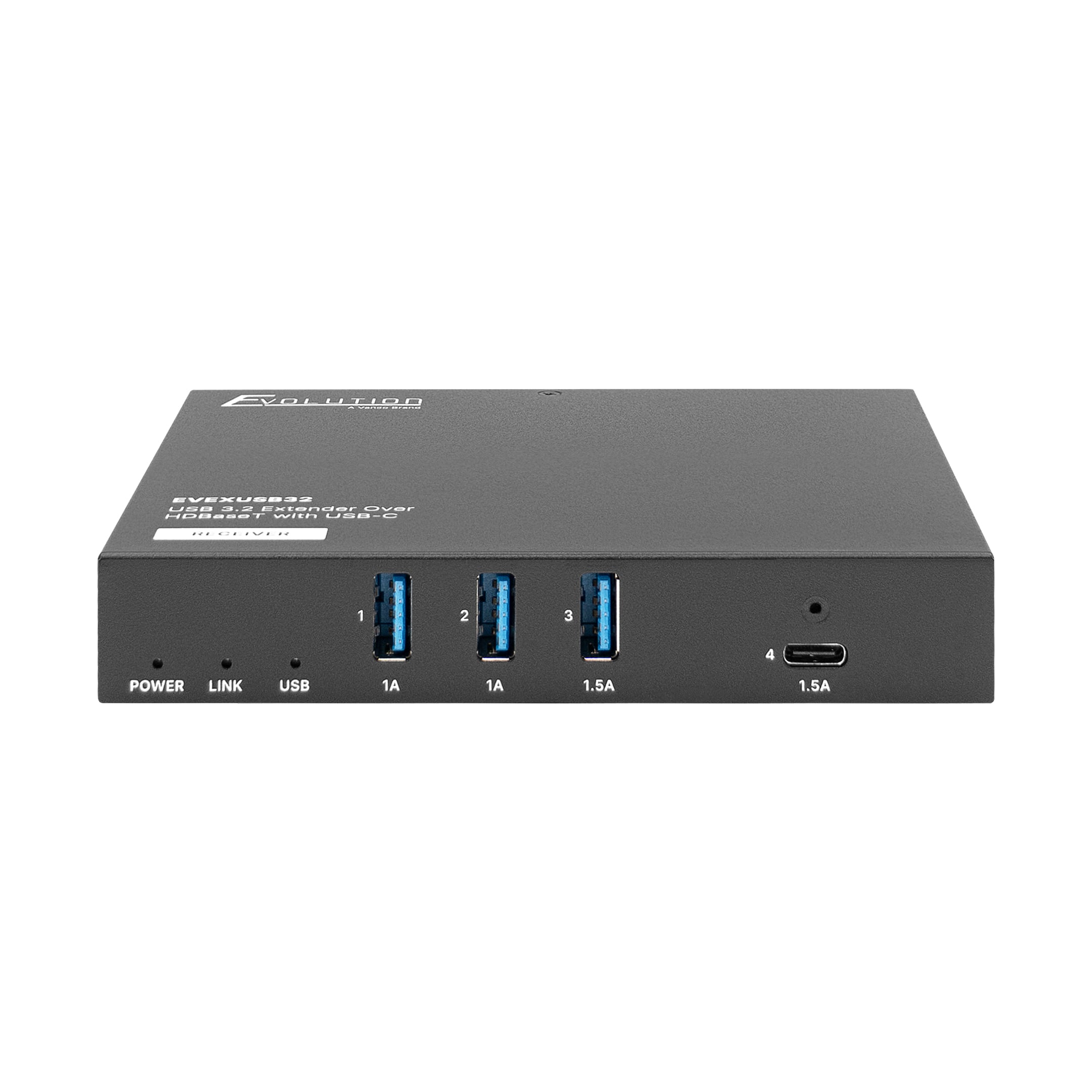

  • Front of the receiver for the Evolution by Vanco EVEXUSB32 USB 3.2 Extender Over HDBaseT with USB-C
  • Back angle of the receiver for the Evolution by Vanco EVEXUSB32 USB 3.2 Extender Over HDBaseT with USB-C

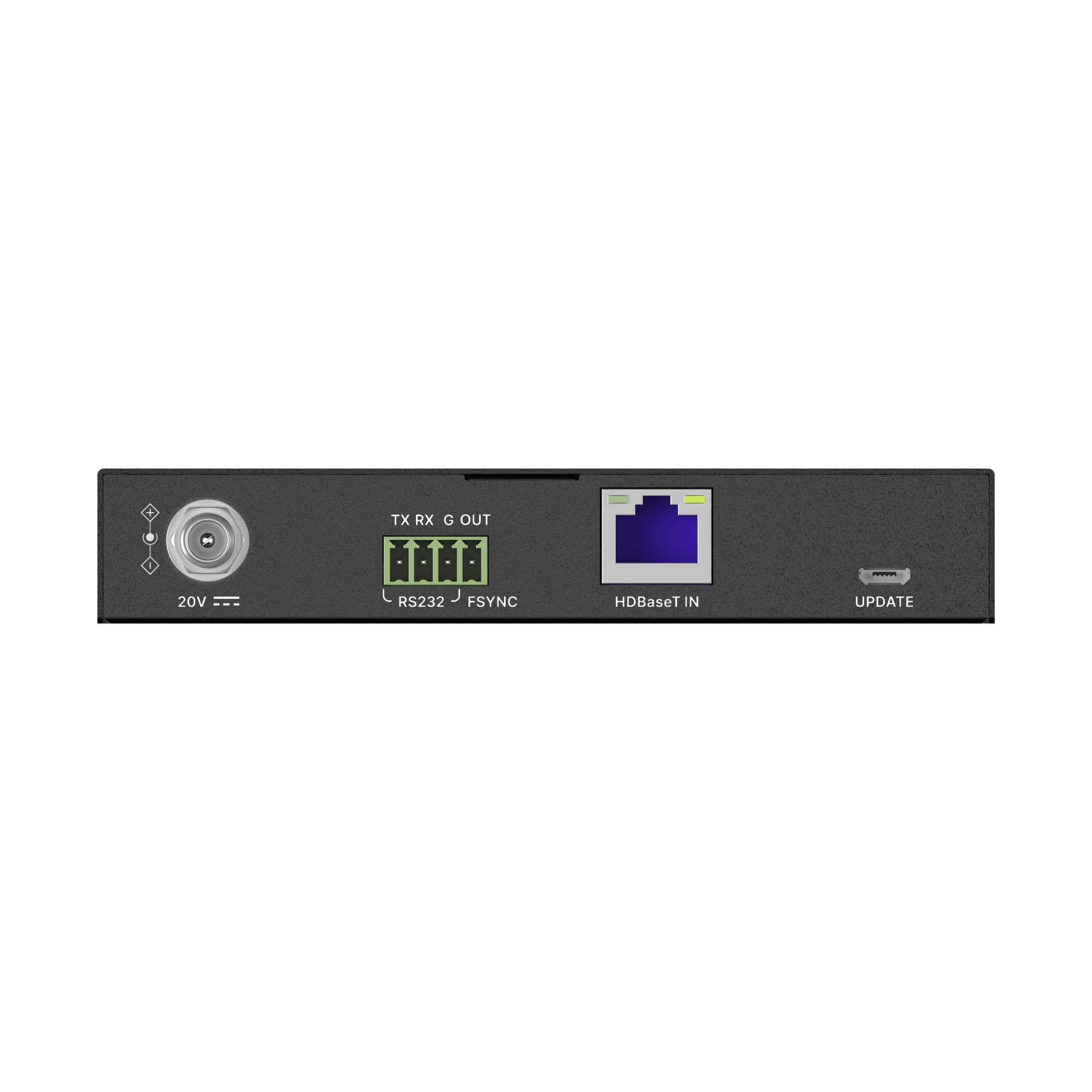

  • Back of the receiver for the Evolution by Vanco EVEXUSB32 USB 3.2 Extender Over HDBaseT with USB-C

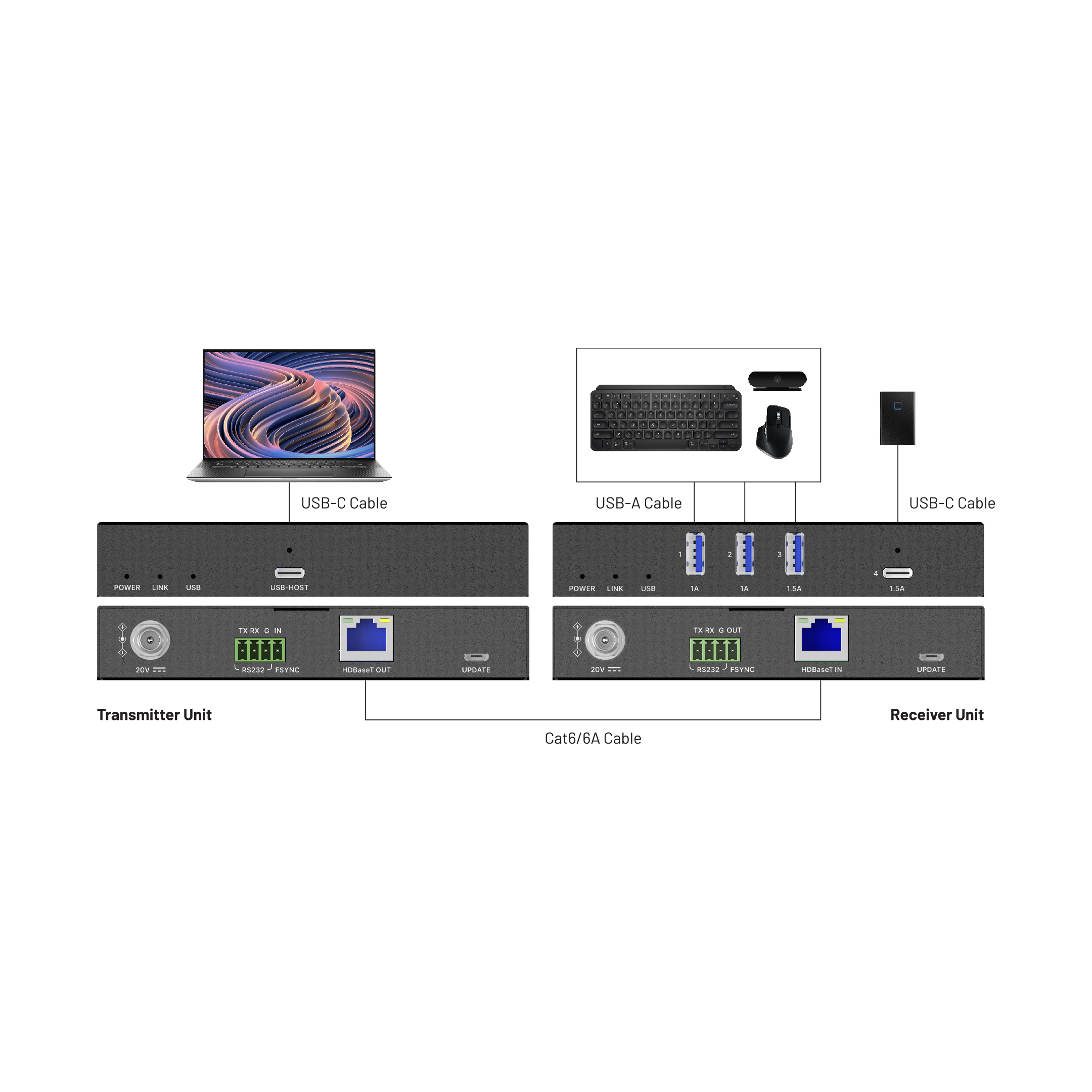

  • Connection diagram for the Evolution by Vanco EVEXUSB32 USB 3.2 Extender Over HDBaseT with USB-C

USB 3.2 Extender Over HDBaseT with USB-C

SKU: EVEXUSB32 Categories: , ,
Coming Soon

A complete USB 3.2 extender that transmits and controls data signals up to 328ft (100m) over a single Cat6A cable.

Description

View Our Extender Comparison Guide

The EVEXUSB32 supports up to four USB 3.2 devices, such as webcams, keyboards, mice, and storage devices using USB-A and USB-C connections. Power over HDBaseT (PoH) technology allows for a single power supply on either end while two 1.5A ports (USB-A & USB-C) and two 1A ports (USB-A) provide power to the connected devices. With its reliable transmission and versatile connectivity options, the EVEXUSB32 supports corporate, medical, security, educational, and other applications.

  • Supports USB 3.2 Gen 1×1 standards
  • 5Gbps data transfer up to 328ft (100m) over a single Cat6A cable
  • Backwards compatible with USB 3.0, 2.0, and 1.1 standards
  • One USB-C port on the transmitter (host) unit
  • One USB-C port and three USB-A ports on the receiver (device) unit
  • Features VBUS, FSYNC, and RS232 pass-through
  • Power over HDBaseT (PoH) technology allows for a single power supply on either end
  • Includes two 1.5A ports (USB-A & USB-C) and two 1A (USB-A) ports on the receiver (host) unit
  • Features the HDBaseT-USB3 standard for high performance and reliable connectivity with low power consumption

Additional information

Brands

Evolution

EVEXUSB32 Sales Sheet

Download

EVEXUSB32 Quick Start Guide

Download
