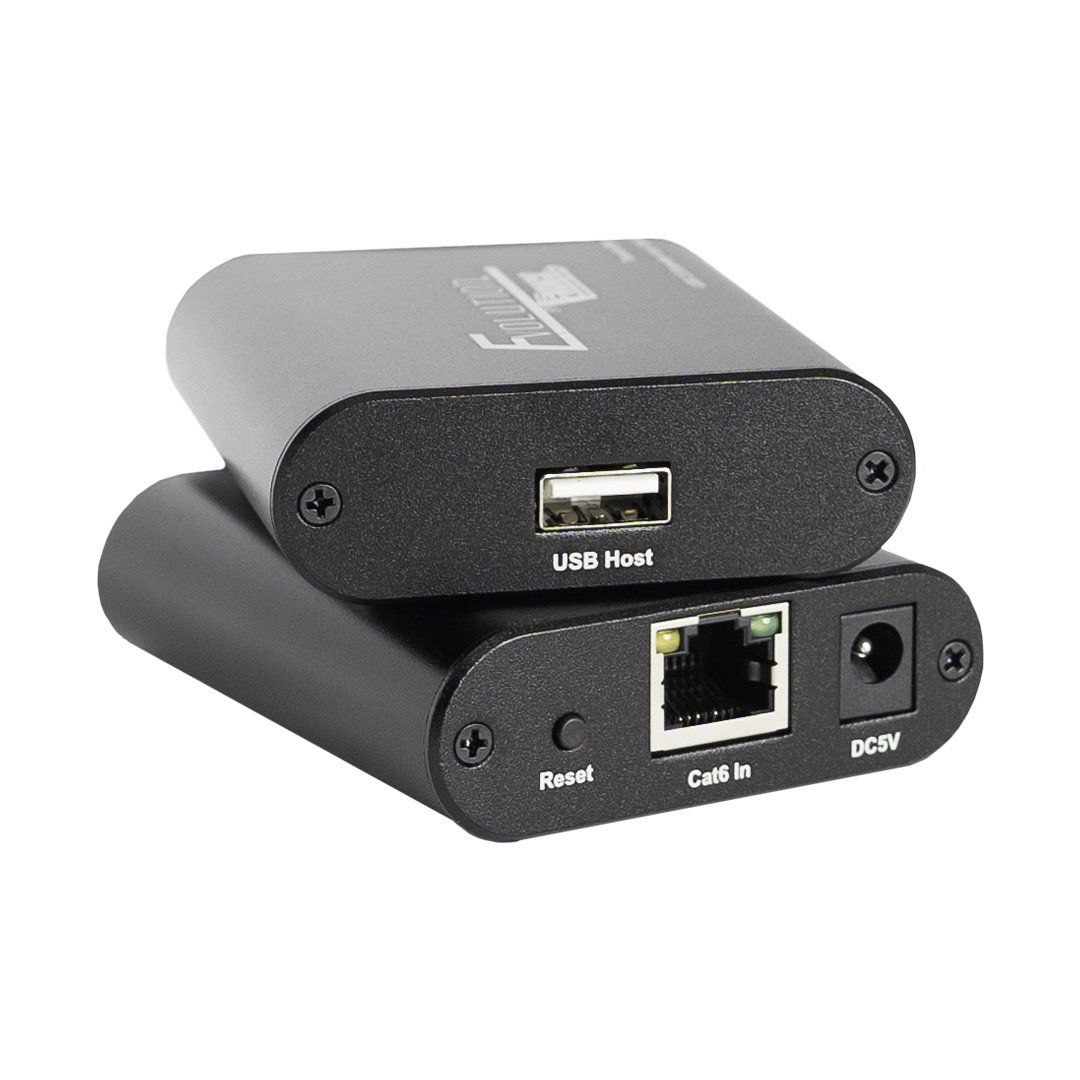

• 01 Evexusb2 Hero Stacked

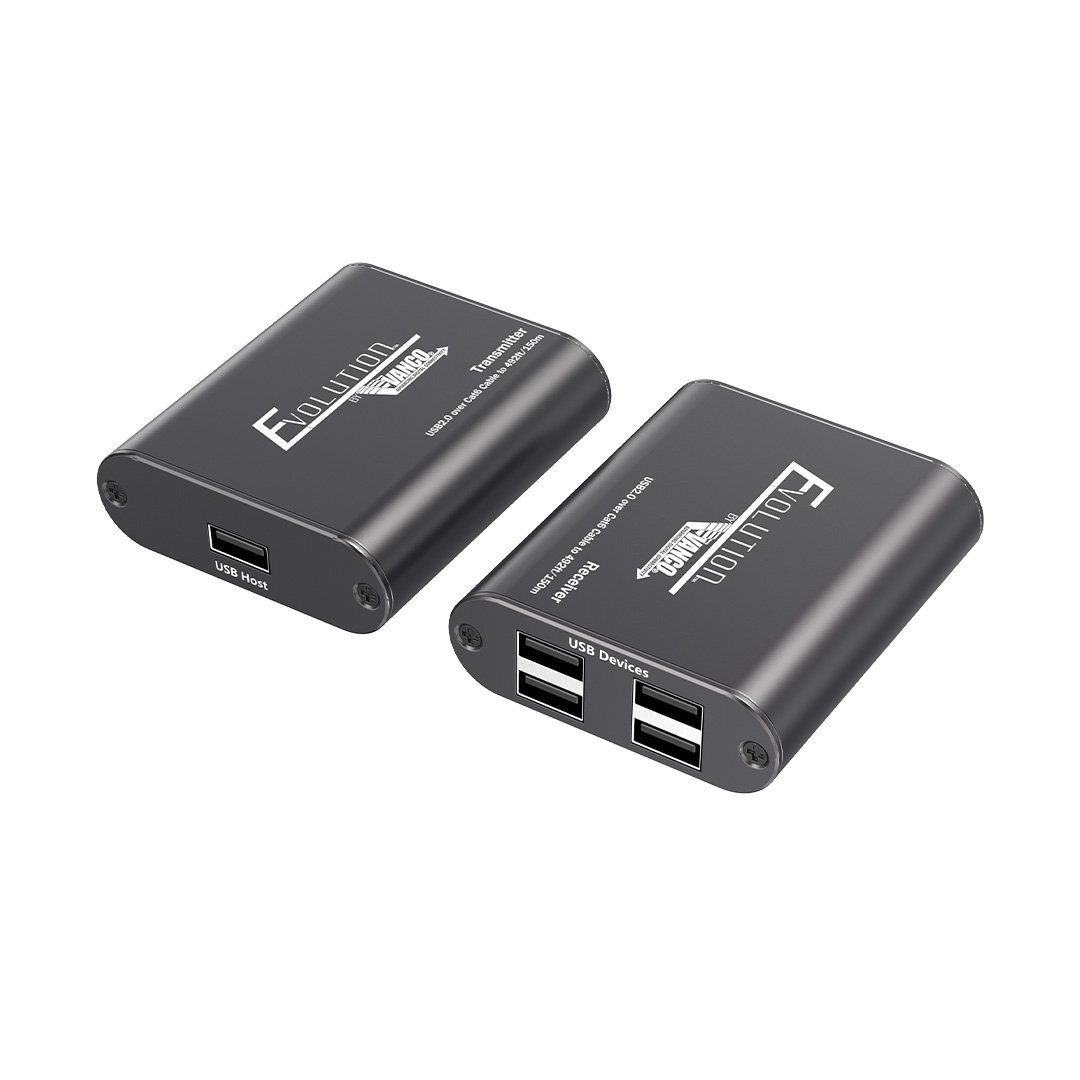

  • 02 Evexusb2 Tx Rx Angle

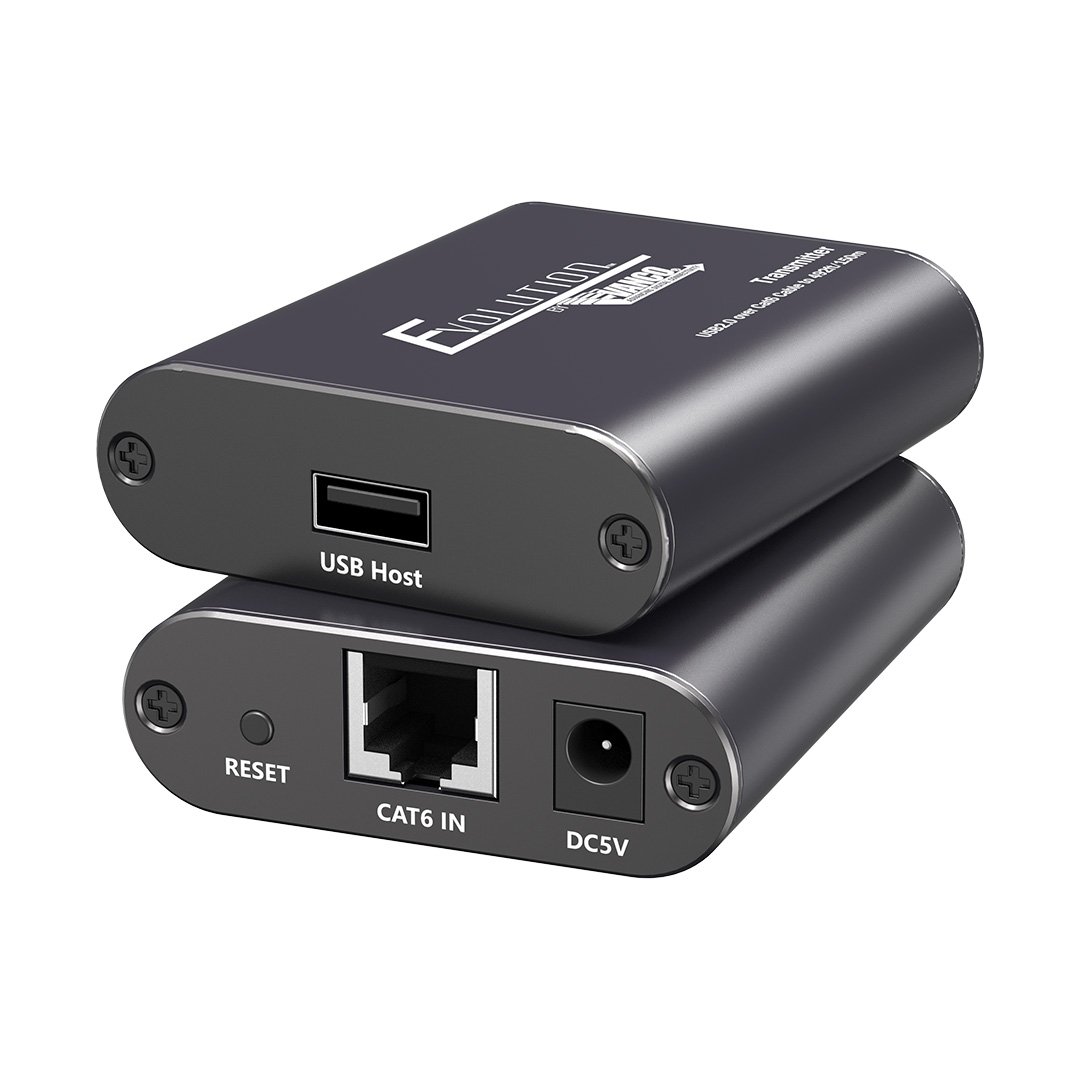

  • 03 Evexusb2 Hero Stacked

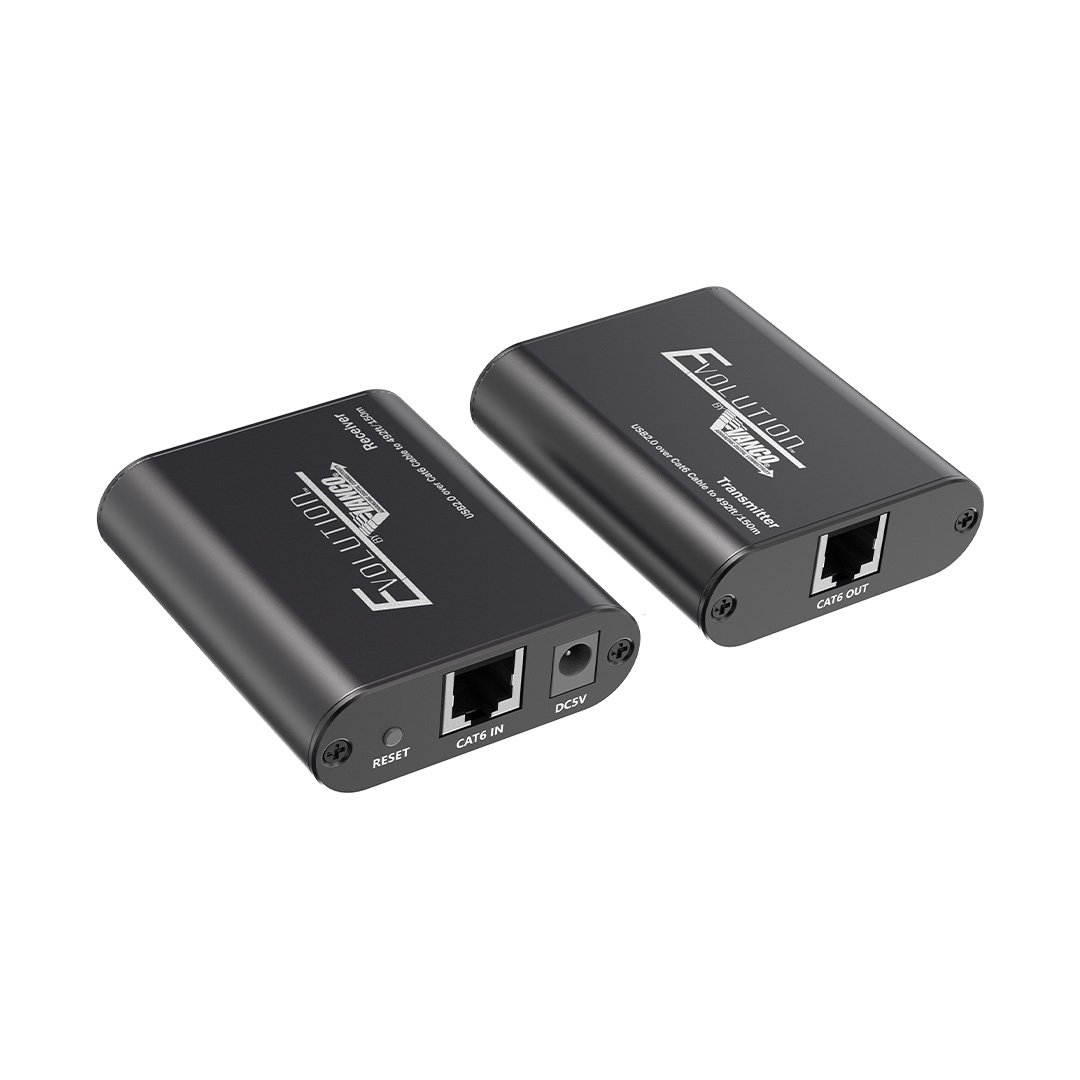

  • 04 Evexusb2 Tx Rx Angle

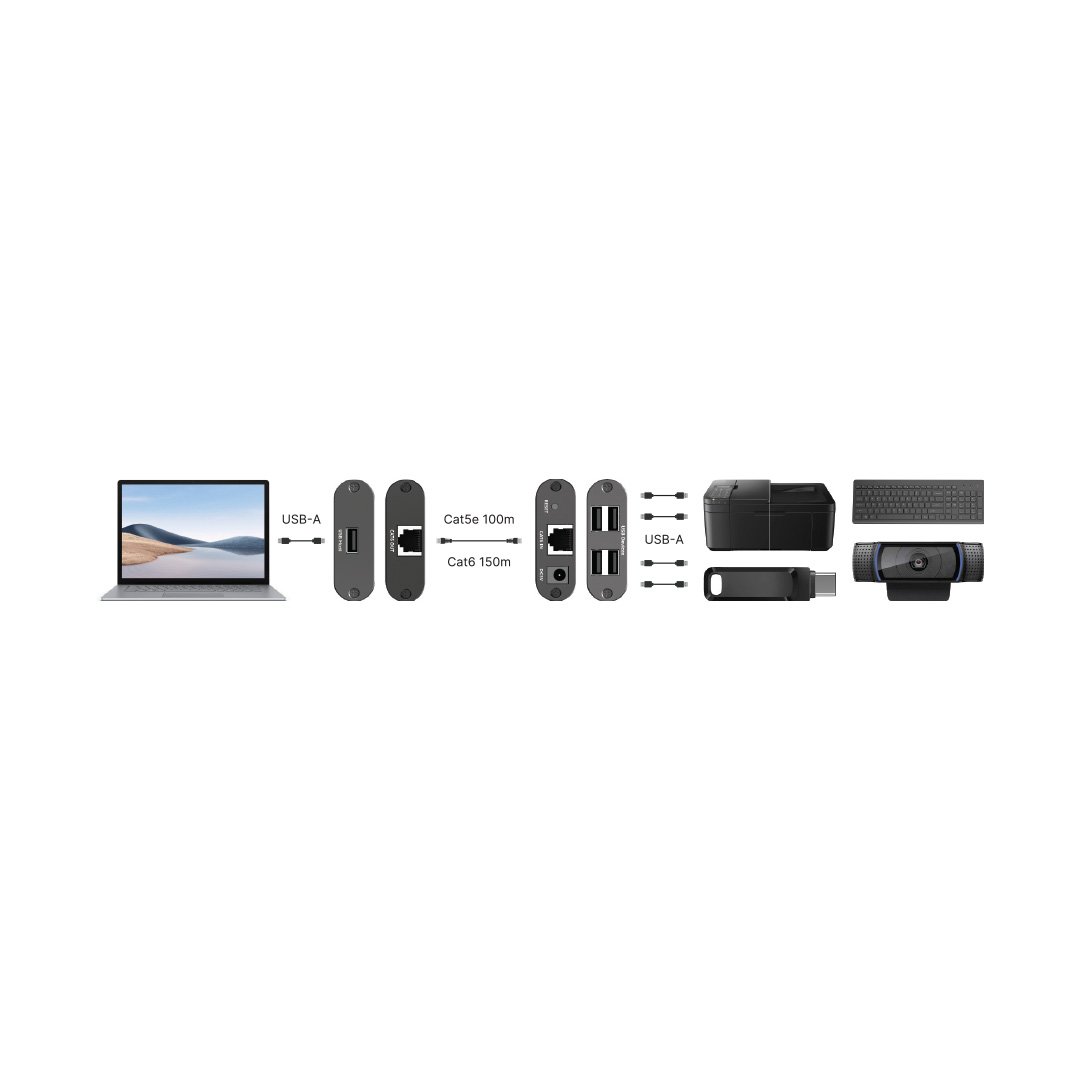

  • 05 Evexusb2 Connection Diagram

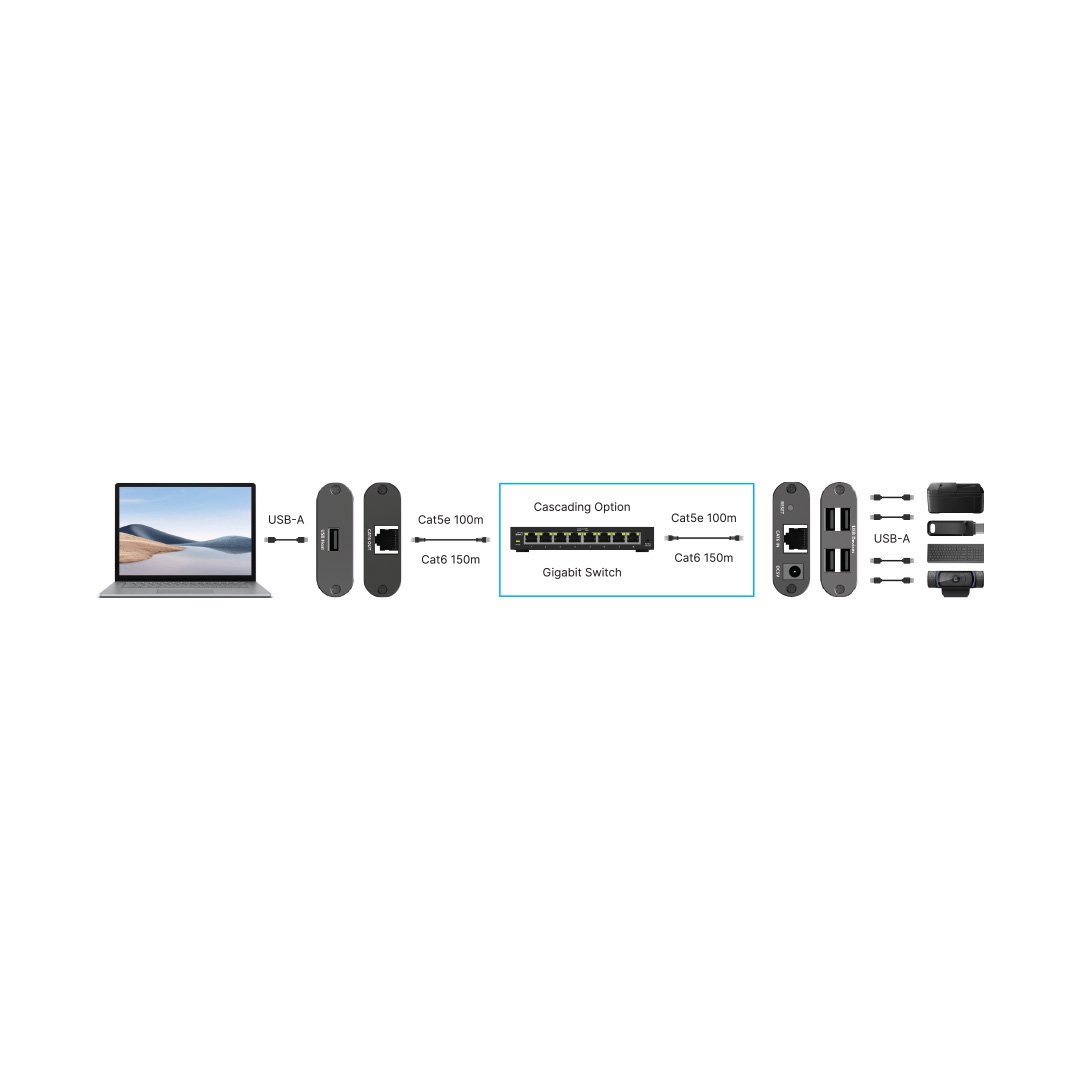

  • 06 Evexusb2 Connection Diagram

USB 2.0 Extender over Cat5e/6 Cable

SKU: EVEXUSB2 Categories: , , ,

Extends USB 2.0 devices (webcam, microphone, keyboard, mouse, etc.) up to 492ft/150m over a single category cable.

Description

View Our Extender Comparison Guide

The Evolution by Vanco EVEXUSB2 is a full function USB 2.0 extender over a single Cat5e/6 cable, information and control can be transmitted up to 330ft/100m over Cat5e and 492ft/150m over Cat6. Supports up to four USB 2.0 devices such as webcams, microphones, touchscreens, printers, cameras, scanners, USB flash drives, keyboards, mice, etc., and supports gigabit switch cascade capabilities. Perfect solution for security monitoring, gaming, industrial control, professional audio-visual, smart medical and more.

  • Supports USB 2.0 High-Speed
  • Backwards compatible with USB 1.1 and 1.0 versions
  • Supports up to four USB 2.0 A devices to a single USB 2.0 A host
  • Compatible with Cat5e/6 network cables
  • Cat5e transmission up to 330ft/100m
  • Cat6/6A transmission up to 492ft/150m
  • Supports USB hub connection
  • Power supply only required at receiver end
  • Supports switch relay, distance increased through a switch
  • Supports hot-plugging of USB devices
  • Automatically identifies USB speed
  • Lightning protection, surge protection, and ESD protection
  • Plug and play
