FOUR NEW MATRIX MODELS. TWO RECEIVER OPTIONS.

All featuring 4k@60hz, 4:4:4 and HDR that work together to support various price points and functions,
such as scaling and audio matrixing. A benefit to dealers seeking targeted, handpicked and curated products for 4K installations.

Evolution by Vanco’s new line HDBaseT matrix switches and receivers offer an unparalleled solution for switching multiple sources to multiple displays using HDBaseT™ technology, with several features for control, audio, 4K HDR resolution, and scaling. The new line of matrices includes four new models all featuring 4K@60Hz, 4:4:4 and HDR and provides a variety of distribution products that work together to support various functions and price points, a benefit to distributors and dealers alike who are seeking targeted, handpicked, and curated products for 4K installations.

Commercial

Light Commercial

Residential

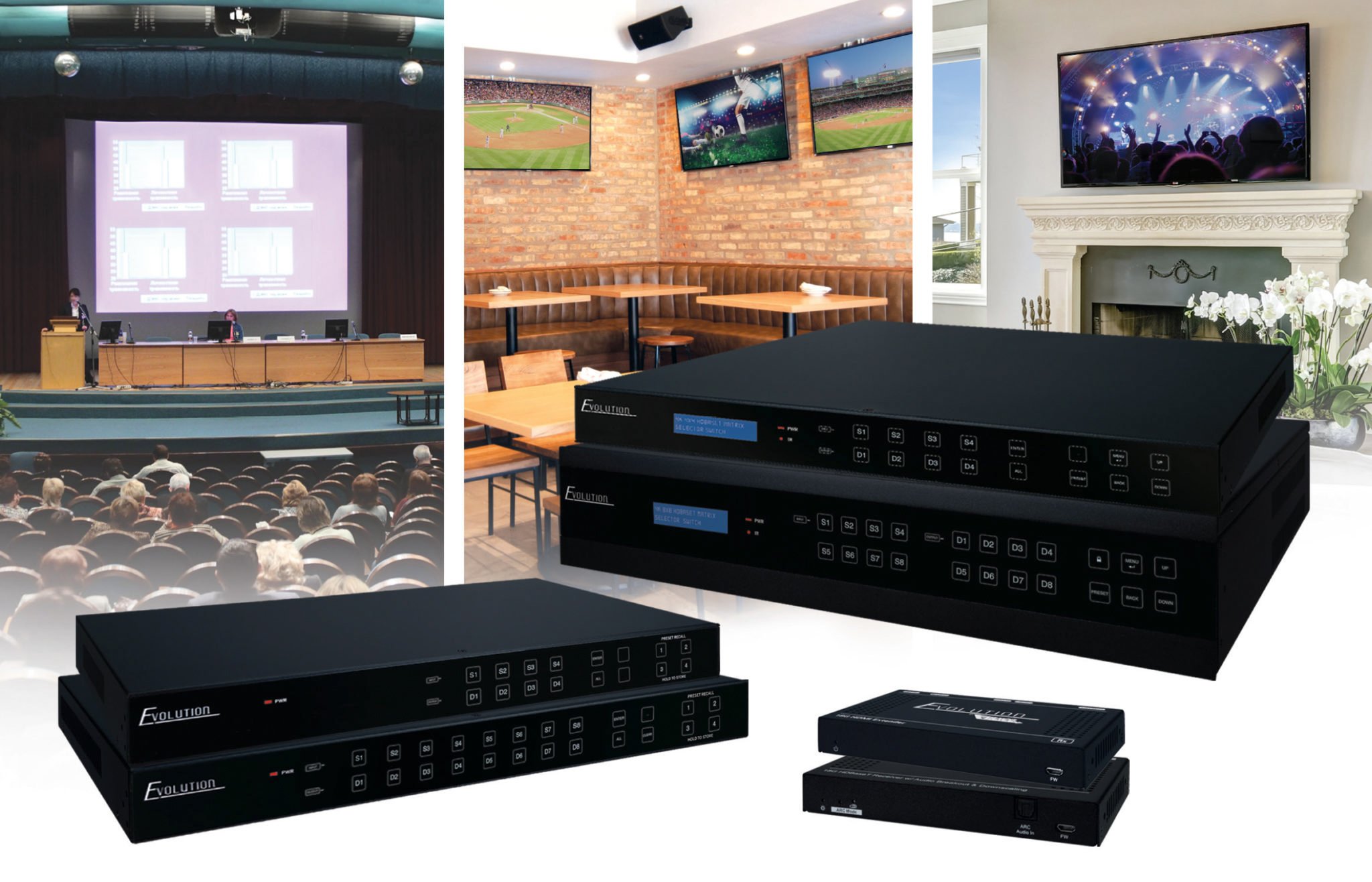

Evolution Matrix Family
Evolution Matrix Family

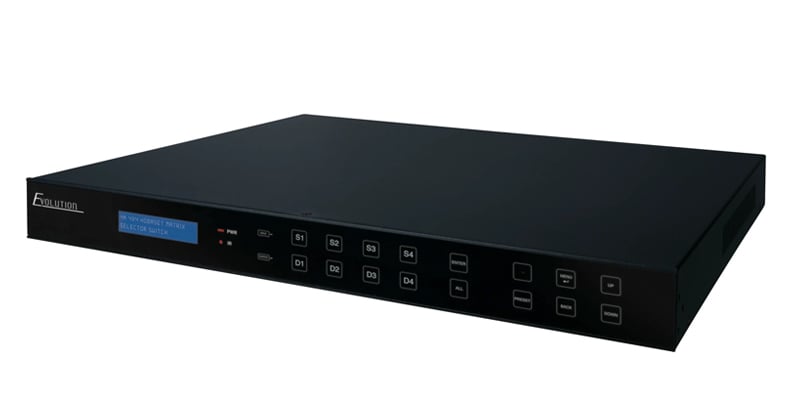

4K HDBaseT 4×4 Matrix with ARC, IR, IP and RS-232

Evolution Matrix Family

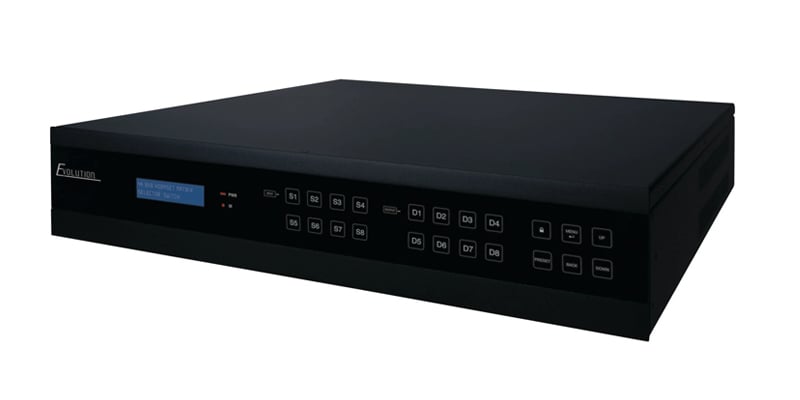

4K HDBaseT 8×8 Matrix with ARC, IR, IP and RS-232

Evolution Matrix Family

4K HDR HDBaseT Receiver with PoC, Downscaling, ARC, IR and RS-232

Evolution Matrix Family

4K HDBaseT 8×6 Matrix with 2 HDMI Outputs, IR, IP and RS-232

Evolution Matrix Family

4K HDBaseT 4×3 Matrix with HDMI Output, IR, IP and RS-232

Evolution Matrix Family

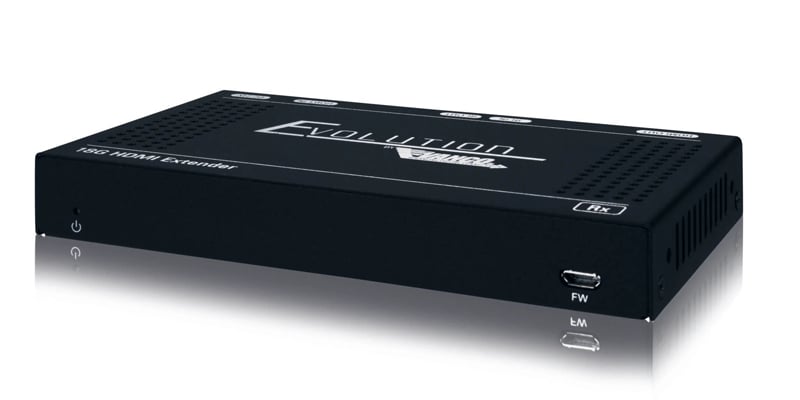

4K HDR HDBaseT Receiver with PoC and Bi-directional IR

4k Matrix Comparison

4K Matrix Comparison
Feature EVMX4X3/EVMX8X6 EVMX44PRO/EVMX88PRO Notes
HDBaseT transmission technology X X
4K/60Hz, 4:4:4 Resolution capability X X
HDR10 pass-through X X
Dolby Vision pass-through (HDMI outputs) X X
131ft/40m full resolution range X X
Downscaling 4K to 1080p on HDBaseT outputs X X
Mirrored HDMI outputs w/ downscaling X w/ EVRXDSC HDBaseT Receiver
Digital and Analog audio breakouts X X Limited to HDMI output(s) on EVMX4X3/EVMX8X6
Built-in audio matrix w/ digital and analog outputs for up to 8 zones X
ARC capable w/ HDMI pass-through or optical audio input X w/ EVRXDSC HDBaseT Receiver
IR pass-through X X
RS-232 pass-through X X
IP control with GUI X X
Compatible w/ EVRXHD2 and EVRXDSC HDBaseT Receivers X X

RX Comparison

RX Comparison
Feature EVRXHD2 EVRXDSC
HDBaseT transmission technology X X
4K/60Hz, 4:4:4 Resolution capability X X
HDR10 pass-through X X
131ft/40m full resolution range X X
Power over Cable (PoC) X X
Bi-directional IR pass-through for source and/or display control X X
RS-232 pass-through X
Downscales 4K to 1080p X
ARC capable w/ HDMI pass-through or optical audio input X
Digital optical audio breakout X
Compatible w/ EVMX4X3, EVMX8X6, EVMX44PRO, and EVMX88PRO matrix units X X
